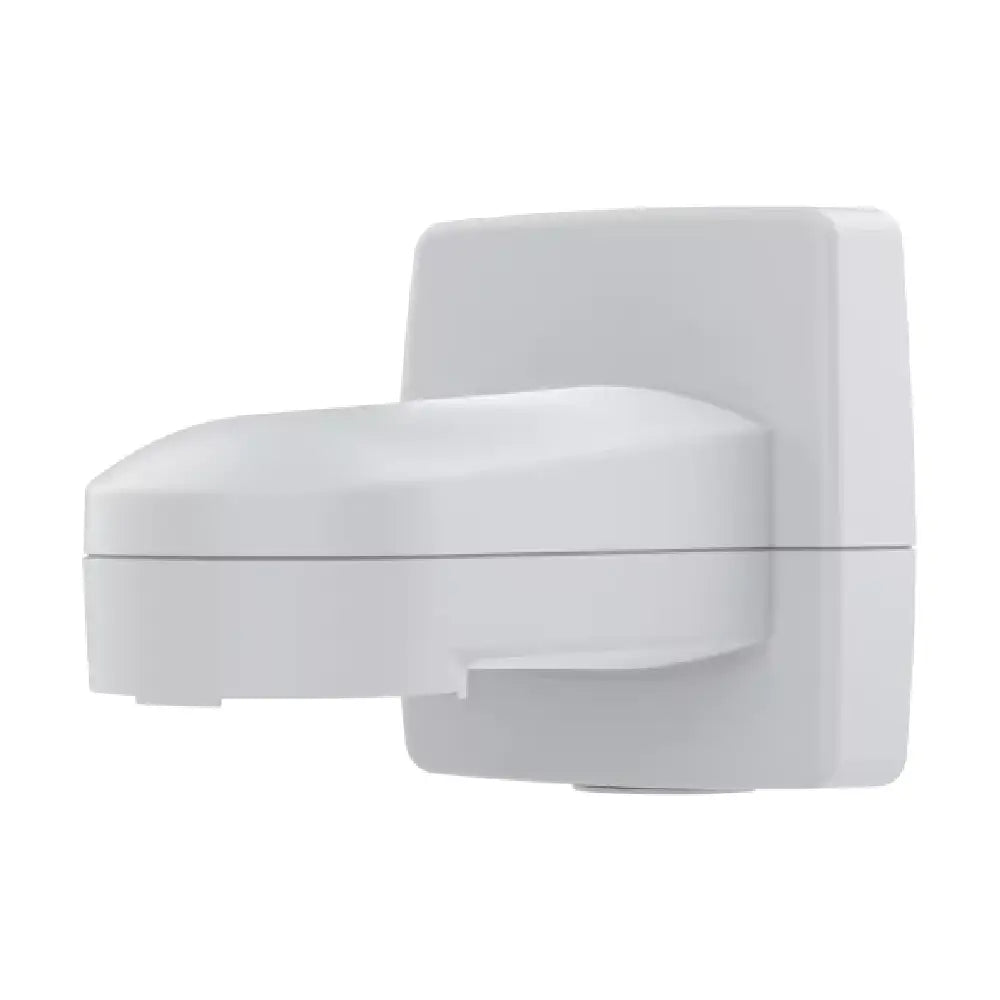

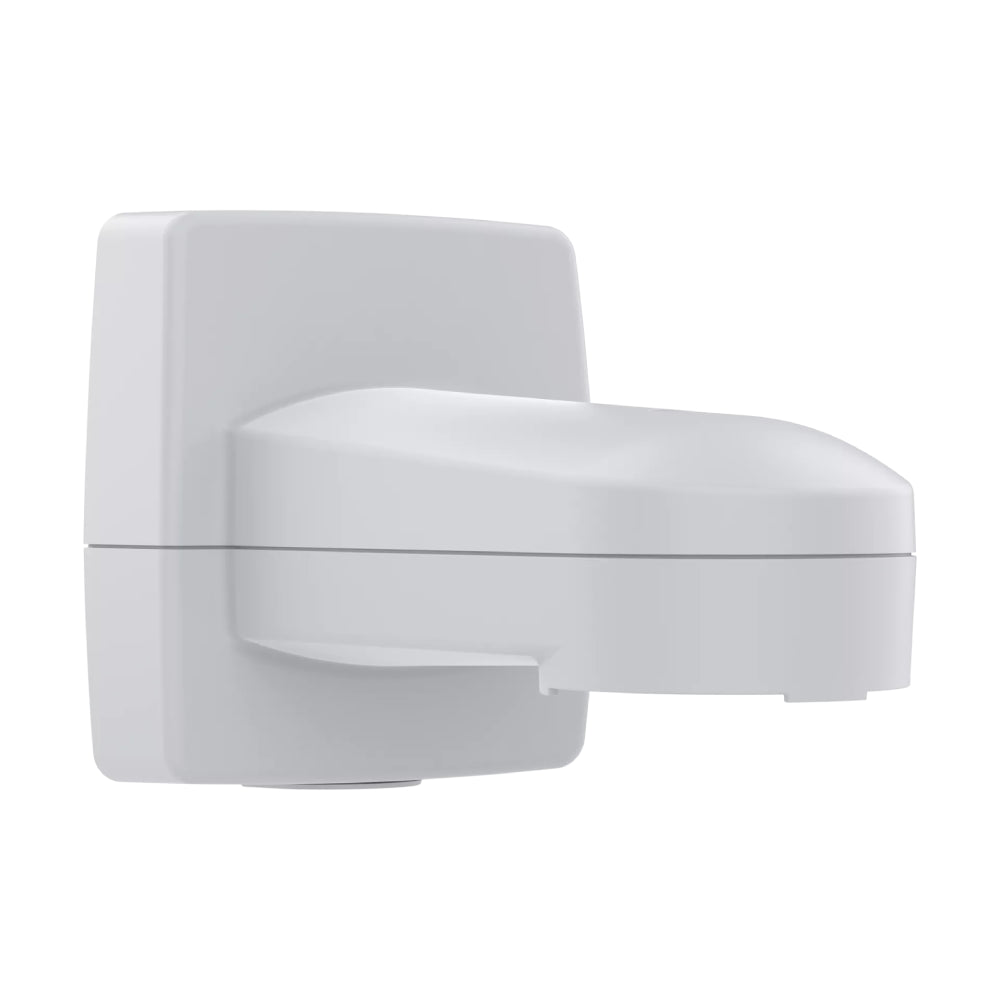

AXIS TQ5001-E · NDAA & TAA COMPLIANT
Ruggedized Mounting Excellence for Enterprise Surveillance
The AXIS TQ5001-E delivers an ultra-robust, commercial-grade mounting solution engineered specifically for high-performance AXIS PTZ and multi-sensor cameras. Built from impact-resistant, premium aluminum casing, this versatile mount simplifies high-density outdoor deployments. By integrating a reversible mounting bracket, field technicians can easily transition between wall-mounted facades and freestanding pole structures without purchasing separate brackets. It is the ultimate accessory for high-security environments, critical infrastructure, transport hubs, and public surveillance projects where structural integrity is non-negotiable.
System Integration

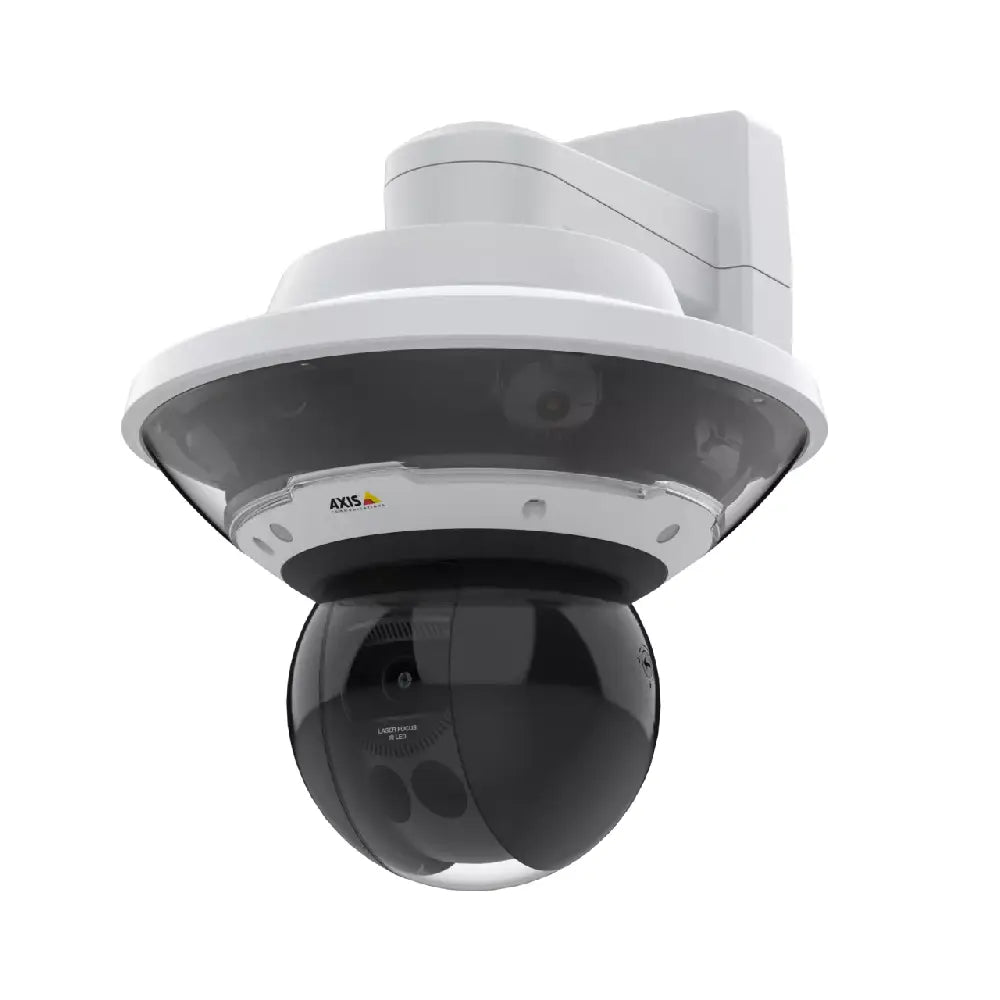

PTZ & Multi-Sensor
Optics Bracket
Reversible Wall/Pole
Weatherproofing
IP66 RJ45 Cable
Vandal Protection
IK10 Impact Rating
Advanced In-Field Termination & Seamless Installation
Engineered to mitigate common installation points of failure, the AXIS TQ5001-E Wall and Pole Mount features a dual-connection path using either an RJ45 connector or an insulation-displacement contact (IDC) terminal block. A pre-installed internal cable with an IP66-rated Ethernet coupler ensures a hermetic, moisture-free seal inside the camera assembly, preventing environmental decay and long-term signal loss. From sub-zero industrial environments to scorching coastal perimeters, this mounting system maintains structural load support up to 40 kg, preserving the stability required for advanced PTZ tracking and analytics.

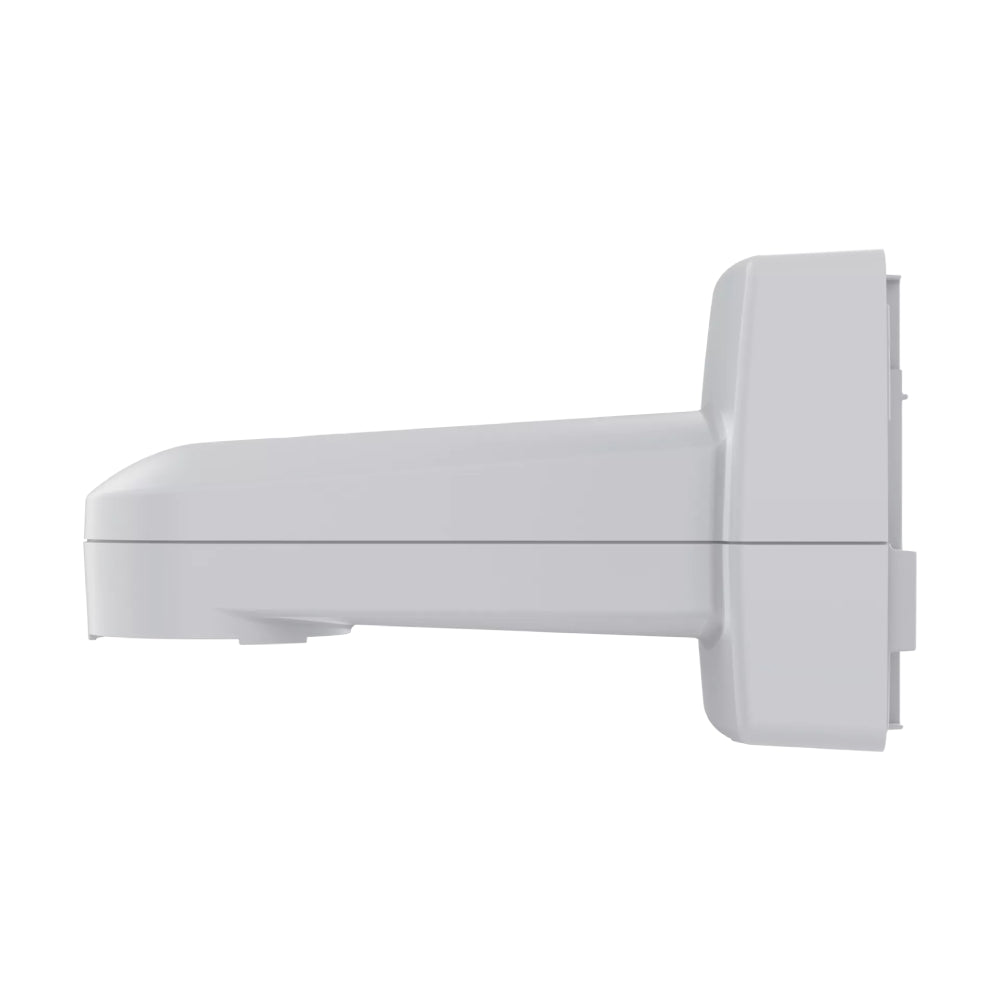

Dual-Purpose Reversible Chassis
Eliminate project planning complexity and reduce warehouse SKU overhead. A simple inversion of the primary bracket lets installers pivot from architectural flat-wall mounting to round-pole installation with marine-grade steel straps.
Military-Grade Environmental Protection
Boasting IK10 mechanical impact resistance, IP66 ingress sealing, and MIL-STD-810G salt spray compliance, the marine-ready powder-coated aluminum casing is built to withstand direct impacts and extreme corrosion forces.
Technical Specification Matrix
| Camera Mount Model |
AXIS TQ5001-E |
| Casing Material |
IP66-, NEMA 4X- and IK10-rated white powder-coated aluminum (NCS S 1002-B) |
| Compatible Series |
AXIS M5000, M55, P56, Q37, Q60, Q61, and Q63 Series PTZ & Multi-sensor cameras |
| Connectivity Options |
Output: IP66 RJ45 Ethernet (male) | Input: RJ45 Ethernet (female) & IDC (insulation-displacement contact) |
| Maximum Load Capacity |
40 kg (88.2 lb) |
| Operating Temperature |
-50 °C to 65 °C (-58 °F to 149 °F) | Humidity: 10–100% RH (non-condensing) |
| Weight & Dimensions |
1960 g (4.3 lb) | Profile: 291.8 mm x 175.4 mm (11.49" x 6.90") |
| Sourcing Compliance |
NDAA Compliant & TAA Compliant (GSA Approved) |
| Warranty |
AXIS 5-Year Comprehensive Warranty |
Is the AXIS TQ5001-E suitable for pole installation out of the box?
Yes, the bracket itself is reversible to accommodate poles. However, please note that you will need separate stainless steel pole straps (such as AXIS Steel Straps TX30) to firmly lash the assembly to structural columns.
What is the purpose of the IDC connection option?
The IDC (insulation-displacement contact) connector offers versatile wiring flexibility. Installers can easily punch down raw field Ethernet cables directly inside the bracket without having to crimp an RJ45 jack in restricted overhead environments.
Does this mount include environmental protection against rain and storms?
Absolutely. It features a built-in cable with an IP66-rated Ethernet connection collar. This forms an airtight and watertight seal when connected to compatible Axis network PTZ dome cameras.
Is this mount GSA schedule eligible and compliant with federal procurement?
Yes. The AXIS TQ5001-E is fully TAA and NDAA compliant, making it eligible for integration into US government buildings, military installations, and critical municipal network architectures.
