AXIS TP SERIES · NDAA & TAA COMPLIANT
Seamless Aesthetic Integration for Premium Fixed Dome Security

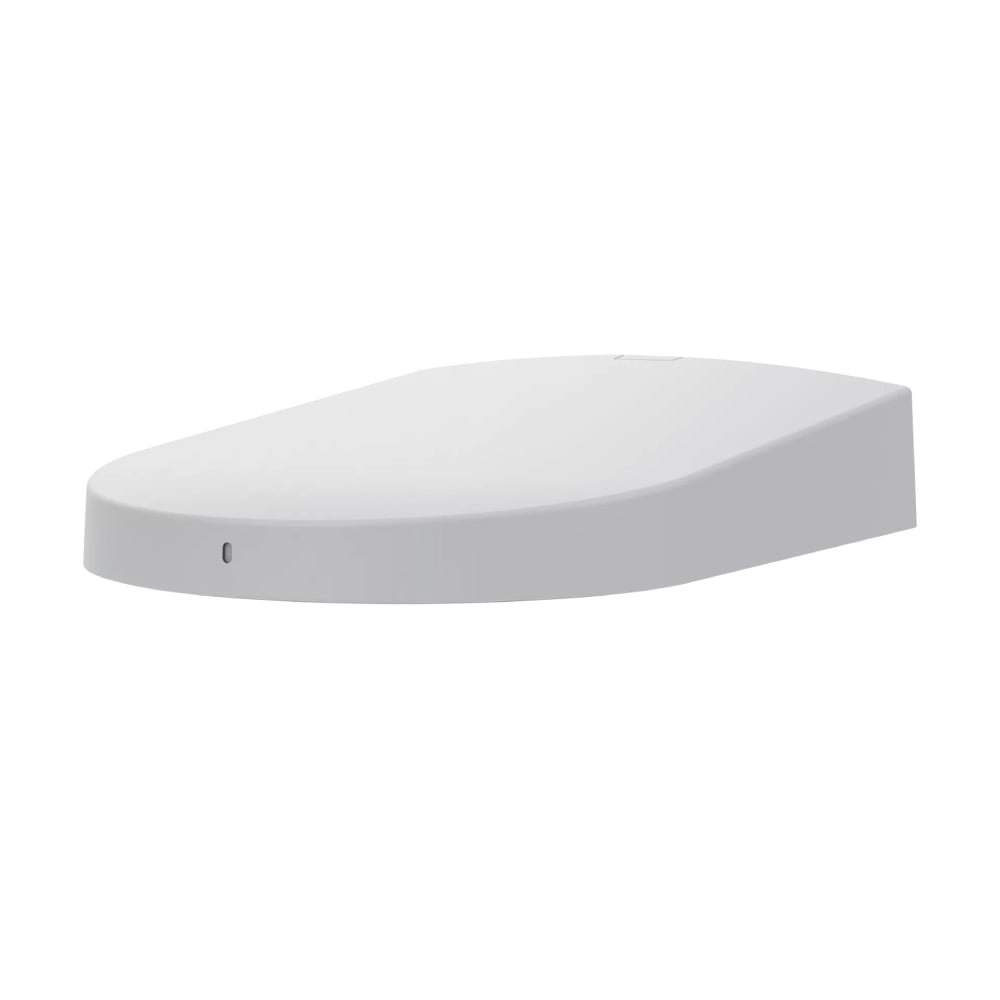

The AXIS TP3101 Pendant Wall Mount revolutionizes interior surveillance installations by delivering a clean, pendant-style configuration for premium indoor mini domes without requiring cumbersome, multi-piece pendant kits. Architecturally optimized for commercial high-density environments, retail storefronts, corporate receptions, and healthcare institutions, this mount features a professional contemporary design that effortlessly transforms security infrastructure into a cohesive element of your interior architecture. By enabling precise positioning, the mount maximizes the efficacy of advanced edge-based retail analytics like high-accuracy people counting and automated face recognition at critical access points.
Mounting Style
Pendant Wall/Ceiling
Optics Alignment
Multi-Directional
Target Placement
Retail & Entrances
Protection Rating
Concealed Anti-Tamper
Advanced Hardware Concealment & Integrated Connectivity
Engineered for high-security environments where visual presentation is paramount, the AXIS TP3101 Pendant Wall Mount eliminates unsightly external wiring infrastructure. The impact-resistant casing is completely paintable to seamlessly match proprietary interior design themes or corporate color schemes. Beyond its sleek aesthetics, the mount contains a spacious internal, ingress-protected accessory compartment designed to safeguard secondary connectivity hardware. System integrators can deploy auxiliary modules directly at the device endpoint—including audio interfaces, standalone microphones, deterrent LEDs, or PoE-over-Coax compact extenders—keeping the hardware secure, unified, and protected from physical tampering.
Concealed Cabling & Anti-Tamper Hardware
Features an innovative architecture that completely routes and hides cabling within the inner structure while fully masking mounting screws behind a snap-on cover. This minimizes physical vulnerabilities, limits tampering risks, and provides a polished, ultra-clean commercial aesthetic required for luxury retail, enterprise lobbies, and corporate offices.
Smart Compartment for Edge Accessories
The integrated internal service bay accommodates critical performance-expanding accessories directly at the camera node. Installers can seamlessly tuck away AXIS T61 Series audio/IO interfaces, high-fidelity microphones, AXIS deterrent LEDs, or coax migration modules without adding cluttered external equipment enclosures.
Technical Specification Matrix
| Camera Mount Model |
AXIS TP3101 |
| Supported Products |
AXIS M32 Series, AXIS P32 Series, AXIS M4308-PLE, M4317/M4318 Panoramic Series |
| Casing Material |
PC-ABS Blend Cover; Glass-Fibre Reinforced Polyamide Bottom Bracket |
| Color & Finish |
White NCS S 1002-B (Repaintable in any color) |
| Dimensions |
204 mm x 148 mm x 42 mm (8.0" x 5.8" x 1.7") |
| Weight |
228 g (0.50 lb) |
| Maximum Load Capacity |
3 kg (6.6 lbs) |
| Operating Environment |
Indoor Operational Range: -10 °C to 50 °C (14 °F to 122 °F) |
| Sustainability Compliance |
PVC-Free Construction, 22% Recycled Plastics |
Does the AXIS TP3101 require an additional pendant kit to mount dome cameras?
No. The AXIS TP3101 is explicitly designed to enable complete, clean pendant-style mounting natively for compatible AXIS dome cameras. This eliminates the need to source or configure separate pendant adapters, reducing hardware costs and installation complexity.
Can this mount be deployed on surfaces other than a standard vertical wall?
Yes. Due to its flexible design, it can be mounted directly on vertical walls, hard ceilings, desktops, or checkout countertops. It is also fully compatible with junction boxes when paired with the optional AXIS TP3701 J-Box & Pole Adapter accessory.
What accessories can safely fit inside the built-in storage compartment?
The integrated internal, ingress-protected space is designed to hold the AXIS T6101 Audio and I/O Interface, AXIS Device Microphone A or B, the AXIS I/O Indication LED deterrent device, or the AXIS T8643 PoE+ over Coax Compact unit.
Is the plastic casing safe to paint for custom commercial color matching?
Yes. The exterior cover is crafted from a high-quality, eco-friendly PC-ABS blend that can easily be repainted in any color to allow the finished installation to blend seamlessly with surrounding architecture.
