AXIS AUDIO · NDAA & TAA COMPLIANT
Professional Close-Range Voice Pickup for Critical Paging Environments

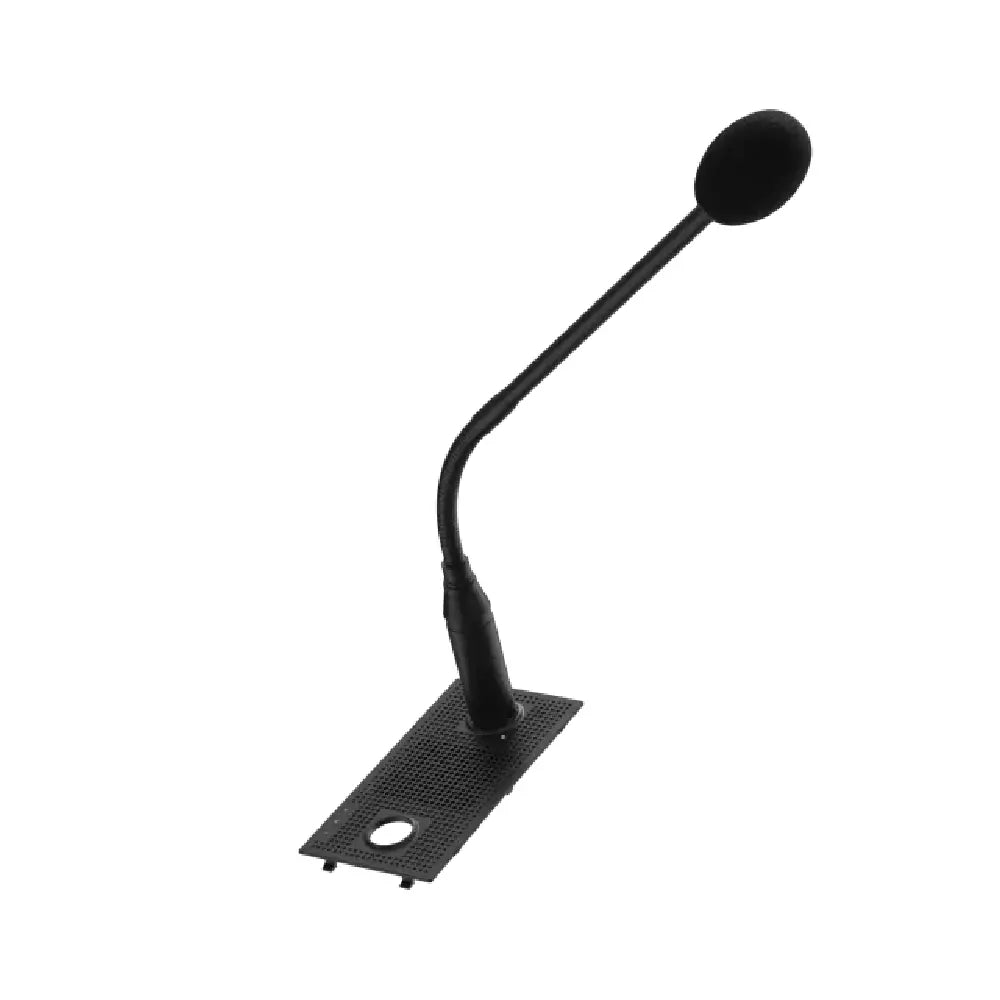

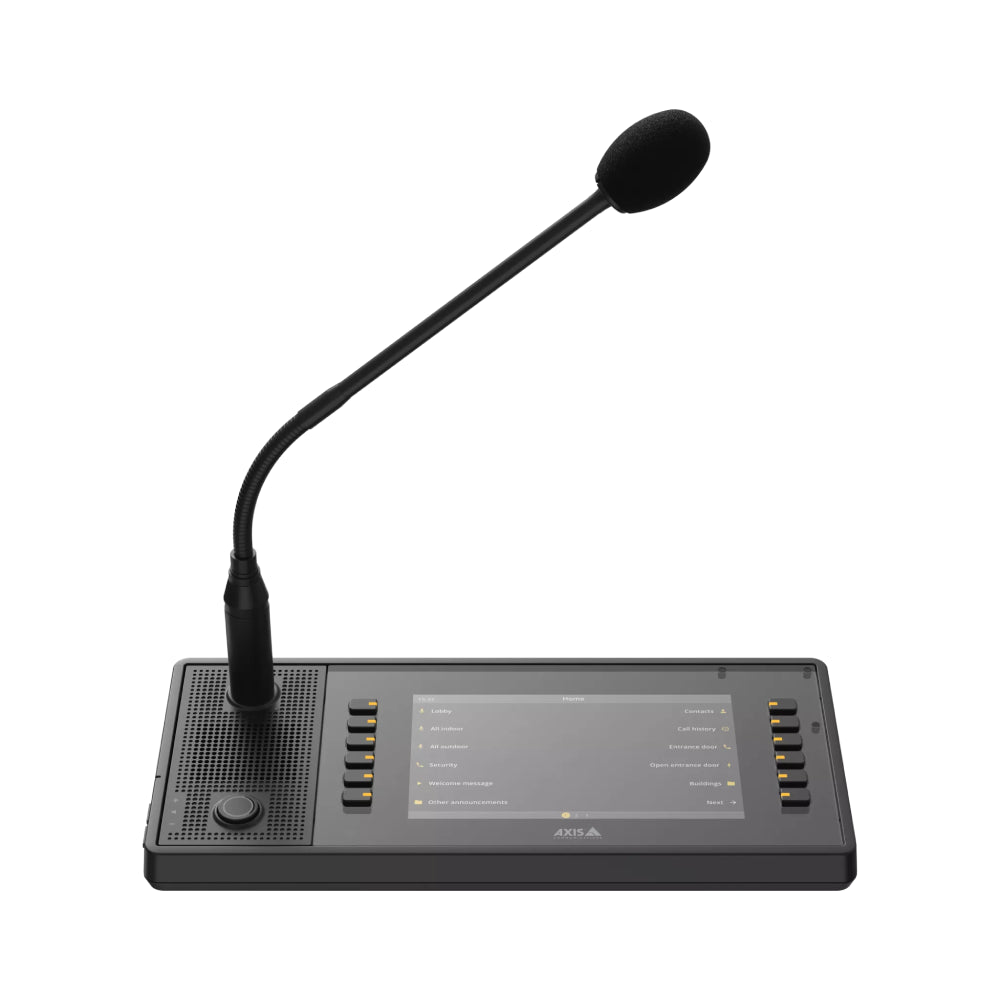

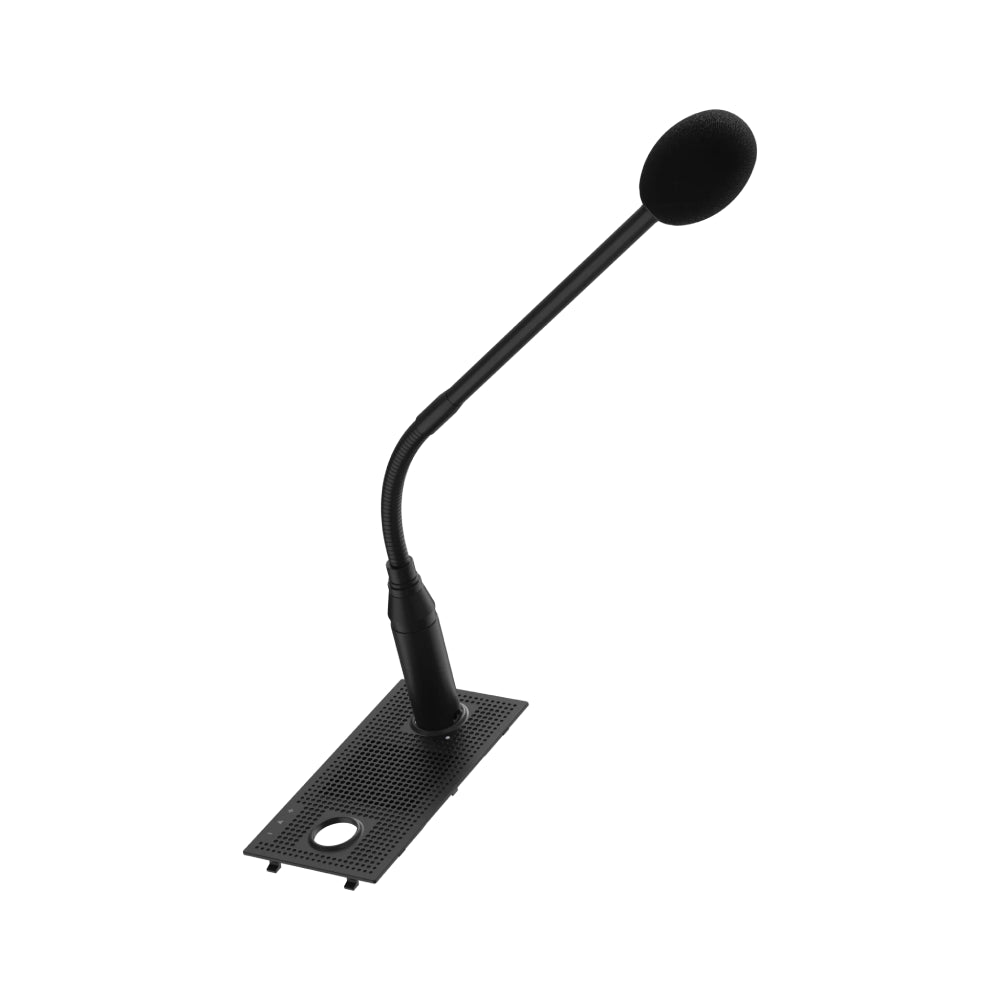

The AXIS TC6901 Gooseneck Microphone is an engineered audio solution purpose-built for commercial, industrial, and high-density operational centers. Explicitly designed to integrate seamlessly with the AXIS C6110 Network Paging Console, this premium accessory offers directional sound isolation when deployed in noisy operational environments like transport hubs, education centers, control rooms, and retail service desks. By capturing high-intelligibility speech at close range, it circumvents ambient background noise, ensuring critical announcements remain crystal clear.
Polar Pattern
Cardioid Directional
Frequency Profile
40 Hz – 16 kHz
Dynamic Range
100 dB Sensitivity
Climate Ready
-20 °C to 60 °C
Advanced Acoustic Engineering & Seamless Hardware Deployment
Beyond standard paging hardware, the microphone employs a premium electret condenser bias core with active balanced output capabilities, achieving an impressive 100 dB dynamic range. This allows operators to convey natural, uncompressed voice audio even during high-pressure alerts. To optimize deployment, explore how this hardware links into broad IP audio ecosystems via the axis-tc6901-gooseneck-microphone-ndaa-compliant infrastructure, utilizing standard XLR connection paths coupled with 11-48 V Phantom power options. Each unit ships as a complete kit incorporating a robust surface mount plate and a snap-fit foam windscreen to diminish plosives and environmental air currents.
Ergonomic Adjustability for Shared Desks
The highly flexible gooseneck mechanical chassis gives operators total control over physical positioning. Multi-user workstations, reception counters, and multi-shift security dispatch hubs can immediately adjust the capsule placement to align precisely with varying speaking heights, ensuring consistent audio capture metrics across teams.
Industrial Noise Suppression Architecture
Utilizing a hyper-precise cardioid acoustic directional pattern, the condenser capsule emphasizes the speaker directly in front of the lens while rejecting sound originating from peripheral areas. This eliminates echo feedback loops and ambient facility background clatter for elite transmission quality.
Technical Specification Matrix
| Camera Model |
AXIS TC6901 |
| Microphone Type |
Condenser (electret bias) |
| Polar Pattern |
Cardioid Directional |
| Frequency Response |
40 Hz – 16 kHz |
| Dynamic Range |
100 dB (at 1 kHz, 1 kΩ load) |
| Max SPL |
120 dB (1 kHz at 1% THD) |
| Power Interface |
11–48 V XLR Phantom Power (< 5 mA draw) |
| Physical Dimensions |
Length: 365 mm (14.4 in) / Weight: 72 g |
| Compliance & Security |
NDAA Compliant, TAA Certified, RoHS, CE |
Is the AXIS TC6901 compatible with standard network switches directly?
No, the AXIS TC6901 is an analog XLR accessory designed to connect directly into the specialized XLR interface slot on the AXIS C6110 Network Paging Console or compatible Axis hardware featuring 11-48 V Phantom power support.
What are the key benefits of using this over the paging console's built-in mic?
The gooseneck extension offers dedicated close-range voice pickup. It is highly recommended for busy, noisy, or echo-prone environments, as its proximity to the mouth captures clear speech before room ambiance disrupts it.
Does this device ship with required mounting plates?
Yes, each AXIS TC6901 is delivered as a comprehensive deployment kit that incorporates both the matching permanent mount plate and a snap-fit foam windscreen.
Is this hardware rated for cold or extreme ambient setups?
Yes. The microphone is designed for highly resilient long-term commercial operation, featuring a reliable working thermal window spanning from -20 °C up to 60 °C (-4 °F to 140 °F).
