AXIS T-SERIES · NDAA & TAA COMPLIANT
Industrial-Grade Structural Integration for Fixed Camera Housings

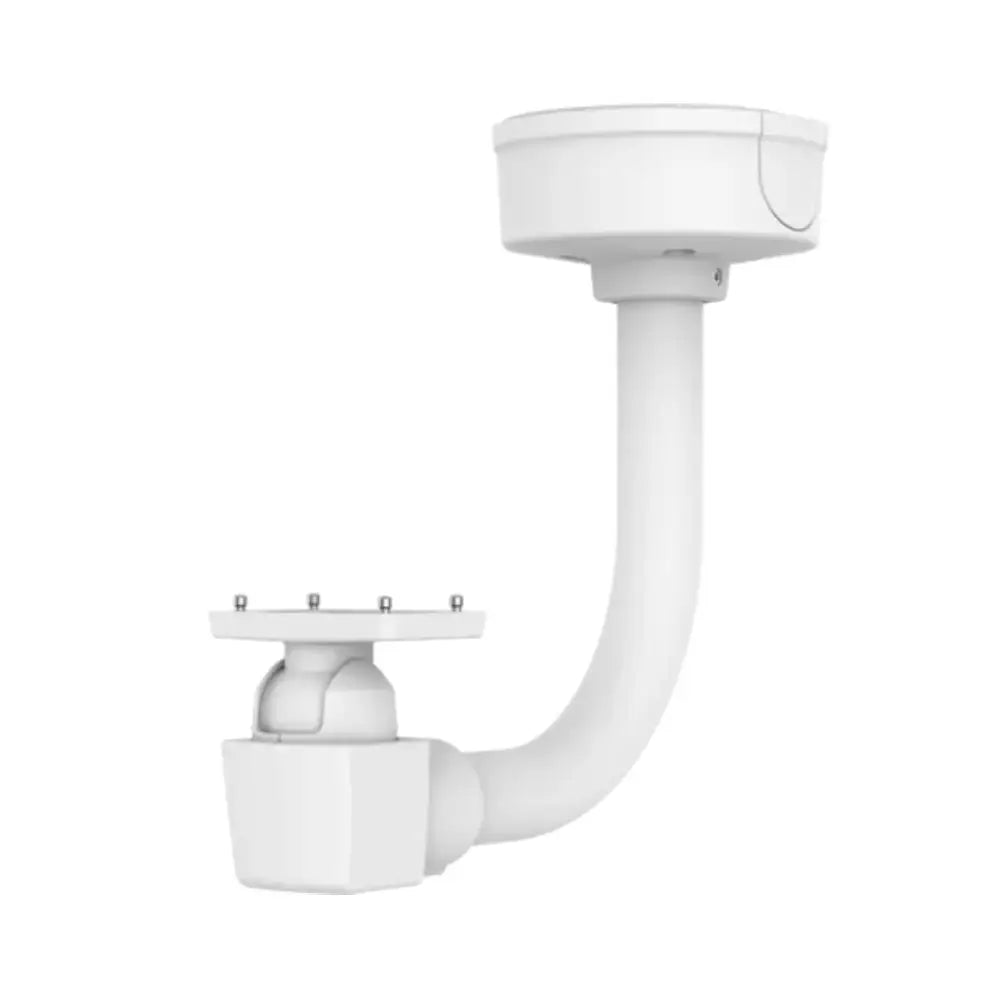

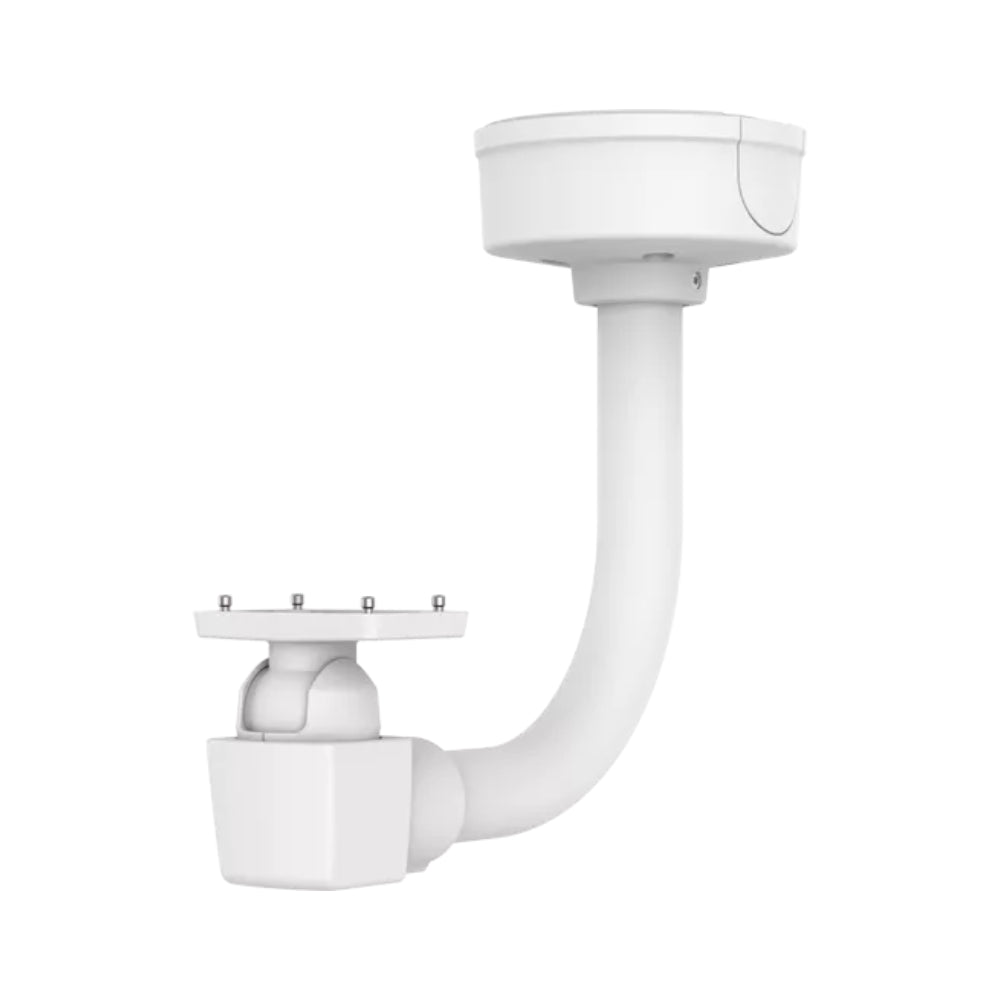

The AXIS T94Q01F Ceiling-and-Column Mount offers premier architectural flexibility for demanding commercial surveillance environments. Constructed from heavy-duty powder-coated aluminum, this mount supports critical infrastructure by adapting seamlessly to both ceiling/soffit overhead positions and column/parapet vertical terminations. Engineered to sustain stability across high-density logistics hubs, transit terminals, and exposed industrial facades, it provides a stable foundation that guarantees optimal camera positioning and clear video verification year after year.
Resolution
Fixed Housing Fit
Night Vision/PTZ
360° Manual Pan
Protection
IK10 & NEMA 4X
Advanced Protection and Streamlined Vandal-Resistant Engineering
Beyond its rugged physical presence, this system prioritizes internal security protocols through a completely enclosed cable management architecture. By routing data and power links directly through the internal aluminum pipe, critical connections are never exposed to severe weather elements or potential physical tampering. System operators can easily maintain alignment adjustments using the integrated flexible swivel arm mechanism. For high-tier enterprise compliance deployments requiring verifiable infrastructure, integrating the AXIS T94Q01F ensures full adherence to strict governmental facility regulations while ensuring compatibility across a vast range of AXIS outdoor-ready box camera series.
Vandal-Proof Impact & Environmental Resilience
Certified with strict IK10 impact and NEMA 4X environmental ratings, this mount provides structural security against deliberate physical strikes, windblown dust, high-pressure water jets, and corrosive salt air sprays, making it ideal for marine or heavy industrial sites.
Omnidirectional Adjustment Flexibility
The specialized mechanical arm design supports a comprehensive 360-degree rotation, +25 to -65 degree tilt ranges, and a wide mechanical pan configuration. This lets technicians fine-tune fields of view during complex, tight-angle perimeter installations.
Technical Specification Matrix
| Camera Mount Model |
AXIS T94Q01F |
| Material Construction |
Powder-coated aluminum casing (Color: White NCS S 1002-B) |
| Maximum Load Capacity |
5.0 kg (11.0 lbs) |
| Mechanical Adjustments |
Arm: 360° | Tilt: +25° to -65° | Pan: ±100° |
| Environmental Protection |
NEMA 4X-rated weatherproofing, IK10-rated impact resistance |
| Cable Routing Design |
Internal pipe routing with back cable hole and M25 3/4" side conduit entries |
| Supported Product Lines |
AXIS T92E/T93F Series, M11-E/P13-E/Q16-E/Q1775-E Network Cameras |
| Compliance & Certifications |
NDAA Compliant, TAA Compliant, IEC/EN/UL 60950-1, CE, REACH |
Is the AXIS T94Q01F mount fully compliant with federal procurement standards?
Yes. The AXIS T94Q01F is completely NDAA and TAA compliant, making it authorized for use in federal infrastructure, military installations, and highly secure commercial operational centers.
What housing series are directly compatible with this ceiling/column setup?
This mount is specifically engineered to hold standard fixed camera housings, including the AXIS T92E Series, AXIS T93F Series, and outdoor-ready box camera models like the M11-E, P13-E, Q16-E, and Q1775-E.
Does this mount include built-in conduit adapters for side cable routing?
The mount features integrated M25 3/4" side conduit entries. If side routing is required while maintaining full environmental seal integrity, standard AXIS ACI conduit adapters can be purchased separately.
How does internal cable management protect against localized vandalism?
Cables feed directly into the base mount and through the specialized internal structural cavity. This leaves no exposed external wiring that can be cut, pulled, or damaged by malicious actors.
