AXIS T91B51 · NDAA & TAA COMPLIANT
Resilient Low-Ceiling Surveillance Infrastructure

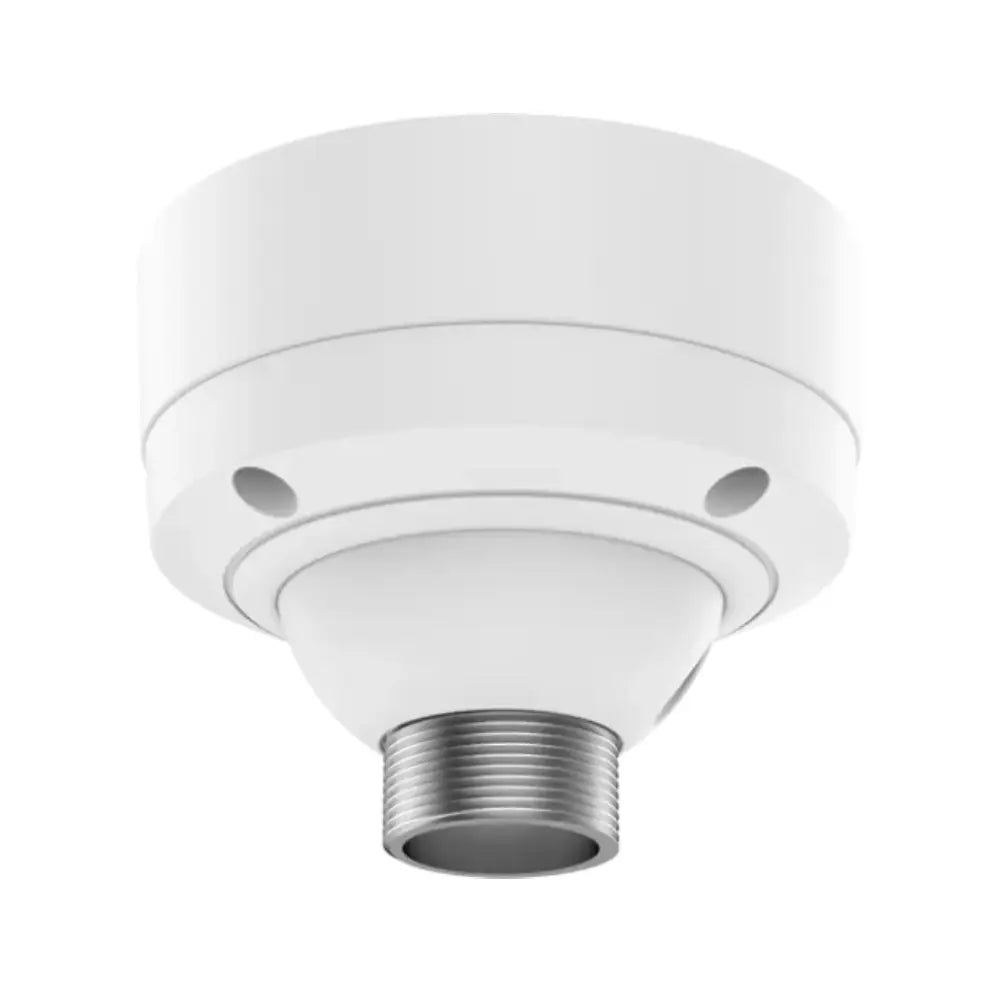

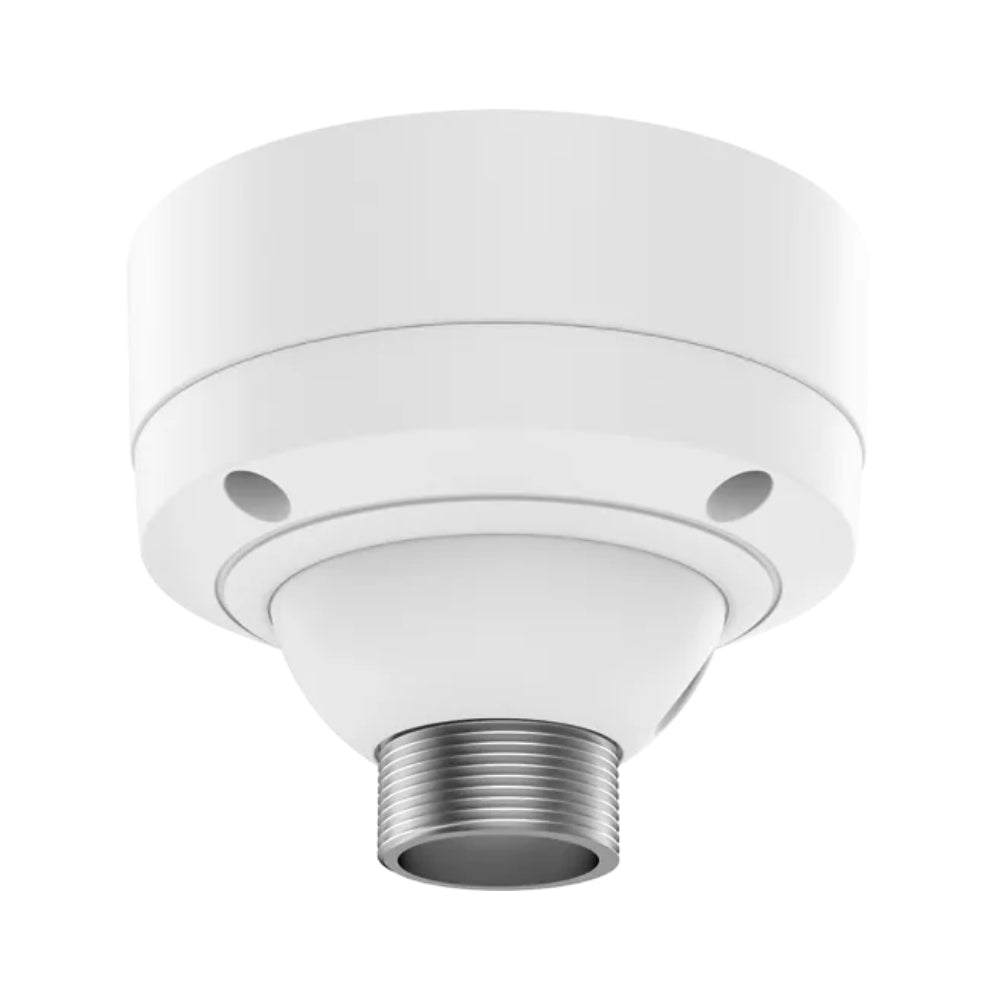

The AXIS T91B51 Ceiling Mount provides a high-density, ruggedized structural installation base optimized for low-clearance environments, commercial warehouses, loading docks, and roof overhangs. Designed to preserve hardware integrity, it effortlessly secures high-performance AXIS PTZ and fixed dome cameras close to the ceiling architecture to mitigate the risks of accidental physical contact in busy operational zones.
Mount Interface
1.5" NPS Thread
Swivel Action
±45° Pivot Angle
Load Capacity
10 kg (22 lbs)
Protection Rating
IK10 & NEMA 4X
Advanced Impact Mitigation & Sloped Ceiling Adaptability
Engineered to absorb severe structural forces without structural failure, the AXIS T91B51 incorporates an integrated ball-joint mechanism that allows the mount to swing dynamically if accidentally struck by forklifts, tall vehicles, or industrial equipment. This unique feature protects both the internal camera electronics and the building ceiling structure from costly permanent damage. Furthermore, its physical design ensures the camera remains completely straight and perpendicular when installed on sloped ceilings or uneven roof overhangs, neutralizing complex architectural constraints.
Safety Swivel Innovation
Rather than providing a rigid point of failure, the internal ball joint enables a controlled ±45° pivot path. If impacted by moving facility machinery, it safely yields and swings, instantly preventing catastrophic shear strain on hardware and mounts.
Extreme-Duty Corrosion Defense
Constructed from marine-grade powder-coated aluminum, the unit achieves official NEMA 4X and IK10 ratings. It provides rugged defense against high-energy physical impacts, salt spray, moisture, and extreme environmental deterioration.
Technical Specification Matrix
| Camera Model |
AXIS T91B51 |
| Part Number |
5507-461 |
| Thread Interface |
1.5" NPS thread standard |
| Maximum Mechanical Load |
10 kg (22 lbs) |
| Pivot Angle Bounds |
±45° dynamic deflection |
| Casing Material |
Powder-coated aluminum alloy |
| Impact Resistance |
IK10 Vandal-resistant certified |
| Environmental Resistance |
NEMA 4X corrosion-resistant |
| Dimensions & Weight |
Length: 104 mm (4 in) | Weight: 1.2 kg (2.6 lb) |
What exact cameras are natively supported by this mount?
The AXIS T91B51 natively supports all Axis PTZ dome cameras and outdoor models of Axis fixed domes that use a standard 1.5” NPS thread interface. Certain configurations require model-specific pendant kits.
Can the hanging length be extended for high-ceiling facilities?
Yes. If a longer drop profile is required for your setup, the base unit is fully compatible with optional AXIS T91B52 extension pipes available in 30 cm (12 in) and 100 cm (39 in) variations.
How does the swivel action mechanism prevent asset damage?
Instead of acting as a rigid bracket that breaks or warps when hit, the internal ball joint yields up to ±45 degrees under mechanical force. This prevents structural damage to the ceiling surface and minimizes shock to the camera.
Is this hardware rated for corrosive or maritime outdoor use?
Absolutely. With its premium powder-coated aluminum construction and NEMA 4X classification, this mount is fully protected against corrosion, extreme moisture, and industrial salt spray.
