AXIS T85 SERIES · NDAA & TAA COMPLIANT
Robust Outdoor Networking for Mission-Critical Surveillance

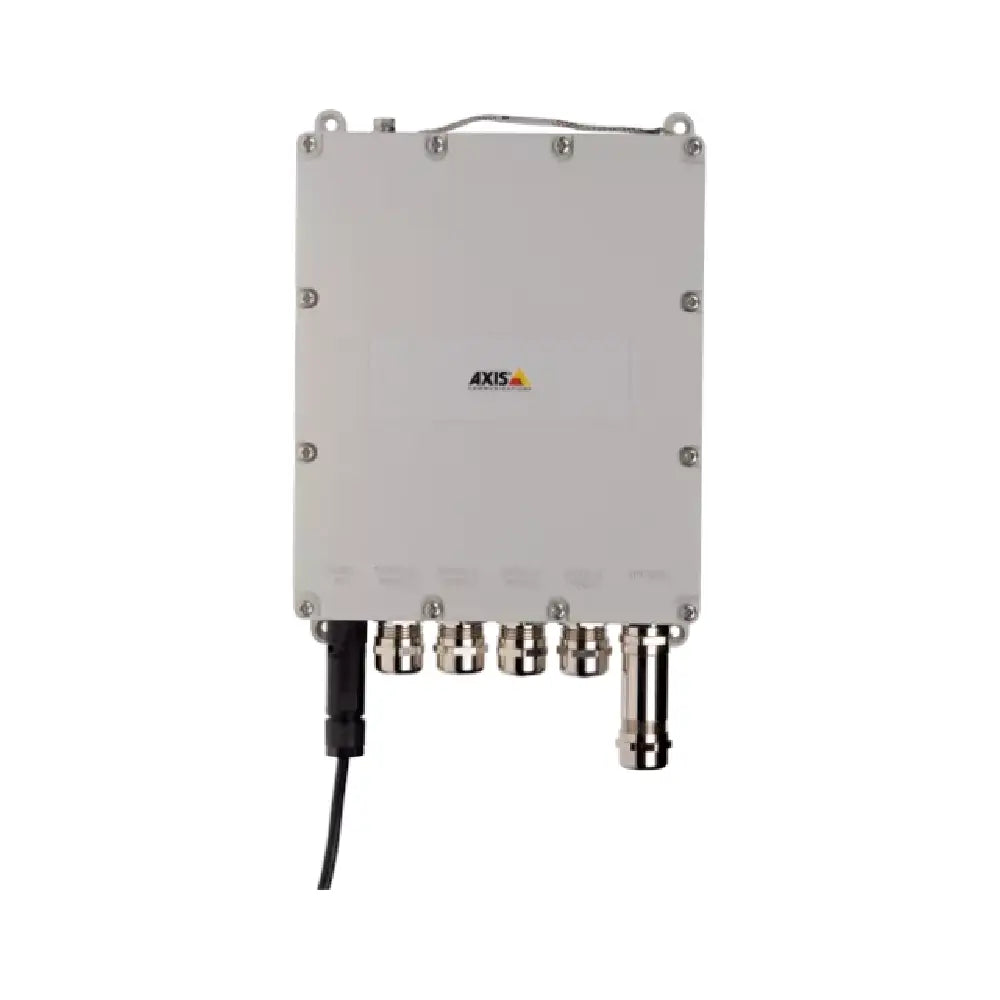

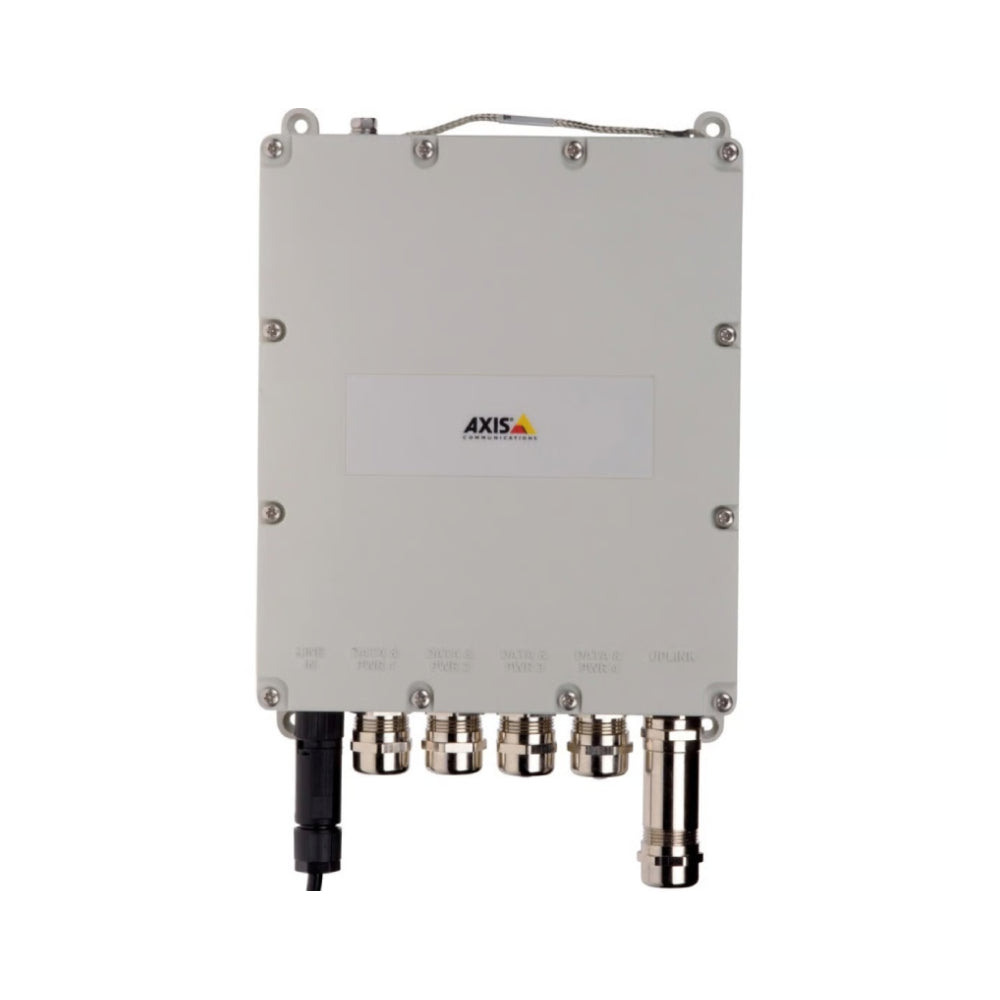

The AXIS T8504-E is an outdoor-ready, managed PoE+ network switch engineered to simplify the deployment and management of high-density surveillance networks. Perfect for challenging commercial environments, smart city monitoring, and critical infrastructure, this heavy-duty switch eliminates the need for external electrical enclosures. It provides reliable, high-power connectivity directly to your edge devices, ensuring continuous system uptime even in the most demanding physical locations.
PoE+ Delivery
4 Ports (150W Budget)
Optics & Uplink
1x SFP Fiber Slot
Climate Ready
IP67 & NEMA 4X
Surge Rating
Built-in 6 kV Protection
Intelligent Topology and Simplified Management
Managing an outdoor device matrix becomes effortlessly streamlined with the integrated graphic web interface. When expanding your footprint with the AXIS T8504-E, installers gain an absolute visual map of the entire network topology. This deep system insight offers advanced technical capabilities, such as automated camera discovery, port-level diagnostics, and remote power cycling. Seamless optimization within AXIS Camera Station guarantees that configuration, firmware updates, and troubleshooting are executed from a single pane of glass, dramatically reducing operational truck rolls.
All-Weather Hardened Integrity
Housed in an IP67, NEMA 4X, and IK10-rated vandal-resistant enclosure, this switch completely circumvents the cost and bulk of additional environmental housing. It operates flawlessly across extreme temperature standard variances from -40 °C to 50 °C, offering continuous operation under intense frost, heat, or heavy rainfall.
Long-Distance Fiber Connectivity
Equipped with an independent SFP fiber slot alongside its standard data and PoE+ ports, the switch accommodates high-speed fiber backhaul connections. This is highly valuable for perimeter security layouts and large industrial facilities where network runs exceed standard Ethernet distance limitations.
Technical Specification Matrix
| Network Switch Model |
AXIS T8504-E |
| Interfaces |
4x RJ45 10/100/1000 Base-T PoE+, 1x RJ45 Data, 1x SFP Port |
| PoE Power Budget |
Total 150 W (Up to 30 W per port) |
| Environmental Rating |
IP67, NEMA 4X, IK10 Vandal-Resistant Enclosure |
| Surge Protection |
Built-in up to 6 kV surge protection on all ports |
| Operating Conditions |
-40 °C to 50 °C (-40 °F to 122 °F) |
| Dimensions |
240 mm x 166 mm x 72 mm (9.5 in x 6.5 in x 2.8 in) |
Does the AXIS T8504-E require an additional weather cabinet?
No. Thanks to its robust IP67, NEMA 4X, and IK10 industrial ratings, this switch is fully sealed against rain, dust, ice, and dynamic impact, allowing for direct outdoor installation on walls or utility poles.
Can I manage non-AXIS devices through the interface?
Yes. The switch features a full web interface for standard network configuration. However, enhanced features like dynamic topology maps and deep camera discovery are uniquely optimized for native AXIS devices and software.
What happens if a connected camera stops responding?
Because the switch features managed PoE infrastructure, administrators can remotely log into the graphical user interface to cycle the power of an individual port, instantly rebooting the camera without visiting the hardware site.
Is this device compliant with federal infrastructure standards?
Absolutely. The AXIS T8504-E is completely NDAA and TAA compliant, conforming strictly with United States federal government procurement regulations and safety architectures.
