AXIS Q16 SERIES · NDAA & TAA COMPLIANT
Elite surveillance performance with integrated edge intelligence

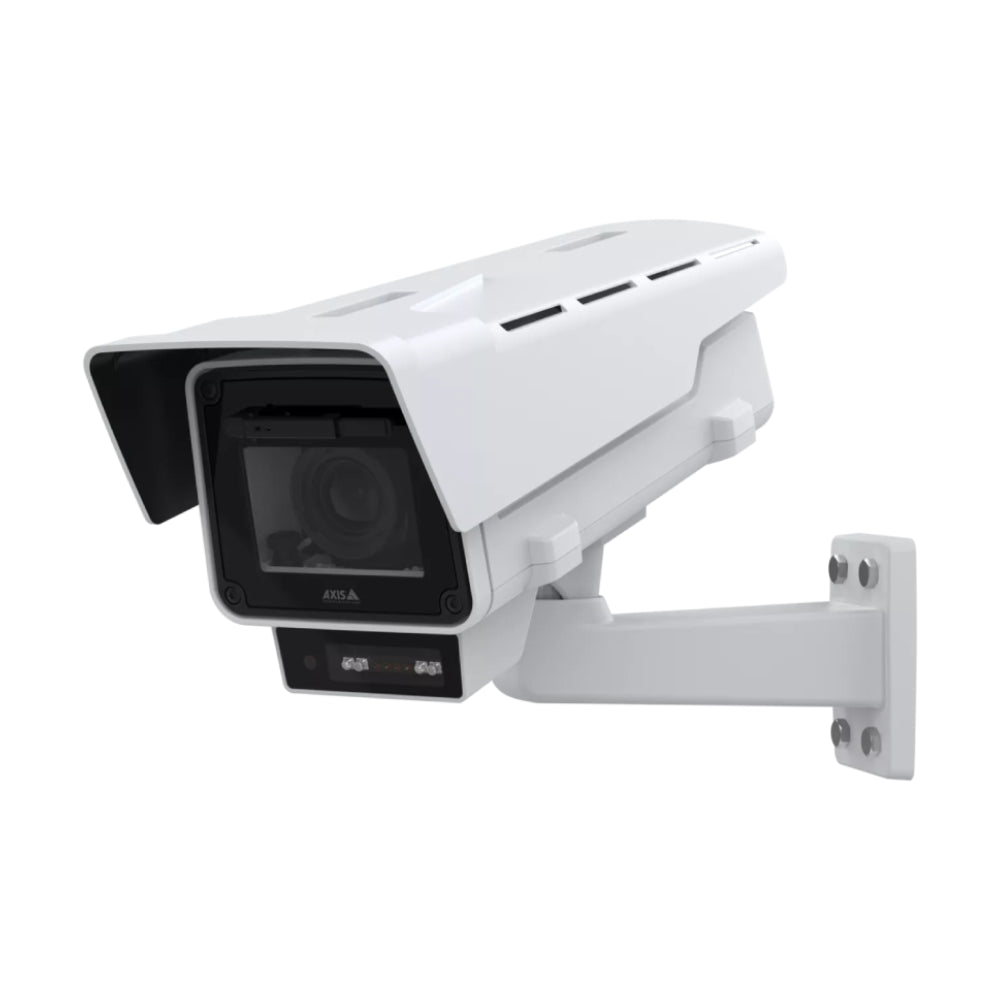

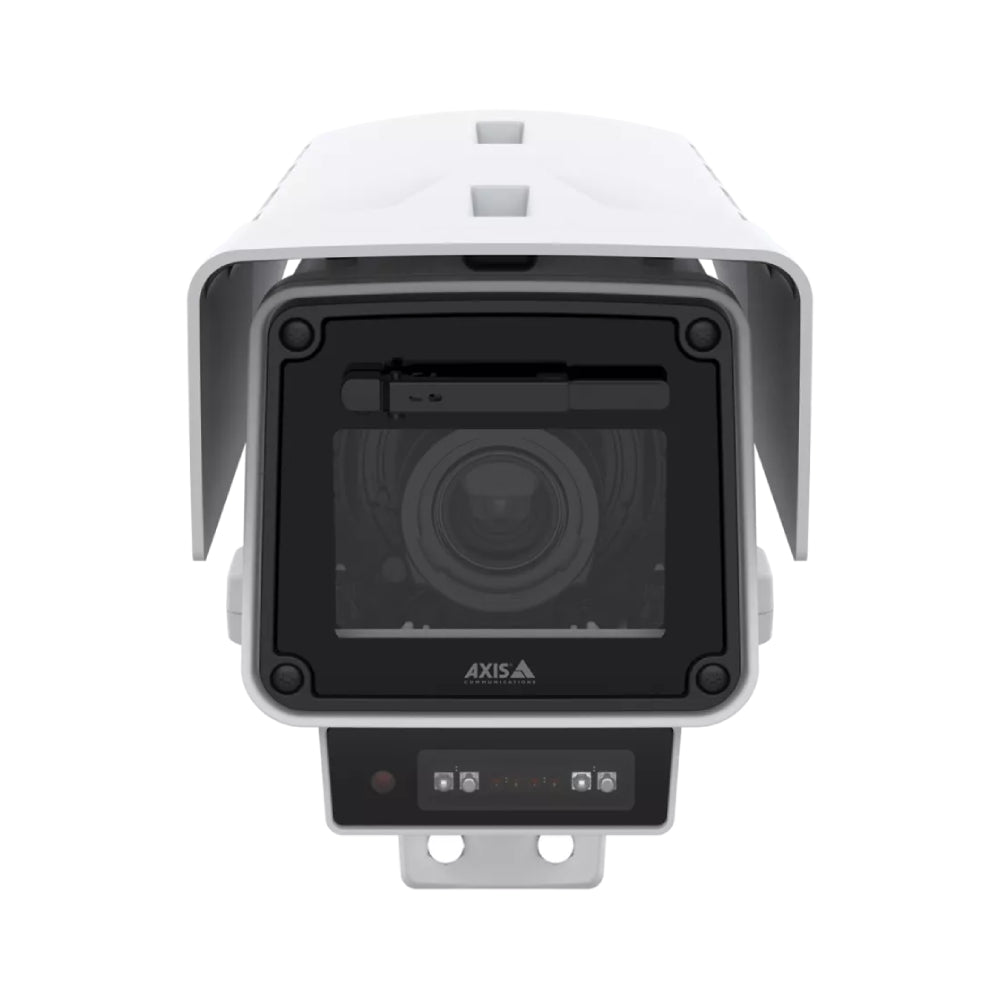

The AXIS Q1656-LE is a top-tier box camera that defines the benchmark for professional outdoor security. Built on the revolutionary ARTPEC-8 system-on-chip, this premium security asset delivers incredible 4 MP resolution at up to 60 frames per second. Its massive 1/1.8" optical sensor ensures unparalleled detail in high-density areas, commercial properties, and critical infrastructure sectors. Designed to operate flawlessly in any environment, its integrated physical wiper clears away rain, dust, and snow, guaranteeing clean forensic footprints around the clock.
Night Vision
OptimizedIR 40m
Climate Ready
IP66 & Wiper
Sophisticated processing and military-grade cybersecurity at the edge
Beyond capturing crisp visual data, the AXIS Q1656-LE functions as a powerful computational edge node. Armed with Axis Lightfinder 2.0 and Forensic WDR, it reproduces lifelike color profiles in near-pitch darkness and preserves critical highlights in high-contrast environments. The custom-designed hardware features AXIS Edge Vault, a cybersecurity safeguard that secures your camera's unique identity, protects cryptographic keys, and prevents unauthorized software execution.
Deep Learning processing unit (DLPU)
By executing calculations directly on the camera hardware rather than on a remote server, the built-in deep learning engine reduces system bandwidth, lowers storage requirements, and provides lightning-fast object classification with minimal false alarms.

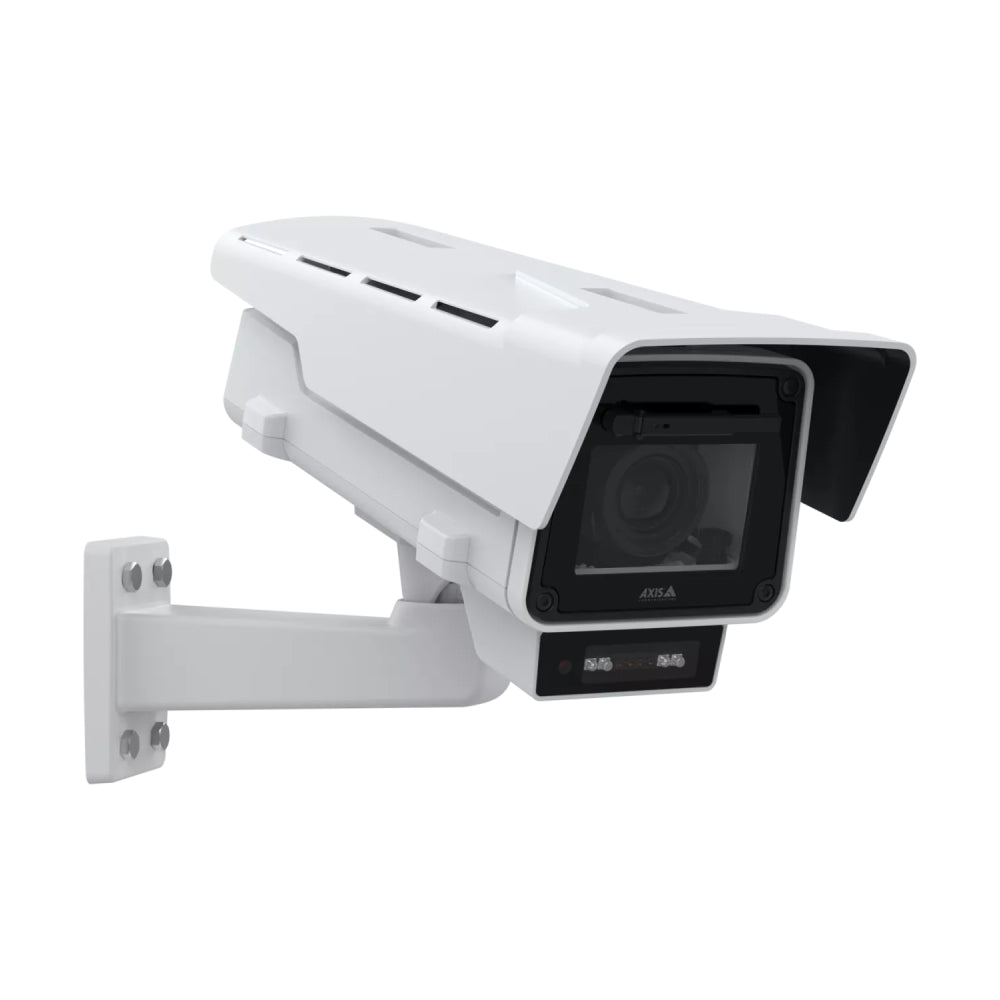

Integrated motorized lens wiper
Never let rain, mud, or frost compromise your operations. The remote-controlled motorized wiper ensures your field of view remains pristine during heavy storms, significantly lowering overall maintenance costs and physical inspection routines.
Technical Specification Matrix
| Camera Model |
AXIS Q1656-LE |
| Image Sensor |
1/1.8” progressive scan RGB CMOS |
| Video Compression |
H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG |
| Frame Rate & Resolution |
Up to 2688 x 1512 (4 MP) at 60 frames per second |
| Minimum Illumination |
Color: 0.05 lux (F1.2), B/W: 0.01 lux (F1.2) or 0 lux with OptimizedIR active |
| Security Protocols |
AXIS Edge Vault, Signed Firmware, Secure Boot, IEEE 802.1X, HTTPS encryption |
| Environmental Ratings |
IP66, NEMA 250 Type 4X, IK10 impact resistance, MIL-STD-810H rated |
| Power over Ethernet |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4, max 25.5W |
Frequently Asked Questions
Is the AXIS Q1656-LE NDAA and TAA compliant?
Yes, this camera is fully compliant with the National Defense Authorization Act (NDAA) and the Trade Agreements Act (TAA), making it approved for deployment on US federal government installations and highly secure corporate facilities.
How does the built-in wiper work?
The integrated wiper is designed to physically clear water, snow, and light dirt off the front glass. It can be activated manually via the web interface or automated through event triggers based on environmental conditions or schedules.
What is the maximum night vision distance of this camera?
Using its built-in OptimizedIR power-efficient LEDs, the AXIS Q1656-LE can illuminate objects clearly up to 40 meters (approximately 131 feet) away in total darkness, adapting to the lens zoom angle automatically.
Does this camera support local storage recording?
Yes, it has a high-performance microSD/microSDHC/microSDXC card slot that supports edge storage encryption, ensuring your data is backed up safely even if your main network connection drops.
