AXIS D-SERIES · NDAA & TAA COMPLIANT
Active Visual & Audio Deterrence for Enterprise Environments

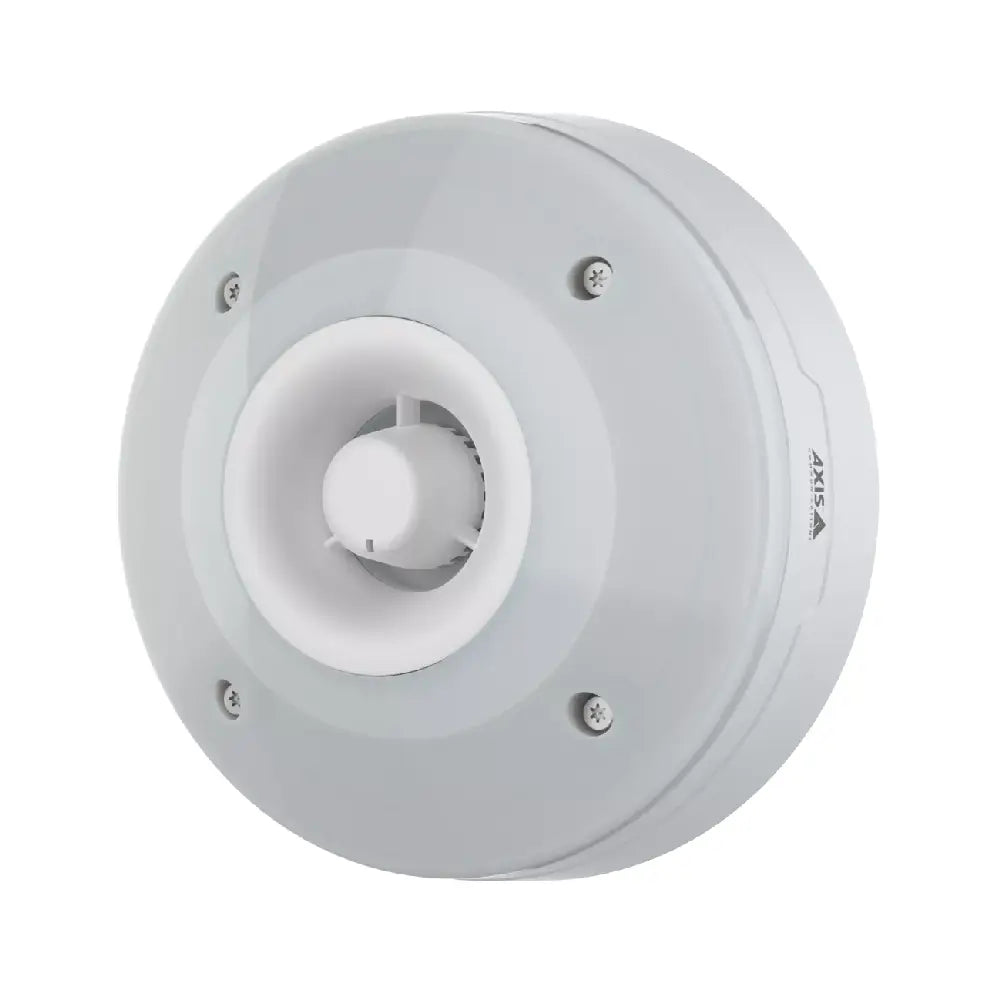

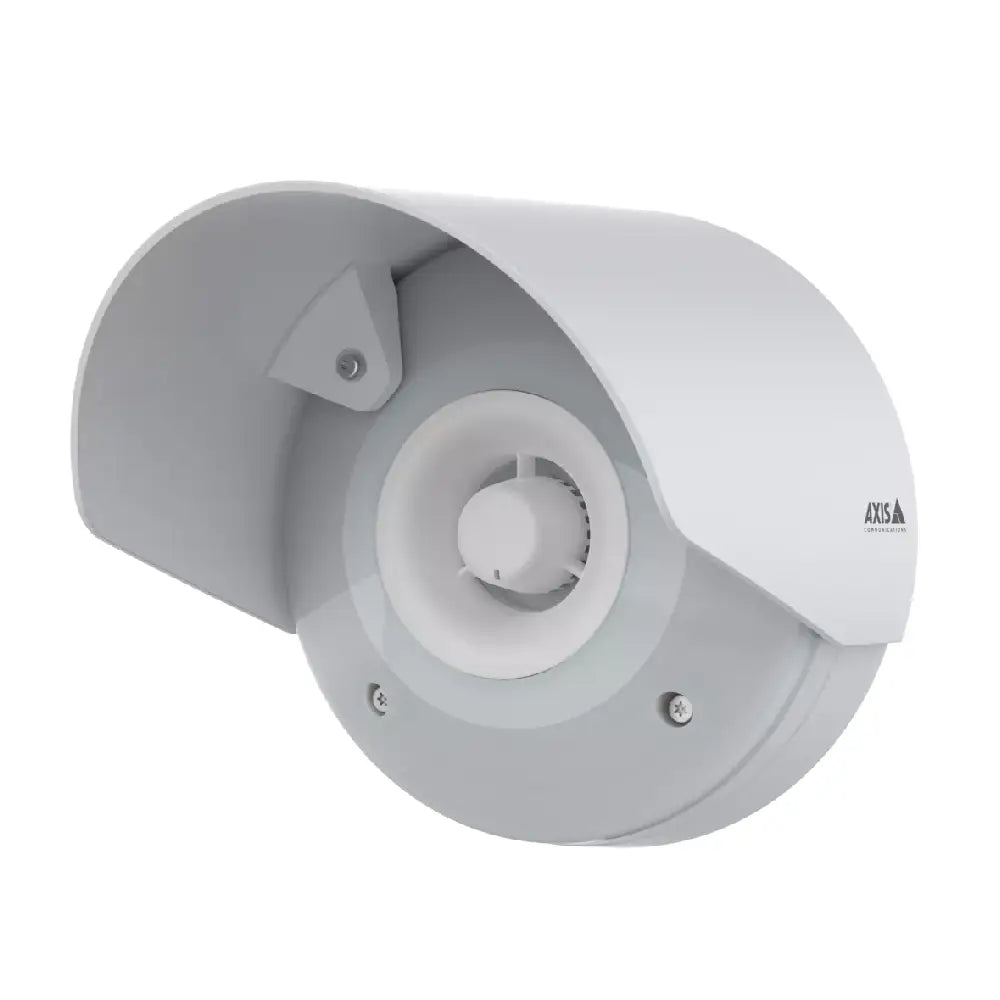

The AXIS D4100-VE Mk II is an advanced, fully networked IP-based strobe siren designed to deliver high-impact warnings and notifications across your premises. Combining automated multicolored RGBA light patterns with a highly penetrating 110 dB audible alarm, this next-generation alert system bridges the gap between passive surveillance and active deterrence. Built for harsh environments, it serves as an essential deployment component for commercial perimeters, high-density parking facilities, warehouse bays, and critical infrastructure requiring immediate localized response protocols.
Audio Output
110 dB Alert Siren
Visual Optics
RGBA & White LEDs
Integration
MQTT, SIP & VAPIX
Protection
IP66 / IK10 Outdoor
Smarter Edge Logic & Seamless Unified Integration
Equipped with an upgraded processing architecture and fortified with advanced hardware-level cybersecurity through Axis Edge Vault, the AXIS D4100-VE Mk II ensures mission-critical communication resilience. With deep integration protocols—including native support for VAPIX®, MQTT, and Session Initiation Protocol (SIP) for VoIP systems—this device links intuitively with license plate recognition (LPR) cameras, perimeter thermal sensors, and Axis network speakers. Security teams can establish up to 30 custom priority profiles, allowing silent strobe alerts for healthcare settings or overriding, maximum-volume flash sequences for immediate intrusion response.
Customizable Multi-Tiered Signaling
Configure tailored operational profiles based on specific threat severities. Utilizing specialized white and RGBA LED light patterns alongside flexible sound frequencies, the unit handles everything from standard warehouse loading bay clearance updates to perimeter breaching alarms.
Cost-Efficient PoE Infrastructure
By blending high-intensity strobe notification lights and a powerful siren into a single IP-addressable unit, infrastructure and installation costs are cut in half. Power over Ethernet (PoE) ensures swift single-cable connectivity without needing separate local power drops.
Technical Specification Matrix
| Camera Model |
AXIS D4100-VE Mk II |
| Visual Illumination |
Red, green, blue, amber (RGBA) LEDs & White LEDs (up to 893 lm) |
| Maximum Sound Level |
110 dB at 1 meter (3.4 kHz frequency peak) |
| Network API Protocols |
VAPIX®, MQTT, SIP (VoIP), ACAP |
| Cybersecurity Hardware |
Axis Edge Vault, Secure Keystore (CC EAL6+), Secure Boot |
| Physical Casing |
IP66-, NEMA 4X-, and IK10-rated aluminum & plastic casing |
| Power Input |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 (Max 22.6 W) |
| Operating Range |
-40 °C to 60 °C (-40 °F to 140 °F) |
Can the strobe flash without triggering the siren?
Yes. Through the profile configuration tools, you can isolate visual patterns (RGBA or white light) completely from audio actions. This allows discreet notifications or safety signaling inside hospitals, cleanrooms, or patient areas.
How does it integrate with automated network video systems?
The device leverages native VAPIX® and MQTT protocols to link directly with IP cameras running motion tracking or analytical barriers (e.g., AXIS Perimeter Defender) to activate sirens immediately upon a breach event.
Is the sound level adjustable for localized operations?
Yes. While it features a maximum output capability of 110 dB at 1 meter for outdoor environments, audio thresholds and specific pre-configured tones can be customized based on structural boundaries.
What cybersecurity frameworks protect this unit?
It includes the embedded Axis Edge Vault platform, which secures the hardware system-on-chip, implements secure boots, and relies on a dedicated cryptographic keystore (CC EAL6+) to prevent unauthorized system injection.
