AXIS D SERIES · NDAA & TAA COMPLIANT
Professional 4K Video Decoding Without the Complexity of a PC

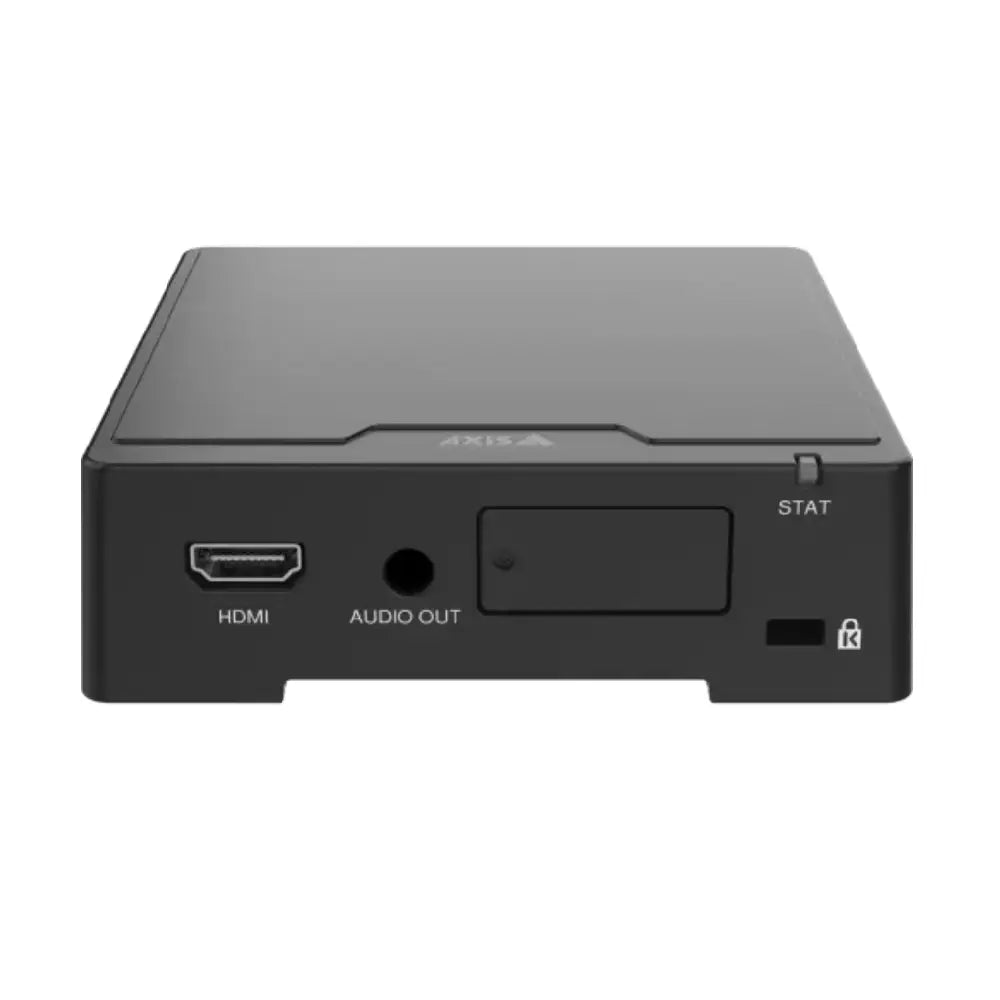

The AXIS D1110 is a high-performance, cost-effective video decoder designed to display crisp live video without the overhead, maintenance, or security vulnerabilities of a dedicated computer setup. Perfectly engineered for public view monitors (PVMs), control rooms, and commercial retail environments, this standalone device decodes streams up to 4K Ultra HD resolution. Its ultra-compact micro-form factor allows it to be discreetly mounted behind monitors or within tight enclosures, providing an exceptionally reliable and low-maintenance digital signage or live surveillance viewing solution.
Resolution
4K UHD @ 30fps
Optics / Output
HDMI & Audio
Multi-View
Up to 8 Streams
Cybersecurity
Axis Edge Vault
Enterprise Versatility and Seamless VMS System Integration

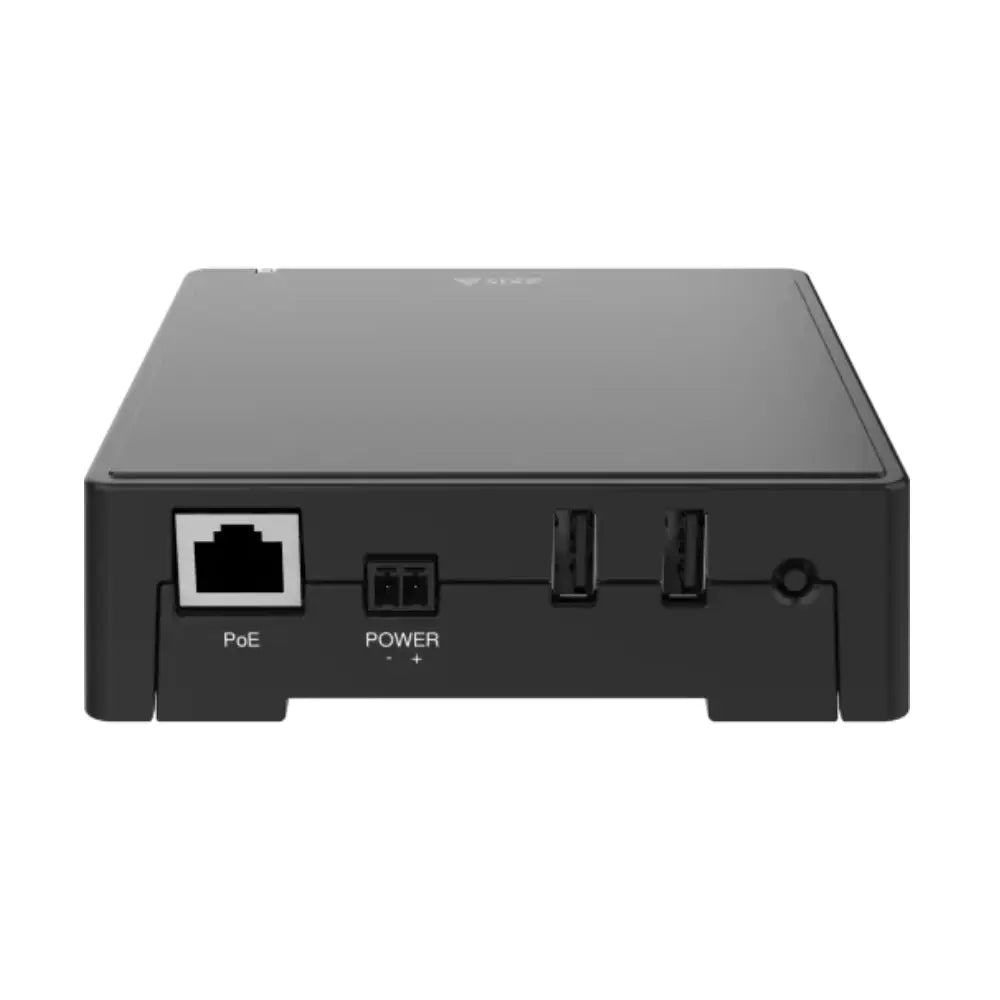

Engineered to operate either standalone or as a fully integrated node within an enterprise network, the AXIS D1110 4K Video Decoder interfaces natively with AXIS Camera Station and all major Video Management Systems (VMS). By utilizing standard Power over Ethernet (PoE), installation is simplified down to a single network cable carrying both power and high-bandwidth data. The system features an integrated audio line-out for public address warnings or ambient overhead audio playback, robust security verification via Axis Edge Vault, and sequential or matrix multi-view switching capabilities to ensure complete situational awareness across your facility.
PC-Free Public View Performance
Eliminate the vulnerabilities, licensing fees, and updating cycles associated with standard PCs. The AXIS D1110 processes dedicated hardware decoding straight to HDMI monitors, drastically lowering the overall cost of ownership for commercial public monitoring.
Advanced Security Architecture
Equipped with Axis Edge Vault, the device guarantees secure cryptographic operations. It protects your network from unauthorized access with signed firmware, secure boot, and encrypted storage of critical system certificates.
Technical Specification Matrix
| Camera Model |
AXIS D1110 |
| Video Decoding |
H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG |
| Maximum Resolution |
4K Ultra HD (3840 x 2160) at up to 30 fps |
| Video Output |
1x HDMI Type A Female (Digital Output) |
| Audio Interface |
3.5 mm line out (stereo mono output) |
| Power Over Ethernet |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 (Typical 5.0W, Max 12.95W) |
| Stream Capabilities |
Supports multi-view layouts up to 8 streams, customizable sequencing |
| Cybersecurity Features |
Axis Edge Vault, Secure Boot, Signed Firmware, Brute Force Delay protection |
| Compliance & Compliance |
NDAA Compliant, TAA Compliant, CE, FCC Class A, VCCI Class A |
Does the AXIS D1110 require a PC or dedicated VMS client server to output video?
No. The AXIS D1110 functions as an independent standalone hardware decoder. It pulls streams directly from IP cameras or VMS networks via its Ethernet port and outputs them straight to a monitor using an HDMI connection, eliminating the need for a management PC.
Can this decoder show multiple camera feeds simultaneously?
Yes, it supports multi-view split configurations layout matrices displaying up to 8 simultaneous camera streams, or it can be configured to dynamically cycle sequentially through a defined list of camera feeds.
Is this model fully compliant with federal procurement standards?
Yes, the AXIS D1110 is fully NDAA (National Defense Authorization Act) and TAA compliant, satisfying strict cybersecurity and manufacturing location frameworks required for government, critical infrastructure, and high-security defense installations.
How is the unit powered in a standard deployment?
The device is entirely powered using standard Power over Ethernet (PoE) Class 3 via its RJ45 network interface port. This single-cable architecture provides quick, stable commercial installations directly behind wall-mounted flat panels.
