Cabinet

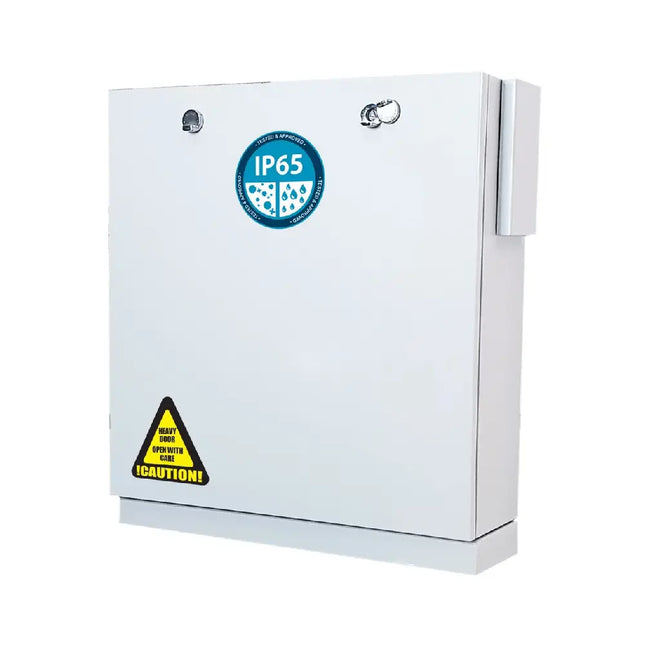

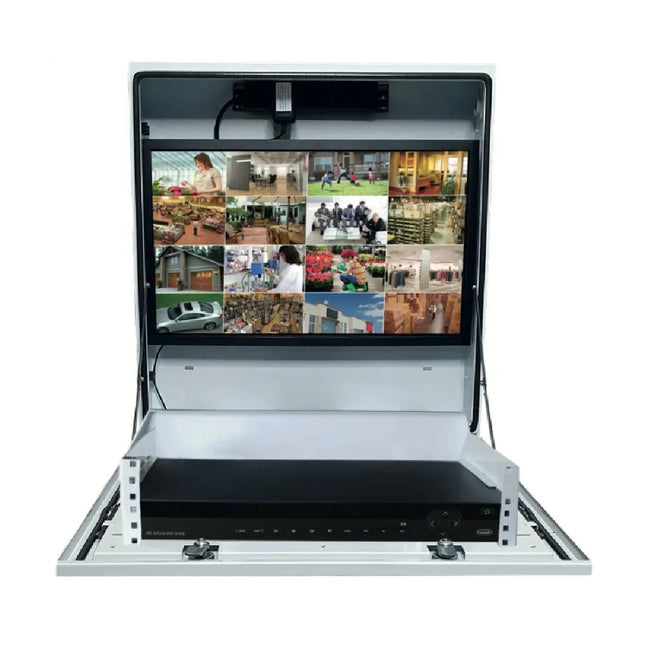

This Outdoor Security Cabinet, PA-WMCAB-W - DVR/NVR shelf has a capacity of up to 2U height, up to 490mm width & 400mm depth, with space to mount up to a 24'' LCD monitor*. It can accommodate most DVR/NVR’s and other access control and alarm system, making it a versatile Controller Cabinet Features Compact: size 585(W) x 650(H) x 180(D)mm (closed) Capacity: 2RU, 200~490mm width, 400mm depth Cable management knock-outs are in the wet and dry compartment Ventilation: Temperature controlled 12VDC Low Noise Fan and air intake filter Fits up to 24” monitor, with 75/100 VESA mounts 2 x cabinet locks use padlocks for additional security 30kg cabinet load bearing capacity (10kg vertical shelf) 440mm width between mounting points to fit wall studs Mild steel construction and white powder coating 4 x outlet power distribution unit(included) Temperature controlled Cooling Fan (included) Cooling Fan Power Supply (12VDC 1A included) 1.5m Power Cord included. * Ensure that the monitor has horizontal / downwards-facing input ports & power connectors Notes:  We recommend only using slimline thin bezel monitors (max Size 540x340x45 WxHxD); other monitors may not fit. 4 x M4 x 10mm screws included for monitor mounting  4 x washers included - to be ONLY used as a spacer if the monitor bracket fits into a recess at the back of the monitor. Shipping Weight and Dimensions Cabinet Dimensions Width-585mm ~ Height – 650mm ~ Depth – 180mm ~ Weight 16.5Kg Packing Dimensions Width-630mm ~ Height – 690mm ~ Depth – 230mm ~ Weight 18Kg Unboxing and Pre-installation Check The cabinet is approximately 18Kgs and care should be taken when unboxing.Suggested: open the end opposite to the product label and place open end on the floor or table. Slide the box up and remove. 2 cabinet lock keys will be fixed to the side packing foam. Technical and Installation Guide for DVR / NVR Secure Wall Mount Cabinet It is recommended that the cabinet be mounted in a well ventilated area. The Right side of the cabinet must have a minimum of 200mm clear space The bottom of the cabinet must have no less than 300mm clear space Once a suitable location is found, mount the box with the center of the monitor bracket at eye level. It is recommended that the top mounting holes be at least 1600-1700mm from the floor. Use M6x50mm wood, metal or masonry screws secure the box to the wall. Use the 2 top mounting KEYHOLE type anchor points first 440mm apart. Use the 2 bottom mounting slot holes to level and secure the cabinet to the wall Ensure all 4 mounting screws are secure. Downloads PA-WMCAB-W_datasheet PA-WMCAB-W_Installation Guide

Read more less

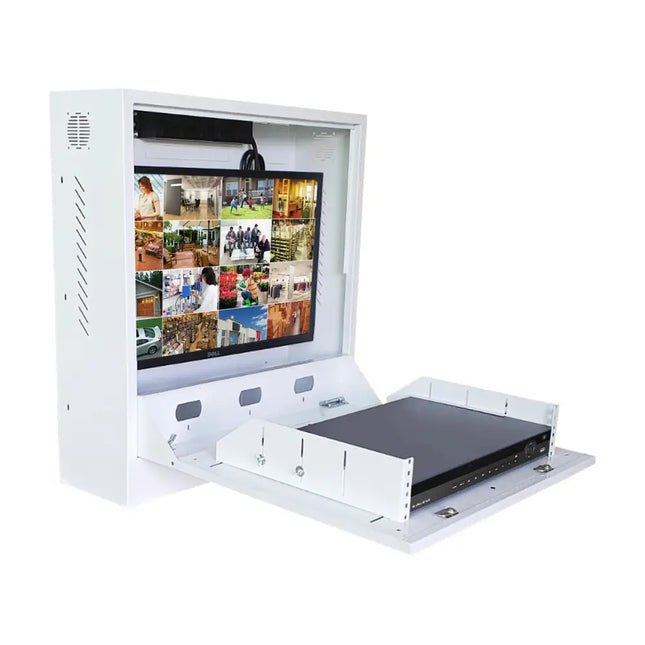

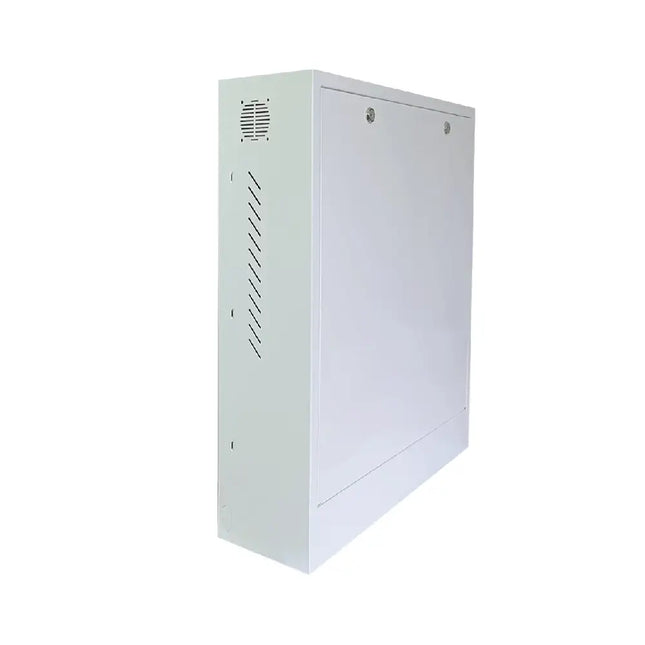

Indoor Security Cabinet, PA-WMCAB  Vertically mounted secure cabinet for CCTV, Alarms, Access control systems, etc. Dual Lockable Cabinet with Quick clip Monitor bracket and adjustable NVR base Multipurpose Secure Cabinet - Capable of housing Multiple Systems Cooling Fan kit with Temp. sensor and power adapter is included Fits up to a 24'' monitor, with 75/100 VESA mounts, (monitor must have downward facing input ports & power connectors) 4'' x 2'' Cut-outs on the rear panel (Power Socket not included) 12 cable entry punch outs on 4 sides with Rear Panel cable entry slot 4 outlet SAA PDU with IEC C14 connector and Power Cable is included. Downloads PA-WMCAB_datasheet PA-WMCAB_Installation Guide

Read more less
