Dahua Waterproof Wall Mount Bracket White
The Dahua Waterproof Wall Mount Bracket White DH-PFB205W-E is crafted from durable aluminum alloy, offering a cost-effective and sturdy solution for mounting specific Dahua cameras. Its sleek, white design complements any installation environment while providing reliable protection against the elements. Measuring 161.6 mm x 125.6 mm x 76.0 mm, this bracket ensures a secure and precise fit, enhancing both the functionality and aesthetics of your surveillance setup. Ideal for professional installations requiring both durability and style.
Features
Aluminium alloy material, cost-effective
Dedicated for particular cameras, beautiful and elegant designed
Specifications
CAMERA BRACKETS
TYPE
Wall Mount Bracket
MATERIAL
Aluminum
COLOUR
White
DIMENSION
161.6 mmx125.6 mmx76.0 mm (6.36''x4.94''x2.99'')
Downloads
DH-PFB205W_datasheet
Dahua DH-PFB204W Waterproof Wall Mount Bracket for CCTV Cameras
The Dahua DH-PFB204W is a durable waterproof wall mount bracket designed specifically for CCTV cameras. Crafted from high-quality aluminum and SECC materials, it ensures robust support and long-lasting performance. Its sleek white finish and compact dimensions (160mm x 122mm x 76mm) provide an unobtrusive, professional installation. Ideal for secure outdoor mounting, this bracket combines aesthetic design with reliable protection against the elements, making it a trusted choice for expert surveillance setups.
Features
Aesthetic design
Wall mount bracket
Material: aluminum & SECC
Specifications
Dahua Security Camera Bracket
TYPE
Wall Mount Bracket
MATERIAL
Aluminum & SECC
COLOUR
White
DIMENSION
160mmx122mmx76mm (6.30''x4.80''x2.99'')
Downloads
DH-PFB204W Datasheet
Dahua Waterproof Wall Mount Bracket White
Aesthetic design
Wall mount bracket
Material: aluminum & SECC
Specifications
CAMERA BRACKETS
TYPE
Wall Mount Bracket
MATERIAL
Aluminum & SECC
COLOUR
White
DIMENSION
160mmx122mmx76mm (6.30''x4.80''x2.99'')
Downloads
DH-PFB203W_datasheet
Dahua Waterproof Wall Mount Bracket Black
Aesthetic design
Wall mount bracket
Material: aluminum & SECC
Specifications
CAMERA BRACKETS
TYPE
Wall Mount Bracket
MATERIAL
Aluminum & SECC
COLOUR
Black
DIMENSION
160mmx122mmx76mm (6.30''x4.80''x2.99'')
Downloads
DH-PFB204W_datasheet
Dahua Pole Mount Bracket
Material: aluminum & SUS304
Pole mount bracket
Aesthetic design
Specifications
CAMERA BRACKETS
TYPE
Pole Mount Bracket
MATERIAL
Aluminum & SUS304
COLOUR
White
DIMENSION
125.6mmx114mmx20mm (4.94''x4.49''x0.79'')
Downloads
DH-PFA152-E_datasheet
Dahua Waterproof Wall Mount Bracket Black
Aesthetic design
Wall mount bracket
Material: aluminum & SECC
Specifications
CAMERA BRACKETS
TYPE
Wall Mount Bracket
MATERIAL
Aluminum & SECC
COLOUR
Black
DIMENSION
160mmx122mmx76mm (6.30''x4.80''x2.99'')
Downloads
DH-PFB203W_datasheet
Dahua PoE Extender Passive work with PFT1200, connect up to 3x IPC
Support passive PoE cascade power supply and Ethernet data exchange
Support IEEE 802.3af/at standard power supply IP Camera
Cooperate with High PoE Midspan PFT1200), able to cascade level 2 PoE Extender, connect to 3 IPC (total power consumption <=25W), max transmission distance 300m
1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender
Installation mode: junction box internal mounting, DIN rail mounting
Downloads
PFT1300_datasheetPoE Extender_User's Manual_V1.0.3

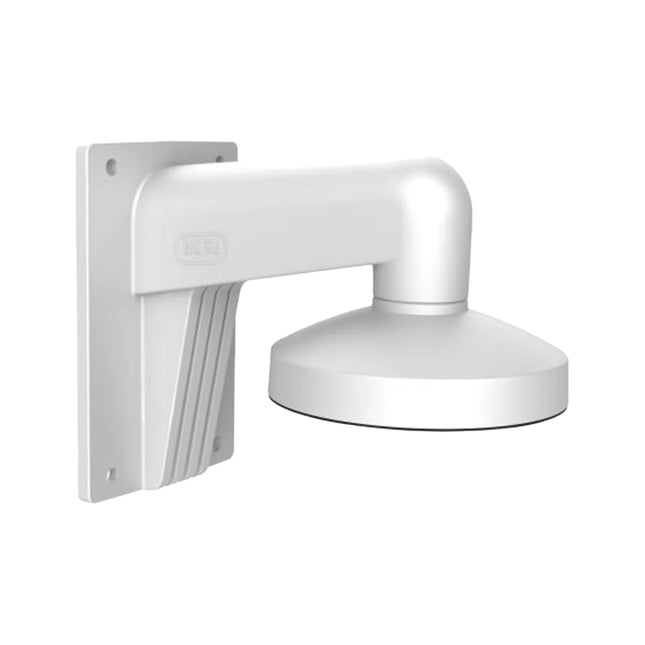

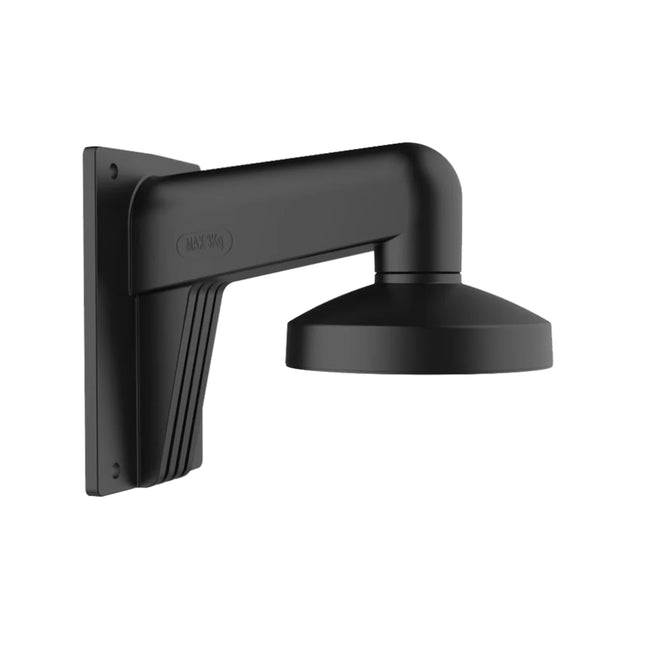

Hikvision Water-proof Wall Mount Bracket, DS-1273ZJ-140
Features
Aluminum alloy material with surface spray treatment
The outlet hole makes the feature looks better
Convenient installation coordinating with lower bowl
Suitable for IPC-T561H-MU, IPC-T581H-MU, IPC-T289PH-MU/SL, IPC-T269H-MU/SL
Weight: 703g
Aluminum Alloy
Download
DatasheetQuick Start Guide
Hikvision Water-proof Junction Box (2366/2386/2h66/2h86/2346/2347/2387) - DS-1280ZJ-DM21
The Hikvision DS-1280ZJ-DM21 waterproof junction box is crafted from durable aluminum alloy, ensuring robust protection for your IPC-T269H-MU/SL cameras. Its compact design (137 mm × 42 mm) and lightweight build (280 g) facilitate easy installation while safeguarding connections from environmental elements. Finished in Hikvision white, this junction box combines functionality with a professional appearance, making it an essential accessory for secure and reliable surveillance setups.
Features
Junction Box
Aluminum Alloy
Hikvision White
Suitable for IPC-T269H-MU/SL
Weight: 280 g (0.62 lb.)
Aluminum Alloy
137 mm × 42 mm (5.4" × 1.7")
Download
Quick Start Guide
Dahua Corner Mount Bracket
Material: SECC
Corner mount bracket
Aesthetic design
Specifications
CAMERA BRACKETS
TYPE
Corner Mount Bracket
MATERIAL
SECC
COLOUR
White
DIMENSION
243mmx170mmx138mm (9.57''x6.69''x5.43'')
Downloads
DH-PFA151_datasheet
Dahua Mount Junction Box DH-PFA134
Dahua Mount Box Features
Aesthetic design
Material: aluminum & SECC
Junction box
Specifications
CAMERA BRACKETS
TYPE
Junction Box
MATERIAL
Aluminum & SECC
COLOUR
White
DIMENSION
90.0mmx35.0mm (3.54''x1.38'')
Downloads
DH-PFA134_datasheet
Dahua Wall Mount Bracket
Neat & Integrated design
Wall mount bracket
Material: Aluminum
Safety rope hook attached, secure and reliable
Specifications
CAMERA BRACKETS
TYPE
Wall Mount Bracket
MATERIAL
Aluminum
COLOUR
White
DIMENSION
200mmx160mmx115mm
(7.87''x6.3''x4.53'')
Downloads
DH-PFB305W Datasheet
Hikvision Water-proof Junction Box - DS-1280ZJ-DM8
The Hikvision DS-1280ZJ-DM8 Junction Box is crafted from durable aluminum alloy, ensuring robust protection and water resistance for your surveillance setup. Designed specifically for models IPC-T361H-MU, IPC-T381H-MU, and IPC-T289H-MU/SL, it offers a secure and neat installation solution. With compact dimensions of 126.7 mm by 35 mm and a lightweight build of approximately 210 grams, this junction box combines strength and convenience for professional-grade CCTV installations.
Features
Junction Box
Aluminum Alloy
Hikvision White
Suitable for IPC-T361H-MU, IPC-T381H-MU, IPC-T289H-MU/SL
Weight: Approx.: 210 g (0.46 lb.)
Aluminum Alloy
126.7 mm × 35 mm (4.99" × 1.38")
Download
Quick Start Guide
Dahua Wall Mount Bracket
Aesthetic design
Wall mount bracket
Material: aluminum
Specifications
CAMERA BRACKETS
TYPE
Water-proof Wall Mount Bracket
MATERIAL
Aluminum
COLOUR
White
DIMENSION
115mmx160mmx255mm (4.53''x6.3''x10.04'')
Downloads
DH-PFB303W Datasheet
AXIS TQ1501-E Crane and Traffic Mount, 02384-001
AXIS TQ1501-E Crane and Traffic Mount is a great mount for reducing vibrations and offering more stability to your camera installations in demanding situations, such as mounting on cranes or traffic lights. It’s robust and corrosion resistant with its IK10- and NEMA 4X-ratings. The mount can be tilted up to 45 degrees.
Fewer vibrations and more stability
Alleviates vibrations
Pivot mount for more stability
Robust, IK10
Coating in corrosion resilient material
Designed for demanding situations
Downloads
AXIS TQ1501-E Datasheet
Dahua Integrated Mount Tester DH-PFM907-E
Dahua Integrated Mount Tester
Features
Supports HDCVI, AHD, HDTVI and CVBS digital surveillance system
PoE or 12 VDC power supply
Support Onvif protocol to configure IP address
Audio/RS-485 control
Digital multimeter function
TDR network cable test
Wi-Fi signals test
Download
PFM907-E_datasheetPFM907-E_User 's manualDH-PFM907-E_DIMENSIONS
Dahua Mount Adapter
Neat & Integrated design
Material: Aluminum
Specifications
CAMERA BRACKETS
TYPE
Adapter Plate of PT Network Camera
MATERIAL
Aluminum
COLOUR
White
DIMENSION
134.1mmx83.5mm(5.28''x3.29'')
Downloads
DH-PFA107_datasheet
Dahua PoE Switch for IP System with Dahua Network Protocol, Connect up to 6 Indoor Monitor
Features
Decent appearance
Protocol network power supply switch
Connect max 6 indoor monitors with the Cat 5e cable, transfer the signal and power together
Specifications
PoE SWITCH
ETHERNET PORT
6
OPTICAL PORT
Not support
UPLINK PORT
2
POE BUDGET
Max 45W
LAYER
Layer 2
TYPE
Unmanaged
Downloads
Datasheet of DHI-VTNS1060A-A
User Manual
Dahua Pole Mount Bracket
Material: SECC & SUS304
Pole mount bracket
Aesthetic design
Specifications
CAMERA BRACKETS
TYPE
Pole Mount Bracket
MATERIAL
SECC & SUS304
COLOUR
White
DIMENSION
130.4mmx170mmx45mm (5.13''x6.69''x1.77'')
Downloads
DH-PFA150_datasheet
Dahua Wall Mount Bracket
Aesthetic design
Wall mount bracket
Material: aluminum
Specifications
CAMERA BRACKETS
TYPE
Wall Mount Bracket
MATERIAL
Aluminum
COLOUR
White
DIMENSION
58mmx88mmx190.5mm (2.28''x3.46''x7.50'')
Downloads
DH-PFB121W Datasheet
Dahua HDMI Extender
The Dahua HDMI Extender DH-PFM700-E enables real-time transmission of HDMI video signals up to 50 meters using a single CAT6 cable, ensuring minimal delay and strong anti-interference performance. Designed for HDMI 1.3 compatibility, it supports local loop output and EDID management. The device also includes one-way infrared remote control signal transmission and offers robust protection against thunder, static, and interference without needing driver installation or network configuration. Powered by DC5V, it is optimized for reliable and straightforward HDMI extension in professional setups.
Features
Power supply: Input voltage DC5V, only supply for transmitter.
Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference.
Transmission distance: HDMI transmission distance 50m (max.164ft), with CAT6 of pure copper cable(DC impedance is less than 9.5 ohm for every 100 meters(328ft)).
Infrared function: support to transmit one-way infrared remote control signal.
Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI 1.3; Support HDMI local loop output; Support EDID.
Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
Appearance structure: No need to install driver program and set network parameters, easy to use and convenient to install.
Downloads
PFM700-E Datasheet_20190906
Hikvision Water-proof Junction Box - DS-1280ZJ-PT6
The Hikvision Water-proof Junction Box DS-1280ZJ-PT6 is crafted from durable aluminum alloy, ensuring robust protection and longevity. Weighing just 280 g and measuring 137 mm by 42 mm, it offers a compact and lightweight solution for secure cable management. Designed specifically for compatibility with IPC-T561H-MU, IPC-T581H-MU, and IPC-T289PH-MU/SL cameras, this junction box provides reliable waterproof housing to safeguard connections in various environments. Ideal for professional installations requiring dependable protection and neat wiring.
Features
Junction Box
Aluminum Alloy
Weight: 280 g (0.62 lb.)
Aluminum Alloy
137 mm × 42 mm (5.4" × 1.7")
Suitable for IPC-T561H-MU, IPC-T581H-MU, IPC-T289PH-MU/SL
Download
Quick Start Guide
Dahua Ceiling Mount Bracket
Aesthetic design
Material: aluminium & PC
Ceiling mount bracket
Specifications
CAMERA BRACKETS
TYPE
Ceiling Mount Bracket
MATERIAL
Aluminum & PC
COLOUR
White
DIMENSION
133.6mm x 235.5mm (5.26''x16.54'')
Downloads
DH-PFB300C_datasheet
Dahua Hi-PoE Midspan, Support PoE for Hi-PoE 60W high power consumption speed dome
Support PoE for Hi-PoE 60W high power consumption speed dome
Indicator status: power (normal power on), PoE (normal power supply)
Cooperate with PoE Extender (PFT1300), able to cascade level 2 PoE Extender, connect to 3 IPC (power consumption Installation mode: wall mount
Downloads
PFT1200_Datasheet_20170728PFT1200_User Manual
Dahua Mount Adapter
Aesthetic design
Material: aluminum
Mount adapter
Specifications
CAMERA BRACKETS
TYPE
Mount Adapter
MATERIAL
Aluminum
COLOUR
White
DIMENSION
60mmx49mm (2.36''x1.93'')
Downloads
DH-PFA111_datasheet
Dahua Ceiling Mount Bracket
Neat & Integrated design
Ceiling mount bracket
Material: Aluminum
Specifications
CAMERA BRACKETS
TYPE
Ceiling Mount Bracket of Mini Dome & Eyeball Camera
MATERIAL
Aluminum
COLOUR
White
DIMENSION
128.8mmx767.0mm(5.07''x30.2'')
Downloads
DH-PFB220C_datasheet
Dahua DH-PFH101 Rack Mount Tray
The Dahua DH-PFH101 Rack Mount Tray is made of durable SPCC material and is highly compatible with standard storage devices. Designed to fit into a 19'' rack, this tray provides convenient and organized storage for your equipment. Streamline your setup with this reliable and versatile rack mount tray.
Features
Material: SPCC
High compatibility for standard storage device
19'' standard rack mount tray
Downloads
DH-AC-PFH101 Datasheet

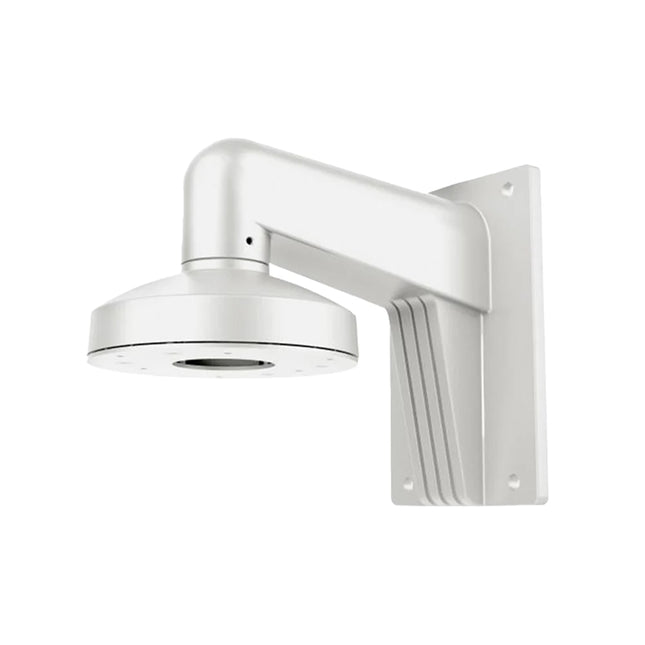

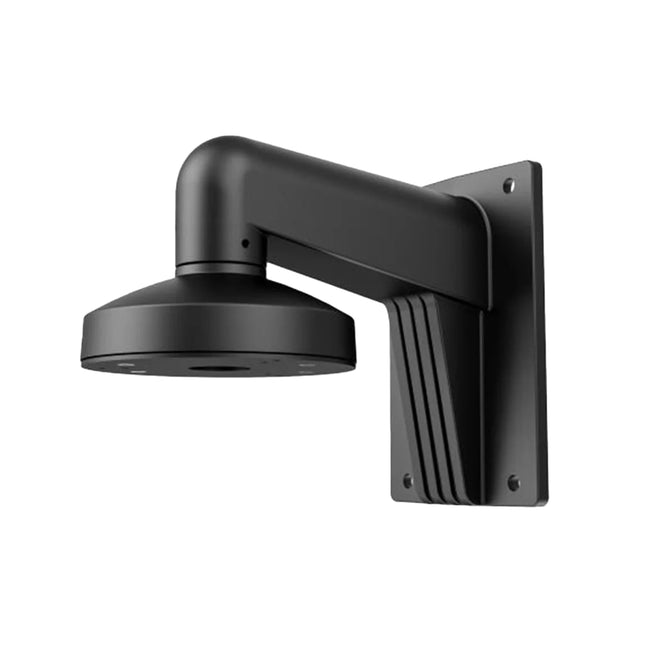

Hikvision Aluminum Alloy Wall Mount - DS-1273ZJ-130-TRL
The Hikvision Aluminum Alloy Wall Mount DS-1273ZJ-130-TRL is designed specifically for secure dome camera installation. Crafted from durable aluminum alloy and finished in Hikvision white, this bracket includes an adaptor plate for compatibility with models IPC-T361H-MU, IPC-T381H-MU, and IPC-T289H-MU/SL. Measuring 130×182×120mm and weighing 900g, it ensures a robust and professional mounting solution for wall installations, enhancing camera stability and positioning precision.
Features
Wall Mount Bracket
With adaptor plate
Aluminum alloy
Hikvision White or Black
Suitable for IPC-T361H-MU, IPC-T381H-MU, IPC-T289H-MU/SL
Weight: 900g
Aluminum Alloy
130×182×120mm
Suitable for wall mounting
Wall Mounting Bracket with adaptor plate
Download
Quick Start Guide
Hikvision PTZ Wall mount DS-1602ZJ
Wall Mount
Aluminum alloy
Hikvision White
Parameters
Description
Wall Mount Bracket In/Outdoor
Appearance
Hik white
Material
Aluminum alloy
Dimension
97.3 mm × 182.6 mm × 306.4 mm
(3.83” × 7.19” × 12.06”)
Weight
925 g (2.04 lb.)
DownloadQuick Start Guide
Hikvision Corner Mount Bracket (2165/2T65/2665) - DS-1276ZJ-SUS
Corner Mount
Stainless Steel
Hikvision White
Parameters
Weight
1990 g (4.39 lb.)
Appearance
Hikvision White
Material
Stainless Steel
Dimension
126 mm × 105 mm × 250 mm (4.96" × 4.13" × 9.84")
Description
Corner Mount
Download
Quick Start Guide
Hikvision Wall Mount Bracket With Integrated Junction Box (2365/2366/2385G1/2h65/2H85/2346/2347/2386) - DS-1273ZJ-140B
Wall Mount
With Junction Box
Aluminum alloy
Hikvision White
Parameters
Weight
1488g
Appearance
Hikvision White
Material
Aluminum Alloy
Dimension
Φ140×182×120mm
Range Of Application
Suitable for DS-2CC51xxP(N) dome camera wall mounting
Description
DS-2CC51xxP(N) Wall Mounting Bracket for Dome Camera
Download
Quick Start Guide
Hikvision Wall Mount Bracket (2166/2555/2566) - DS-1272ZJ-120
The Hikvision Wall Mount Bracket DS-1272ZJ-120 provides a secure and durable mounting solution for mini dome cameras. Crafted from lightweight yet robust aluminum alloy, its sleek Hikvision white finish ensures discreet installation. Measuring Φ120×122×173.5mm and weighing just 440g, it is designed specifically for wall mounting dome cameras, enhancing both stability and aesthetics in surveillance setups. Ideal for professional installations requiring reliable and long-lasting support.
Features
Wall Mount
Aluminum alloy
Hikvision White
Parameters
Weight
440g
Appearance
Hikvision White
Material
Aluminum Alloy
Dimension
Φ120×122×173.5mm
Range Of Application
Suitable for dome camera wall mounting
Description
Φ120 Wall Mounting Bracket for Mini Dome Camera
Download
Quick Start Guide
Hikvision Water-proof Rain Shade (AVPIT3ZF) - DS-1250ZJ
Rain Shade for Outdoor Dome Camera
Plastic
Hikvision White
Parameters
Weight
199g
Appearance
Hikvision White
Material
Composite Fibre
Dimension
264.7*152*189.6 mm
Description
Rain Shade for Outdoor Dome Camera
Download
Quick Start Guide
Dahua Mount Adapter DH-PFA108
Aesthetic design
Material: aluminum
Special adapter plate for 4*2MP IR dome camera
Specifications
CAMERA BRACKETS
TYPE
Mount Adapter
MATERIAL
Aluminum
COLOUR
White
DIMENSION
140mmx39.5mm (5.51''x1.56'')
Downloads
DH-PFA108 Datasheet 20181109
Dahua Mini Dome and Turret Mount Adapter
Neat & Integrated design
Material: Aluminum
Specifications
CAMERA BRACKETS
TYPE
Adapter Plate of Mini Dome & Eyeball Camera
MATERIAL
Aluminum
COLOUR
White
DIMENSION
134.1mm x 83.5mm (5.28''x3.29'')
Downloads
DH-PFA106 Datasheet
