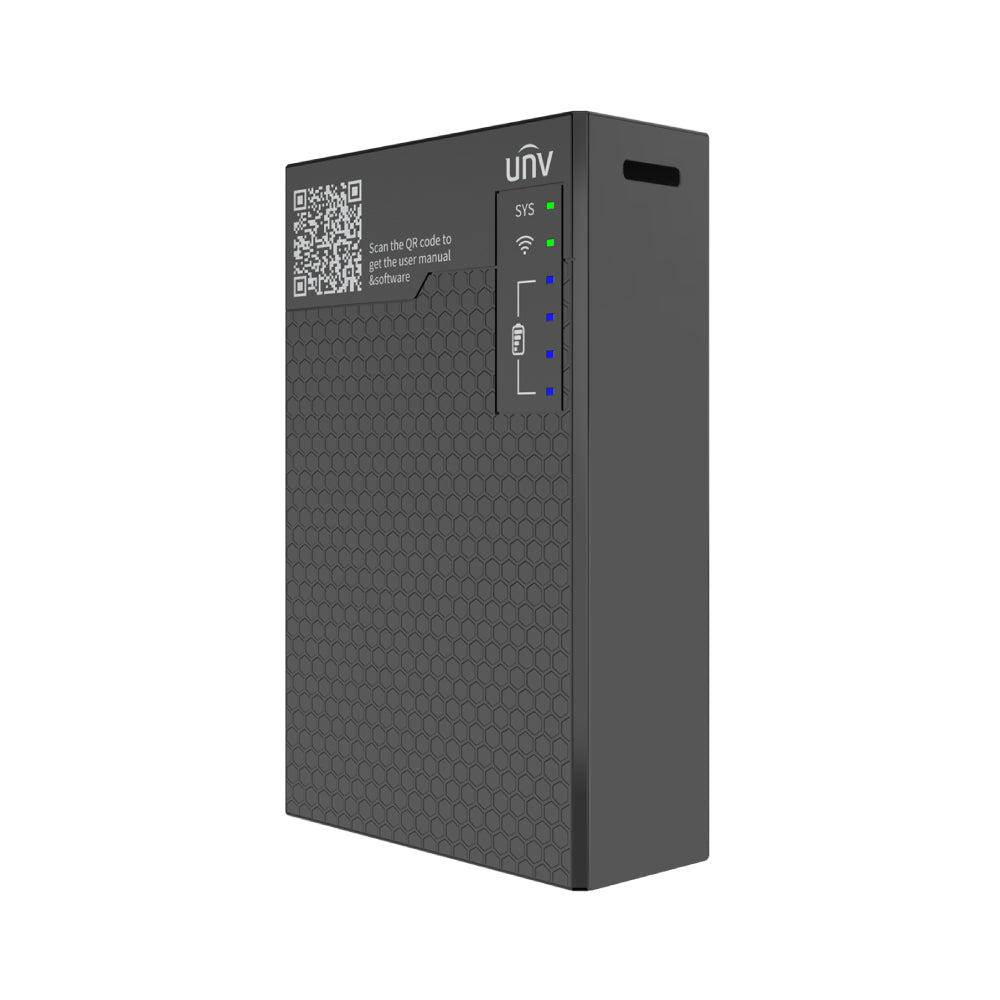

The Uniview GCB01-B7 UNV-Link Pro Connect Box is a portable IP-camera installation and testing tool. Its 7500 mAh battery can power a compatible camera through an 802.3af PoE output or DC output. Four Ethernet ports, 2.4 GHz Wi-Fi and separate PSE/DC voltage tests support commissioning and power checks.
What can the box test?Port 4; 1–56 V detection, IEEE 802.3af/at/bt; DC voltage testing: 1–56 V.
Can it power a camera?Port 1: IEEE 802.3af output; DC outputs: 12 V / 1 A; USB Type-A 5 V / 1 A. Check the camera power requirement before connecting.
Does it output 802.3bt PoE?No. Its PoE output is 802.3af. It can detect PSE voltage for af/at/bt equipment; testing support does not mean it supplies those higher PoE power levels.
How is it charged?USB Type-C, DC 5 V / 2 A maximum.
What wireless connection is available?2.4 GHz, IEEE 802.11 b/g/n.
How large is the box?130 × 85 × 33 mm.
