Purpose-Built Gate Control
Controls 1 gate plus 1 side door from a single hub. Two operator relays and an auxiliary relay (each 30 V DC, up to 1 A) drive your gate motor and accessories directly, with a powered side-door lock output (12 V DC, up to 1 A).
PoE++ Powered, Powers Others
A single PoE++ input (50 V DC, 1 A) powers the hub, and four PoE+ output ports (30 W per port, 55 W aggregated) feed readers, intercoms, and other UniFi Access devices downstream — no extra power runs.
Five Gigabit Ports On Board

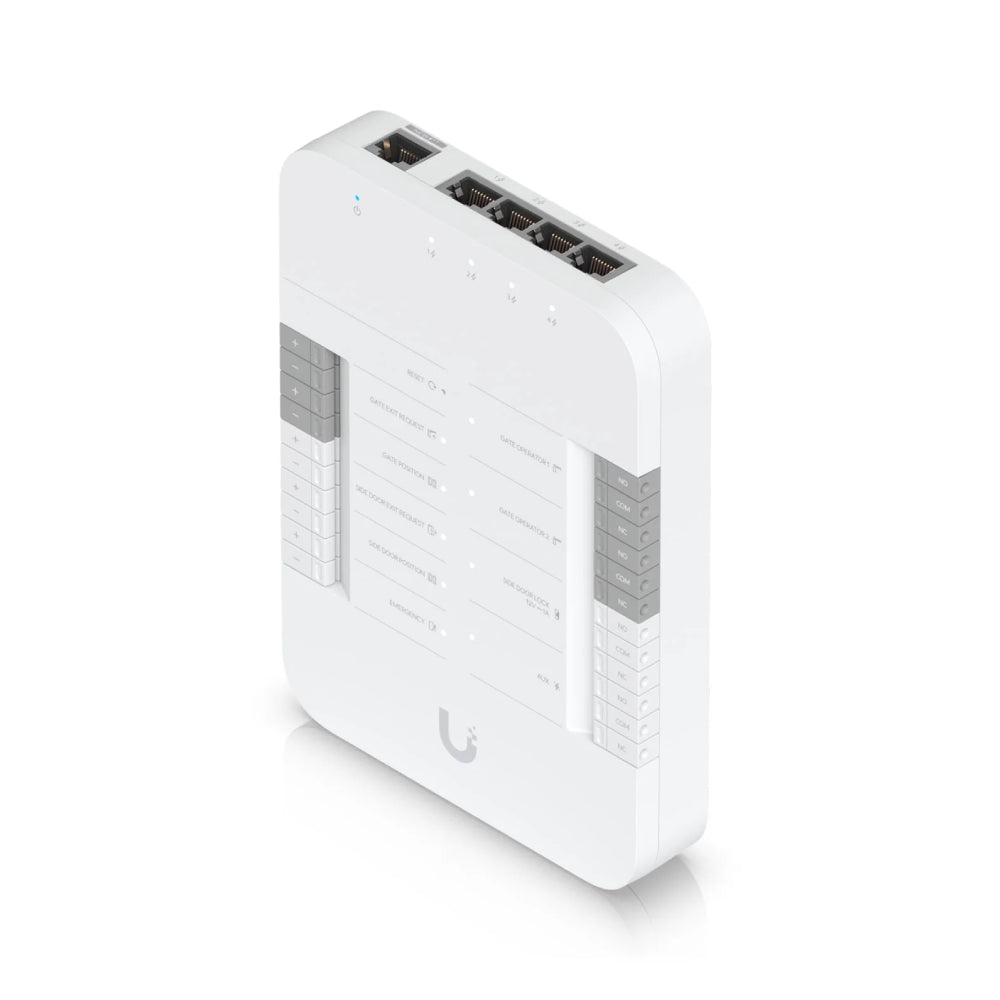

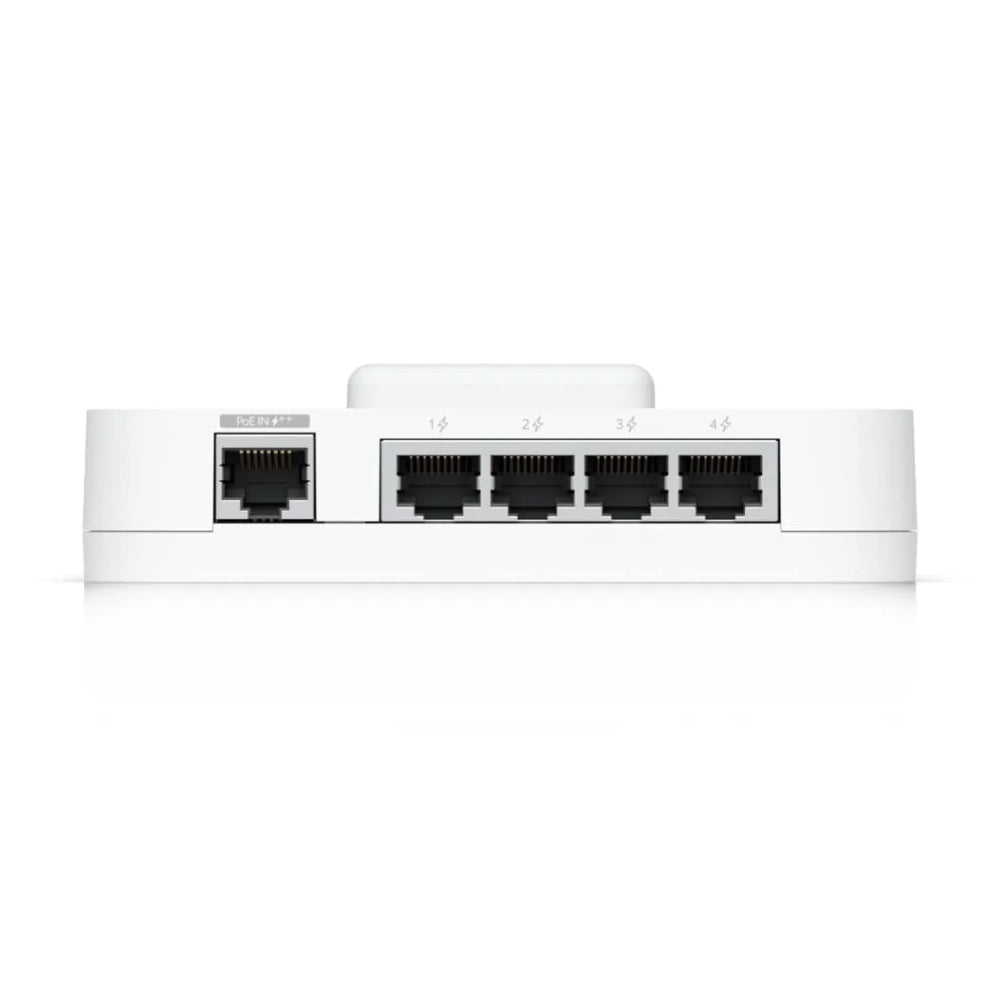

An integrated (5) 10/100/1000 Base-T switch — one PoE++ uplink and four PoE+ downlinks — connects your readers and intercom locally for clean, single-cable wiring at the gate.
Complete Input & Safety Wiring

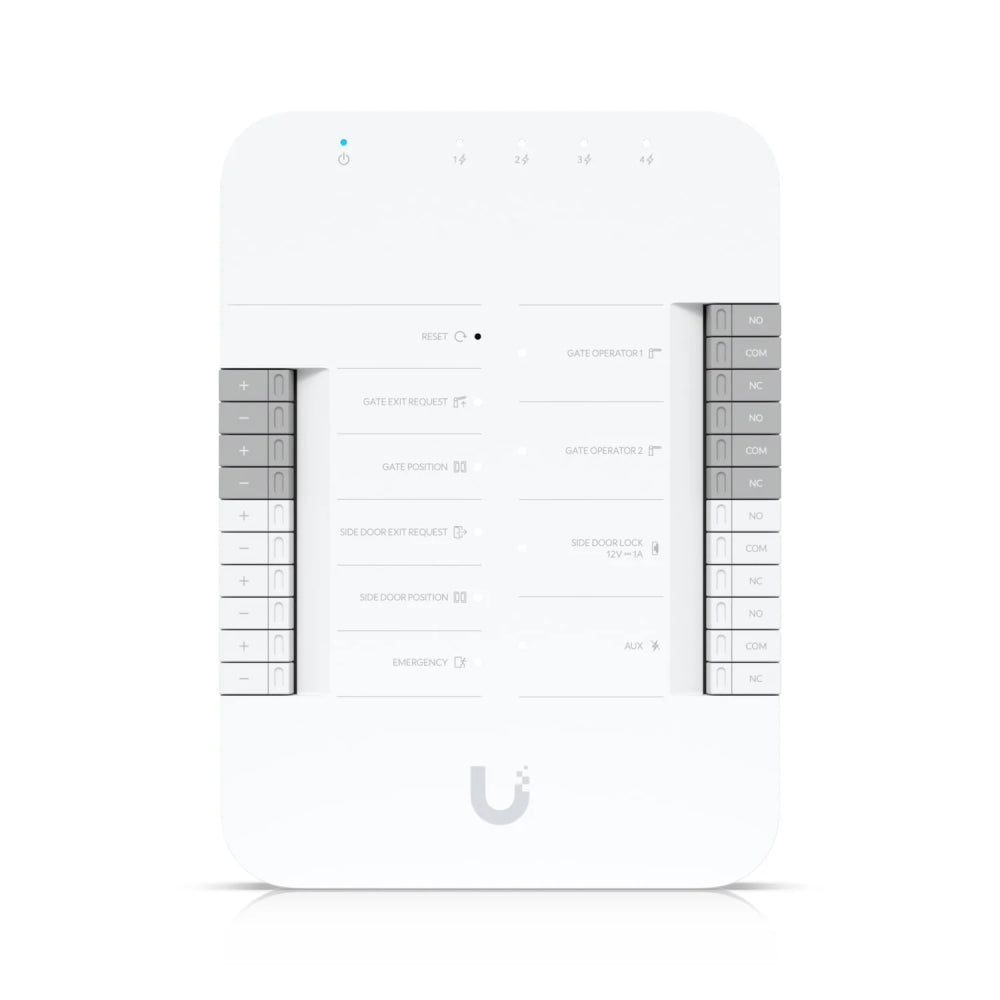

Dedicated digital inputs for gate exit request, gate position, side-door exit request, side-door position, and emergency let you wire request-to-exit, position sensors, and emergency release the right way.
UL 294 Listed for Access Control
Certified to UL 294 (Level I across destructive attack, line security, endurance, and standby power) and CAN/ULC-60839-11-1 Grade I — engineered to recognised access-control security standards.
Scales to 6,000 Users
Manage up to 6,000 users with NFC cards, key fobs, BLE mobile access, and PIN entry when paired with UniFi Access Readers — credentials added and revoked instantly from one console.
DIN-Rail Mount, No Subscription

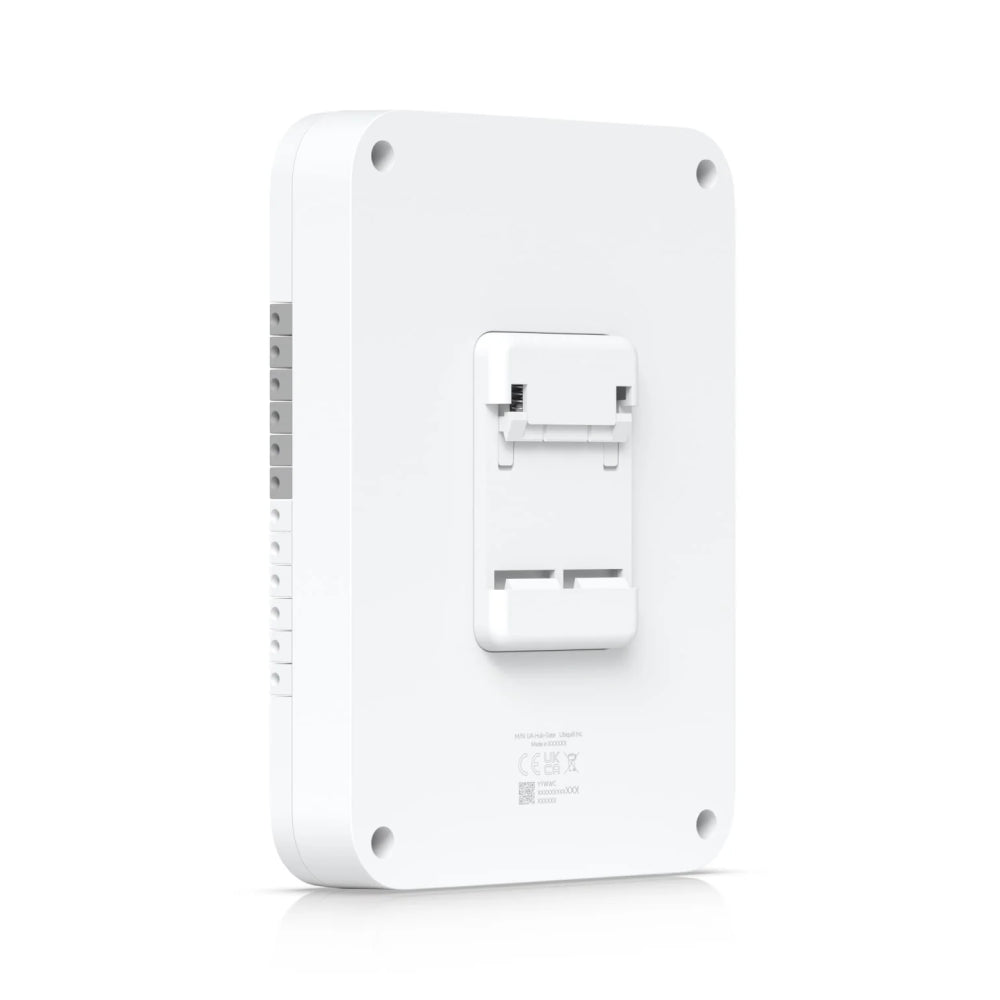

Compact polycarbonate enclosure mounts on a DIN rail (included) inside your control cabinet, and is managed centrally via the UniFi Access app and web console — no monthly fees, full local control.
NDAA Compliant
Fully NDAA Section 889 compliant for government, defence, and security-sensitive sites where supply-chain integrity is mandated.
UniFi Access Gate Hub
UA-Hub-Gate controller.
DIN-Rail Mount
DIN-rail mounting hardware included.
Documentation
Quick-start installation guide.
Not Included
Gate motor, UniFi Access readers, intercom, credentials, and PoE++ source are sold separately.
Does the Gate Hub require an ongoing licence or subscription?
No. UniFi Access runs locally and is managed via the UniFi Access app and web console — there are no monthly fees or licence costs.
How is the Gate Hub powered?
Via a single PoE++ input (50 V DC, 1 A). It also provides four PoE+ output ports (30 W per port, 55 W aggregated) to power readers and intercoms downstream.
How many doors and users does it support?
One gate plus one side door, and up to 6,000 users when paired with UniFi Access Readers.
Can it be installed outdoors at the gate?
The device itself is indoor-rated and DIN-rail mounted. For outdoor installation, house it inside a waterproof junction box or enclosure.
What authentication methods are supported?
With UniFi Access Readers, the hub supports NFC cards and fobs, BLE mobile access, and PIN entry — all managed centrally.
Is the UA-Hub-Gate NDAA compliant?
Yes. Ubiquiti is a US-based manufacturer and the UA-Hub-Gate is NDAA Section 889 compliant and UL 294 listed — suitable for government and security-sensitive sites.
