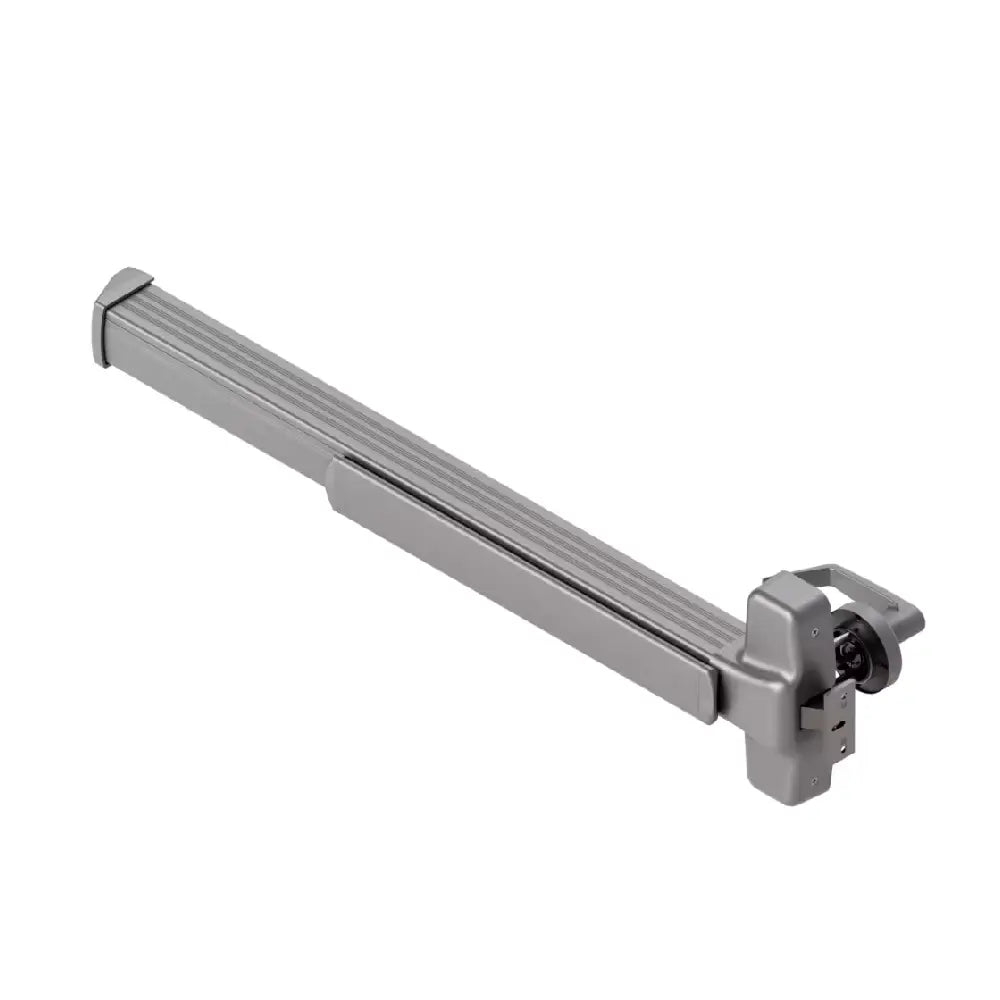

Ubiquiti UACC-PanicBar Grade 1 Emergency Exit Door Panic Bar

Description

Ubiquiti UniFi Access · Commercial Hardware

Reliable Emergency Egress Meets Smart Access Control Integration

Engineered for high-traffic commercial environments, the Ubiquiti UACC-PanicBar provides instant, safe manual egress during emergencies while seamlessly feeding real-time door status metrics into your UniFi Access ecosystem. Built to uncompromising durability standards, this heavy-duty single-latched exit device combines robust mechanical security with intelligent electronic monitoring for modern corporate offices, educational institutions, and industrial facilities.

Safety Standard
ANSI/BHMA Grade 1
Door Width Fit
711 to 914 mm (2'4" to 3')
Signal Output
Dry Relay Contact (30V DC, 1A)
Material Build
Aluminum & Stainless Steel

Advanced Monitoring and Universal Architectural Integration

The UACC-PanicBar features a built-in bar position sensor utilizing a potential-free dry contact configuration. When personnel depress the bar during an evacuation, the circuit momentarily closes to transmit immediate state changes to your access hub. Fully reversible for non-handed left or right installations, it accommodates standard 44 mm (1-3/4") and 51 mm (2") metal or wooden door leaves.

Heavy-Duty Structural Integrity

Manufactured using high-grade architectural aluminum and stainless steel components, this exit device withstands intense physical wear cycles while maintaining code compliance in high-occupancy areas.

Seamless UniFi Ecosystem Sync

Easily wires into standard door hubs via a clean 2-line dry contact setup, providing centralized event logs and monitoring directly through your UniFi Access dashboard interface.

Technical Specification Matrix
Model UACC-PanicBar
Dimensions 838 x 294 x 94 mm (33 x 11.6 x 3.7")
Weight 5.8 kg (12.8 lb)
Enclosure Material Aluminum, stainless steel
Supported Door Width 3' standard for door width of 2'4" to 3' (711 to 914 mm)
Supported Door Thickness 1-3/4" (44 mm) and 2" (51 mm) thick of metal or wood door
Relay Rating Dry output contact rating: 30V DC, 1A (Push = Short / Release = Open)
Safety Certifications UL 305, UL 10C, CAN/ULC-S132, ANSI/BHMA A156.3 Grade 1
Is the UACC-PanicBar compatible with standard wooden and metal doors?

Yes, the unit is engineered to fit standard 1-3/4 inch (44 mm) and 2 inch (51 mm) thick metal or wood doors with widths ranging from 711 to 914 mm.

How does it integrate with the UniFi Access system?

The panic bar utilizes a 2-line dry contact relay connection (rated at 30V DC, 1A) that signals push events to your door hub controller for instant tracking.

Does the hardware support reversible handling?

Yes, the mechanism is completely non-handed and fully reversible, supporting both left and right-hand door mounting orientations.

What building safety certifications does it carry?

It meets rigorous safety requirements including ANSI/BHMA A156.3 Grade 1, UL 305, UL 10C, and CAN/ULC-S132 standards for emergency exit devices.
