Ubiquiti

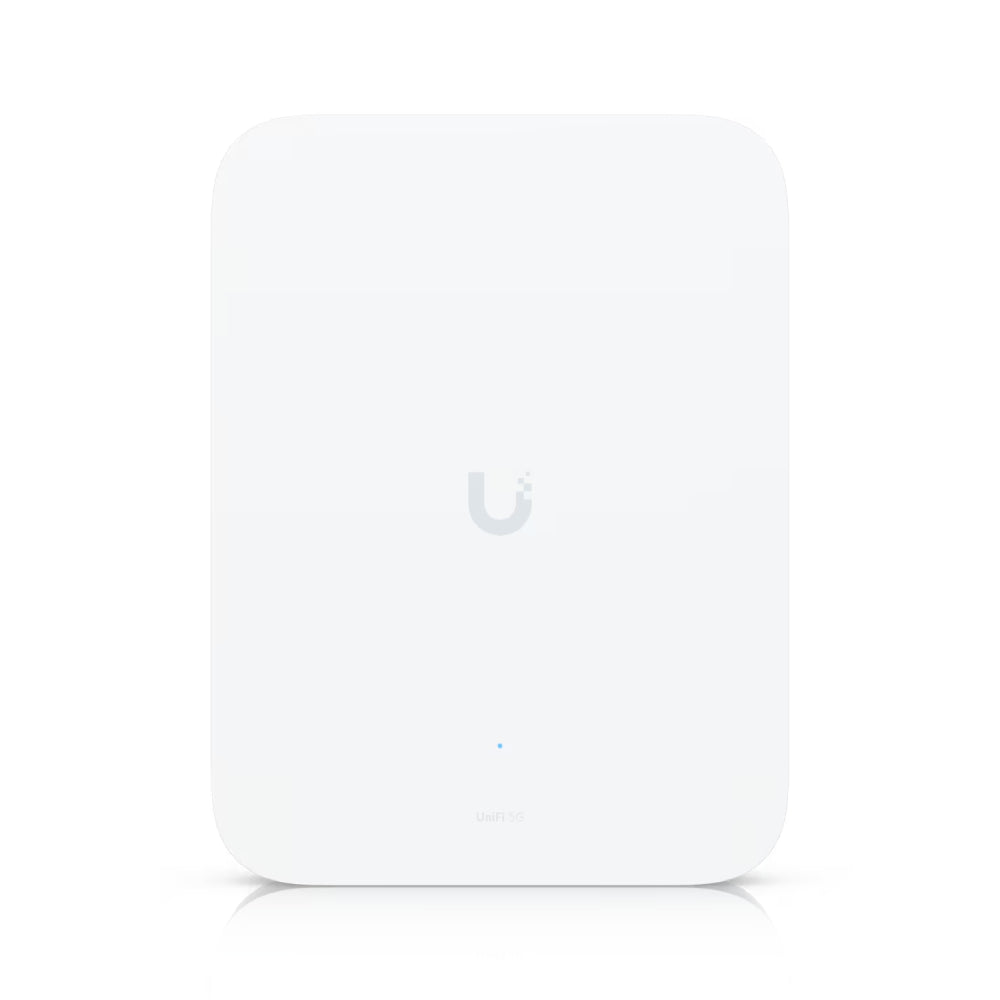

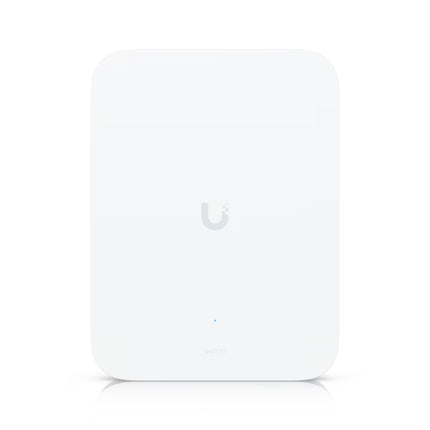

Ubiquiti UniFi U5G Max Outdoor 5G Modem
Outdoor 5G connectivity for a compatible UniFi network, with a 2.5GbE Ethernet connection and PoE input. Embedded directional cellular antennas help position the modem for reception.
Specifications
| Model |
U5G-Max-Outdoor |
| Interface |
1 × 2.5GbE RJ45; 5G NR/LTE cellular radio |
| Power |
PoE; 14.5W maximum |
| SIM |
Nano-SIM; second Nano-SIM or eSIM |
| Weather rating |

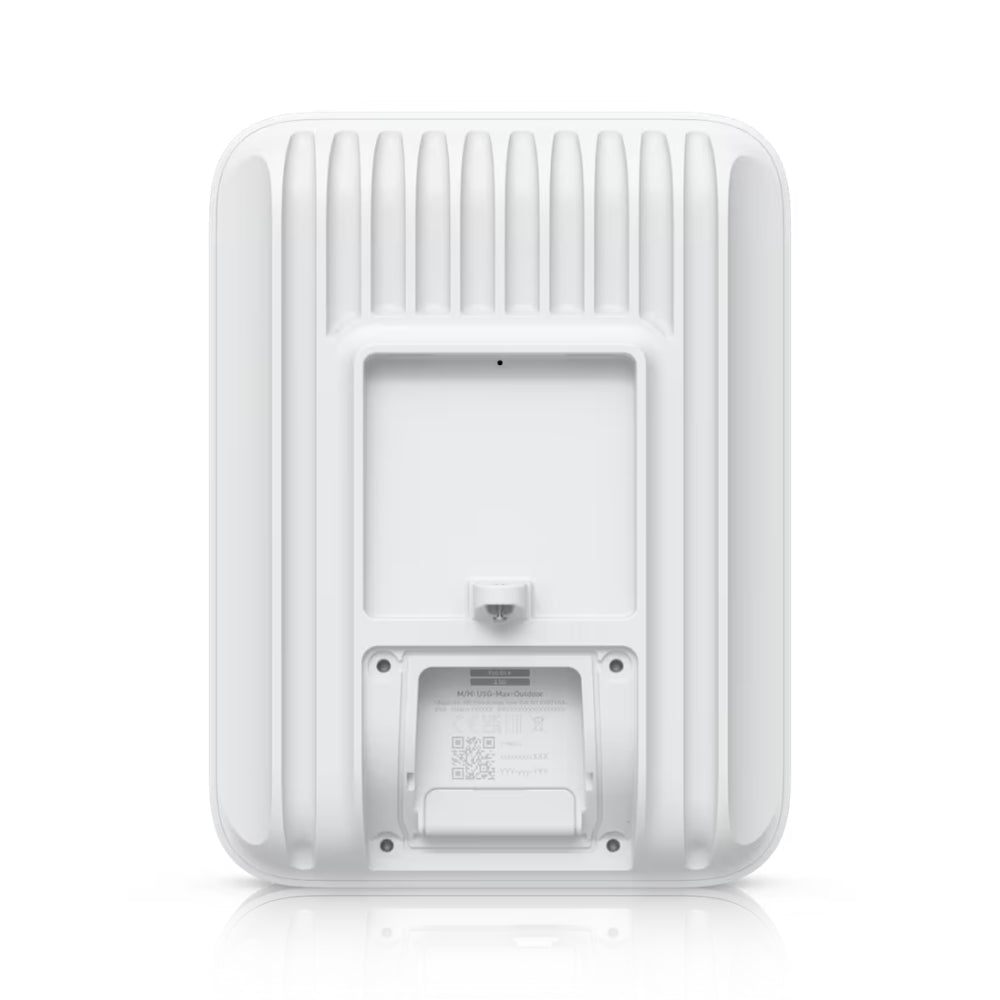

IPX6; IP67 with cable-gland door kit |
| Mounting |

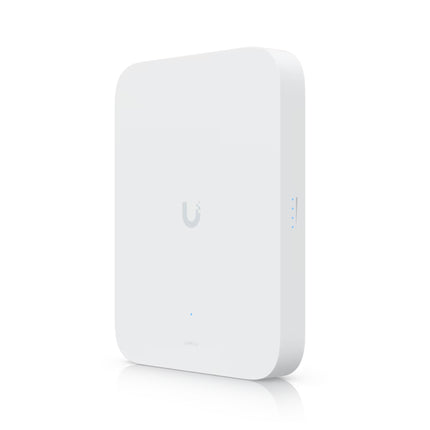

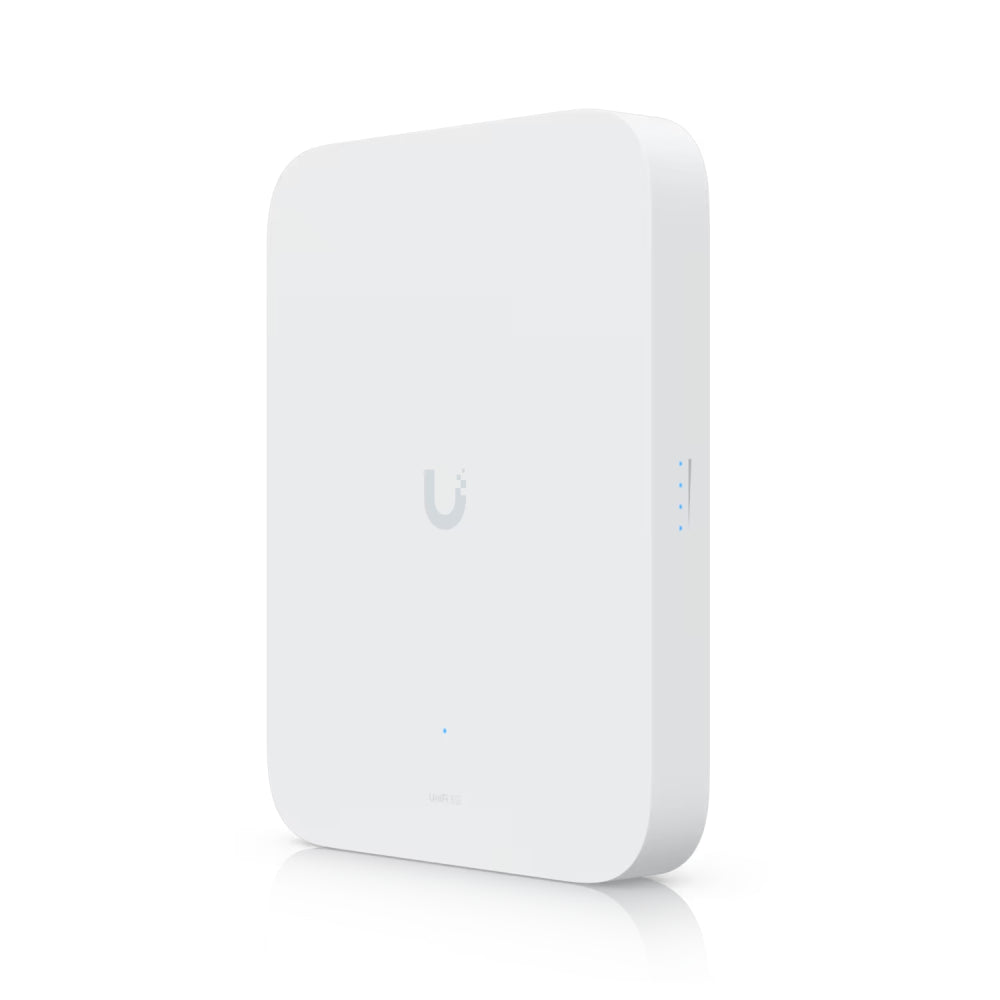

Wall and pole mounts included |
| Operating temperature |
−40 to 65°C |
Questions & Answers
Is it always IP67 rated?The official specification makes IP67 conditional on the cable-gland door kit. The base weather rating is IPX6.
Is a mobile data plan needed?Yes. Cellular service requires a suitable carrier plan and coverage.
Are advertised cellular speeds guaranteed?No. Peak rates depend on network mode; actual service varies with coverage, congestion and your plan.
Manufacturer information: Ubiquiti specifications
