Ubiquiti

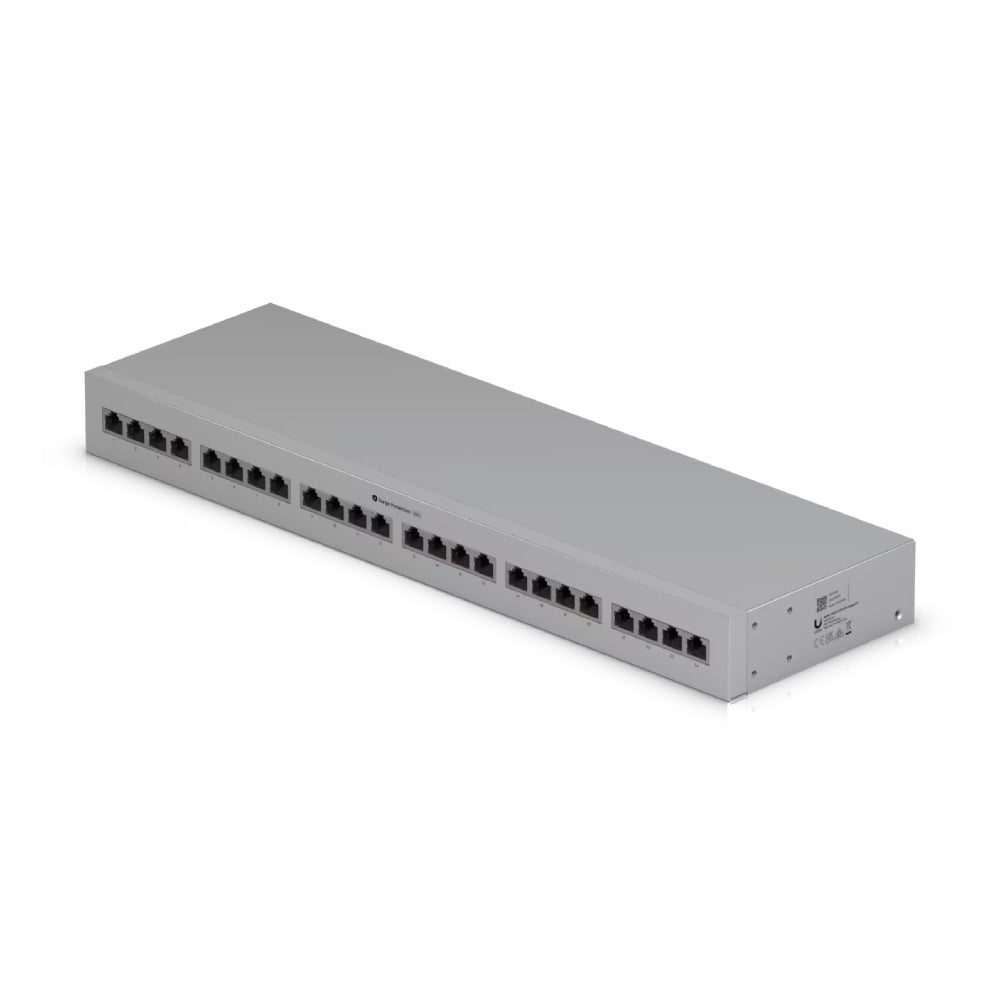

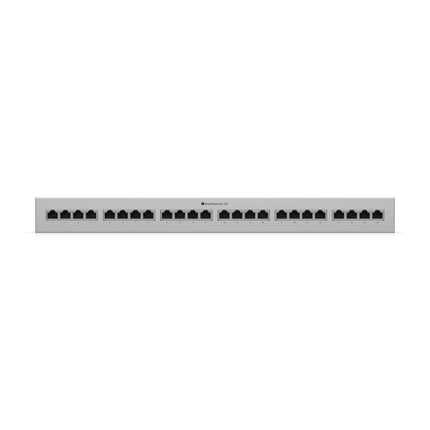

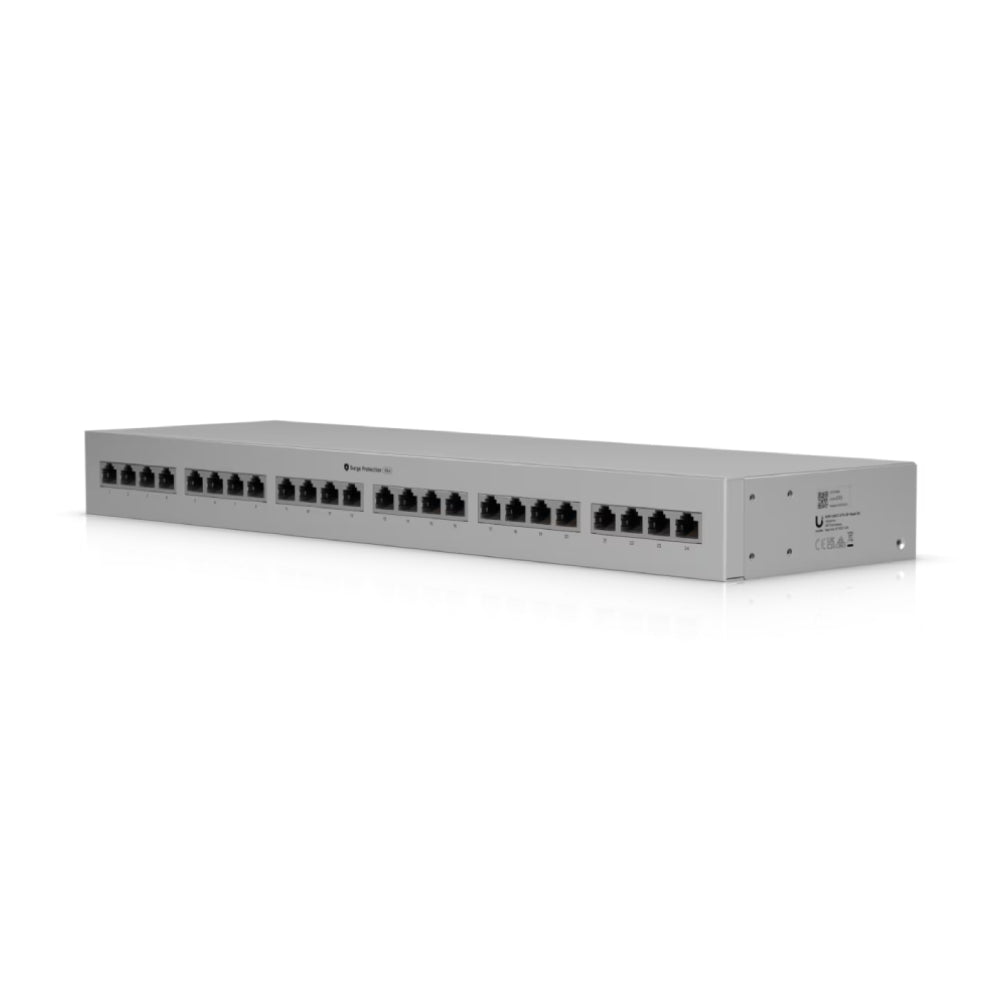

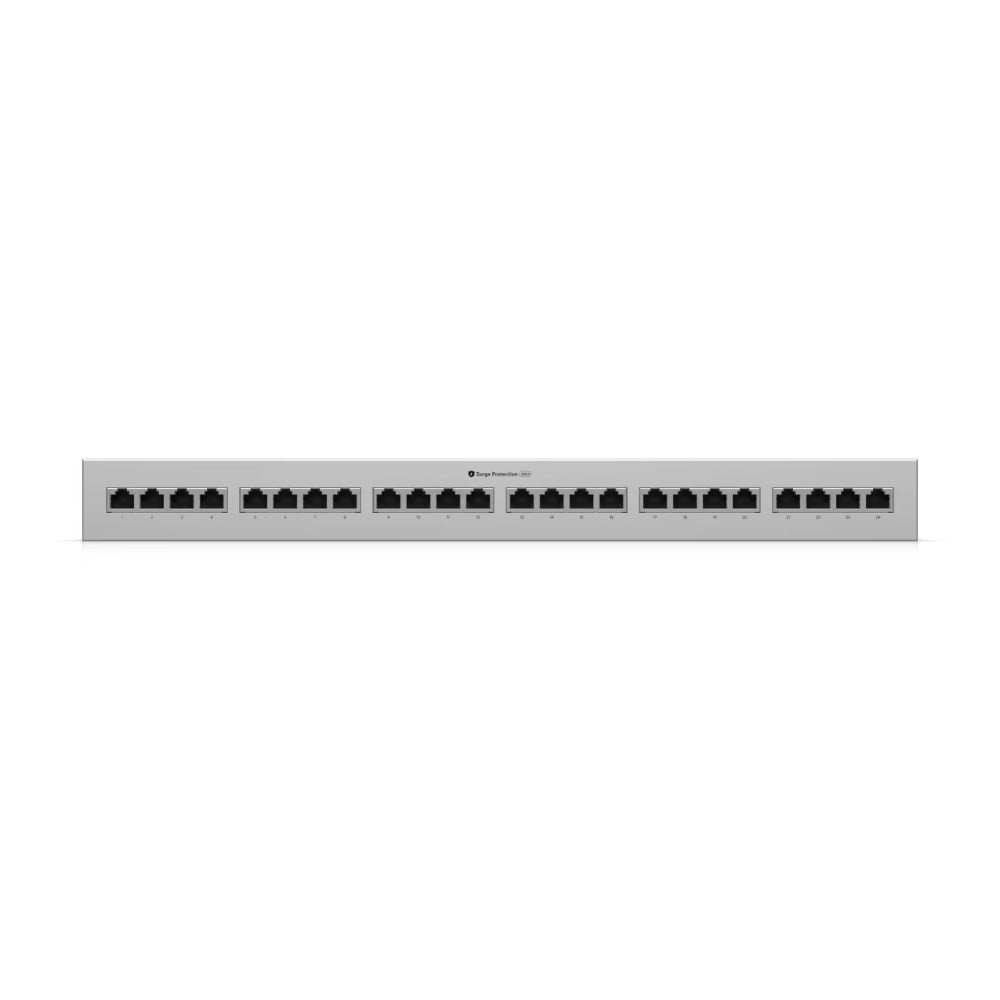

Ubiquiti UACC-ETH-SP-Panel-24 10GbE Surge Protector
Protect 24 Ethernet links with a rack-mounted surge protection panel. Its 48 RJ45 connectors provide paired connections, with data-line protection up to 10Gbps and PoE support.
Specifications
| Model |
UACC-ETH-SP-Panel-24 |
| Links |
24 protected links / 48 RJ45 female connectors |
| Data line protection |
Up to 10Gbps |
| Discharge current |
20kA |
| PoE |
Supported |
| Dimensions |
442.4 × 134 × 43.7 mm |
| Material |
SGCC steel |
| Operating temperature |
−40 to +80°C |
Questions & Answers
Is it a network switch?No. It protects inline Ethernet links; it does not switch traffic.
Does it limit links to 1Gbps?The official specification lists data-line protection up to 10Gbps.
Does it support PoE?Yes. Install the protection panel and grounding in accordance with Ubiquiti’s installation guide.
Manufacturer information: Ubiquiti specifications
