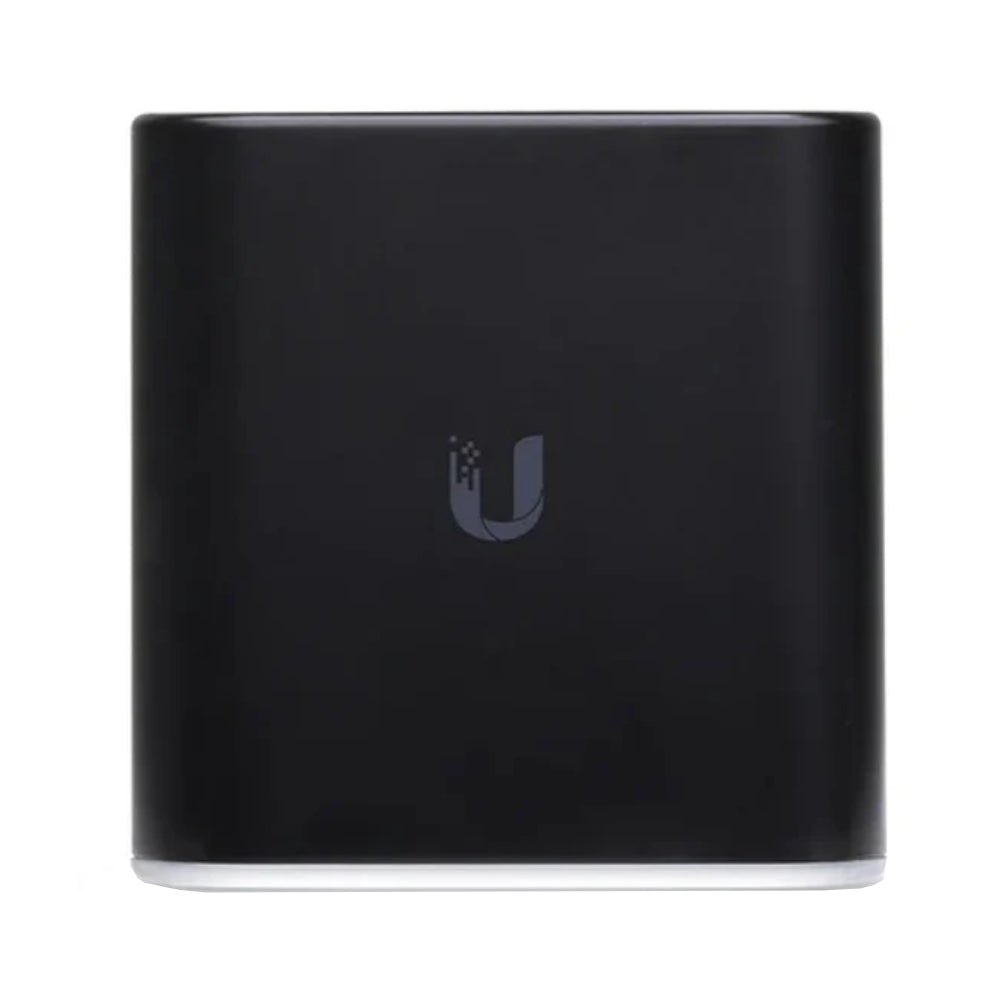

Ubiquiti airCube Wireless Dual-Band Wi-Fi Access Point, 802.11AC 2x2 Wireless, 4x Gigabit Ethernet, Super Antenna, Wide-area Coverage

Description

Ubiquiti airCube Wireless Dual-Band Wi-Fi Access Point, 802.11AC 2x2 Wireless, 4x Gigabit Ethernet, Super Antenna, Wide-area Coverage

High-performance home WiFi access point made to interoperate with airMAX CPE devices, with remote management by UISP.

Features

802.11ac 2x2
Integrated 24V PoE passthrough via included PSU
UISP support for remote network management

Technical Specifications

Mechanical
Dimensions 87.8 x 89.5 x 89.25 mm (3.5 x 3.5 x 3.5")
Weight 280 g (9.9 oz)
Hardware

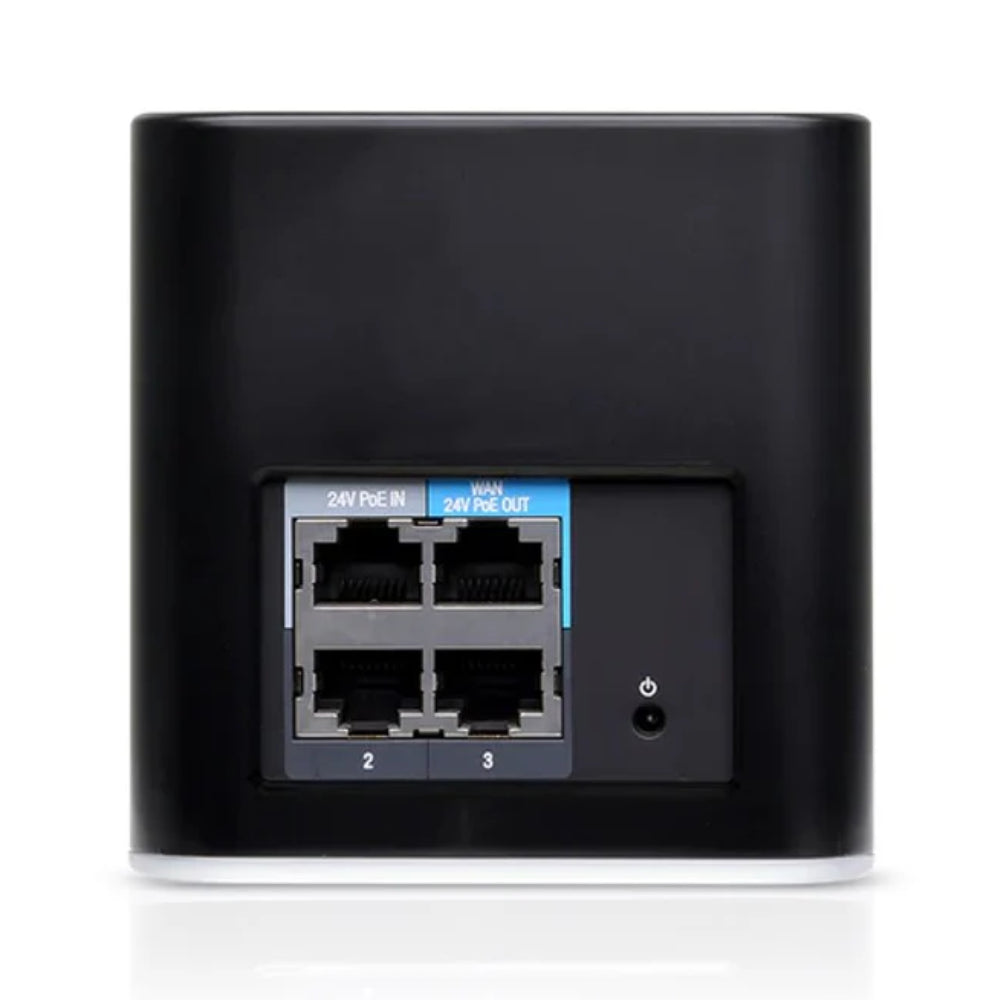

Networking interface (4) GbE RJ45 ports
Management interface Ethernet
WiFi
Power method Micro-USB adapter (Included)
24V DC, 0.83A PoE 24V In on Ethernet port 1
Power supply 24V
Supported voltage range 22—27V DC
Max. power consumption 8.5W
PoE Out Controllable 24V PoE Out (4, 5+, 7, 8-) on WAN Port
Operating frequency 2.4 GHz/5 GHz
Antenna gain
2.4 GHz
5 GHz

4 dBi
5 dBi
Max. speeds
2.4 GHz
5 GHz

300 Mbps
866.7 Mbps
Max. TX power 22 dBm
ESD/EMP protection ± 24 kV Contact / Air

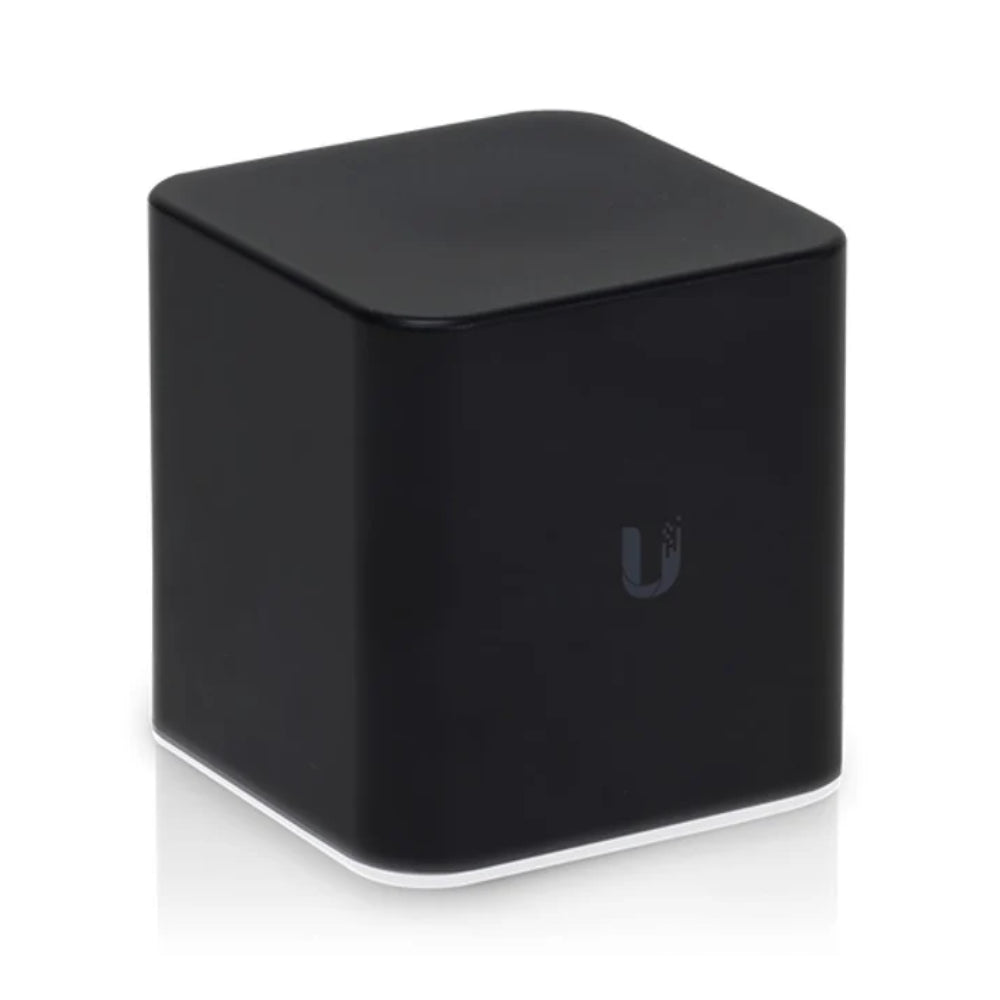

LED Status
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC

Downloads

Installation Guide

Ubiquiti airCube Wireless Dual-Band Wi-Fi Access Point, 802.11AC 2x2 Wireless, 4x Gigabit Ethernet, Super Antenna, Wide-area Coverage

Product form

SKU: ACB-AC

Ubiquiti airCube Wireless Dual-Band Wi-Fi Access Point, 802.11AC 2x2 Wireless, 4x Gigabit Ethernet, Super Antenna, Wide-area Coverage High-performance home WiFi... Read more

$135.30 Incl. GST

    • Warranty: 12 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
      • PayPal
      • Apple Pay
      • Visa
      • Mastercard
      • Zip
      • Klarna
      • Afterpay

      Description

      Ubiquiti airCube Wireless Dual-Band Wi-Fi Access Point, 802.11AC 2x2 Wireless, 4x Gigabit Ethernet, Super Antenna, Wide-area Coverage

      High-performance home WiFi access point made to interoperate with airMAX CPE devices, with remote management by UISP.

      Features

      802.11ac 2x2
      Integrated 24V PoE passthrough via included PSU
      UISP support for remote network management

      Technical Specifications

      Mechanical
      Dimensions 87.8 x 89.5 x 89.25 mm (3.5 x 3.5 x 3.5")
      Weight 280 g (9.9 oz)
      Hardware
      Networking interface (4) GbE RJ45 ports
      Management interface Ethernet
      WiFi
      Power method Micro-USB adapter (Included)
      24V DC, 0.83A PoE 24V In on Ethernet port 1
      Power supply 24V
      Supported voltage range 22—27V DC
      Max. power consumption 8.5W
      PoE Out Controllable 24V PoE Out (4, 5+, 7, 8-) on WAN Port
      Operating frequency 2.4 GHz/5 GHz
      Antenna gain
      2.4 GHz
      5 GHz

      4 dBi
      5 dBi
      Max. speeds
      2.4 GHz
      5 GHz

      300 Mbps
      866.7 Mbps
      Max. TX power 22 dBm
      ESD/EMP protection ± 24 kV Contact / Air
      LED Status
      Ambient operating temperature -10 to 50° C (14 to 122° F)
      Ambient operating humidity 5 to 95% noncondensing
      Certifications CE, FCC, IC

      Downloads

      Installation Guide
