Description

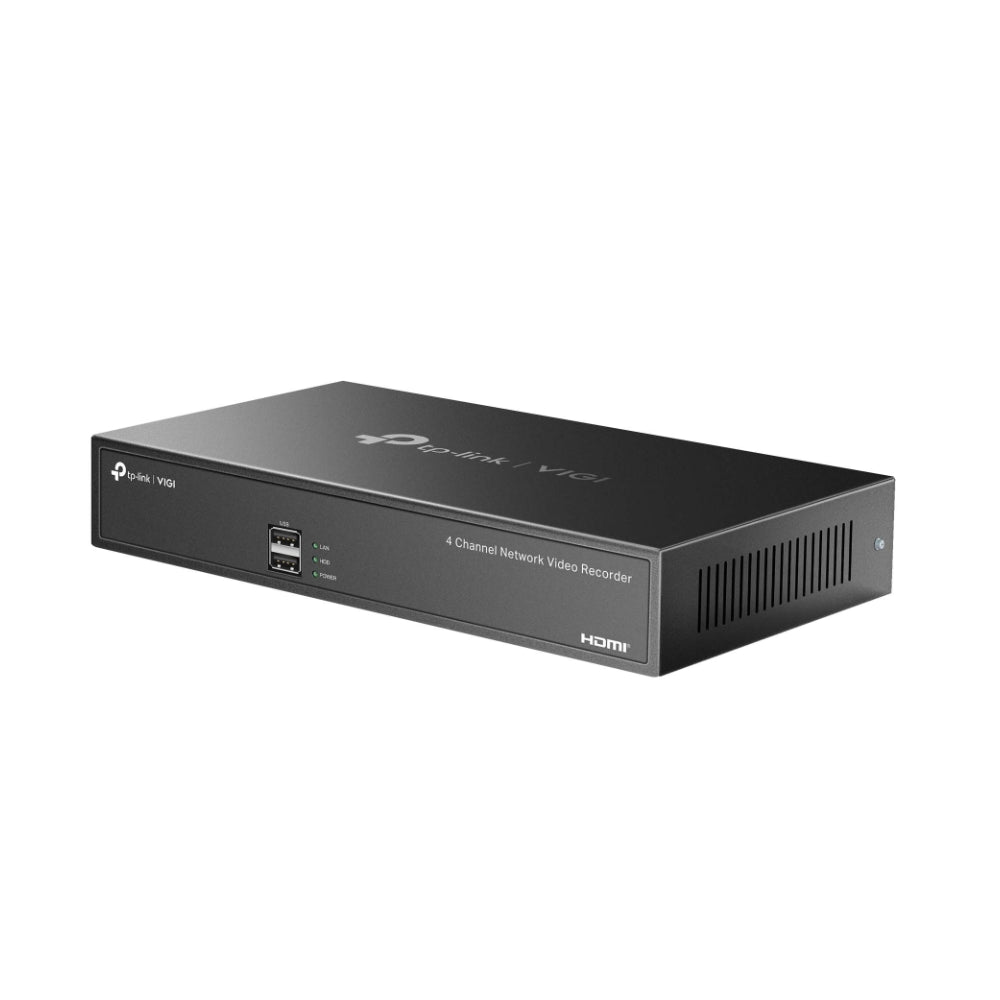

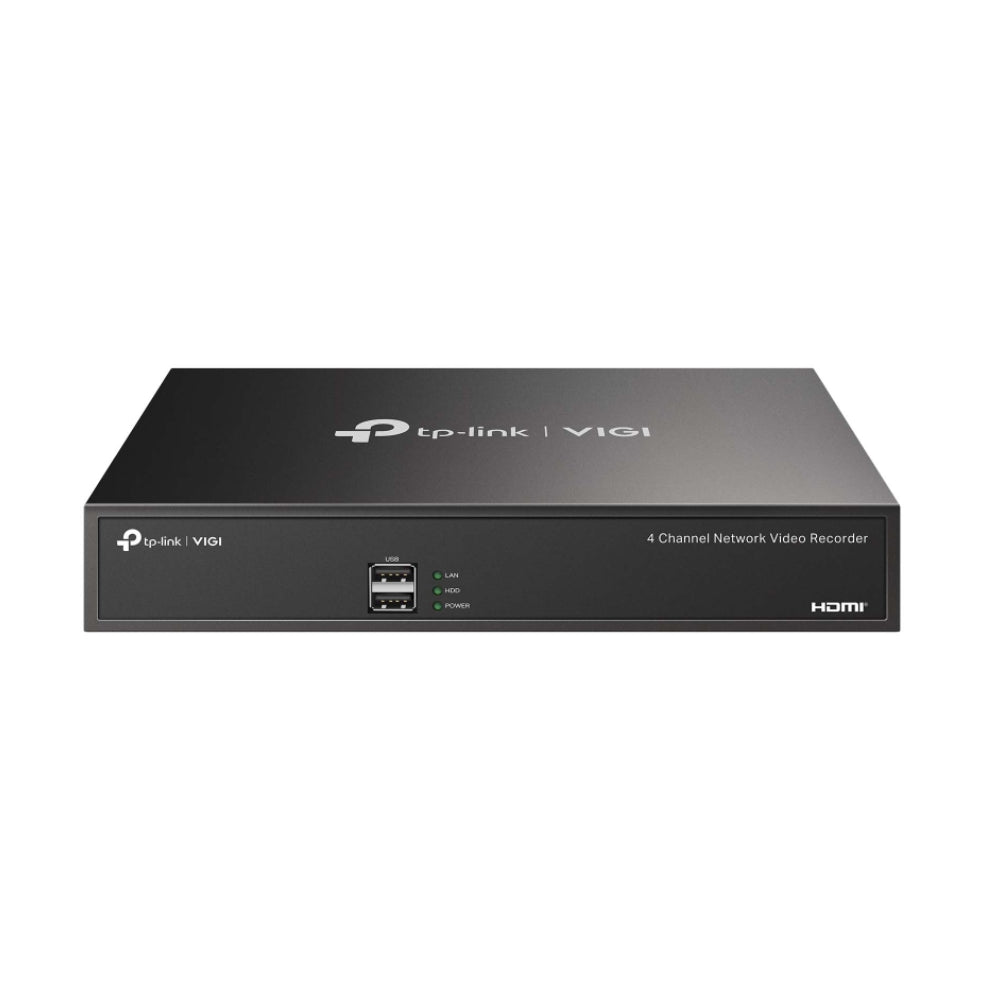

TP-Link VIGI NVR1004H 4-Channel Network Video Recorder
Simple, Reliable IP Camera Recording for Homes and Small Businesses
The TP-Link VIGI NVR1004H is a compact 4-channel network video recorder purpose-built for straightforward IP camera deployments. Supporting resolutions up to 8MP (4K) with H.265+ compression, it delivers high-quality local recording without the complexity or ongoing cost of cloud storage. Connect it to your network, add VIGI cameras, and you have a complete surveillance system — managed from your smartphone via the free VIGI app.
Key Features
-
4-Channel IP Camera Recording — Record up to four IP cameras simultaneously at resolutions up to 8MP (4K) for sharp, detailed footage
-
H.265+ Smart Compression — Reduces storage consumption by up to 75% compared to H.264, significantly extending hard drive recording capacity
-
4K HDMI & VGA Output — Connect directly to a 4K monitor or TV for crisp on-site live view and playback without a PC
-
Plug-and-Play with VIGI Cameras — Automatically detects and adds VIGI IP cameras on the same network; minimal configuration required
-
VIGI App Remote Access — Live view, video playback, and smart push alerts on iOS and Android from anywhere; no subscription fee required
-
AI Person & Vehicle Detection — Receives smart detection alerts from compatible VIGI cameras to reduce false alarms from environmental triggers
-
1 × HDD Bay — Supports one 3.5" SATA hard drive up to 10 TB (not included) for local, subscription-free continuous recording
-
ONVIF Compatible — Works with third-party ONVIF-compliant IP cameras in addition to the full VIGI camera range
-
Compact Desktop Design — Small, quiet form factor suits discreet installation in a cabinet, shelf, or back office
Use Cases
-
Home Security — Record up to four outdoor or indoor cameras with local storage and free remote smartphone access
-
Small Retail & Hospitality — Monitor entry points, tills, and stock areas with continuous recording and smart detection alerts
-
Small Offices & Clinics — Self-contained IP camera system with no ongoing cloud subscription fees for local recording
-
Rental Properties & Strata — Cost-effective four-camera surveillance for common areas, car parks, and building entries
-
Upgrading from Analogue CCTV — Ideal first IP camera NVR for anyone moving from a DVR-based analogue system to modern IP cameras
Technical Specifications
| Specification |
Detail |
| Model |
VIGI NVR1004H |
| Recording Channels |
4 |
| Max Recording Resolution |
Up to 8MP (4K) |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Incoming Bandwidth |
40 Mbps |
| Outgoing Bandwidth |
40 Mbps |
| Network Port |
1 × 10/100/1000 Mbps RJ45 (uplink) |
| PoE Ports |
None (use a separate PoE switch to power cameras) |

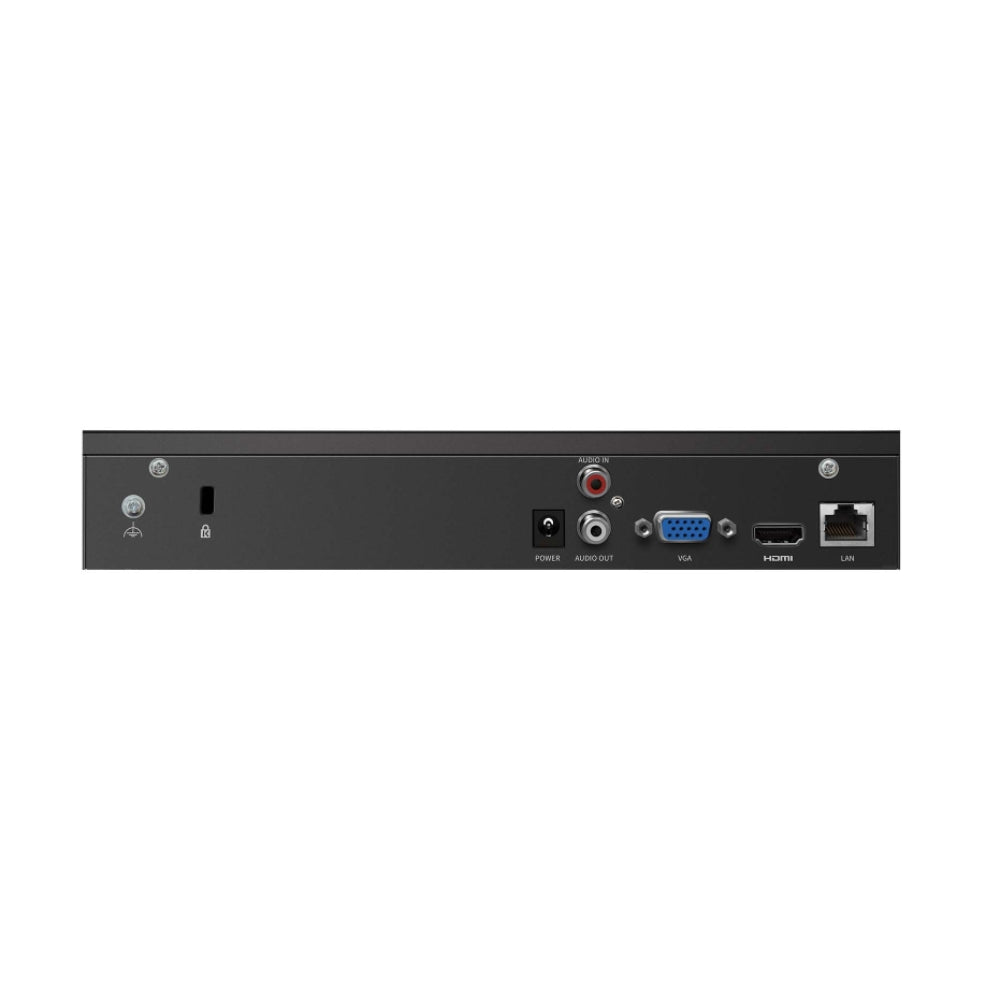

| Video Output |
1 × HDMI (up to 4K UHD); 1 × VGA |
| HDD Bay |
1 × 3.5" SATA (up to 10 TB, not included) |
| USB Ports |
2 × USB 2.0 (mouse / backup) |
| Audio |
1 × RCA audio input; 1 × RCA audio output |
| Recording Modes |
Continuous, schedule, motion detection, smart detection |
| Smart Detection |
Person detection, vehicle detection (requires compatible VIGI cameras) |
| Remote Access |
VIGI App (iOS & Android); VIGI Security Manager (Windows) |
| Third-Party Camera Support |
ONVIF-compatible IP cameras |
| Power Input |
DC 12 V / 2 A (power adaptor included) |
| Max Power Consumption |
10 W (without HDD) |
| Operating Temperature |
-10°C to 55°C |
| Storage Temperature |
-20°C to 60°C |
| Dimensions (W × D × H) |
200 × 200 × 45 mm |
| Weight |
0.72 kg (without HDD) |
| Certifications |
CE, FCC, RoHS |
| Warranty |
3 Years |
Recommended Accessories & Compatible Cameras
-
VIGI C340S — 4MP outdoor full-colour PoE turret camera; plug-and-play auto-detection with the NVR1004H
-
VIGI C340 — 4MP outdoor PoE turret camera with IR night vision; ideal for perimeter and entry-point coverage
-
VIGI C240 — 4MP indoor PoE dome camera for reception areas, offices, and retail interiors
-
TP-Link VIGI PoE Switch — Required to power PoE cameras when using the NVR1004H (non-PoE model)
-
3.5" Surveillance Hard Drive (Seagate SkyHawk or WD Purple, up to 10 TB) — purpose-built for 24/7 NVR recording workloads; not included
-
VIGI Junction Box (AB-JB) — surface-mount junction box for clean cable entry on outdoor camera installations
Downloads
Frequently Asked Questions
Does the NVR1004H have built-in PoE ports?
No. The NVR1004H does not include PoE ports. To power PoE cameras, you will need a separate PoE switch connected between the NVR and your cameras. If you prefer an all-in-one solution with built-in PoE, consider the VIGI NVR1004H-4P, which includes four 802.3af/at PoE ports.
Does the NVR come with a hard drive?
No — a hard drive is not included. The NVR1004H supports one 3.5" SATA drive up to 10 TB. We recommend a surveillance-grade drive such as the Seagate SkyHawk or WD Purple series, designed for the continuous read/write demands of 24/7 NVR recording.
Does it only work with VIGI cameras?
The NVR1004H is optimised for VIGI cameras and offers plug-and-play auto-detection with the full VIGI range. It also supports third-party ONVIF-compatible IP cameras, though advanced features such as smart detection alerts may not be available with non-VIGI cameras.
Can I access recordings remotely on my phone?
Yes. The free VIGI app (iOS and Android) provides live view, playback, and smart detection push notifications from anywhere with an internet connection. No subscription fee is required for remote access.
How much recording time does 1 TB of storage provide?
Storage duration depends on camera count, resolution, frame rate, and recording schedule. As a general guide, four 4MP cameras recording continuously with H.265+ compression will typically fill 1 TB in approximately 7–10 days. A 4 TB drive extends this to roughly 28–40 days of continuous recording.
Can I expand beyond four cameras?
No — the NVR1004H supports a maximum of four channels. For larger deployments, consider the VIGI NVR1008H (8-channel) or NVR2016H (16-channel).
Does it support motion-triggered recording?
Yes. The NVR1004H supports continuous, schedule-based, motion-triggered, and smart detection-triggered recording. When paired with compatible VIGI cameras, it can trigger recording based on person or vehicle detection events.
