Description

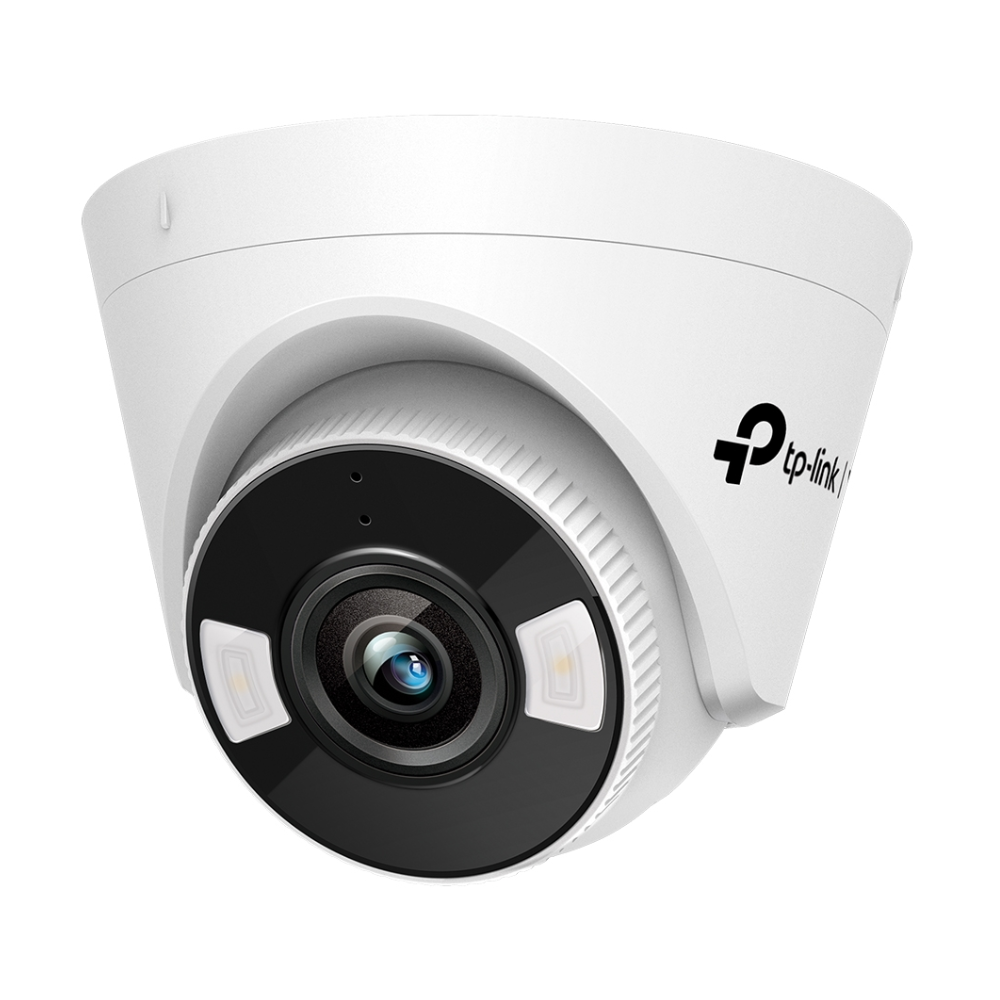

TP-Link VIGI C450 5MP Full-Colour Turret Network Camera (4mm)
The TP-Link VIGI C450 is a professional 5MP full-colour turret IP camera delivering sharp, detailed surveillance around the clock for Australian homes, retail shops, warehouses, and commercial sites. With a large-aperture lens, high-sensitivity sensor, and built-in supplemental white lights, it maintains true full-colour video 24 hours a day — even in complete darkness. AI human and vehicle classification, corridor mode, active defence, and two-way audio make it one of the most capable cameras in the VIGI range at this price point.
4mm vs 2.8mm — Which Lens Do I Need?
| Feature |
2.8mm Lens |
4mm Lens (This Model) |
| Field of View |
Wider — suits large open areas |
Narrower — suits corridors & entrances |
| Effective Range |
Shorter — best within ~8m |
Longer — effective to ~12m+ |
| Best For |
Retail floors, reception, warehouses |
Corridors, entrances, car parks, perimeters |
Key Features
-
5MP Super-High Definition — Captures crisp 2880×1620 footage with fine detail for confident identification of faces, licence plates, and signage.
-
24/7 Full-Colour Night Vision — Large-aperture lens, high-sensitivity sensor, and built-in supplemental white LEDs deliver true-colour footage in complete darkness — not black-and-white IR.
-
AI Human & Vehicle Classification — On-board AI distinguishes people and vehicles from other motion triggers, dramatically reducing false alarms from animals, foliage, or lighting changes.
-
Smart Detection — Detects area intrusion and line-crossing events with instant push notifications to the VIGI app.
-
Corridor Mode — Rotates the image from 16:9 to 9:16 portrait orientation for optimised coverage of hallways, aisles, driveways, and side paths.
-
Active Defence — Triggers an audible alarm and flashing light to deter intruders in real time when an abnormal event is detected.
-
Two-Way Audio — Built-in microphone and speaker support live voice intercom through the VIGI app — speak to visitors, deter intruders, or communicate with staff remotely.
-
H.265+ Compression — Reduces bandwidth and storage requirements by up to 50% compared to H.264 without sacrificing image quality.
-
Smart Video Enhancement — True WDR, 3D DNR, Smart IR, and Night Vision processing ensure clear footage across all lighting conditions.
-
PoE or 12V DC Power — Single-cable PoE installation via RJ45 (802.3af), or 12V DC adaptor where PoE is not available.
-
Local MicroSD Storage — Onboard microSD slot supports up to 256GB for standalone recording without an NVR.
-
IP67 Weatherproof — Fully sealed against dust and heavy rain for reliable outdoor performance in all Australian weather conditions.
-
Flexible Management — Manage via VIGI App (iOS/Android), VIGI NVR, VIGI Security Manager (PC), or web browser UI.
Use Cases
- Retail shopfronts, POS areas, and stock rooms requiring 5MP full-colour clarity at entry points
- Building entrances and lobbies where the 4mm lens captures clear facial detail at typical doorway distances
- Warehouses and loading docks using corridor mode to monitor aisles and narrow access paths
- Residential driveways and backyards needing full-colour licence plate and intruder detail day and night
- Car parks and side paths where human/vehicle classification reduces false alarm fatigue
- Schools, commercial properties, and aged care facilities requiring AI-classified smart detection
Technical Specifications
| Specification |
Detail |
| Model |
VIGI C450 (4mm) |
| Resolution |
5MP (2880 × 1620) |
| Lens |
4mm Fixed (also available in 2.8mm) |
| Form Factor |
Turret (indoor/outdoor) |
| Night Vision |
24/7 Full-Colour (supplemental white LEDs) |
| AI Detection |
Human & Vehicle Classification |
| Smart Detection |
Area Intrusion, Line-Crossing |
| Corridor Mode |
Yes — 16:9 to 9:16 aspect ratio rotation |
| Active Defence |
Sound alarm + light flash |
| Audio |
Two-way (built-in mic & speaker) |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Smart Video |
True WDR, 3D DNR, Smart IR, Night Vision |
| Power Supply |
PoE (802.3af) or 12V DC |
| Local Storage |
MicroSD up to 256GB (not included) |
| Ingress Protection |
IP67 (weatherproof) |
| ONVIF |
Yes |
| Management |
VIGI App, VIGI NVR, VIGI Security Manager, Web UI |
| Weight |
Approx. 380g |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link VIGI NVR1104H-4P — 4-channel PoE+ NVR for centralised recording and AI event management across multiple VIGI cameras.
-
TP-Link TL-POE260S 2.5G PoE+ Injector — Powers the C450 via a single Ethernet cable from any non-PoE switch or router.
-
MicroSD Card (Class 10 / U3, up to 256GB) — Enables standalone on-camera recording without an NVR.
-
Cat6 Ethernet Cable — For reliable PoE data and power delivery to the camera installation point.
-
Junction Box / Surface Mount Adapter — Provides a clean cable entry point for wall or ceiling installations.
Frequently Asked Questions
Does the VIGI C450 need an NVR?
No. The C450 can record locally to a microSD card (up to 256GB, sold separately) and be managed via the VIGI app or web browser as a standalone device. Pairing with a VIGI NVR unlocks centralised multi-camera management, longer recording retention, and full AI event search.
What is Corridor Mode and when should I use it?
Corridor Mode rotates the image from the standard 16:9 widescreen aspect ratio to a 9:16 portrait orientation. This is ideal for monitoring long, narrow spaces such as hallways, stairwells, retail aisles, driveways, and side paths — where a standard widescreen image wastes significant frame area on walls and ceiling rather than the area of interest.
Is the VIGI C450 weatherproof?
Yes. The C450 carries an IP67 rating, meaning it is fully protected against dust ingress and temporary water immersion — suitable for outdoor installation in all Australian weather conditions including tropical rain and coastal environments.
What is the difference between the C450 and the C250?
Both cameras are 5MP full-colour models. The C450 is a turret camera with corridor mode, active defence, and two-way audio. The C250 is a dome camera with IK10 vandal-proof housing and people/vehicle attribute search analytics. The C450 is better suited to general commercial and residential use; the C250 is preferred for high-risk environments requiring vandal resistance and advanced forensic search.
Does it support ONVIF for third-party NVRs?
Yes. The VIGI C450 supports ONVIF, making it compatible with third-party NVRs and VMS platforms that support the ONVIF standard. Full AI features including human/vehicle classification, smart detection events, and corridor mode configuration are only available within the TP-Link VIGI ecosystem.
What PoE standard does this camera require?
The VIGI C450 requires IEEE 802.3af PoE (15.4W), which is the standard supported by most PoE switches and NVRs. Any 802.3af or 802.3at (PoE+) switch or injector is compatible.
