Description

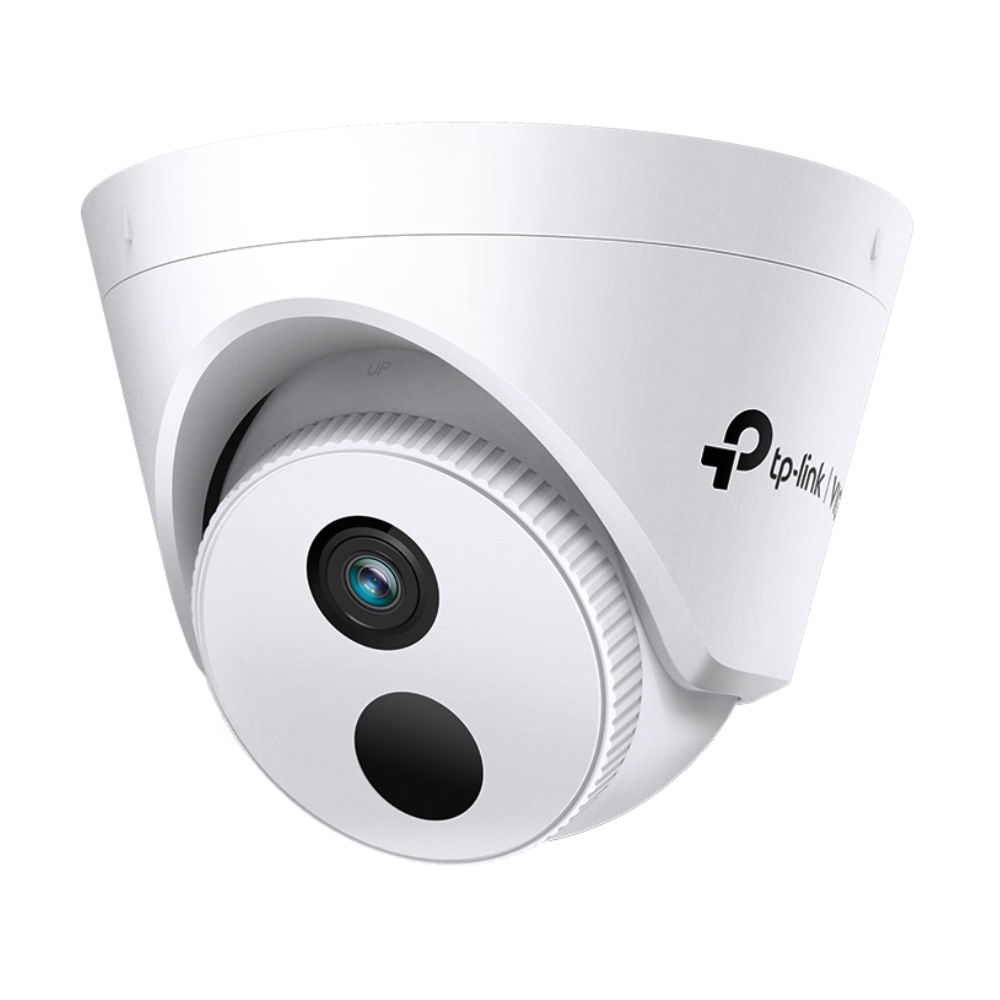

TP-Link VIGI C440I 4MP IR Turret Network Camera (2.8mm) with Corridor Mode
The TP-Link VIGI C440I is a professional 4MP IR turret IP camera designed for commercial and institutional surveillance installations across Australia. Featuring AI human and vehicle classification, smart detection, and a unique Corridor Mode that rotates the image to a 9:16 aspect ratio for long, narrow spaces, it’s the purpose-built choice for hallways, stairwells, aisles, and lift lobbies. With flexible PoE or 12V DC power and four management options, it integrates seamlessly into any VIGI system.
2.8mm vs 4mm — Which Lens Do I Need?
| Feature |
2.8mm Lens (This Model) |
4mm Lens |
| Field of View |
Wider — suits enclosed spaces & corridors |
Narrower — suits entrances & longer runs |
| Effective Range |
Shorter — best within ~8m |
Longer — effective to ~12m+ |
| Best For |
Hallways, lifts, stairwells, retail aisles |
Corridors, entrances, car parks, perimeters |

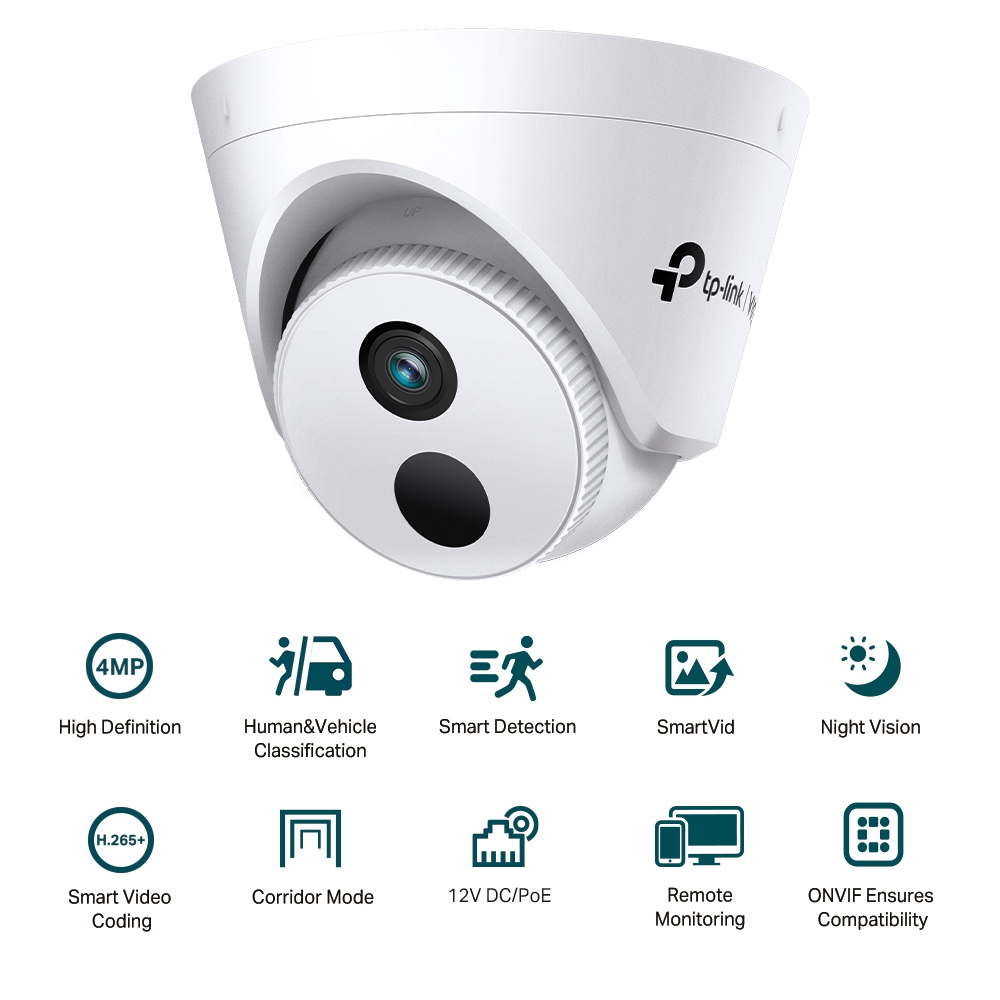

Key Features
-
4MP Super-High Definition — Captures crisp 2560×1440 footage with fine detail for confident identification of people and events day and night.
-
Corridor Mode — Rotates the image aspect ratio from standard 16:9 to 9:16 (portrait orientation), perfectly filling the frame when monitoring long, narrow spaces such as hallways, stairwells, and aisles — eliminating wasted image area at the sides.
-
AI Human & Vehicle Classification — On-board AI distinguishes people and vehicles from other motion triggers, dramatically reducing false alarms from animals, foliage, or lighting changes.
-
Smart Detection — Detects area intrusion, line-crossing, object abandoned/removal, and video tampering, with instant push notifications to the VIGI app.
-
IR Night Vision — Smart IR LEDs deliver clear black-and-white footage in complete darkness, with automatic exposure adjustment to prevent overexposure at close range.
-
Smart Video Enhancement — True WDR, 3D DNR, Smart IR, and Night Vision processing ensure clear footage in high-contrast and low-light scenes.
-
H.265+ Compression — Reduces bandwidth and storage requirements by up to 50% compared to H.264 without sacrificing image quality.
-
PoE or 12V DC Power — Single-cable PoE installation via RJ45, or 12V DC adaptor where PoE is not available.
-
Turret Form Factor — Ball-and-socket design allows precise lens repositioning after mounting without removing the camera body, simplifying installation and adjustment.
-
Flexible Management — Manage via VIGI App (iOS/Android), VIGI NVR, VIGI Security Manager (PC), or web browser UI.
Use Cases
- Hallways and corridors in offices, hospitals, and aged care facilities — Corridor Mode fills the frame perfectly for long, narrow spaces
- Stairwells and lift lobbies requiring wide-angle coverage at close range with IR night vision
- Retail aisles and supermarket lanes where portrait-orientation monitoring reduces blind spots
- School corridors and university buildings needing AI-classified smart detection to reduce false alarm fatigue
- Residential apartment building common areas and car park stairwells
- Any installation where standard 16:9 widescreen framing wastes image area in a narrow space
Technical Specifications
| Specification |
Detail |
| Model |
VIGI C440I (2.8mm) |
| Resolution |
4MP (2560 × 1440) |
| Lens |
2.8mm Fixed (also available in 4mm) |
| Form Factor |
Turret (indoor/outdoor) |
| Corridor Mode |
Yes — 16:9 to 9:16 aspect ratio rotation |
| Night Vision |
IR (Smart IR LEDs; black-and-white in darkness) |
| AI Detection |
Human & Vehicle Classification |
| Smart Detection |
Area Intrusion, Line-Crossing, Object Abandoned/Removal, Video Tampering |
| Smart Video |
Smart IR, WDR, 3D DNR, Night Vision |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Power Supply |
PoE (802.3af) or 12V DC |
| Management |
VIGI App, VIGI NVR, VIGI Security Manager, Web UI |
| Weight |
Approx. 320g |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link VIGI NVR1104H-4P — 4-channel PoE+ NVR for centralised recording and AI event management across multiple VIGI cameras.
-
TP-Link TL-POE260S 2.5G PoE+ Injector — Powers the C440I via a single Ethernet cable from any non-PoE switch or router.
-
MicroSD Card (Class 10 / U3) — Enables standalone on-camera recording without an NVR (check supported capacity in datasheet).
-
Cat6 Ethernet Cable — For reliable PoE data and power delivery to the camera installation point.
-
Junction Box / Surface Mount Adapter — Provides a clean cable entry point for wall or ceiling installations in corridors and stairwells.
Frequently Asked Questions
What is Corridor Mode and when should I use it?
Corridor Mode rotates the camera’s image from the standard 16:9 widescreen aspect ratio to a 9:16 portrait orientation. This is ideal for monitoring long, narrow spaces such as hallways, stairwells, retail aisles, and lift lobbies — where a standard widescreen image wastes significant frame area on walls and ceiling rather than the area of interest. Corridor Mode effectively doubles the useful monitored length compared to a standard 16:9 framing in the same space.
What is the difference between the VIGI C440I and the VIGI C440?
The VIGI C440I uses infrared (IR) night vision, producing black-and-white footage in low-light and dark conditions. The VIGI C440 uses full-colour night vision with spotlight LEDs, producing colour footage in complete darkness. The C440I is typically preferred for installations where the spotlight LEDs of a full-colour camera would be intrusive or unwanted, such as in residential corridors, aged care facilities, or discreet commercial monitoring.
Does the VIGI C440I work without an NVR?
Yes. The C440I supports standalone operation with local recording to a microSD card and remote management via the VIGI app or web browser. A VIGI NVR is optional but recommended for multi-camera deployments requiring centralised recording, playback, and AI event management.
What PoE standard does this camera require?
The VIGI C440I is powered by IEEE 802.3af PoE, which is the standard supported by most PoE switches and NVRs. It also accepts 12V DC power if PoE is not available at the installation point.
Is the C440I suitable for outdoor installation?
Yes. The VIGI C440I is rated for both indoor and outdoor use. Check the product datasheet for its exact IP ingress protection rating before installing in exposed outdoor locations subject to direct rain or dust.
Can I integrate the VIGI C440I with third-party NVRs?
The VIGI C440I supports ONVIF, allowing basic integration with compatible third-party NVRs and VMS platforms. Full AI features including human/vehicle classification, smart detection events, and Corridor Mode configuration are only available within the TP-Link VIGI ecosystem.
