Description

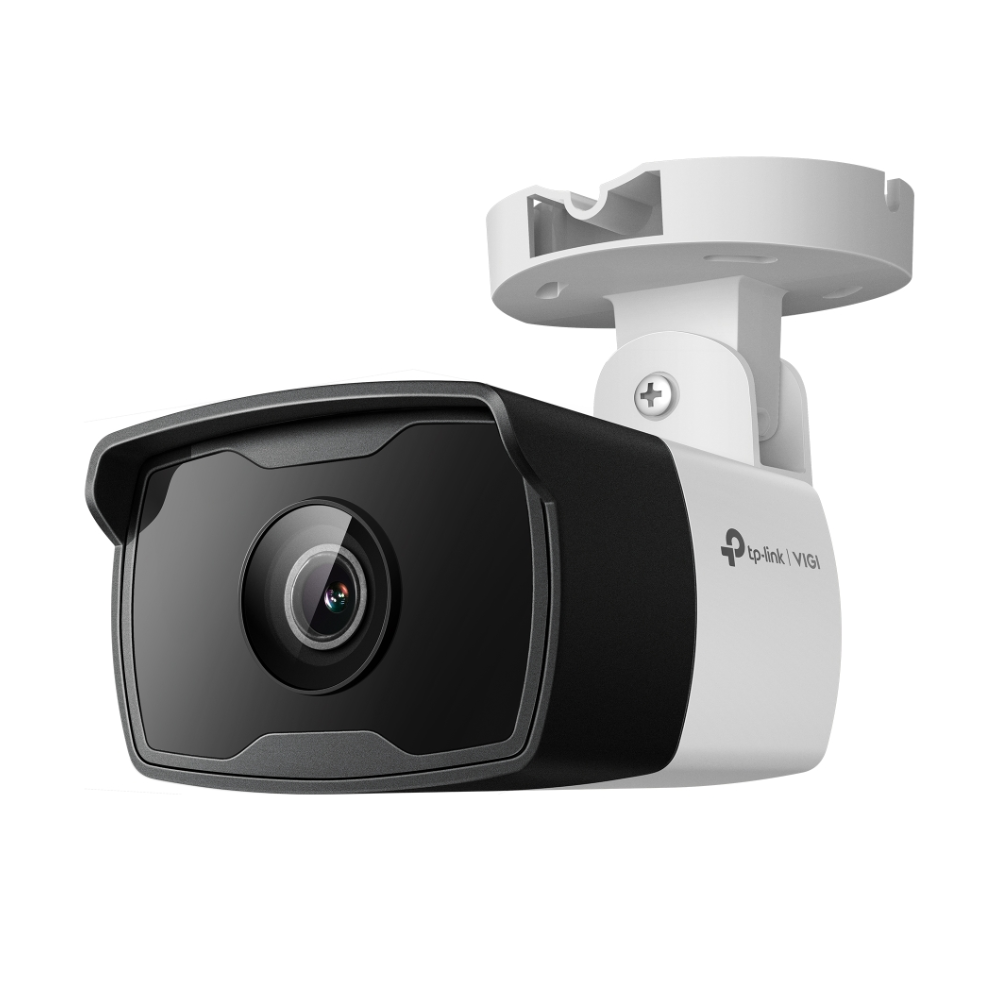

TP-Link VIGI C340I 4MP IR Outdoor Bullet Network Camera (6mm)
The TP-Link VIGI C340I (6mm) is a professional 4MP IR outdoor bullet IP camera designed for long-range surveillance in commercial and rural Australian installations. The 6mm fixed focal length delivers a narrower field of view than the 2.8mm and 4mm variants, making it the preferred choice for monitoring driveways, car park lanes, perimeter fencing, and open outdoor areas where subjects are at greater distances from the camera. With AI human and vehicle classification, smart detection, IP67 weatherproofing, and flexible PoE or 12V DC power, it provides reliable, targeted monitoring where standard wide-angle cameras fall short.
6mm vs 4mm vs 2.8mm — Which Lens Do I Need?
| Feature |
2.8mm Lens |
4mm Lens |
6mm Lens (This Model) |
| Field of View |
Widest |
Medium |
Narrowest — longest reach |
| Effective Range |
~8m |
~12m+ |
~18m+ for identification |
| Best For |
Retail, reception, warehouses |
Corridors, entrances, car parks |
Long driveways, perimeters, open areas |

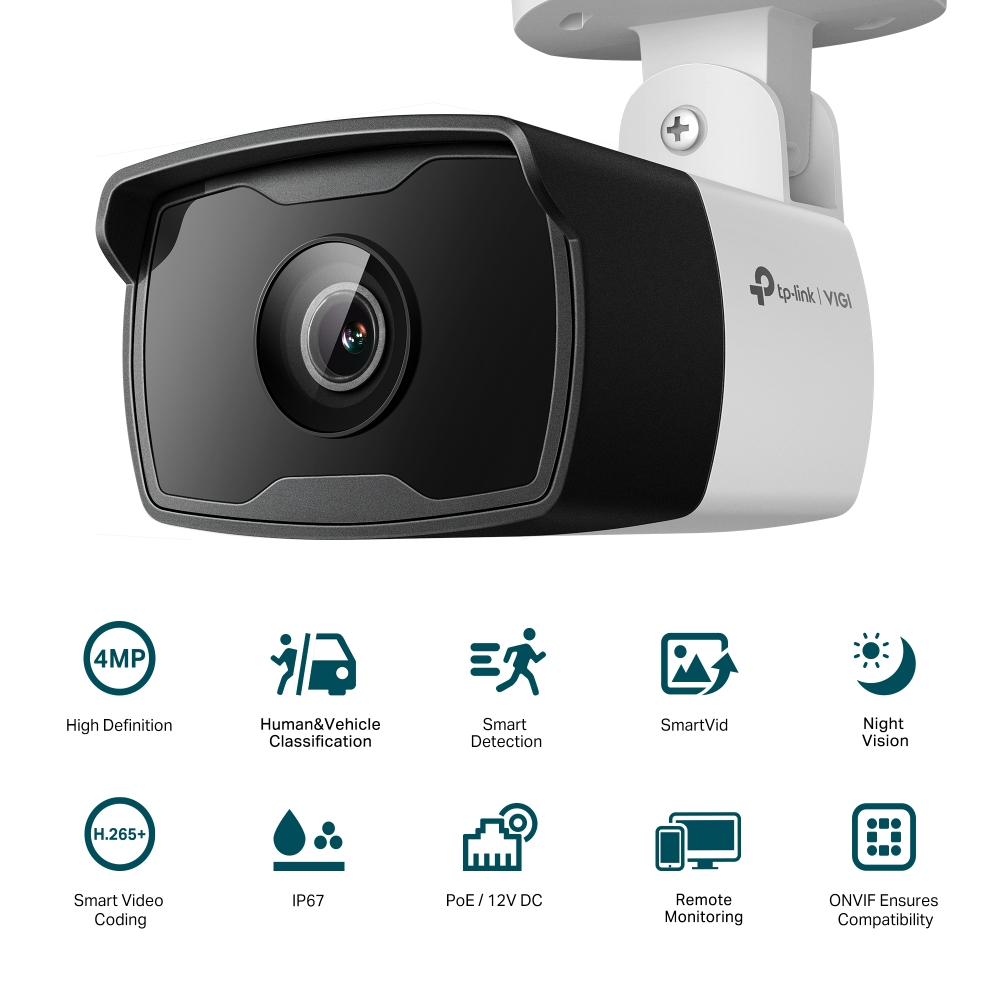

Key Features
-
4MP Super-High Definition — Captures crisp 2560×1440 footage with fine detail for confident identification of people and vehicles at extended distances.
-
6mm Fixed Focal Length — Narrower field of view with longer effective range — ideal for monitoring long driveways, open car parks, perimeter fencing, and rural property boundaries where subjects are further from the camera.
-
IR Night Vision — Smart IR LEDs deliver clear black-and-white footage in complete darkness, with automatic exposure adjustment to prevent overexposure at close range.
-
AI Human & Vehicle Classification — On-board AI distinguishes people and vehicles from other motion triggers, dramatically reducing false alarms from animals, foliage, or lighting changes.
-
Smart Detection — Detects area intrusion, line-crossing, object abandoned/removal, and video tampering, with instant push notifications to the VIGI app.
-
Smart Video Enhancement — True WDR, 3D DNR, Smart IR, and Night Vision processing ensure clear footage in high-contrast and low-light scenes.
-
H.265+ Compression — Reduces bandwidth and storage requirements by up to 50% compared to H.264 without sacrificing image quality.
-
IP67 Weatherproof — Fully sealed against dust and heavy rain for reliable outdoor performance in all Australian weather conditions.
-
PoE or 12V DC Power — Single-cable PoE installation via RJ45, or 12V DC adaptor where PoE is not available.
-
Bullet Form Factor — Highly visible housing acts as a visual deterrent; adjustable mounting bracket allows precise directional aiming after installation.
-
Flexible Management — Manage via VIGI App (iOS/Android), VIGI NVR, VIGI Security Manager (PC), or web browser UI.
Use Cases
- Long driveways and rural property entrances where subjects are 15–25 metres from the camera mounting point
- Open car parks and loading areas requiring identification at greater distances than a 4mm lens can provide
- Perimeter fencing and boundary monitoring on farms, industrial sites, and large commercial properties
- Road-facing installations monitoring vehicle movements along a street or access road
- Construction sites and remote facilities where a narrow, long-range field of view is required
- Supplementing a multi-camera VIGI NVR system with a dedicated long-range camera at a key vantage point
Technical Specifications
| Specification |
Detail |
| Model |
VIGI C340I (6mm) |
| Resolution |
4MP (2560 × 1440) |
| Lens |
6mm Fixed (also available in 2.8mm and 4mm) |
| Form Factor |
Bullet (outdoor) |
| Night Vision |
IR (Smart IR LEDs; black-and-white in darkness) |
| AI Detection |
Human & Vehicle Classification |
| Smart Detection |
Area Intrusion, Line-Crossing, Object Abandoned/Removal, Video Tampering |
| Smart Video |
Smart IR, WDR, 3D DNR, Night Vision |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Power Supply |
PoE (802.3af) or 12V DC |
| Weather Rating |
IP67 |
| Management |
VIGI App, VIGI NVR, VIGI Security Manager, Web UI |
| Weight |
Approx. 380g |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link VIGI NVR1104H-4P — 4-channel PoE+ NVR for centralised recording and AI event management across multiple VIGI cameras.
-
TP-Link TL-POE260S 2.5G PoE+ Injector — Powers the C340I via a single Ethernet cable from any non-PoE switch or router.
-
MicroSD Card (Class 10 / U3) — Enables standalone on-camera recording without an NVR (check supported capacity in datasheet).
-
Cat6 Ethernet Cable — For reliable PoE data and power delivery; Cat6 recommended for runs over 50m.
-
Weatherproof Junction Box — Provides a clean, sealed cable entry point for outdoor wall or pole installations.
Frequently Asked Questions
Why choose a 6mm lens over a 4mm lens for outdoor surveillance?
A 6mm lens has a narrower field of view but a significantly longer effective range than a 4mm lens. If your camera is mounted more than 12–15 metres from the area you need to monitor — such as a long driveway, open car park, or perimeter fence line — a 6mm lens will provide clearer, more identifiable footage of subjects at that distance. A 4mm lens would show the same subject as smaller and less detailed at the same distance.
What is the difference between the VIGI C340I and the VIGI C340?
The VIGI C340I uses infrared (IR) night vision, producing black-and-white footage in low-light and dark conditions. The VIGI C340 uses full-colour night vision with spotlight LEDs, producing colour footage in complete darkness. The C340I is typically preferred for long-range outdoor installations where the spotlight LEDs of a full-colour camera would not reach the subject distance effectively, or where discreet IR monitoring is preferred.
Does the VIGI C340I work without an NVR?
Yes. The C340I supports standalone operation with local recording to a microSD card and remote management via the VIGI app or web browser. A VIGI NVR is optional but recommended for multi-camera deployments requiring centralised recording, playback, and AI event management.
What PoE standard does this camera require?
The VIGI C340I is powered by IEEE 802.3af PoE, which is the standard supported by most PoE switches and NVRs. It also accepts 12V DC power if PoE is not available at the installation point.
Is the 6mm lens suitable for number plate capture?
The 6mm lens is better suited to number plate capture at distance than the 2.8mm or 4mm variants due to its longer effective range and narrower field of view. For dedicated licence plate recognition (LPR) applications, a varifocal or purpose-built LPR camera is recommended. The VIGI C340I (6mm) provides good general-purpose long-range coverage with vehicle detection for identifying vehicle presence and movement.
Can I integrate the VIGI C340I with third-party NVRs?
The VIGI C340I supports ONVIF, allowing basic integration with compatible third-party NVRs and VMS platforms. Full AI features including human/vehicle classification and smart detection events are only available within the TP-Link VIGI ecosystem.
