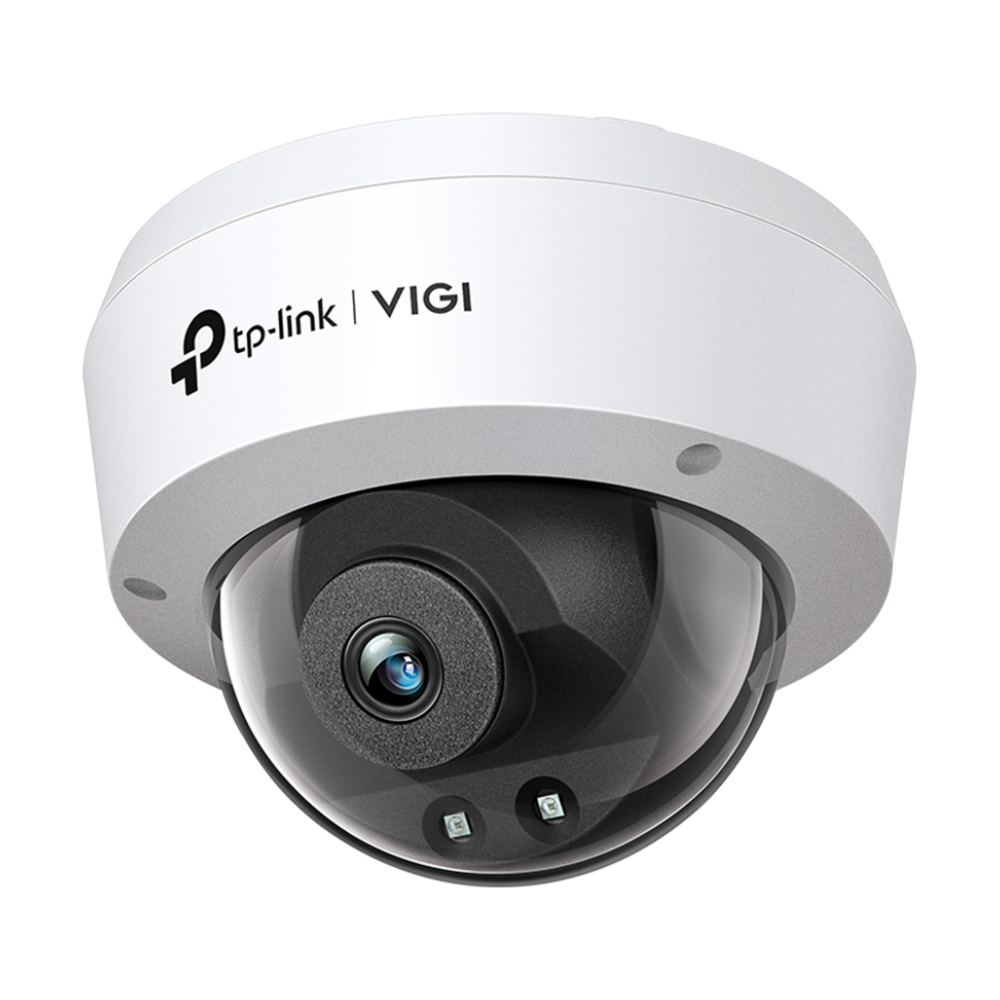

TP-Link VIGI C240I 4MP IR Dome Network Camera (2.8mm)
The TP-Link VIGI C240I is a professional 4MP IR dome IP camera built for demanding indoor and outdoor commercial installations across Australia. With AI human and vehicle classification, smart detection, IK10 vandal-proof housing, IP67 weatherproofing, and flexible PoE or 12V DC power, it delivers reliable around-the-clock surveillance in environments where durability and accurate event detection are non-negotiable. The 2.8mm wide-angle lens provides broad coverage for enclosed spaces, lobbies, and open areas at close to medium range.
2.8mm vs 4mm — Which Lens Do I Need?
| Feature |
2.8mm Lens (This Model) |
4mm Lens |
| Field of View |
Wider — suits large open areas & enclosed spaces |
Narrower — suits corridors & entrances |
| Effective Range |
Shorter — best within ~8m |
Longer — effective to ~12m+ |
| Best For |
Retail floors, lifts, reception, warehouses |
Corridors, entrances, car parks, perimeters |

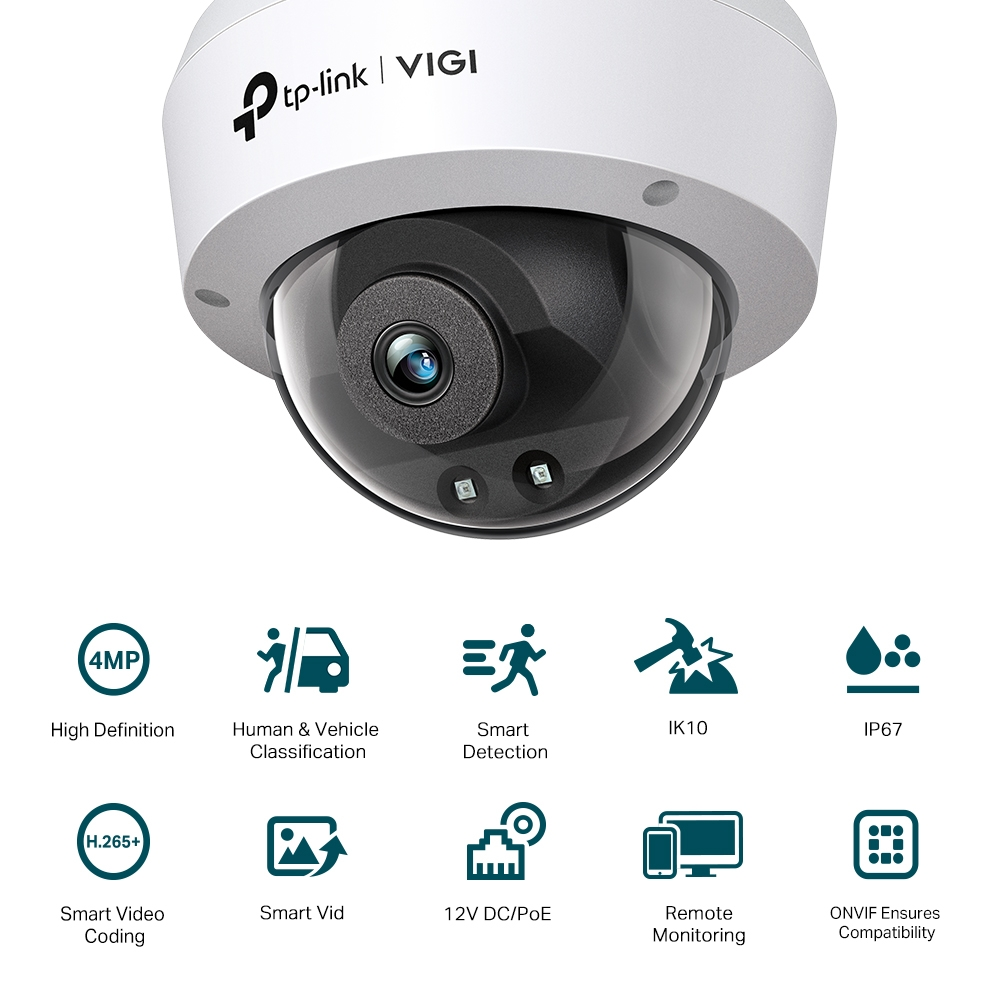

Key Features
-
4MP Super-High Definition — Captures crisp 2560×1440 footage with fine detail for confident identification of people and events day and night.
-
AI Human & Vehicle Classification — On-board AI distinguishes people and vehicles from other motion triggers, dramatically reducing false alarms from animals, foliage, or lighting changes.
-
Smart Detection — Detects area intrusion, line-crossing, object abandoned/removal, and video tampering, with instant push notifications to the VIGI app.
-
IK10 Vandal-Proof — Rugged dome housing withstands deliberate impact — rated for high-risk environments including car parks, stairwells, and public-facing installations.
-
IP67 Weatherproof — Fully sealed against dust and heavy rain for reliable outdoor performance in all Australian weather conditions.
-
IR Night Vision — Smart IR LEDs deliver clear black-and-white footage in complete darkness, with automatic exposure adjustment to prevent overexposure at close range.
-
Smart Video Enhancement — True WDR, 3D DNR, Smart IR, and Night Vision processing ensure clear footage in high-contrast and low-light scenes.
-
H.265+ Compression — Reduces bandwidth and storage requirements by up to 50% compared to H.264 without sacrificing image quality.
-
PoE or 12V DC Power — Single-cable PoE installation via RJ45, or 12V DC adaptor where PoE is not available.
-
Flexible Management — Manage via VIGI App (iOS/Android), VIGI NVR, VIGI Security Manager (PC), or web browser UI.
Use Cases
- Retail shopfronts, supermarkets, and shopping centres requiring wide-angle coverage at close range
- Lifts, stairwells, and car park structures where IK10 vandal resistance is essential
- Building lobbies, reception areas, and corridors needing AI-classified smart detection
- Warehouses and loading docks requiring durable outdoor-rated cameras with PoE installation
- Schools, hospitals, and public facilities where accurate human detection reduces false alarm fatigue
- Perimeter fencing and outdoor areas exposed to dust, rain, and deliberate tampering
Technical Specifications
| Specification |
Detail |
| Model |
VIGI C240I (2.8mm) |
| Resolution |
4MP (2560 × 1440) |
| Lens |
2.8mm Fixed (also available in 4mm) |
| Form Factor |
Dome (indoor/outdoor) |
| Night Vision |
IR (Smart IR LEDs; black-and-white in darkness) |
| AI Detection |
Human & Vehicle Classification |
| Smart Detection |
Area Intrusion, Line-Crossing, Object Abandoned/Removal, Video Tampering |
| Smart Video |
Smart IR, WDR, 3D DNR, Night Vision |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Power Supply |
PoE (802.3af) or 12V DC |
| Ingress Protection |
IP67 (weatherproof) / IK10 (vandal-proof) |
| Management |
VIGI App, VIGI NVR, VIGI Security Manager, Web UI |
| Weight |
Approx. 460g |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link VIGI NVR1104H-4P — 4-channel PoE+ NVR for centralised recording and AI event management across multiple VIGI cameras.
-
TP-Link TL-POE260S 2.5G PoE+ Injector — Powers the C240I via a single Ethernet cable from any non-PoE switch or router.
-
MicroSD Card (Class 10 / U3) — Enables standalone on-camera recording without an NVR (check supported capacity in datasheet).
-
Cat6 Ethernet Cable — For reliable PoE data and power delivery to the camera installation point.
-
Junction Box / Surface Mount Adapter — Provides a clean, weatherproof cable entry point for wall or ceiling installations.
Downloads
Frequently Asked Questions
What is the difference between the VIGI C240I and the VIGI C240?
The VIGI C240I uses infrared (IR) night vision, producing black-and-white footage in low-light and dark conditions. The VIGI C240 uses full-colour night vision with spotlight LEDs, producing colour footage in complete darkness. The C240I is typically preferred for installations where the spotlight LEDs of a full-colour camera would be intrusive or unwanted, such as in residential areas or discreet commercial monitoring.
Does the VIGI C240I work without an NVR?
Yes. The C240I supports standalone operation with local recording to a microSD card and remote management via the VIGI app or web browser. A VIGI NVR is optional but recommended for multi-camera deployments requiring centralised recording, playback, and AI event management.
What PoE standard does this camera require?
The VIGI C240I is powered by IEEE 802.3af PoE, which is the standard supported by most PoE switches and NVRs. It also accepts 12V DC power if PoE is not available at the installation point.
How does AI human and vehicle detection reduce false alarms?
The on-board AI chip analyses motion events in real time and classifies them as human, vehicle, or other. Only human and vehicle events trigger push notifications, so you won’t receive alerts for a cat walking past, a tree branch moving, or a change in lighting — significantly reducing alarm fatigue on busy commercial sites.
Is the IK10 rating important for my installation?
IK10 is the highest impact protection rating, meaning the camera housing can withstand a 20-joule impact — equivalent to a 5kg weight dropped from 40cm. This is important for installations in car parks, stairwells, public toilets, and any location where the camera may be subject to deliberate tampering or accidental impact.
Can I integrate the VIGI C240I with third-party NVRs?
The VIGI C240I supports ONVIF, allowing basic integration with compatible third-party NVRs and VMS platforms. Full AI features including human/vehicle classification and smart detection events are only available within the TP-Link VIGI ecosystem.
