Description

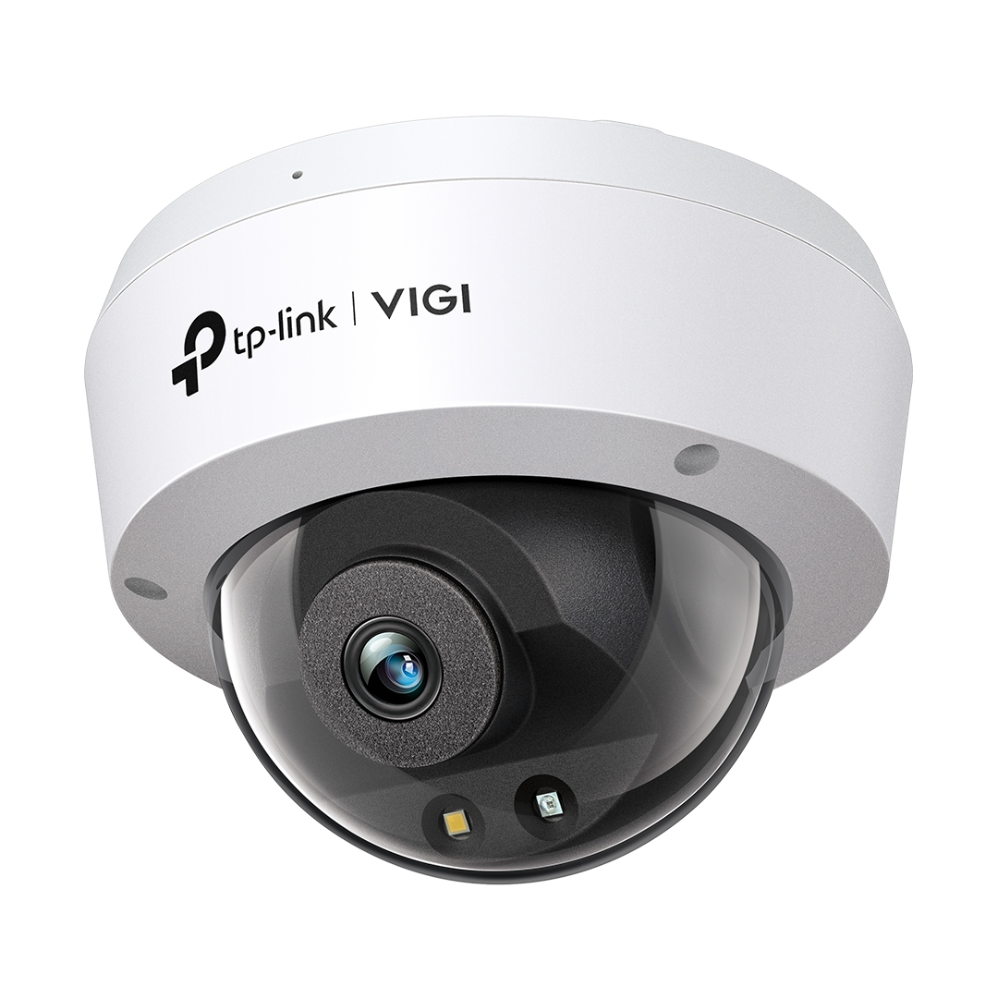

TP-Link VIGI C240 4MP Full-Colour Dome Network Camera (2.8mm)
The TP-Link VIGI C240 (2.8mm) is a 4MP full-colour dome IP camera that delivers 24-hour colour surveillance — even in complete darkness — using a large-aperture lens, high-sensitivity sensor, and built-in supplemental white light LEDs. Unlike IR cameras that switch to black-and-white at night, the C240 maintains full-colour footage around the clock, making it significantly easier to identify clothing colours, vehicle colours, and other critical details in after-hours incidents. With AI human and vehicle classification, smart detection, IK10 vandal-proof and IP67 weatherproof housing, a built-in microphone, and PoE or 12V DC power, it’s a versatile indoor/outdoor dome camera suited to retail, commercial, and residential installations across Australia.
Full-Colour vs IR Night Vision — What’s the Difference?
| Feature |
VIGI C240 Full-Colour (This Model) |
VIGI C240I IR |
| Night Vision |
Full colour (white light LEDs) |
Black & white (infrared LEDs) |
| Colour at Night |
Yes — 24 hours |
No — greyscale only |
| Deterrence |
Visible white light acts as deterrent |
Discreet — IR invisible to naked eye |
| Best For |
Retail, car parks, entrances, high-incident areas |
Discreet monitoring, long-range outdoor |

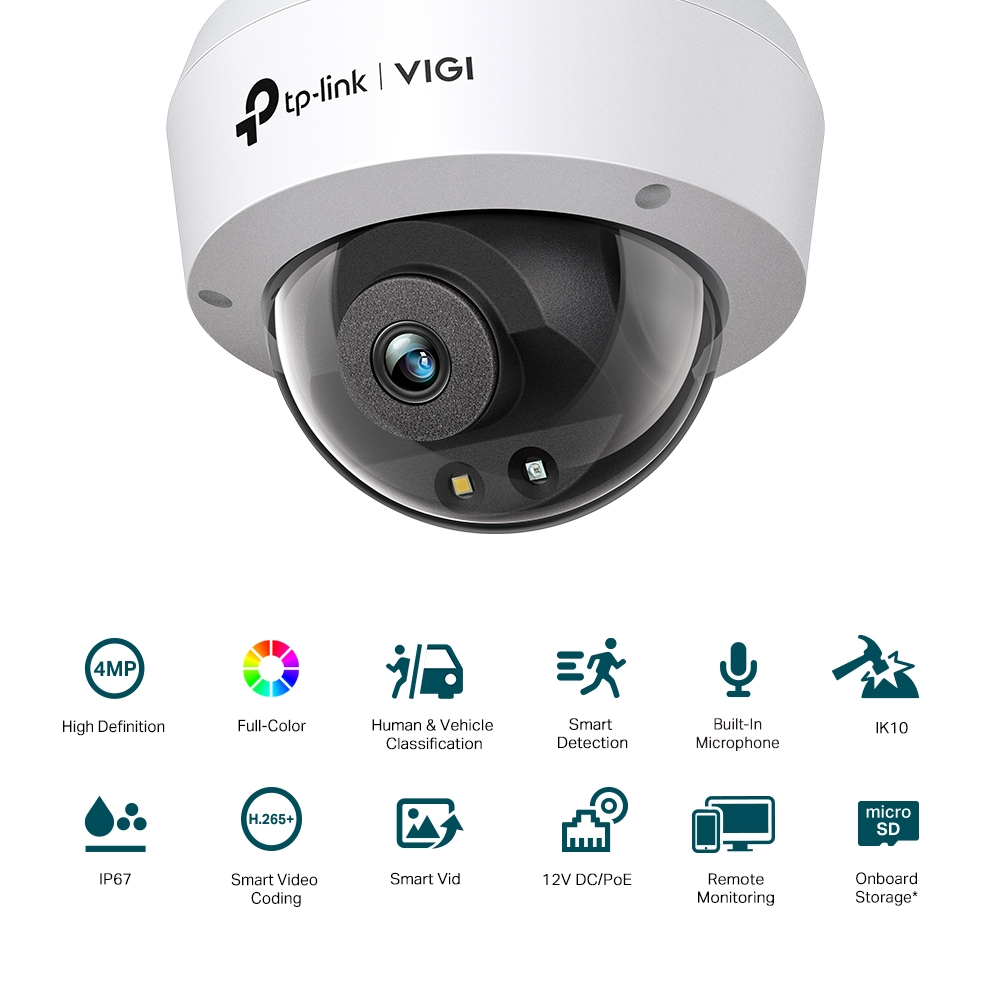

Key Features
-
4MP Full-Colour 24h Surveillance — 2560×1440 resolution with full-colour footage day and night — large-aperture lens, high-sensitivity sensor, and white light LEDs maintain colour even in complete darkness.
-
2.8mm Wide-Angle Lens — Wide field of view ideal for covering entrances, reception areas, retail floors, car parks, and open indoor/outdoor spaces where broad coverage is required.
-
AI Human & Vehicle Classification — On-board AI distinguishes people and vehicles from other motion triggers, dramatically reducing false alarms from animals, foliage, or lighting changes.
-
Smart Detection — Detects area intrusion, line-crossing, object abandoned/removal, and video tampering, with instant push notifications to the VIGI app.
-
Built-In Microphone — Records audio within approximately 5 metres of the camera for more detailed incident monitoring and evidence capture.
-
IK10 Vandal-Proof — Impact-resistant dome housing rated IK10 — withstands deliberate physical attack, suitable for high-risk public and commercial environments.
-
IP67 Weatherproof — Fully sealed against dust and heavy rain for reliable outdoor performance in all Australian weather conditions.
-
Smart Video Enhancement — WDR, 3D DNR, and Smart IR processing ensure clear footage in high-contrast and challenging lighting conditions.
-
H.265+ Compression — Reduces bandwidth and storage requirements by up to 50% compared to H.264 without sacrificing image quality.
-
PoE or 12V DC Power — Single-cable PoE installation via RJ45, or 12V DC adaptor where PoE is not available.
-
MicroSD Card Slot — Supports up to 256GB microSD for standalone on-camera recording without an NVR.
-
Flexible Management — Manage via VIGI App (iOS/Android), VIGI NVR, VIGI Security Manager (PC), or web browser UI.
Use Cases
- Retail stores and shopping centres — full-colour night footage for after-hours incident identification and loss prevention
- Car parks and driveways — colour vehicle identification at night for access control and incident investigation
- Building entrances and reception areas — wide 2.8mm coverage with colour facial and clothing detail
- Restaurants, cafes, and hospitality venues — discreet dome form factor with 24h colour monitoring
- Warehouses and commercial properties — IK10 vandal-proof housing for high-risk environments
- Residential properties — outdoor colour surveillance with visible white light deterrence
Technical Specifications
| Specification |
Detail |
| Model |
VIGI C240 (2.8mm) |
| Resolution |
4MP (2560 × 1440) |
| Lens |
2.8mm Fixed (also available in 4mm) |
| Form Factor |
Dome (indoor/outdoor) |
| Night Vision |
Full-colour 24h (white light LEDs) |
| AI Detection |
Human & Vehicle Classification |
| Smart Detection |
Area Intrusion, Line-Crossing, Object Abandoned/Removal, Video Tampering |
| Audio |
Built-in microphone (~5m range) |
| Smart Video |
WDR, 3D DNR, Smart IR |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Local Storage |
MicroSD card slot (up to 256GB) |
| Power Supply |
PoE (802.3af) or 12V DC |
| Vandal Rating |
IK10 |
| Weather Rating |
IP67 |
| Management |
VIGI App, VIGI NVR, VIGI Security Manager, Web UI |
| Weight |
Approx. 460g |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link VIGI NVR1104H-4P — 4-channel PoE+ NVR for centralised recording and AI event management of up to 4 VIGI cameras including the C240.
-
TP-Link TL-SG105MPE 5-Port Gigabit PoE+ Smart Switch — Powers the C240 via a single Ethernet cable from a compact 5-port PoE switch alongside other VIGI cameras.
-
MicroSD Card (Class 10 / U3, up to 256GB) — Enables standalone on-camera recording without an NVR.
-
Cat6 Ethernet Cable — For reliable PoE data and power delivery; Cat6 recommended for runs over 50m.
-
TP-Link VIGI C240 (4mm) — The 4mm variant of the same camera for longer-range coverage in corridors, car parks, and larger spaces.
Downloads
Frequently Asked Questions
What is the difference between the VIGI C240 and the VIGI C240I?
The VIGI C240 uses full-colour night vision with white light LEDs, producing colour footage in complete darkness. The VIGI C240I uses infrared (IR) LEDs, producing black-and-white footage in low-light and dark conditions. The C240 is preferred where colour detail at night is important for identification — such as retail, car parks, and entrances. The C240I is preferred where discreet monitoring is required, as the IR LEDs are invisible to the naked eye.
Does the white light turn on automatically at night?
Yes. The VIGI C240’s white light LEDs activate automatically when the camera detects low-light conditions, providing full-colour illumination. The sensitivity threshold can be adjusted via the VIGI app or web UI. The visible white light also acts as a deterrent to potential intruders.
Is the VIGI C240 suitable for outdoor installation in Australia?
Yes. The VIGI C240 carries an IP67 weatherproof rating — fully sealed against dust ingress and heavy rain — and an IK10 vandal-proof rating for impact resistance. It is suitable for outdoor installation in all Australian weather conditions including coastal, tropical, and high-UV environments. Ensure the mounting surface and cable entry point are also appropriately sealed for outdoor use.
Can the VIGI C240 record without an NVR?
Yes. The C240 supports standalone on-camera recording to a microSD card (up to 256GB) and remote management via the VIGI app or web browser. A VIGI NVR is optional but recommended for multi-camera deployments requiring centralised recording, playback, and AI event management.
What is the 2.8mm lens field of view suitable for?
The 2.8mm lens provides a wide field of view — approximately 100–110 degrees horizontal — making it ideal for covering large areas at close to medium range, such as retail floors, reception areas, car park bays, and building entrances. For longer-range coverage of corridors, driveways, or perimeter fencing, the 4mm variant provides a narrower field of view with greater effective range.
