Description
TP-Link TL-WR841N N300 Wireless N Router 2.4GHz (300Mbps) 4x100Mbps LAN 1x100Mbps WAN 802.11bgn 2x5dBi antennas WPS button
TL-WR841N
300Mbps Wireless N Router
Performance: 300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
Guest Network: provides separate access for guests while securing the home network
IPv6: compatible with IPv6 (Internet Protocol version 6)
WPS button: easy wireless security encryption at a push of WPS button
IPTV: supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
Bandwidth Control: assigns your preferred devices with more bandwidth
Parental Controls: manage when and how connected devices can access the internet
WIRELESS
Standards Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds N300
2.4 GHz: 300 Mbps (802.11n)
WiFi Range 2 Bedroom Houses
2× Fixed Antennas
WiFi Capacity Legacy
Working Modes Router Mode
Access Point Mode
Range Extender Mode
WISP Mode
HARDWARE
Processor Single-Core CPU

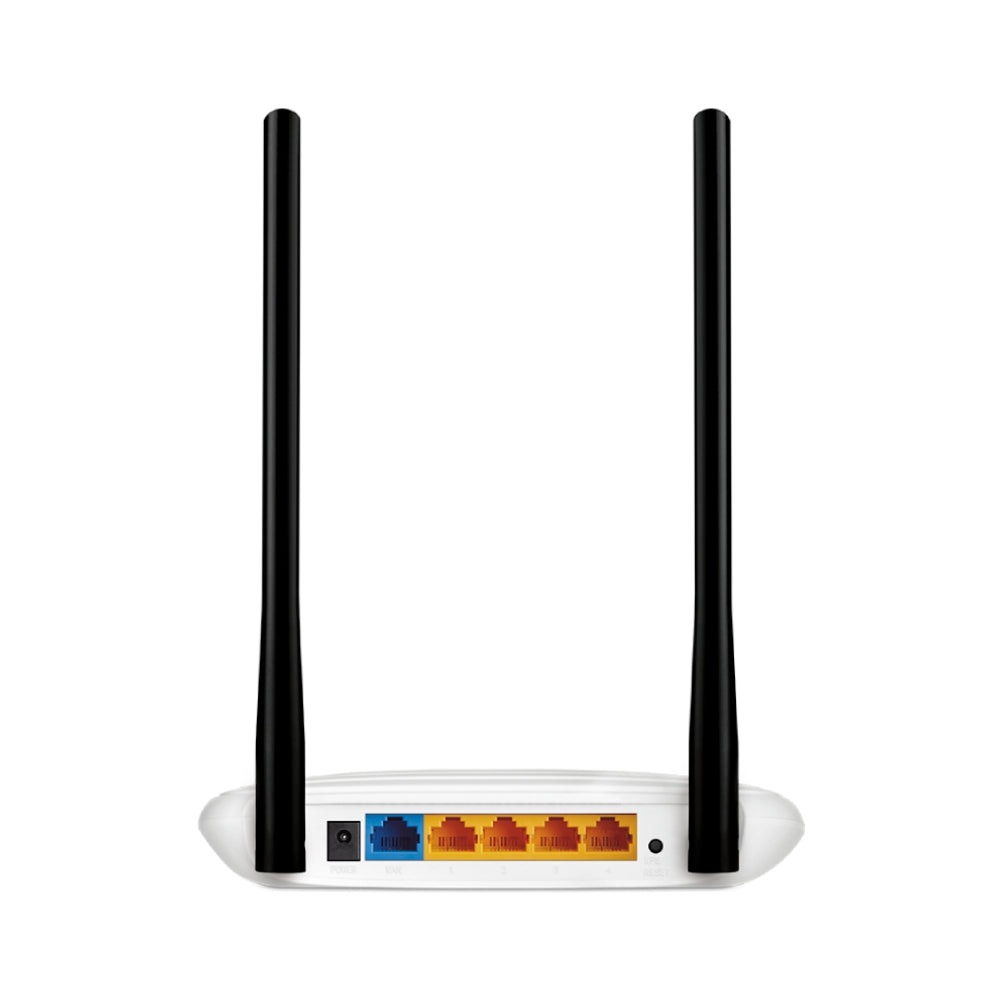

Ethernet Ports 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons Reset Button
Power 9 V ⎓ 0.6 A
SECURITY
WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4
IPv6
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
NAT Forwarding VIrtual Server
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
DHCP Address Reservation
DHCP Client List
Server
DDNS NO-IP
Comex
DynDNS
Management Tether App
Webpage
Check Web Emulator>
PHYSICAL
Dimensions (W×D×H) 6.9 × 4.6 × 1.3 in
(173 × 118 × 33mm)
Package Contents Wi-Fi Router TL-WR841N
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other
