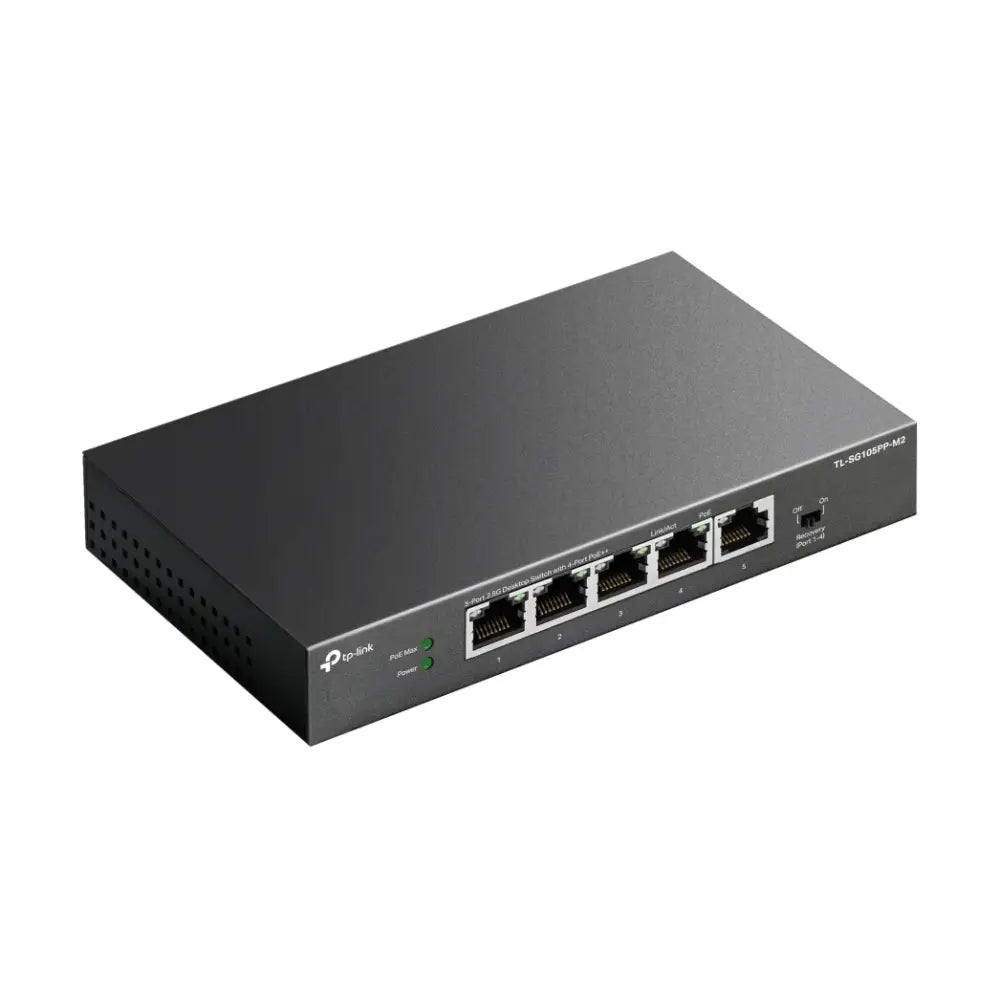

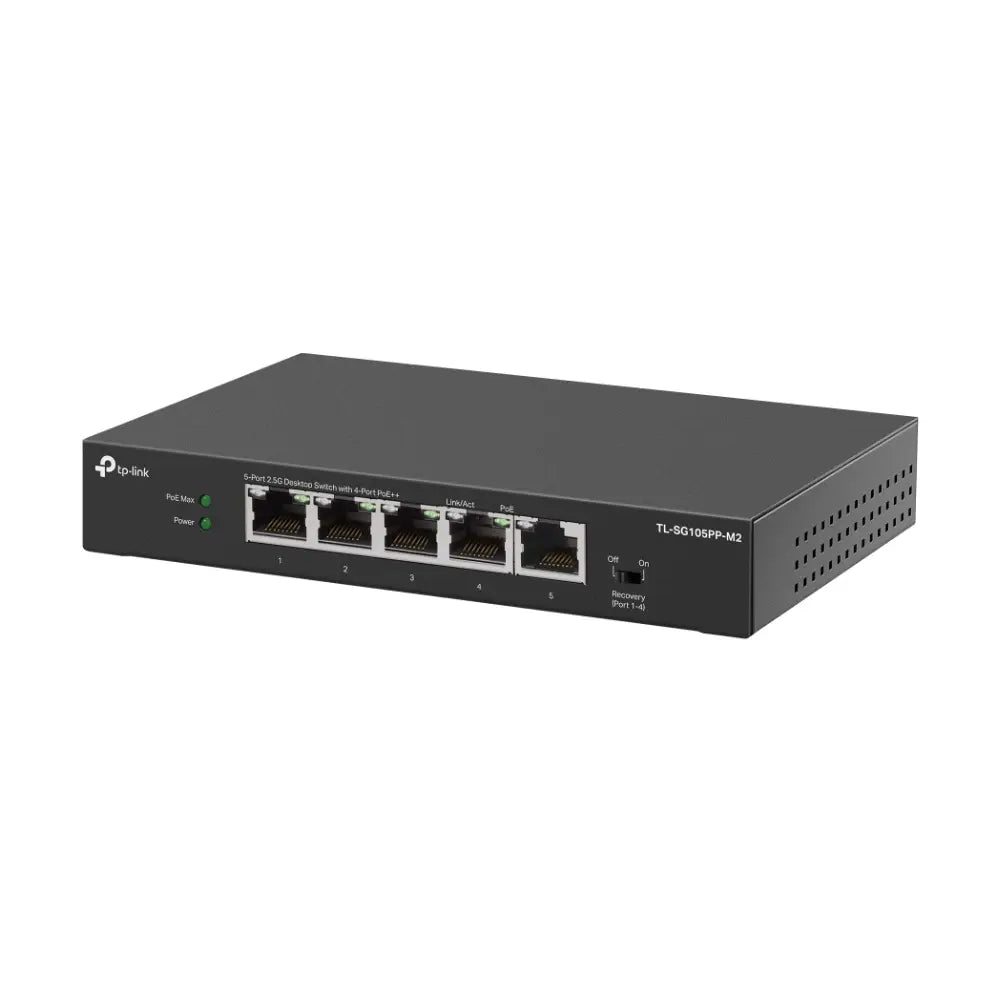

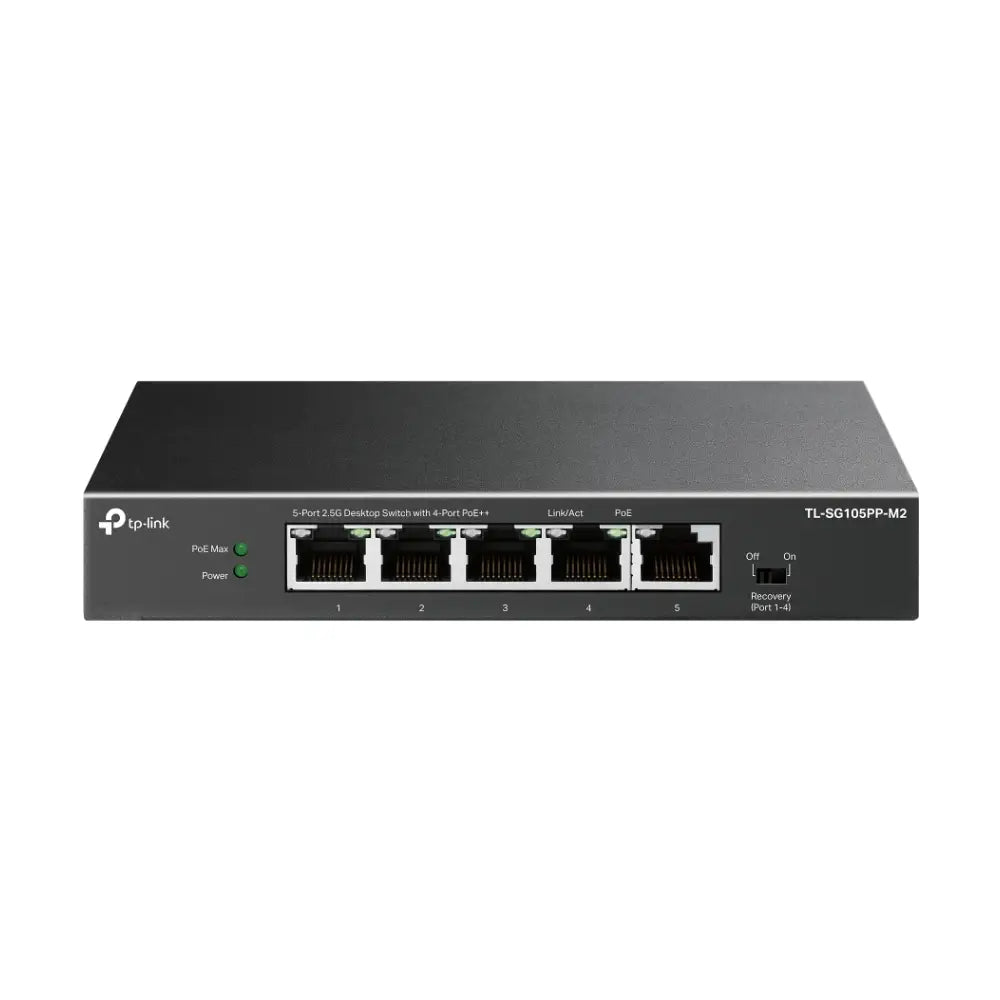

TP-Link TL-SG105PP-M2 — 5-Port 2.5G Desktop Switch with 4-Port PoE++
The TP-Link TL-SG105PP-M2 delivers multi-gigabit switching performance in a compact, fanless desktop form factor. With four PoE++ ports capable of supplying up to 60W each and a total PoE budget of 123W, it’s purpose-built for powering high-demand devices like PTZ cameras, Wi-Fi 6 access points, video intercoms, and access control systems — all over a single cable. Fully plug-and-play with no configuration required, it’s an ideal choice for installers and IT professionals across Australia looking for a reliable, high-power PoE solution in a compact package.
Key Features
-
5× 2.5G Multi-Gigabit Ports: All five RJ45 ports auto-negotiate at 10/100/1000/2500 Mbps, providing up to 2.5× the bandwidth of standard Gigabit switches for NAS, NVR, and workstation connectivity.
-
4× PoE++ Ports (IEEE 802.3bt Type 3): Ports 1–4 deliver up to 60W each — sufficient for PTZ cameras, high-power Wi-Fi 6/6E access points, and video intercoms.
-
123W Total PoE Budget: Generous shared PoE budget across all four ports supports multiple high-wattage devices simultaneously.
-
PoE Auto Recovery: Automatically detects and reboots unresponsive PoE-powered devices, reducing manual intervention on remote or hard-to-reach installations.
-
802.1p/DSCP QoS: Prioritises latency-sensitive traffic such as VoIP, video surveillance streams, and IP intercoms for consistent performance.
-
Plug and Play: Fully unmanaged — no software, no web interface, no configuration required. Connect and go.
-
Fanless Silent Operation: No moving parts means silent, reliable operation suitable for offices, reception areas, and residential environments.
-
Desktop or Wall Mountable: Flexible installation options for comms cabinets, desktops, or wall-mounted enclosures.
Use Cases
-
PTZ & High-Power IP Cameras: Power PTZ cameras and motorised dome cameras drawing up to 60W per port without separate power injectors.
-
Wi-Fi 6 & Wi-Fi 6E Access Points: Deploy high-wattage PoE++ access points that exceed the 30W limit of standard PoE+ switches.
-
Video Intercoms & Access Control: Power door stations, IP intercoms, and electromagnetic locks from a single switch with QoS prioritisation.
-
Small Office & Home Office Networks: Upgrade legacy 1G infrastructure to 2.5G for faster NAS, workstation, and NVR connectivity.
-
Home Lab & AV Setups: High-bandwidth 2.5G switching for media servers, NVRs, and streaming devices in compact environments.
Specifications
| Model |
TL-SG105PP-M2 |
| Total Ports |
5 × RJ45 (10/100/1000/2500 Mbps) |
| PoE Ports |
4 × PoE++ (Ports 1–4) |
| PoE Standard |
IEEE 802.3af / 802.3at / 802.3bt Type 3 |
| Max PoE per Port |
60W |
| Total PoE Budget |
123W |
| QoS |
802.1p / DSCP |
| PoE Auto Recovery |
Yes |
| Management |
Unmanaged (Plug and Play) |
| Cooling |
Fanless (Silent) |
| Mounting |
Desktop / Wall Mount |
| Weight |
1.535 kg |
| Certifications |
CE, FCC, RoHS |
Frequently Asked Questions
Does the TL-SG105PP-M2 require any software or configuration?
No. It’s a fully unmanaged switch — simply plug it in and it works immediately. There is no web interface, app, or driver required.
Can I power a PTZ camera that draws more than 30W?
Yes. Each PoE++ port supports up to 60W (IEEE 802.3bt Type 3), making it compatible with high-wattage PTZ cameras, pan-tilt units, and Wi-Fi 6 access points that exceed the 30W limit of standard PoE+ switches.
What happens if a PoE device stops responding?
The PoE Auto Recovery feature automatically detects unresponsive powered devices and reboots them — reducing the need for manual intervention on remote or hard-to-reach installations.
Is the total PoE budget shared across all ports?
Yes. The 123W total PoE budget is shared across all four PoE++ ports. Individual ports can draw up to 60W when other ports are drawing less, but the combined draw across all ports cannot exceed 123W.
What is the difference between PoE, PoE+, and PoE++?
PoE (802.3af) delivers up to 15.4W per port. PoE+ (802.3at) delivers up to 30W per port. PoE++ (802.3bt Type 3) delivers up to 60W per port — required for high-power devices like PTZ cameras, Wi-Fi 6E access points, and some video intercoms. The TL-SG105PP-M2 supports all three standards.
Is this switch suitable for outdoor camera installations?
The switch itself is designed for indoor use. It can power outdoor PoE IP cameras via standard Cat5e/Cat6 cabling run to weatherproof camera housings or outdoor enclosures.
Does the 2.5G speed require special cabling?
No. The TL-SG105PP-M2 runs at 2.5 Gbps over standard Cat5e or Cat6 cabling — no special cabling upgrade is required for existing structured cabling installations.
