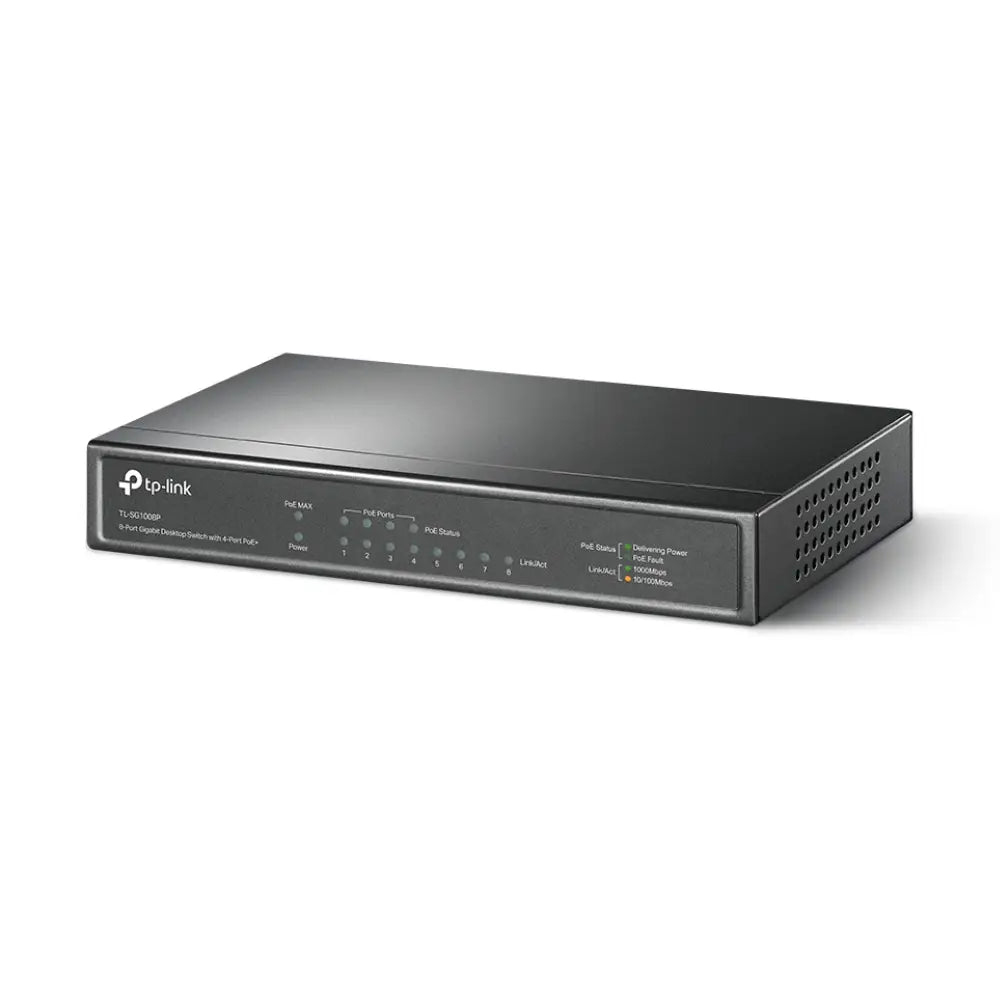

TP-Link TL-SG1008P 8-Port Gigabit PoE Unmanaged Switch
Overview
The TP-Link TL-SG1008P is an 8-port Gigabit unmanaged PoE switch designed for small businesses, home offices, and security installations across Australia. With a 64W PoE budget and plug-and-play simplicity, it's the go-to choice for powering IP cameras, VoIP phones, and wireless access points — no configuration required.
Description
Delivering reliable Gigabit speeds across all 8 ports, the TL-SG1008P supports IEEE 802.3af/at PoE standards on ports 1–4, allowing you to power compatible devices directly through the Ethernet cable — eliminating the need for separate power adapters. The remaining 4 ports provide standard Gigabit connectivity. Built for 24/7 operation, this switch is a dependable backbone for small surveillance and network setups.
Key Features
- 8 × 10/100/1000Mbps RJ45 ports for full Gigabit performance
- 4 PoE+ ports (ports 1–4) supporting IEEE 802.3af/at standards
- 64W total PoE power budget
- Plug-and-play — no software or configuration needed
- Auto MDI/MDIX for automatic cable type detection
- IEEE 802.3x flow control for reliable data transfer
- Fanless, silent operation — suitable for quiet environments
- Desktop or wall-mountable design
- LED indicators for easy network status monitoring
- Supports MAC address auto-learning and auto-ageing
Common Use Cases
-
IP Security Cameras: Power and connect up to 4 PoE IP cameras without separate power supplies — ideal for small CCTV installations in homes, offices, and retail environments.
-
VoIP Phones: Deliver power and data to VoIP handsets from a single cable run.
-
Wireless Access Points: Power PoE-enabled access points to extend Wi-Fi coverage throughout a building.
-
Small Office Networks: Expand your network with reliable Gigabit connectivity for workstations, printers, and NAS devices.
Technical Specifications
| Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x |
| Ports |
8 × 10/100/1000Mbps RJ45 Ports (Ports 1–4: PoE+) |
| PoE Ports |
4 (Ports 1–4) |
| PoE Power Budget |
64W |
| PoE Standard |
IEEE 802.3af/at |
| Switching Capacity |
16 Gbps |
| Forwarding Rate |
11.9 Mpps |
| MAC Address Table |
4K |
| Jumbo Frame |
16KB |
| Fan |
Fanless |
| Power Supply |
External Power Adapter (100–240V AC, 50/60Hz) |
| Power Consumption (Max) |
77.36W (with PoE) |
| Dimensions |
158 × 101 × 25mm |
| Mounting |
Desktop / Wall Mount |
| Operating Temperature |
0°C to 40°C |
| Certifications |
CE, FCC, RoHS |
Frequently Asked Questions
How many PoE devices can the TL-SG1008P power simultaneously?
The TL-SG1008P has 4 PoE+ ports with a combined 64W power budget. The number of devices it can power simultaneously depends on each device's power draw. For example, it can power up to 4 cameras drawing 15W each, or fewer devices with higher power requirements.
Does the TL-SG1008P require any configuration?
No. It is an unmanaged switch — simply plug it in and it works straight away. There is no software, web interface, or configuration required, making it ideal for straightforward installations.
Is the TL-SG1008P compatible with all PoE devices?
It supports IEEE 802.3af (PoE, up to 15.4W per port) and IEEE 802.3at (PoE+, up to 30W per port) standards. Most modern IP cameras, VoIP phones, and access points are compatible. Always verify your device's PoE standard before purchasing.
Can I wall-mount the TL-SG1008P?
Yes. The switch supports both desktop and wall-mount installation. Wall-mount screws are included in the box.
Does the switch make noise during operation?
No. The TL-SG1008P is completely fanless, making it silent during operation — suitable for offices, reception areas, and home environments.
What is the warranty on the TL-SG1008P in Australia?
TP-Link offers a limited lifetime warranty on the TL-SG1008P in Australia. Please refer to TP-Link Australia's warranty policy for full terms and conditions.
