Description

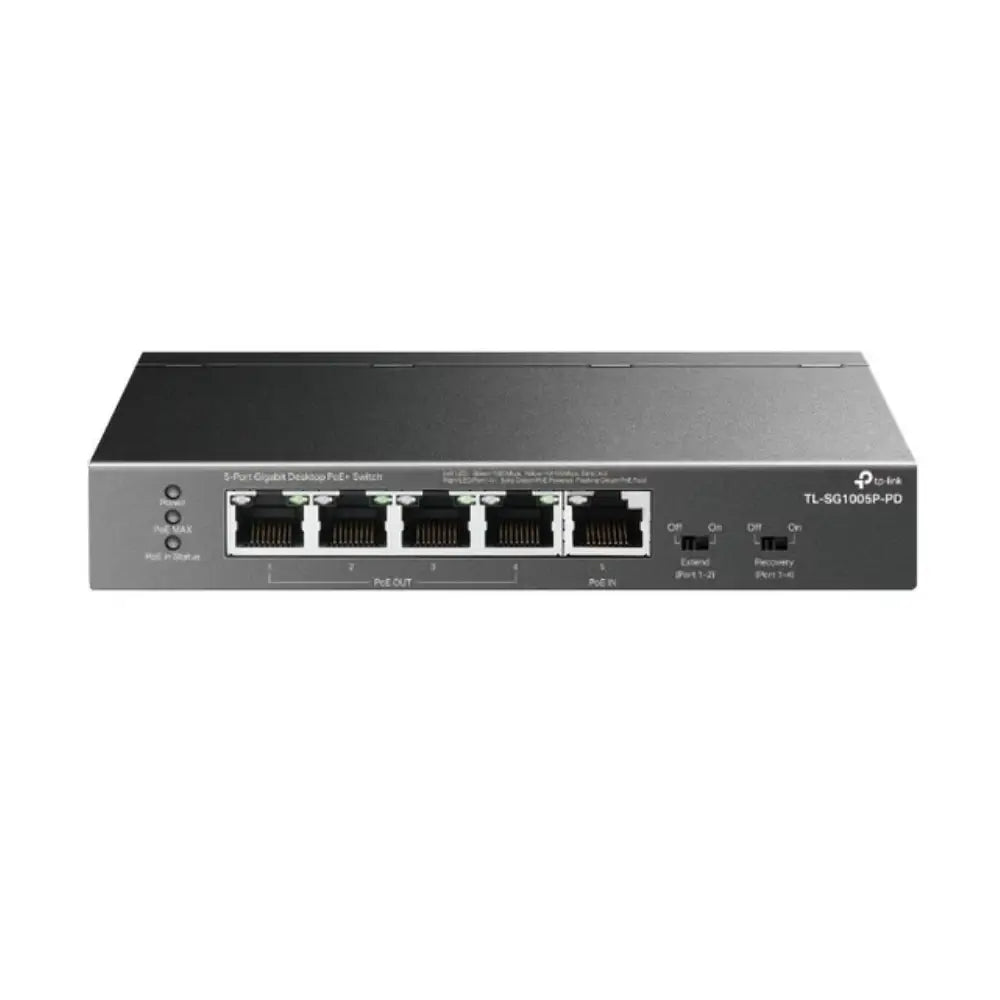

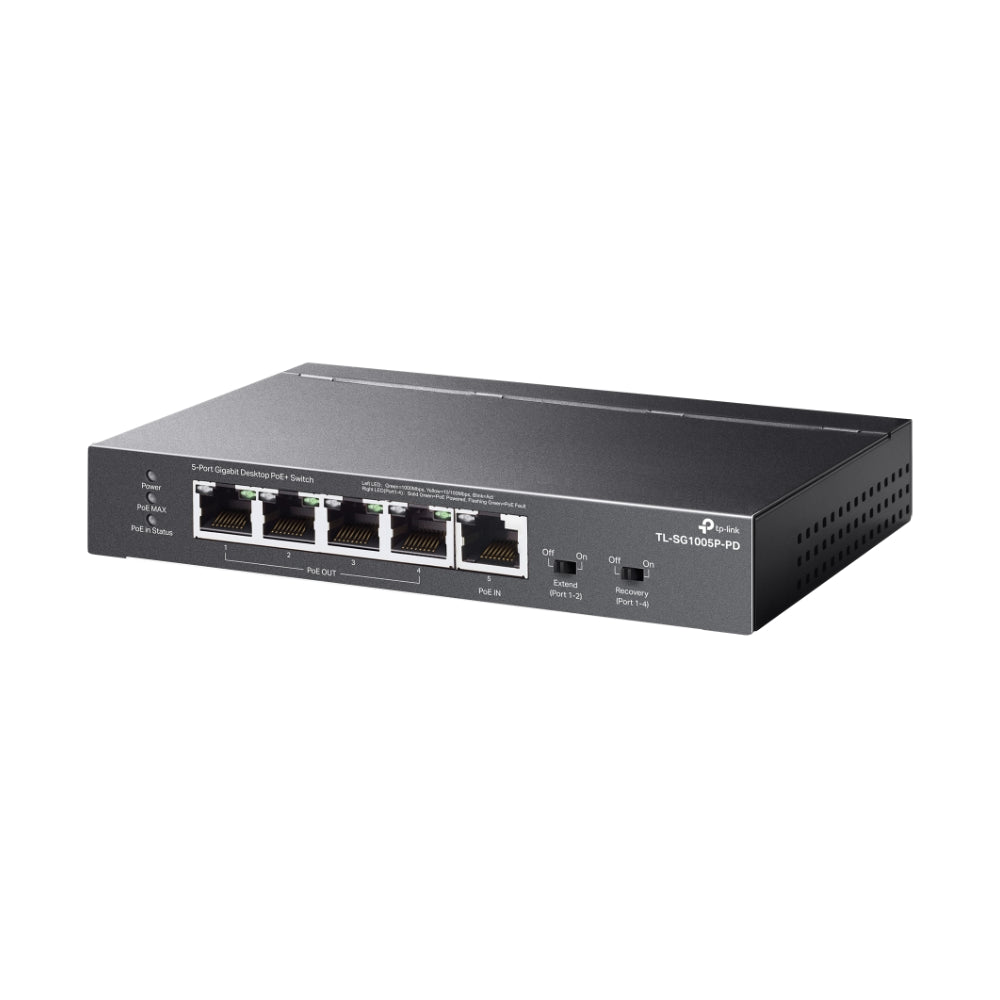

TP-Link TL-SG1005P-PD 5-Port Gigabit PoE+ Switch with PoE++ In
Power Your Surveillance Network Without the Complexity
The TP-Link TL-SG1005P-PD is a compact, plug-and-play gigabit PoE+ switch designed for security installers and facilities managers who need reliable power and data delivery to IP cameras and access control devices. Powered entirely via PoE++ (802.3bt), it eliminates the need for a separate power adapter — ideal for tight equipment rooms, wall-mount enclosures, and remote deployments across Australia.
Key Features
-

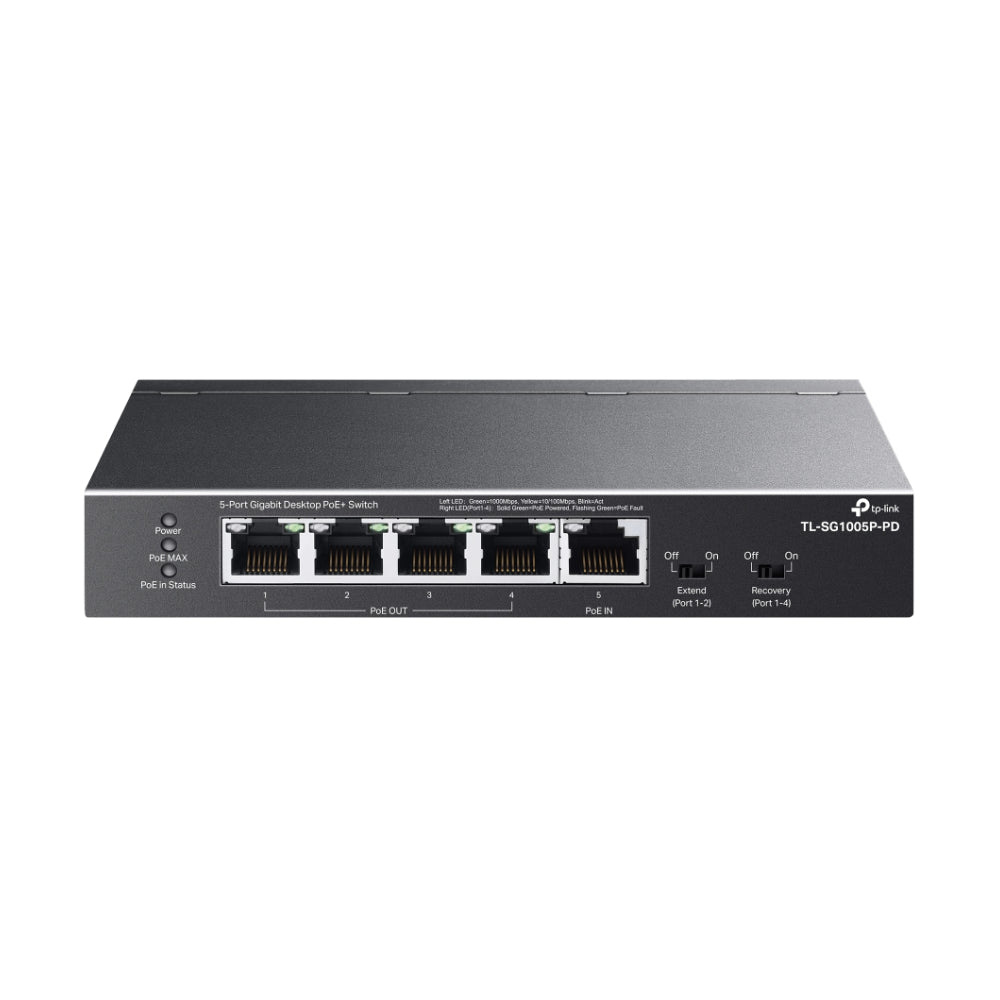

5 × Gigabit RJ45 Ports — Full 10/100/1000 Mbps auto-negotiation on all ports for high-throughput video streams.
-

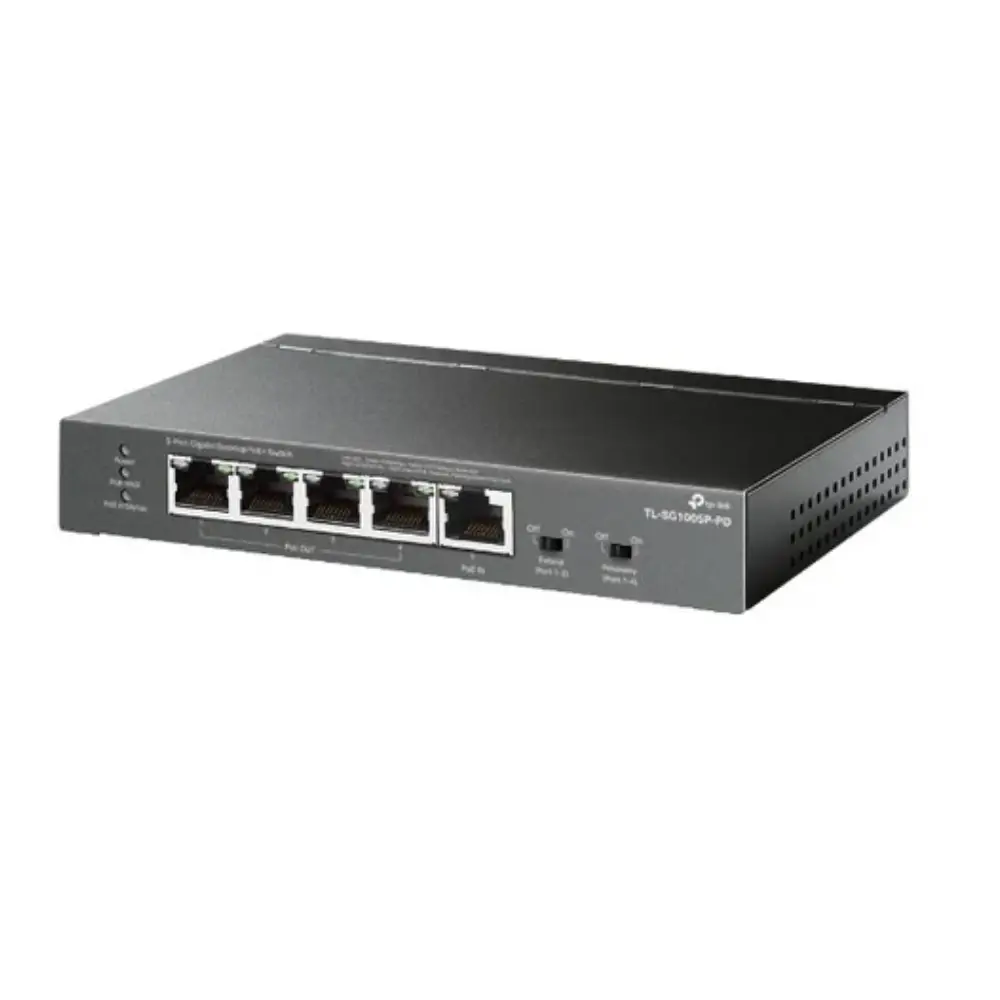

1 × PoE++ Input (802.3bt) — Accepts upstream PoE power from a PoE++ injector or switch; no AC/DC adapter required.
-
4 × PoE+ Output Ports — Delivers up to 66 W total PoE budget (varies by upstream power standard: 66 W / 47 W / 21 W / 9 W).
-

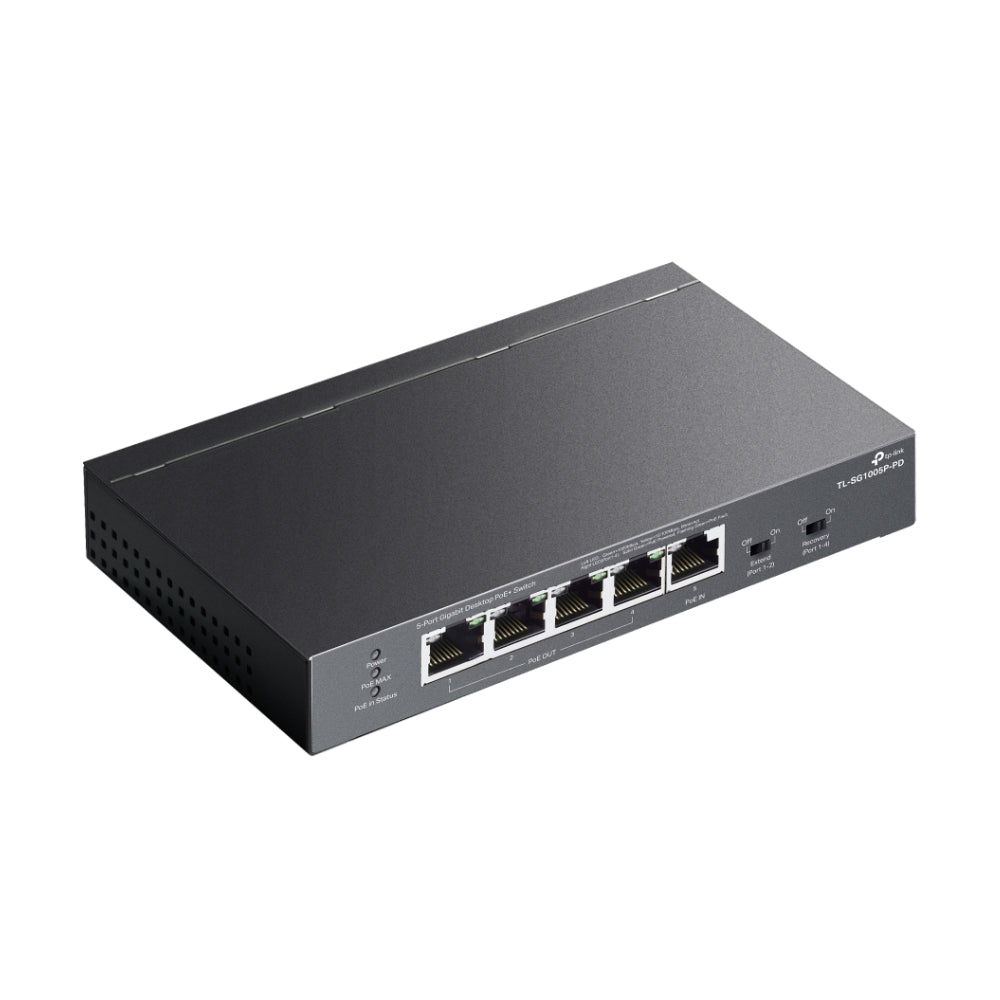

Long-Range PoE+ (Extend Mode) — Extends PoE transmission up to 250 m at 10 Mbps, perfect for perimeter cameras and large-site deployments.
-
PoE Auto Recovery — Automatically reboots unresponsive powered devices (PDs) to maintain uptime without manual intervention.
-
Fanless, Silent Operation — No moving parts; suitable for offices, retail spaces, and noise-sensitive environments.
-
Metal Casing — Durable construction supports desktop or wall-mount installation.
-
Plug and Play — Zero configuration required; ready to deploy straight out of the box.
Use Cases
- Extending PoE to IP cameras in locations without a nearby power outlet
- Powering access control readers, intercoms, and VoIP phones from a single upstream PoE++ source
- Long-range camera runs in warehouses, car parks, and large commercial sites
- Clean, cable-managed installs inside network enclosures where AC power is unavailable
Technical Specifications
| Specification |
Detail |
| Model |
TL-SG1005P-PD |
| Total Ports |
5 × 10/100/1000 Mbps RJ45 |
| PoE Input Port |
Port 1 — 802.3bt Type 4 (PoE++) |
| PoE Output Ports |
Ports 2–5 — 802.3at (PoE+) / 802.3af (PoE) |
| PoE Budget (802.3bt Type 4 input) |
Up to 66 W |
| PoE Budget (802.3bt Type 3 input) |
Up to 47 W |
| PoE Budget (802.3at input) |
Up to 21 W |
| PoE Budget (802.3af input) |
Up to 9 W |
| Long-Range Extend Mode |
Up to 250 m at 10 Mbps |
| Power Supply |
PoE only (no AC/DC adapter) |
| Casing |
Metal |
| Mounting |
Desktop / Wall-mount |
| Cooling |
Fanless |
| Weight |
0.36 kg |
| Barcode (EAN) |
4895252501117 |
Downloads
Frequently Asked Questions
Does the TL-SG1005P-PD require a separate power adapter?
No. This switch is powered exclusively via PoE++ (802.3bt) through Port 1. It does not support AC or DC power input. You will need a compatible PoE++ injector or upstream switch to power it.
How much PoE power can it deliver to connected cameras?
The total PoE output budget depends on the upstream power source: up to 66 W with an 802.3bt Type 4 input, 47 W with Type 3, 21 W with 802.3at, and 9 W with 802.3af. Budget is shared across all four output ports.
What is Extend Mode and when should I use it?
Extend Mode reduces port speed to 10 Mbps to push PoE up to 250 m over a single Cat5e/Cat6 cable. Use it when running cameras to distant locations where a standard 100 m run isn't sufficient — common in car parks, warehouses, and large perimeter installations.
What happens if a connected camera stops responding?
The PoE Auto Recovery feature detects unresponsive powered devices and automatically power-cycles them, restoring operation without requiring a site visit or manual reboot.

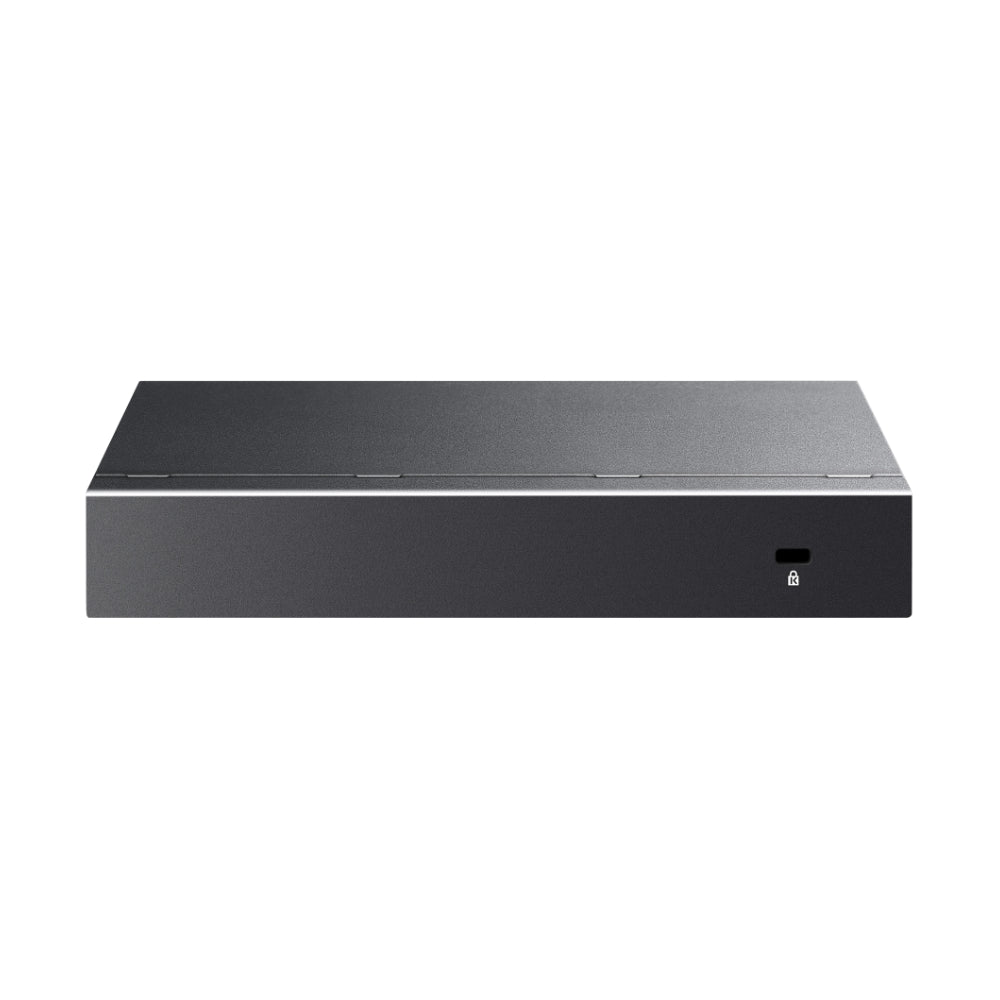

Can I mount this switch on a wall?
Yes. The TL-SG1005P-PD supports both desktop and wall-mount installation. Its metal casing is suited to equipment rooms, server racks, and on-wall enclosures.
