Description

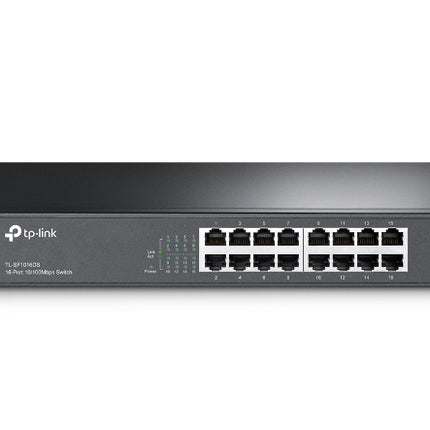

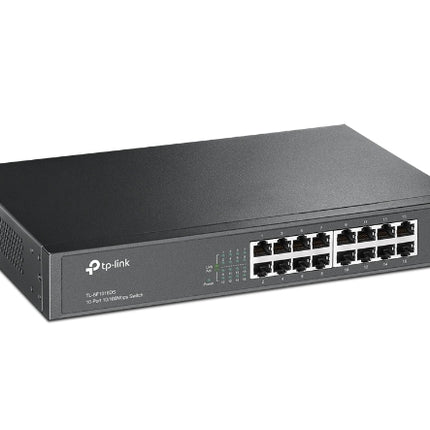

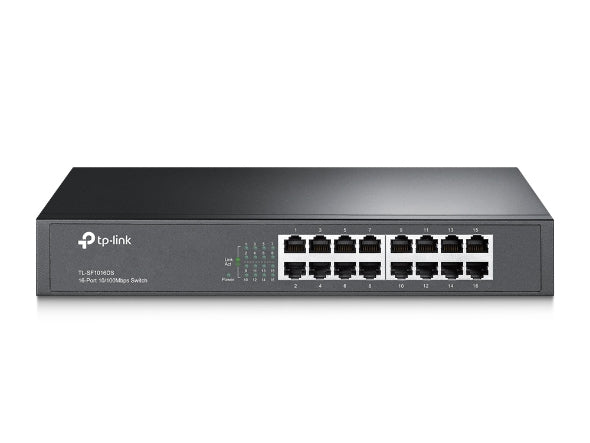

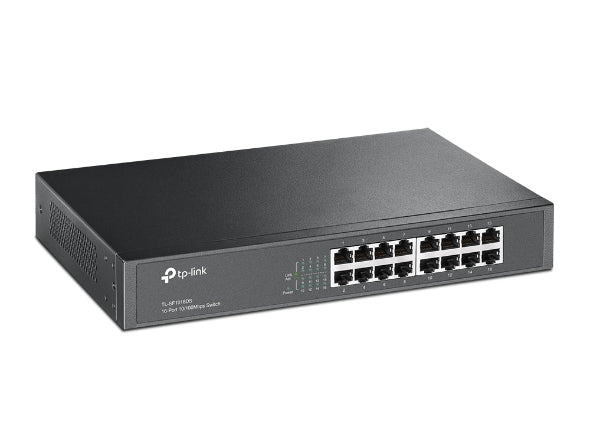

TP-Link TL-SF1016DS 16-Port 10/100Mbps Desktop/Rackmount Switch
A reliable, energy-efficient Fast Ethernet switch for small business and office networks. The TP-Link TL-SF1016DS provides 16 ports of 10/100Mbps connectivity in a compact 13-inch steel case that sits on a desktop or mounts in a standard rack. With plug-and-play simplicity, up to 75% power savings via Green Technology, and a non-blocking switching architecture, it delivers dependable performance without the complexity or cost of managed networking gear.
Key Features
- 16 × 10/100Mbps RJ45 ports with Auto-Negotiation for seamless device compatibility
- Auto MDI/MDIX on all ports — no crossover cables required
- TP-Link Green Technology — saves up to 75% power by adjusting consumption based on link status and cable length
- Non-blocking switching architecture for full wire-speed forwarding and filtering
- IEEE 802.3x flow control (Full-Duplex) and backpressure (Half-Duplex) for reliable data transfer
- MAC address self-learning for efficient traffic management
- Compact 13-inch steel case — desktop or rackmount installation
- Internal power supply with safety certification
- RoHS compliant — free from hazardous materials, eco-friendly packaging
- Plug and play — no configuration or software required
Use Cases
- Expanding wired network capacity in small offices or retail environments
- Upgrading legacy 10Mbps networks to Fast Ethernet (100Mbps)
- Connecting up to 16 wired devices in a cost-effective, unmanaged setup
- Comms cabinet or server room deployments requiring a compact rackmount switch
- Energy-conscious deployments where power efficiency is a priority
Specifications
| Specification |
Detail |
| Model |
TL-SF1016DS |
| Ports |
16 × 10/100Mbps RJ45 |
| Auto-Negotiation |
Yes (10/100Mbps) |
| Auto MDI/MDIX |
Yes (all ports) |
| Switching Architecture |
Non-blocking, full wire-speed |
| Flow Control |
IEEE 802.3x (Full-Duplex), Backpressure (Half-Duplex) |
| Energy Saving |
Up to 75% (TP-Link Green Technology) |
| Case |
13-inch steel (desktop / rackmount) |
| Power Supply |
Internal, safety-certified |
| Compliance |
RoHS |
| SKU |
TL-SF1016DS |
| Vendor |
TP-Link |
Downloads
Recommended Accessories
- TP-Link TL-SF1005D 5-Port Fast Ethernet Switch — compact companion switch for smaller sub-networks
- TP-Link TL-SG1016D 16-Port Gigabit Switch — upgrade option for full Gigabit speeds
- Cat5e Ethernet patch cables — for reliable 100Mbps connections throughout your installation
- 19-inch rack cabinet or patch panel — for structured cabling in comms cabinets
Frequently Asked Questions
Does the TL-SF1016DS require any configuration?
No. It is a fully unmanaged, plug-and-play switch. Connect your Ethernet cables and it operates immediately — no software, login, or setup required.
Can the TL-SF1016DS be rack-mounted?
Yes. The 13-inch steel case is designed for both desktop placement and rackmount installation. It fits a standard 19-inch rack with appropriate rack ears (confirm inclusion in the box or purchase separately).
What is the difference between the TL-SF1016DS and the TL-SG1016D?
The TL-SF1016DS is a Fast Ethernet switch with 10/100Mbps ports, suitable for networks that don’t require Gigabit speeds. The TL-SG1016D is a Gigabit switch with 10/100/1000Mbps ports, offering up to 10× faster throughput. If your devices support Gigabit, the TL-SG1016D is the better long-term investment.
How much power does the TL-SF1016DS save compared to a standard switch?
TP-Link Green Technology automatically reduces power consumption based on link status and cable length, saving up to 75% compared to non-energy-efficient switches. Ports with no connected device or shorter cable runs consume significantly less power.
