Description

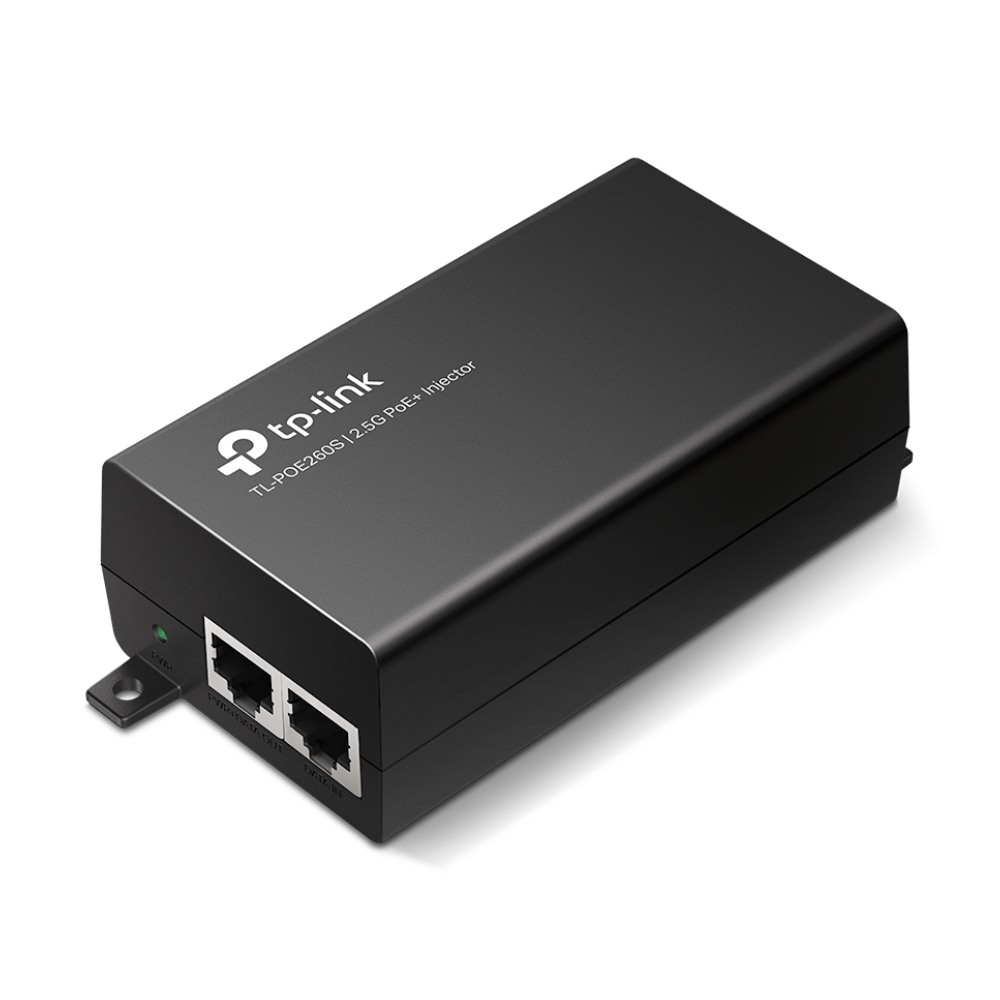

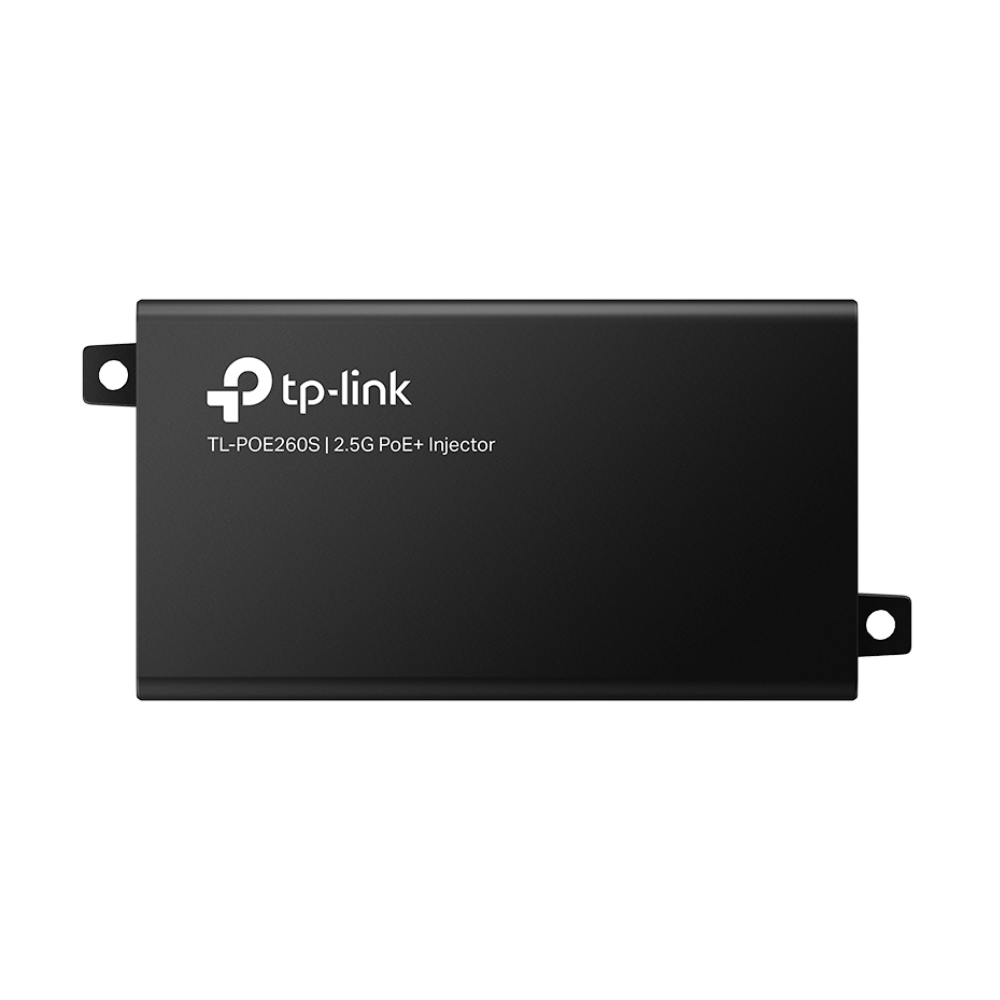

TP-Link TL-POE260S 2.5G PoE+ Injector
The TP-Link TL-POE260S is a single-port 2.5G PoE+ injector that adds Power over Ethernet capability to any existing non-PoE switch or router. Delivering up to 30W over a single Ethernet cable at 2.5Gbps speeds, it’s the simplest way to power a high-bandwidth access point, IP camera, VoIP phone, or other PoE device without replacing your existing network infrastructure.
Key Features
-
2.5Gbps Throughput — Both the data-in and PoE-out ports run at 2.5Gbps, eliminating the bandwidth bottleneck common with standard 1Gbps PoE injectors — ideal for Wi-Fi 6/6E access points.
-
IEEE 802.3at/af Compliant — Supplies up to 30W of PoE+ power, compatible with all IEEE 802.3af/at powered devices including IP cameras, APs, and VoIP phones.
-
Automatic Power Detection — Intelligently detects and delivers only the power the connected device requires, protecting equipment and reducing energy waste.
-
Single-Cable Simplicity — Transmits both data and power over one Ethernet cable, eliminating the need for a separate power outlet at the device location.
-
Plug & Play — Requires no configuration or software — connect and go.
-
Integrated Power Supply — Built-in power supply means no external adapter or additional hardware required.
-
Flexible Installation — Supports wall mounting or desktop placement to suit rack rooms, comms cabinets, or on-desk deployments.
Use Cases
- Adding PoE+ power to a Wi-Fi 6 or Wi-Fi 6E access point connected to a non-PoE switch
- Powering a 2.5G-capable IP camera without upgrading the entire switch infrastructure
- Supplying power to a VoIP phone or intercom at a reception desk or entry point
- Temporary or single-device PoE deployments on construction sites or event venues
- Upgrading a single port to 2.5G PoE+ in a mixed-speed network environment
Technical Specifications
| Specification |
Detail |
| Model |
TL-POE260S |
| Ports |
1 × 2.5Gbps Data In (RJ45) + 1 × 2.5Gbps PoE Out (RJ45) |
| PoE Standard |
IEEE 802.3at (PoE+) / IEEE 802.3af (PoE) |
| Max PoE Power Output |
30W |
| Power Detection |
Automatic (supplies exact power required by device) |
| Data Rate |
2.5Gbps (both ports) |
| Power Supply |
Integrated (100–240V AC, 50/60Hz) |
| Installation |
Wall mount or desktop; plug & play, no configuration required |
| Compatible Devices |
All IEEE 802.3af/at compliant powered devices (APs, IP cameras, VoIP phones, etc.) |
| Weight |
0.54 kg |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link VIGI C540 4MP Pan Tilt Camera — A PoE-powered outdoor PTZ camera that pairs directly with this injector for single-camera deployments.
-
TP-Link VIGI NVR1104H-4P — If expanding to a multi-camera system, the built-in PoE+ switch on this NVR replaces the need for individual injectors.
-
Cat6 Ethernet Cable — Required for reliable 2.5Gbps data and power delivery; Cat5e is sufficient for PoE at standard speeds.
-
TP-Link TL-SG108PE 8-Port PoE Switch — For installations requiring PoE on multiple ports simultaneously.
Downloads
Frequently Asked Questions
What is a PoE injector and how does it work?
A PoE injector sits between your existing switch and a PoE-powered device. It takes a standard Ethernet data connection from your switch and adds electrical power to the cable, so the connected device receives both data and power through a single RJ45 cable — no separate power outlet needed at the device end.
Do I need to replace my existing switch to use this injector?
No. The TL-POE260S works with any existing non-PoE switch or router. Simply connect your switch to the Data In port and your PoE device to the PoE Out port.
Why does the 2.5Gbps speed matter for a PoE injector?
Most PoE injectors are limited to 1Gbps, which can bottleneck high-bandwidth devices like Wi-Fi 6/6E access points that are capable of multi-gigabit throughput. The TL-POE260S’s 2.5Gbps ports ensure the injector doesn’t become the weakest link in a high-speed network.
Is it compatible with standard PoE (802.3af) devices as well as PoE+ (802.3at)?
Yes. The TL-POE260S is backward compatible with IEEE 802.3af (PoE) devices, automatically supplying the correct power level. It supports up to 30W for PoE+ devices.
Can I use this to power a VIGI IP camera?
Yes. All TP-Link VIGI cameras that support PoE (802.3af/at) are compatible with the TL-POE260S. For single-camera installations without a PoE switch or NVR, this injector is the most cost-effective solution.
Does it require any software or configuration?
No. The TL-POE260S is fully plug and play — connect the cables and it works immediately with no drivers, software, or configuration required.
