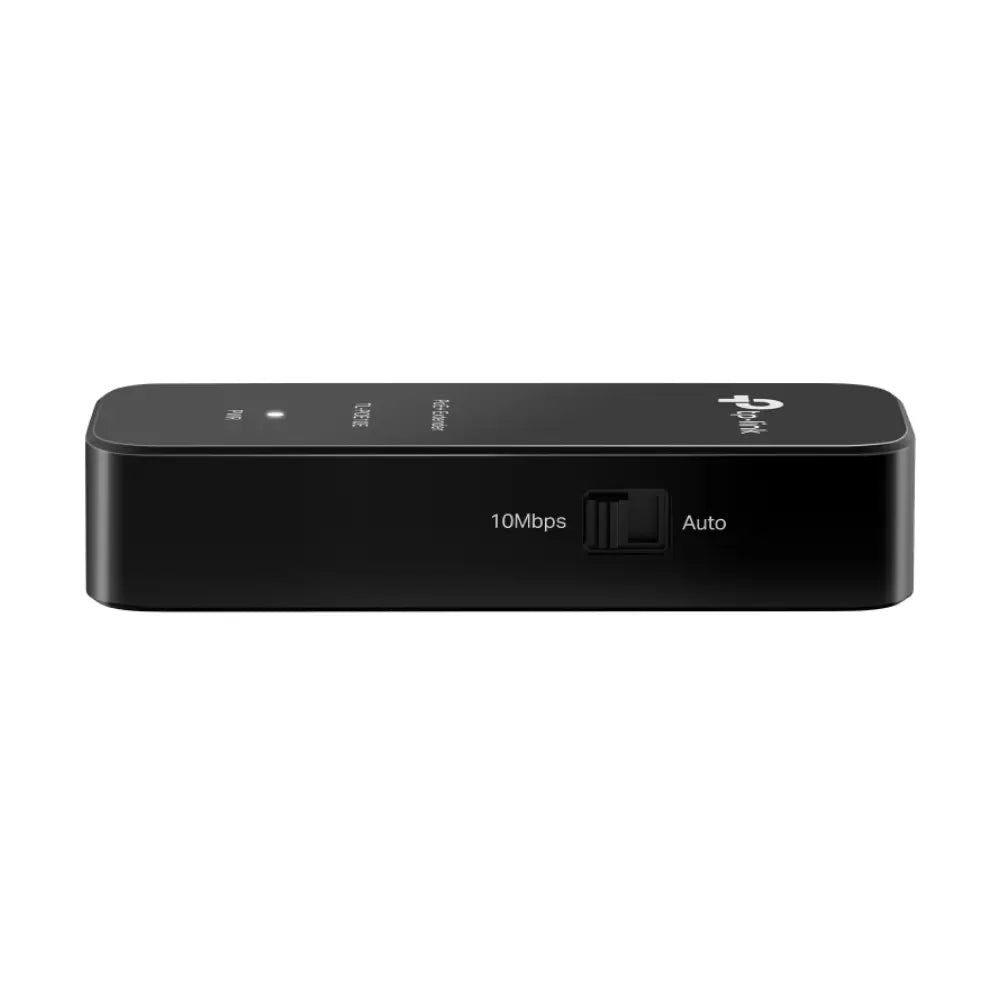

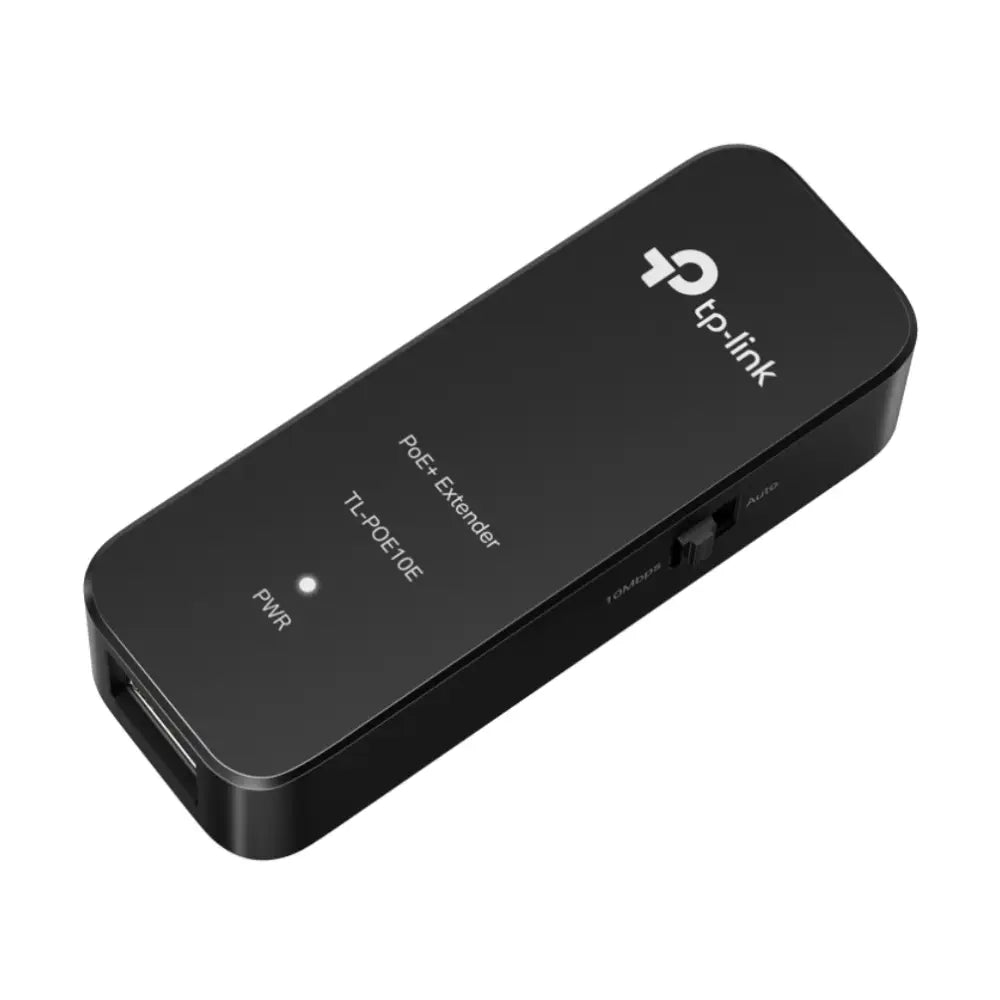

TP-Link TL-POE10E — Fast Ethernet PoE+ Extender
The TP-Link TL-POE10E is a compact, plug-and-play PoE extender that pushes your PoE or PoE+ network connection an additional 100–250 metres beyond the standard 100-metre Ethernet limit. Powered entirely by the upstream PoE switch — no power outlet, no configuration, no extra cabling required — it’s the simplest and most cost-effective way to reach remote IP cameras, access points, and entry systems on large sites across Australia.
Key Features
-
Extends PoE Range by Up to 250m: Adds up to 100m at 100 Mbps or up to 250m at 10 Mbps beyond your PoE switch — ideal for long cable runs across large sites.
-
Plug and Play: No configuration or software required. Connect it inline between your PoE switch and end device and it works immediately.
-
802.3af/at Compliant: Compatible with any standards-compliant PoE or PoE+ switch and end device, including IP cameras, access points, and VoIP phones.
-
20W PoE Output: Delivers up to 20W of power to the connected PoE device — sufficient for most IP cameras and wireless access points.
-

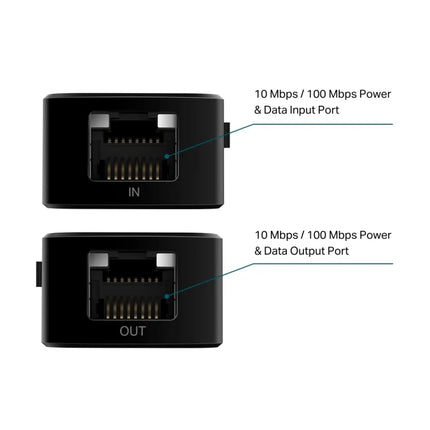

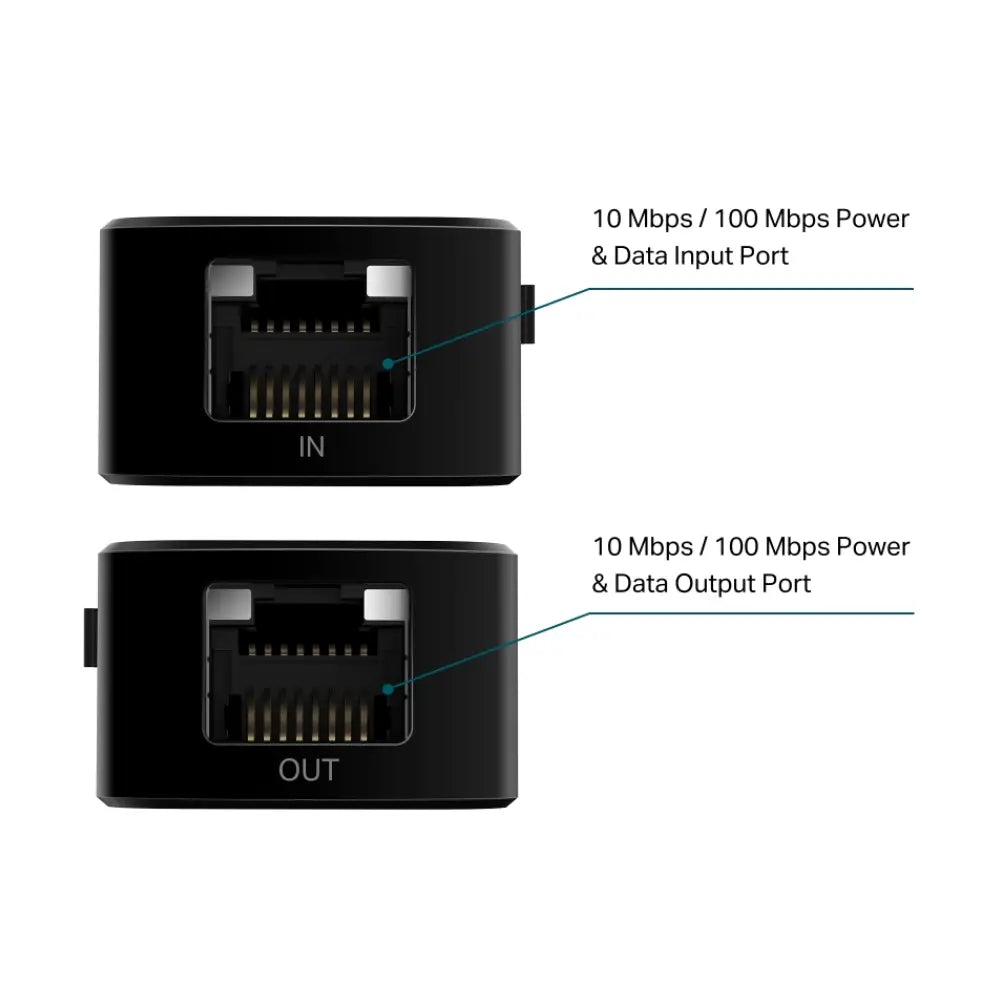

2× 10/100 Mbps Ports: One uplink port connects to your PoE switch; one downlink port connects to your PoE-powered end device.
-
Powered by PoE: Draws power directly from the upstream PoE switch — no separate power supply or power outlet needed at the extender location.
-

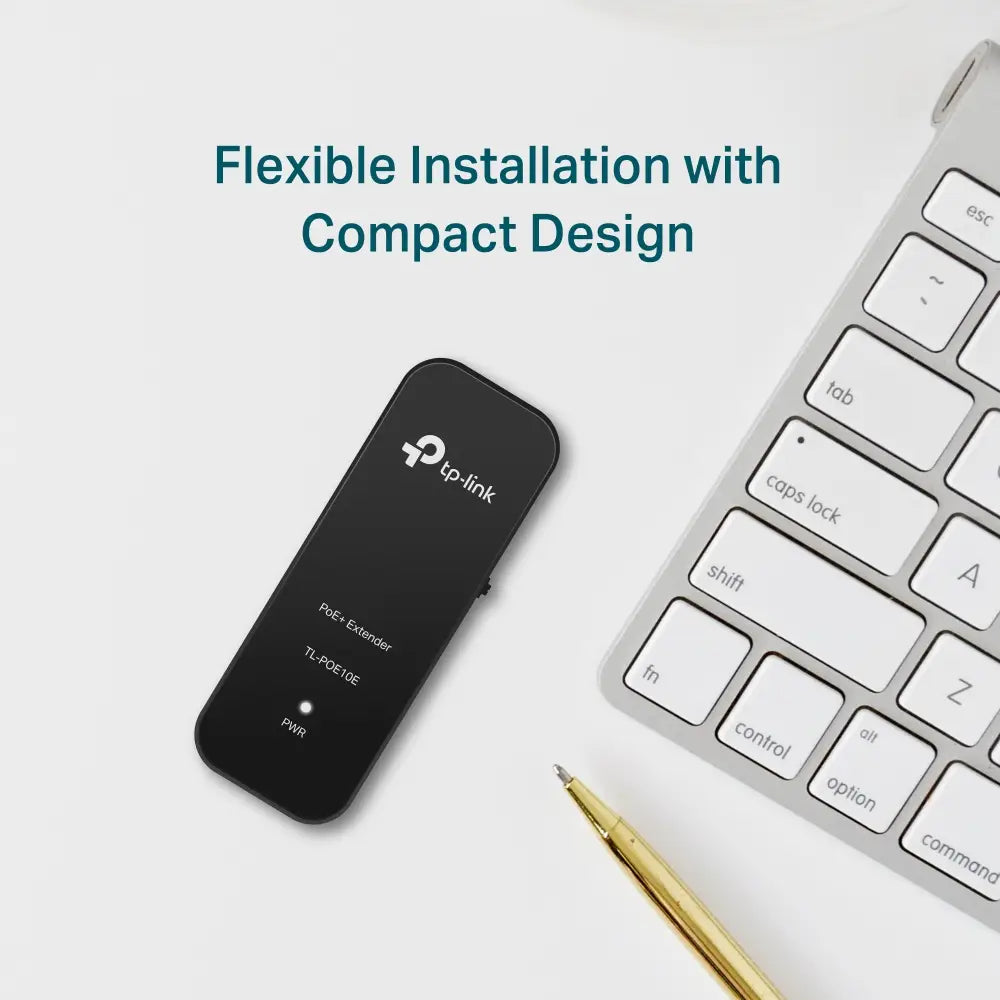

Compact & Lightweight: At just 60g, it’s easy to conceal in ceiling cavities, conduit boxes, junction boxes, or wall enclosures.
Use Cases
-
IP CCTV & Surveillance: Reach cameras at the far end of a car park, warehouse, or large building without re-running cable from the switch room.
-
Outdoor Access Points: Extend PoE to wireless access points on building exteriors, sports fields, or car parks beyond the standard 100m limit.
-
Entry & Intercom Systems: Power and connect IP intercoms or access control readers at gate entries or remote building entrances.
-
Retail & Hospitality: Extend network drops to POS terminals, digital signage, or PoE devices in large floor plans without additional cabling infrastructure.
-
Temporary or Staged Deployments: Quickly extend a PoE run during construction, events, or staged rollouts without permanent cable changes.
Specifications
| Model |
TL-POE10E |
| Ports |
2× 10/100 Mbps RJ45 (1× uplink, 1× downlink) |
| PoE Standard |
IEEE 802.3af/at (PoE/PoE+) |
| PoE Output Power |
Up to 20W |
| Extension Range (100 Mbps) |
Up to 100m |
| Extension Range (10 Mbps) |
Up to 250m |
| Power Source |
Upstream PoE switch (no external power required) |
| Configuration |
Plug and Play — no setup required |
| Weight |
60g |
| Certifications |
CE, FCC, RoHS |
Frequently Asked Questions
How far can the TL-POE10E extend a PoE connection?
The TL-POE10E extends your PoE run by up to 100 metres at 100 Mbps, or up to 250 metres at 10 Mbps. This is in addition to the standard 100m from your PoE switch, giving a total potential run of up to 350 metres in 10 Mbps mode.
Does the TL-POE10E need its own power supply?
No. The extender is powered entirely by the upstream PoE switch — no power outlet or separate adapter is required at the extender location. This makes it ideal for ceiling, conduit, or outdoor enclosure installations.
Can I daisy-chain multiple TL-POE10E extenders?
TP-Link does not officially recommend daisy-chaining multiple extenders, as each unit introduces additional latency and power loss. For very long runs, consider running a dedicated fibre or copper cable from the switch room instead.
Is the TL-POE10E compatible with any PoE switch?
Yes. It complies with IEEE 802.3af/at standards, making it compatible with any standards-compliant PoE or PoE+ switch from any manufacturer, including TP-Link, Hikvision, Dahua, Cisco, and others.
What devices can be powered by the TL-POE10E?
Any 802.3af/at-compliant PoE device drawing up to 20W — including most IP cameras, wireless access points, VoIP phones, and IP intercoms. Devices requiring more than 20W (such as PTZ cameras with heaters) may not be supported.
Is the TL-POE10E suitable for outdoor use?
The TL-POE10E itself is not rated for direct outdoor exposure. It should be installed inside a weatherproof enclosure or junction box when used in outdoor or exposed environments.
Downloads
📄 TL-POE10E Datasheet (PDF)
