Description

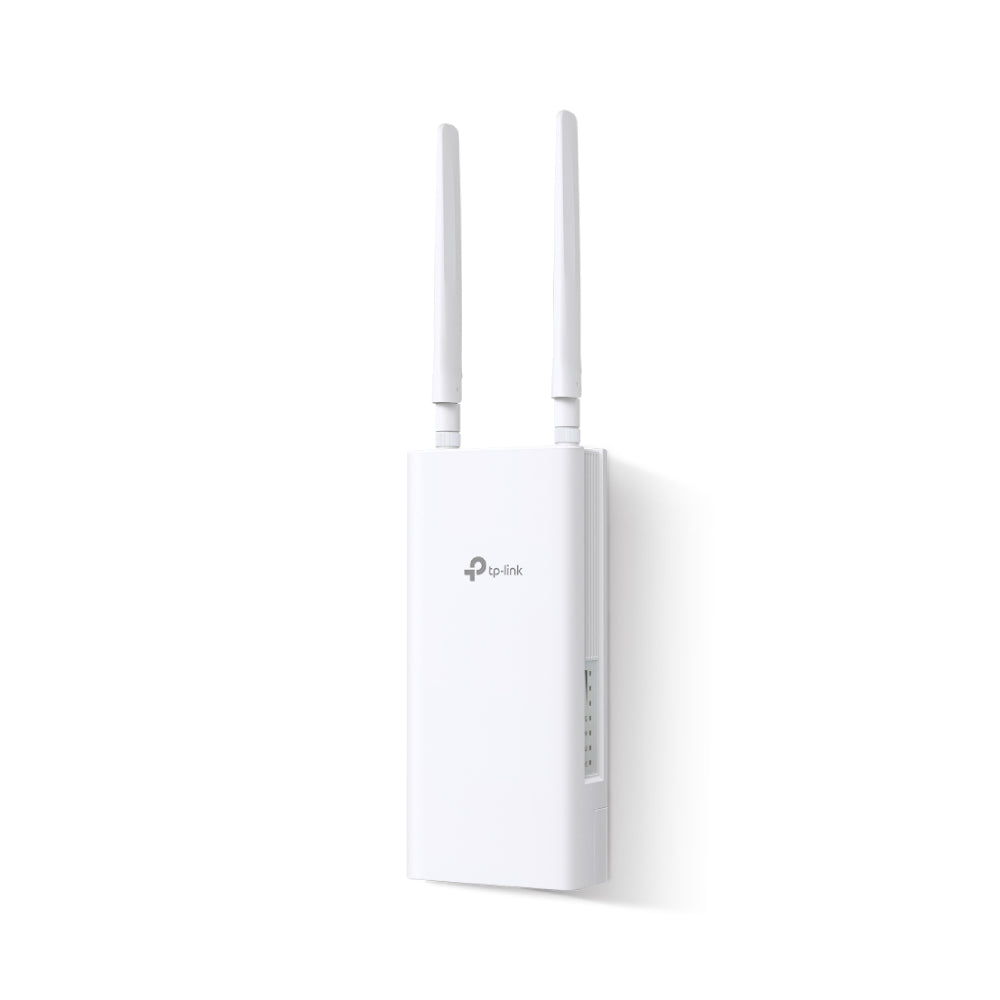

TP-Link TL-MR100 Outdoor 4G LTE Router Weatherproof PoE-Powered
4G Internet Anywhere — Built to Survive the Australian Outdoors
The TP-Link TL-MR100 Outdoor is a dedicated 4G LTE router engineered for permanent outdoor installation. Housed in an IP65-rated weatherproof enclosure and powered entirely via PoE (Power over Ethernet), it eliminates the need for a separate power outlet at the installation point — making it ideal for remote sites, rural properties, construction zones, car parks, and any location where running cable is impractical. Simply insert a SIM card, mount it outdoors for the best signal, and connect your network below via a single Ethernet cable.
Key Features
-
4G LTE Category 4 — Delivers download speeds of up to 150 Mbps and upload speeds of up to 50 Mbps on compatible 4G networks — sufficient for surveillance, remote monitoring, and general internet access.
-
IP65 Weatherproof Enclosure — Fully sealed against dust ingress and protected against water jets, rated for permanent outdoor installation in Australian conditions.
-

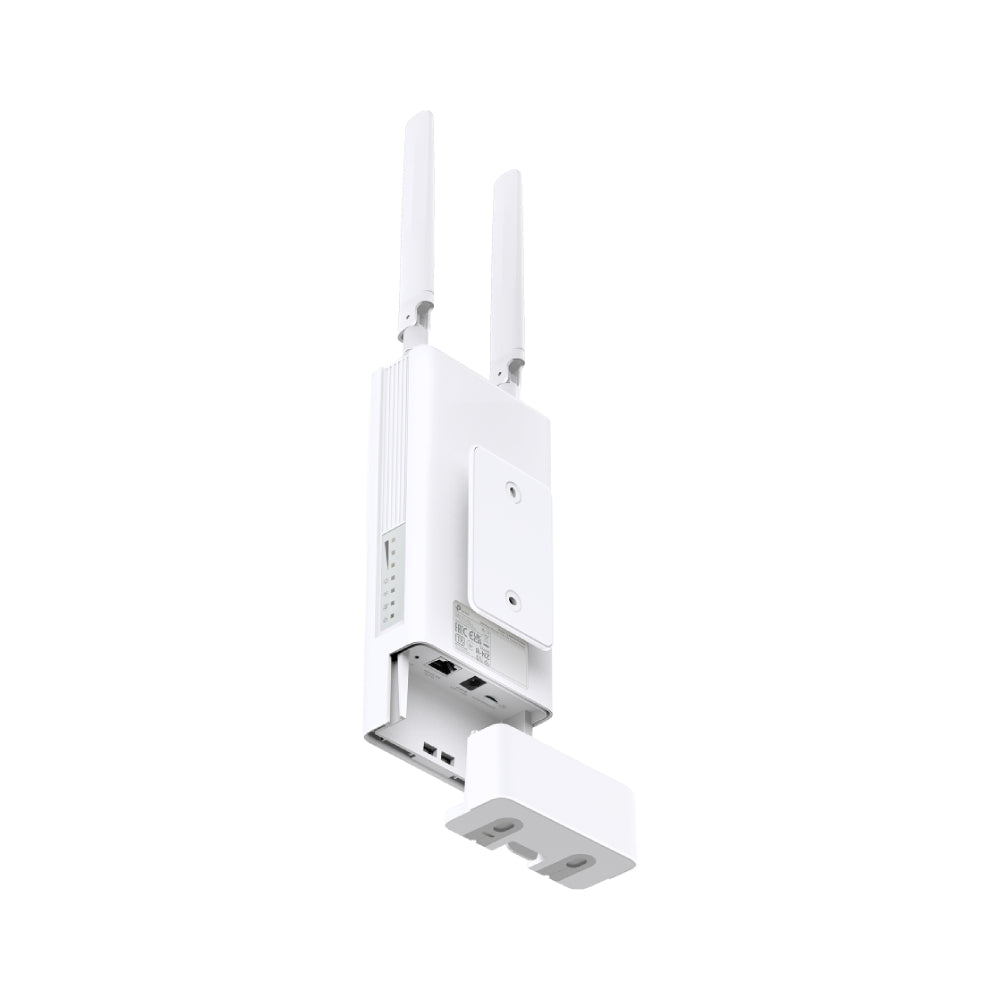

PoE-Powered (802.3af/at) — Receives power through the Ethernet cable from a compatible PoE switch or injector — no separate power run to the mounting point required.
-
Nano SIM Slot — Works with any Australian 4G SIM card (Telstra, Optus, Vodafone, and MVNOs). No fixed-line connection required.
-
Dual External Antenna Ports — TS-9 connectors allow connection of external high-gain antennas to boost signal in fringe coverage areas.
-
Gigabit Ethernet Port — Single RJ45 port for PoE power input and data output to your downstream network equipment.
-
Wide Operating Temperature — Rated from −40 °C to +60 °C, suitable for extreme Australian climates from alpine to tropical.
-
Easy Management — Configure and monitor via a web browser interface or the TP-Link Tether app.
Use Cases
-
Rural & Remote Properties — Provide reliable internet to farms, stations, and rural homes where fixed-line NBN or ADSL is unavailable or unreliable.
-
Construction & Temporary Sites — Deploy fast, weatherproof 4G connectivity to construction sites, pop-up offices, and temporary work camps without waiting for fixed-line installation.
-
Outdoor CCTV & Security Systems — Backhaul IP cameras and NVRs over 4G at remote locations such as car parks, gates, and perimeter fences where cabling is not feasible.
-
Caravan Parks & Marinas — Provide guest internet access at outdoor venues using 4G as the WAN source, powered cleanly via PoE.
-
IoT & Remote Monitoring — Connect environmental sensors, telemetry equipment, and remote monitoring devices at unmanned sites via a reliable 4G uplink.
-
Failover & Backup WAN — Install as a secondary WAN source for critical sites, automatically providing 4G connectivity if the primary fixed-line connection fails.
Technical Specifications
| Specification |
Detail |
| Model |
TL-MR100 Outdoor |
| Mobile Standard |
4G LTE Cat 4 / 3G / 2G |
| Download Speed |
Up to 150 Mbps (4G LTE) |
| Upload Speed |
Up to 50 Mbps (4G LTE) |
| SIM Card Type |
Nano SIM (4FF) |
| Ethernet Port |
1× Gigabit RJ45 (PoE in + data out) |
| PoE Standard |
IEEE 802.3af / 802.3at |
| Antenna Connectors |
2× TS-9 (external antenna ports) |
| Weather Rating |
IP65 (dust-tight, water jet resistant) |
| Operating Temperature |
−40 °C to +60 °C |
| Storage Temperature |
−40 °C to +70 °C |
| Power Input |
PoE 802.3af/at (12–57 V DC) |
| Management |
Web browser, TP-Link Tether app |
| Mounting |
Pole or wall mount (hardware included) |
| Certifications |
RCM (AU/NZ), CE, RoHS |
Recommended Accessories
-
TP-Link TL-POE150S PoE Injector — Adds PoE power to a standard Ethernet port to power the TL-MR100 Outdoor without a PoE switch.
-
TP-Link TL-SG1005P PoE Switch — 5-port Gigabit PoE switch to power the router and connect downstream devices from a single unit.
-
External 4G Antenna (TS-9) — High-gain directional or omni antenna for improved signal in fringe 4G coverage areas.
-
TP-Link TL-MR100 (Indoor) — Indoor 4G LTE router for complementary indoor connectivity from the same SIM-based uplink.
Downloads
Frequently Asked Questions
Does the TL-MR100 Outdoor work with Australian SIM cards?
Yes. The TL-MR100 Outdoor accepts a standard Nano SIM and is compatible with all major Australian 4G networks including Telstra, Optus, Vodafone, and their MVNOs. Check your carrier’s supported LTE bands to confirm compatibility with your area.
Do I need a PoE switch to power it?
Yes. The TL-MR100 Outdoor is powered exclusively via PoE (IEEE 802.3af/at). You will need either a PoE-capable switch or a standalone PoE injector (such as the TP-Link TL-POE150S) to supply power through the Ethernet cable.
Can I connect external antennas to improve signal?
Yes. The router has two TS-9 antenna connectors on the unit. You can connect compatible external high-gain antennas to improve 4G reception in areas with weak signal. Ensure any antenna purchased is compatible with the LTE bands used by your carrier.
Is the TL-MR100 Outdoor suitable for permanent installation?
Yes. The IP65-rated enclosure and −40 °C to +60 °C operating temperature range make it suitable for permanent outdoor installation in Australian conditions, including coastal, tropical, and alpine environments.
How many devices can connect through the TL-MR100 Outdoor?
The TL-MR100 Outdoor provides a single Gigabit Ethernet output. Connect it to a downstream switch or router to distribute the 4G connection to multiple wired or wireless devices on your local network.
