Description

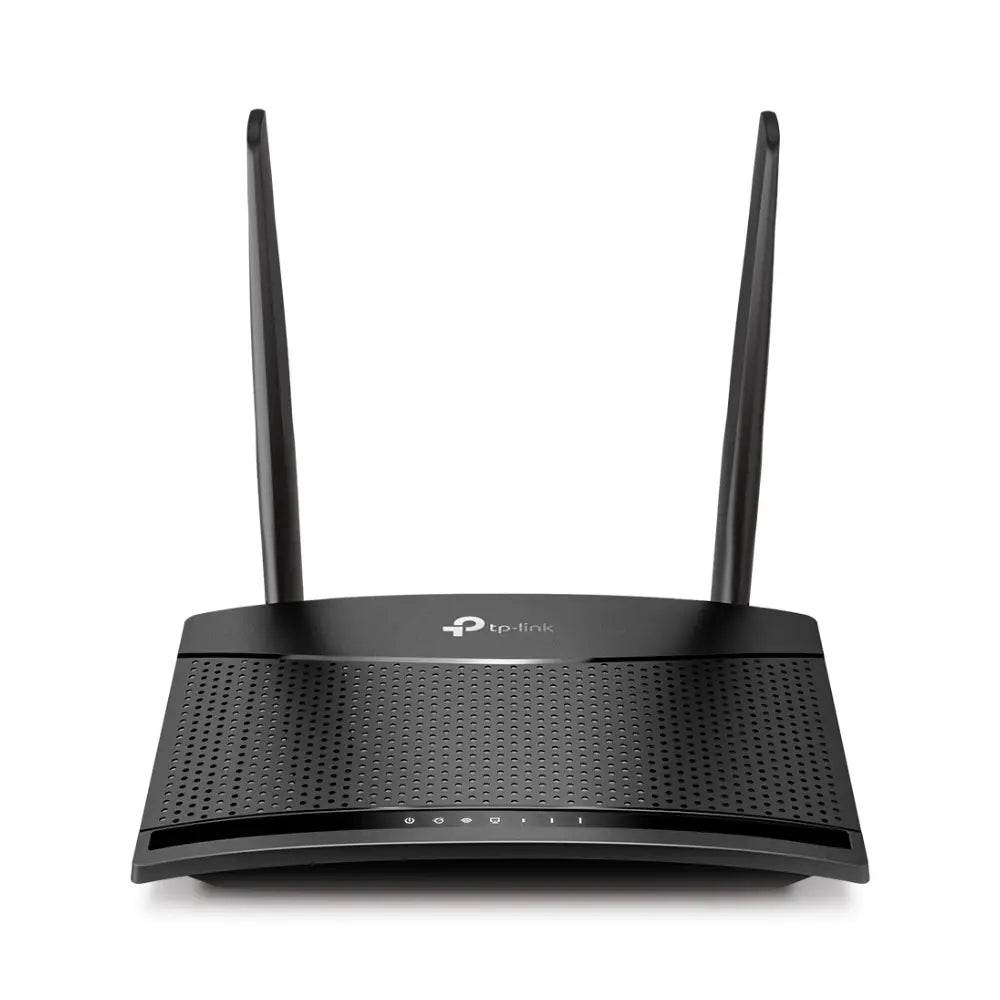

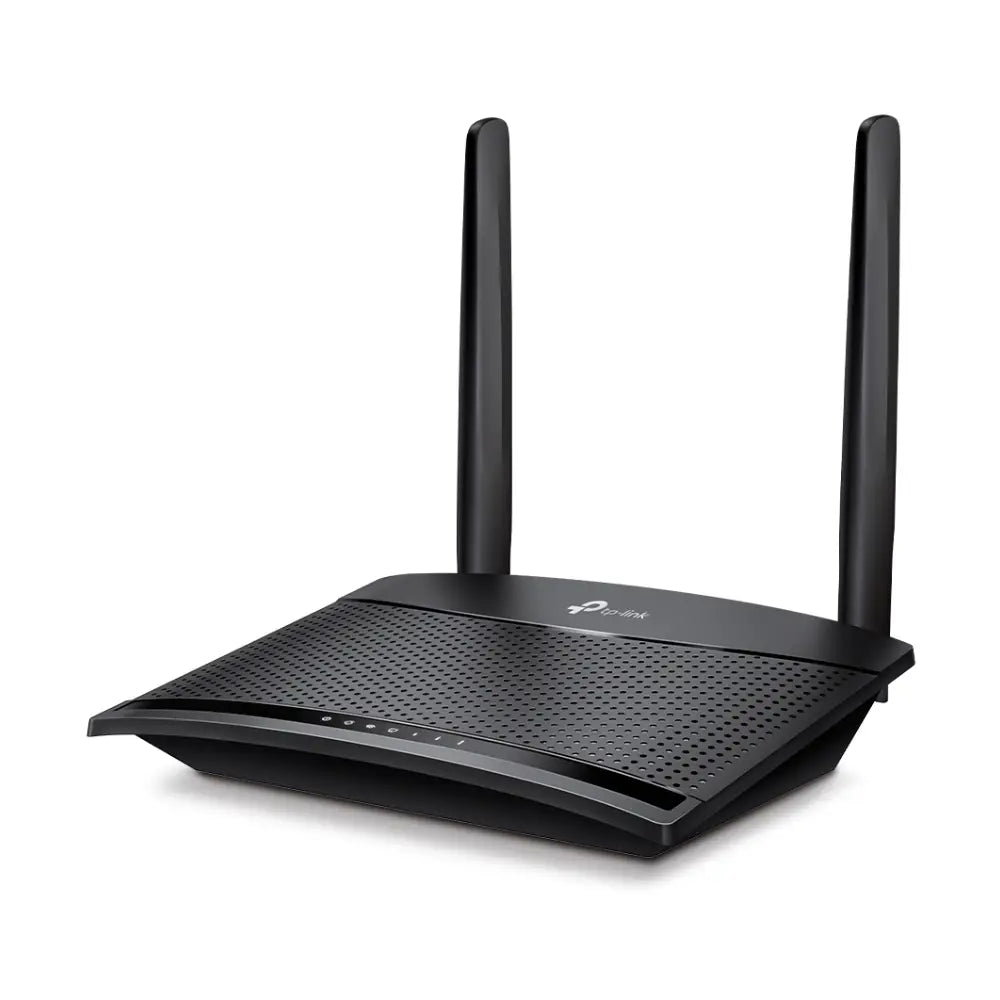

TP-Link TL-MR100 300Mbps Wireless N 4G LTE Router
Instant 4G Broadband — Just Insert a SIM Card
The TP-Link TL-MR100 is a 300 Mbps Wireless N 4G LTE router that delivers broadband internet connectivity anywhere a 4G or 3G mobile signal is available. Simply insert a compatible SIM card and the router automatically connects to the network — no technician, no fixed-line infrastructure required. With 4 Fast Ethernet LAN ports and 2.4 GHz Wi-Fi, it’s an ideal primary or backup internet solution for Australian homes, small offices, caravans, and remote sites.
Key Features
- 4G LTE / 3G compatible — insert a SIM card for instant broadband, no fixed-line required
- 300 Mbps wireless N (2.4 GHz) — reliable Wi-Fi for everyday browsing, streaming, and remote work
- 4 × Fast Ethernet LAN ports for wired device connections
- 1 × WAN port for optional fixed-line (ADSL/cable/fibre) connection as primary or backup
- Automatic 4G/3G/2G network selection — connects to the strongest available signal
- Supports standard micro-SIM cards from Australian carriers (Telstra, Optus, Vodafone, etc.)
- 2 × detachable external antennas for improved 4G signal reception
- WPS one-touch wireless setup
- Managed via web-based interface — no software installation required
- 3-year warranty
Use Cases
-
Primary 4G Broadband: Use a 4G SIM as your main internet connection where fixed-line NBN or ADSL is unavailable or unreliable.
-
Backup Internet: Connect via 4G SIM as a failover when your fixed-line connection goes down — ideal for small businesses that can’t afford downtime.
-
Remote & Rural Sites: Provide internet access at properties, farms, or work sites where fixed-line infrastructure doesn’t reach.
-
Caravans & Temporary Sites: Portable 4G connectivity for caravans, construction sites, pop-up offices, or events.
-
Small Offices: Share a 4G connection across multiple wired and wireless devices without a fixed-line contract.
Specifications
| Specification |
Detail |
| Model |
TL-MR100 |
| 4G Standard |
LTE FDD/TDD, DC-HSPA+, HSPA+, HSPA, UMTS, EDGE, GPRS, GSM |
| SIM Card Type |
Micro-SIM (standard 4FF) |
| Wi-Fi Standard |
IEEE 802.11b/g/n — 2.4 GHz |
| Wireless Speed |
Up to 300 Mbps |
| LAN Ports |
4 × 10/100 Mbps RJ45 |
| WAN Port |
1 × 10/100 Mbps RJ45 |
| Antennas |
2 × detachable external (4G) + 2 × fixed internal (Wi-Fi) |
| Wireless Security |
WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Management |
Web-based UI |
| Power Supply |
9 V / 0.6 A |
| Warranty |
3 years |
Frequently Asked Questions
Which Australian SIM cards are compatible with the TL-MR100?
The TL-MR100 accepts a standard micro-SIM card and is compatible with Australian 4G carriers including Telstra, Optus, and Vodafone. Check that your SIM plan includes data and that the router’s supported LTE bands match your carrier’s network bands in your area.
Can I use the TL-MR100 as a backup internet connection?
Yes. The TL-MR100 has a WAN port that can be connected to a fixed-line modem (ADSL, cable, or fibre). When the fixed-line connection fails, the router can fall back to the 4G SIM connection, providing continuity of service.
Does the TL-MR100 support NBN?
The TL-MR100 is a 4G LTE router and does not connect directly to NBN infrastructure. However, it can be used as a standalone 4G broadband solution or as a backup alongside an NBN connection via the WAN port.
What type of SIM card does it use?
The TL-MR100 uses a micro-SIM card (also known as a 3FF SIM). If your carrier provides a nano-SIM, you will need a nano-to-micro SIM adapter, available from most electronics retailers.
How do I manage data usage on the TL-MR100?
The web-based management interface includes data usage monitoring and allows you to set monthly data limits and alerts to help avoid exceeding your SIM plan’s data allowance.
Can I improve 4G signal reception?
Yes. The TL-MR100 has two detachable external antenna ports (TS-9 connectors) that support optional external high-gain 4G antennas, which can significantly improve signal strength in areas with weak coverage.
