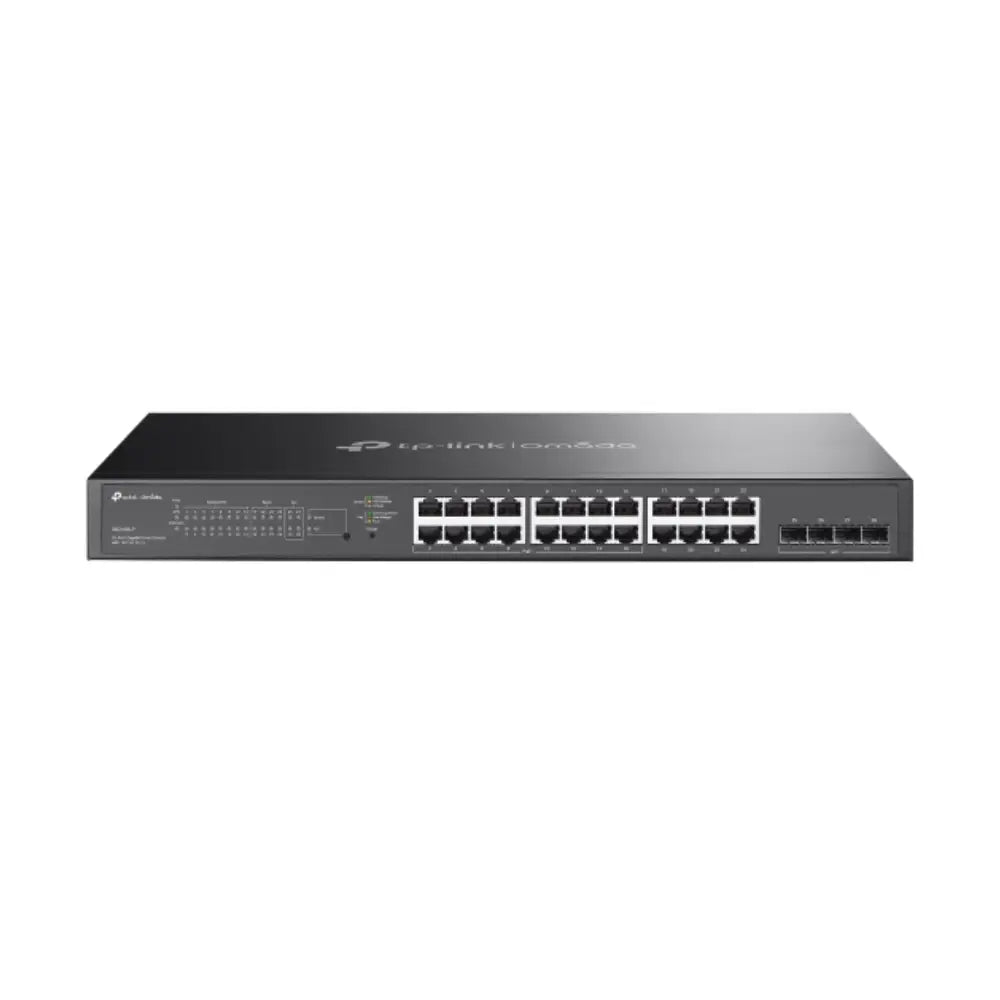

TP-Link Omada SG2428LP 24-Port Gigabit PoE+ Smart Switch
Power and Control for Professional IP Networks
The TP-Link Omada SG2428LP is a 24-port Gigabit PoE+ smart switch engineered for commercial CCTV installations, enterprise Wi-Fi deployments, and structured IP networks across Australia. With a 250W PoE budget, four SFP uplink slots, and full integration into the Omada SDN platform, it delivers the reliability and centralised control that installers and IT teams demand.
Key Features
- 24× Gigabit RJ45 PoE+ ports (IEEE 802.3af/at) with a 250W total PoE budget
- 4× Gigabit SFP uplink slots for fibre or long-distance backbone connections
- Omada SDN compatible — manage via Omada Hardware Controller, Software Controller, or Omada Cloud
- Advanced L2+ features: static routing, VLAN, RSTP, LACP, QoS, IGMP snooping
- PoE scheduling and PoE watchdog for automated device management and remote reboot
- Fanless design for silent, rack-mountable deployment in noise-sensitive environments
- Centralised network topology view and real-time monitoring via Omada app
- Supports up to 8K MAC address table
Use Cases
-
CCTV & IP Camera Systems: Power and manage up to 24 IP cameras from a single switch with PoE+ and per-port power control.
-
Enterprise Wi-Fi Deployments: Seamlessly power Omada EAPs and manage the entire wireless network from one controller.
-
Access Control Systems: Provide reliable PoE power to door controllers, intercoms, and readers across a building.
-
SMB & Campus Networks: Segment traffic with VLANs, prioritise voice and video with QoS, and uplink via SFP fibre.
-
Retail & Hospitality: Centralised management across multiple sites with zero-touch provisioning via Omada Cloud.
Technical Specifications
| Specification |
Detail |
| Model |
SG2428LP |
| RJ45 Ports |
24× 10/100/1000 Mbps PoE+ |
| SFP Slots |
4× Gigabit SFP |
| PoE Standard |
IEEE 802.3af / 802.3at |
| Total PoE Budget |
250W |
| Switching Capacity |
56 Gbps |
| Forwarding Rate |
41.67 Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
9216 Bytes |
| L2+ Features |
Static Routing, VLAN, RSTP, LACP, QoS, IGMP Snooping |
| Management |
Omada App, Web UI, CLI, SNMP, SSH, Telnet |
| Fan |
Fanless |
| Form Factor |
1U Rack-mountable |
| Dimensions |
440 × 180 × 44 mm |
| Power Input |
100–240V AC, 50/60Hz |
| Operating Temperature |
0–45°C |
| Certifications |
CE, FCC, RoHS |
Frequently Asked Questions
How many IP cameras can the SG2428LP power?
The SG2428LP has 24 PoE+ ports with a 250W total budget. The number of cameras depends on each camera's power draw — for example, 24 cameras drawing ~10W each would use 240W, comfortably within budget. Higher-powered PTZ cameras may reduce the total count.
Does the SG2428LP require an Omada controller?
No. The switch can be managed standalone via its web UI or CLI. However, pairing it with an Omada Hardware or Software Controller (or Omada Cloud) unlocks centralised management, topology views, and zero-touch provisioning across multiple sites.
Can I use fibre uplinks with this switch?
Yes. The four SFP slots support Gigabit fibre modules, making it suitable for long-distance backbone connections between buildings or floors.
Is the SG2428LP suitable for outdoor or harsh environments?
The SG2428LP is designed for indoor rack-mount installation with an operating range of 0–45°C. For outdoor or harsh environments, consider TP-Link's ruggedised or outdoor-rated switch options.
What is the warranty on this product in Australia?
TP-Link products sold in Australia are covered by a standard manufacturer's warranty. Please refer to the product documentation or contact us for current warranty terms applicable to your purchase.
