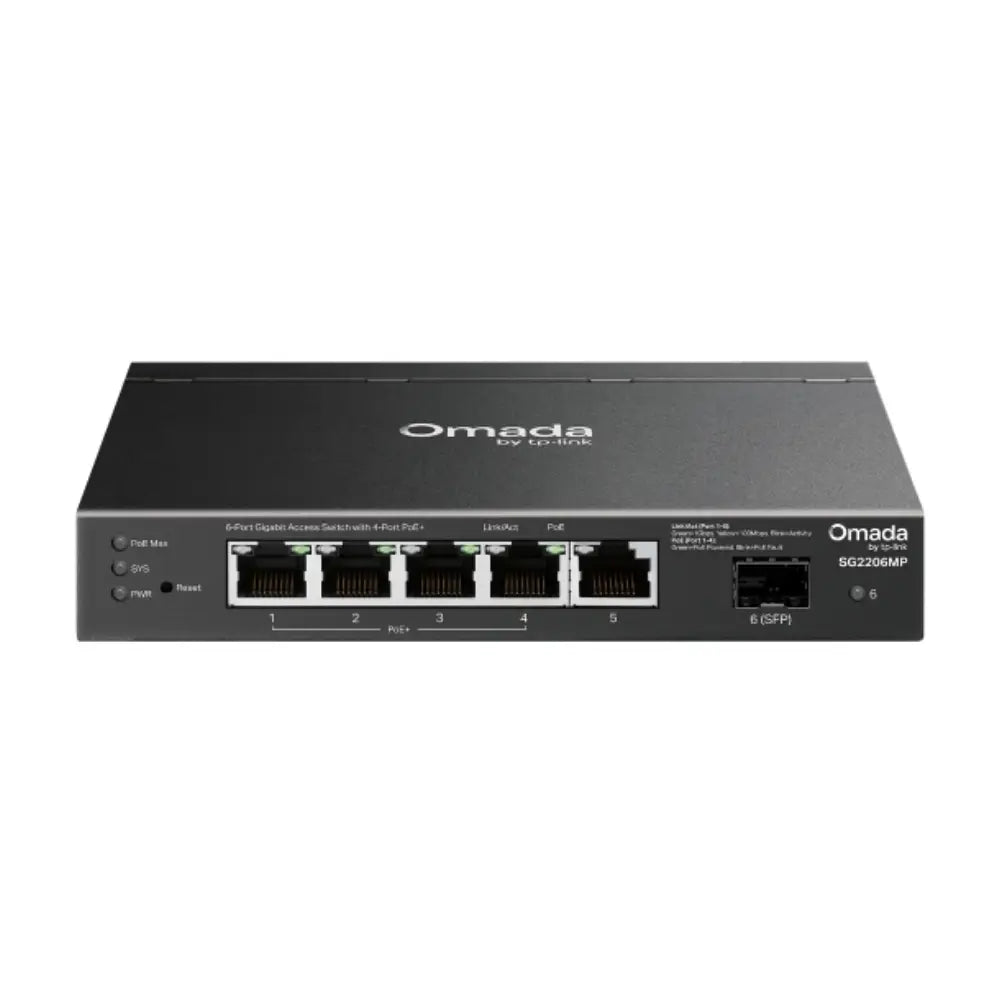

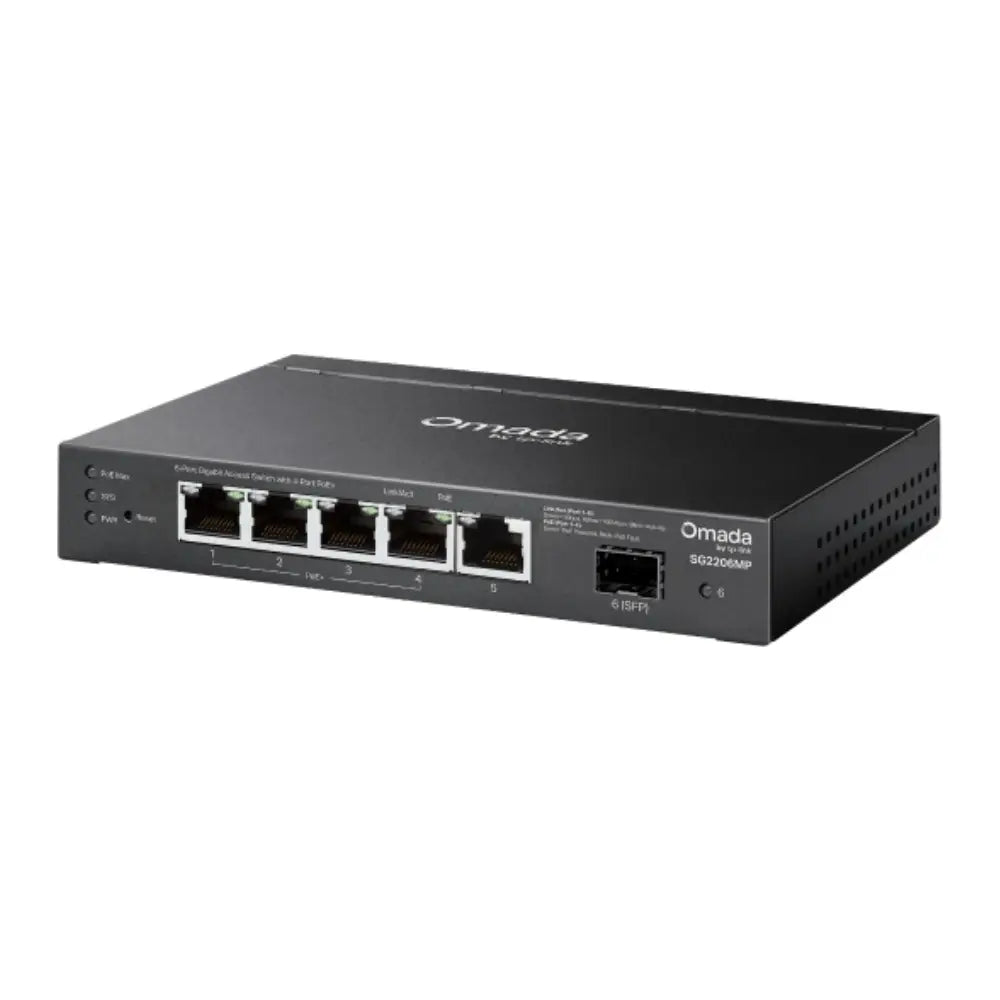

TP-Link Omada SG2206MP 6-Port Gigabit PoE+ Smart Switch
Compact PoE+ Switching for Small Business & Security Installations
The TP-Link Omada SG2206MP is a 6-port Gigabit PoE+ smart switch designed for small business networks, IP surveillance systems, and access control deployments. With a 126W PoE budget and full Omada SDN integration, it delivers reliable, centrally managed power and connectivity in a compact desktop form factor — ideal for Australian installers and IT professionals working in space-constrained environments.
Product Description
The SG2206MP features 4 Gigabit PoE+ ports and 2 Gigabit uplink ports, giving you the flexibility to power IP cameras, wireless access points, VoIP phones, and access control readers directly from the switch — no separate power injectors required. Managed via the Omada SDN platform (hardware controller, software controller, or Omada Cloud), it supports centralised configuration, monitoring, and zero-touch provisioning across your entire network.
Built for reliability, the SG2206MP supports advanced Layer 2 features including 802.1Q VLAN, RSTP, IGMP Snooping, and QoS — giving installers the tools to segment traffic, prioritise video streams, and maintain network stability across mixed-device environments.
Key Features
- 4× Gigabit PoE+ ports (802.3at/af) + 2× Gigabit uplink ports
- 126W total PoE power budget
- Omada SDN compatible — manage via hardware controller, software controller, or Omada Cloud
- 802.1Q VLAN, RSTP, IGMP Snooping, and QoS support
- Port mirroring, bandwidth control, and storm control
- Fanless, silent operation — suitable for office and retail environments
- Desktop or wall-mountable form factor
- IPv6 management support
- Supports PoE scheduling to reduce power consumption
Use Cases
-
IP Surveillance: Power and connect up to 4 IP cameras without additional injectors — ideal for small CCTV installations in retail, offices, or warehouses.
-
Wireless Access Points: Deploy Omada EAPs with seamless SDN integration for unified Wi-Fi and switching management.
-
Access Control: Power electromagnetic locks, card readers, and intercoms via PoE+ for a clean, cable-efficient installation.
-
VoIP Deployments: Prioritise voice traffic with QoS to ensure call quality across mixed-use networks.
-
Small Business Networks: A cost-effective managed switch for SMBs needing VLAN segmentation and centralised control without rack infrastructure.
Technical Specifications
| Specification |
Detail |
| Model |
SG2206MP |
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3x |
| PoE Ports |
4× Gigabit PoE+ (802.3at/af) |
| Uplink Ports |
2× Gigabit RJ45 |
| Total PoE Budget |
126W |
| Switching Capacity |
12 Gbps |
| Forwarding Rate |
8.9 Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
9216 Bytes |
| VLAN |
802.1Q VLAN, up to 4K VLAN groups |
| QoS |
802.1p CoS/DSCP priority, 4 queues per port |
| Spanning Tree |
STP, RSTP, MSTP |
| IGMP Snooping |
IGMP v1/v2/v3 Snooping |
| Management |
Omada App, Omada Cloud, Web UI, CLI (Telnet/SSH) |
| Mounting |
Desktop / Wall-mount |
| Dimensions |
158 × 101 × 25 mm |

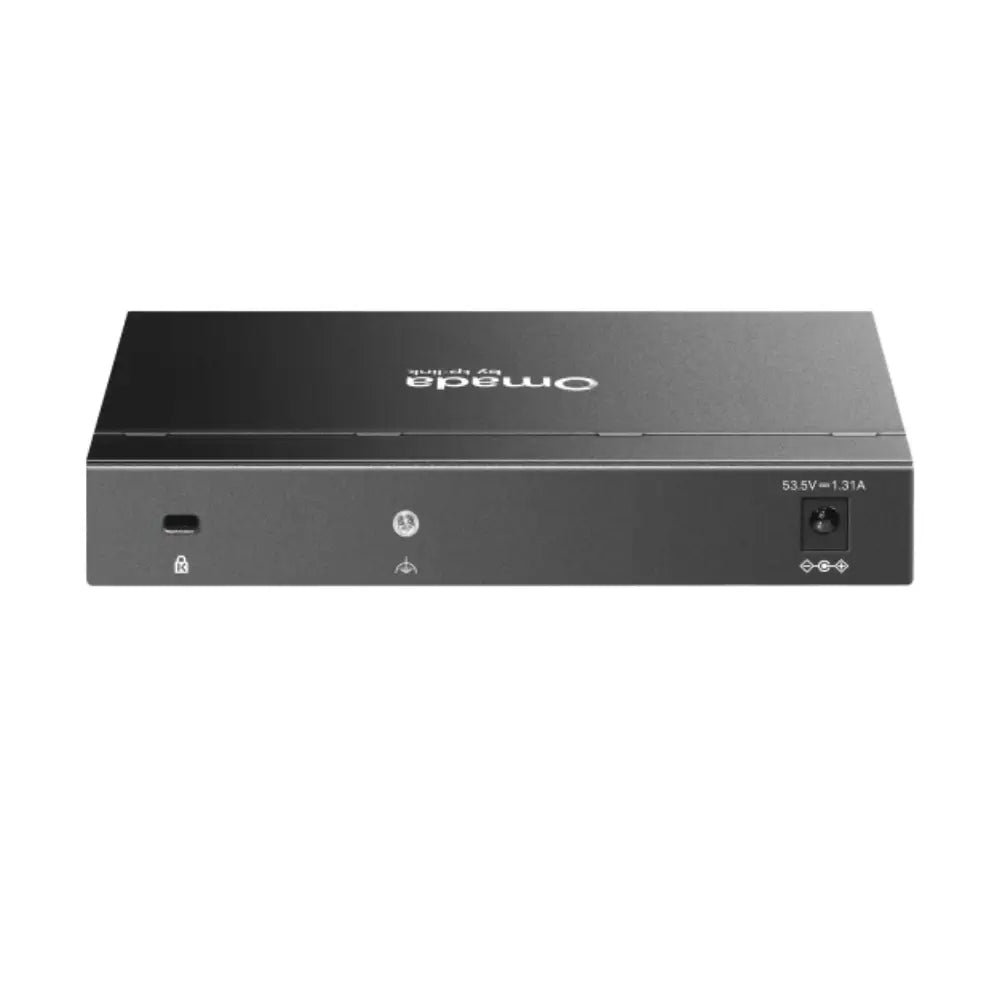

| Power Input |
100–240V AC, 50/60Hz |
| Max Power Consumption |
154.6W |
| Cooling |
Fanless |
| Operating Temperature |
0–40°C |
| Certifications |
CE, FCC, RoHS |
Frequently Asked Questions
How many PoE devices can the SG2206MP power simultaneously?
The SG2206MP has a 126W total PoE budget across 4 PoE+ ports. The number of devices depends on each device's power draw — for example, it can power up to 4 standard IP cameras drawing approximately 15W each, with power to spare.
Does the SG2206MP require an Omada controller?
No. The switch can be managed standalone via its web interface or CLI. However, for centralised management, zero-touch provisioning, and advanced SDN features, an Omada hardware controller (e.g. OC200, OC300) or the Omada Software Controller is recommended.
Is the SG2206MP suitable for outdoor use?
No. The SG2206MP is designed for indoor use with an operating temperature range of 0–40°C. For outdoor or harsh-environment installations, consider a ruggedised PoE switch.
Can I use the SG2206MP with non-Omada devices?
Yes. The SG2206MP is a standards-based switch and will work with any 802.3af/at PoE-compatible device, including third-party IP cameras, access points, and VoIP phones.
What is the difference between 802.3af and 802.3at PoE?
802.3af (PoE) delivers up to 15.4W per port, while 802.3at (PoE+) delivers up to 30W per port. The SG2206MP supports both standards, making it compatible with a wide range of powered devices.
Does the SG2206MP support VLAN configuration?
Yes. It supports 802.1Q VLAN with up to 4K VLAN groups, allowing you to segment camera traffic, management traffic, and user traffic onto separate logical networks for improved security and performance.
