Description

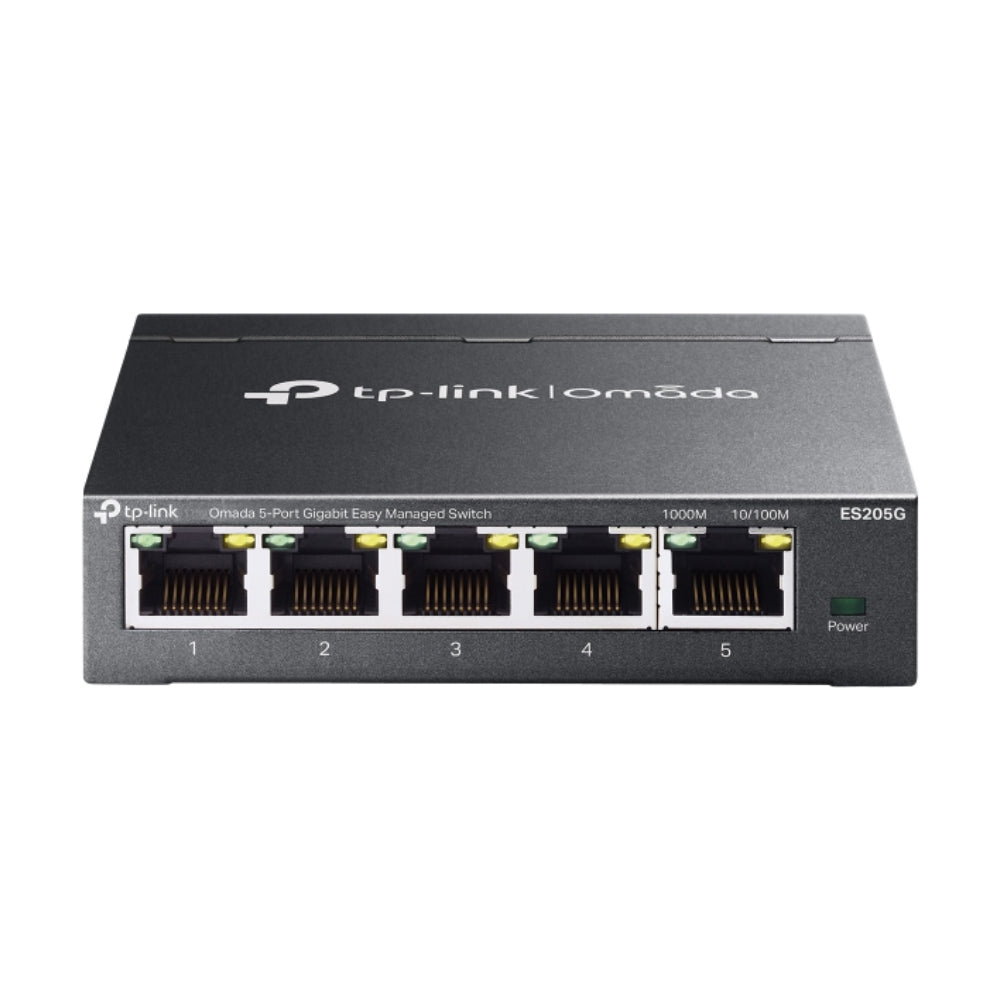

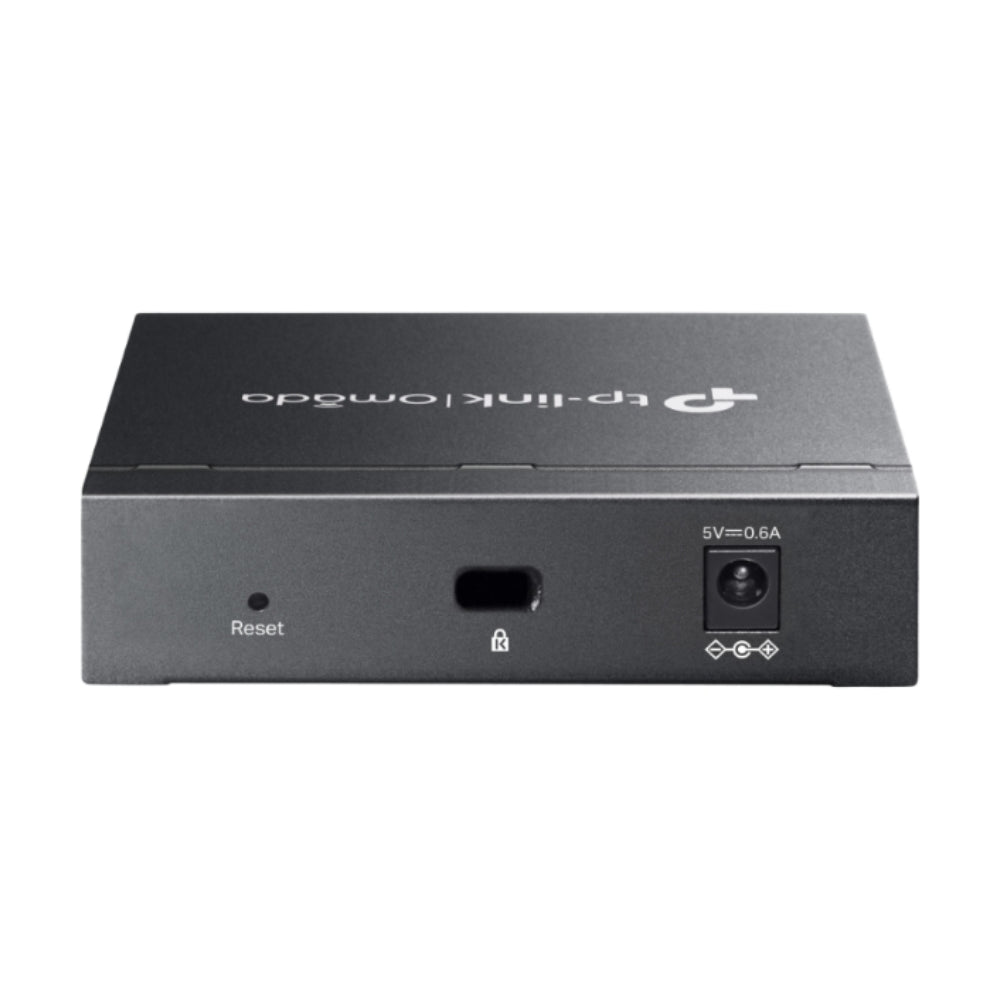

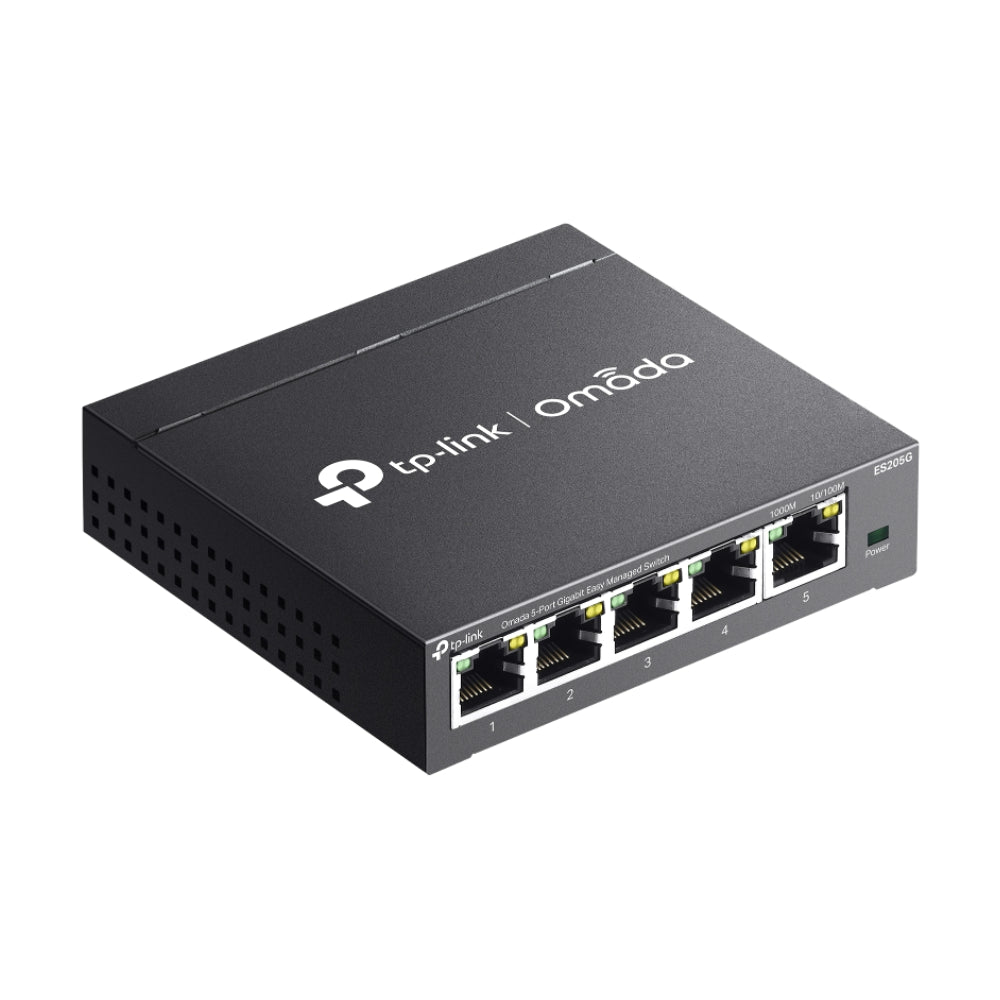

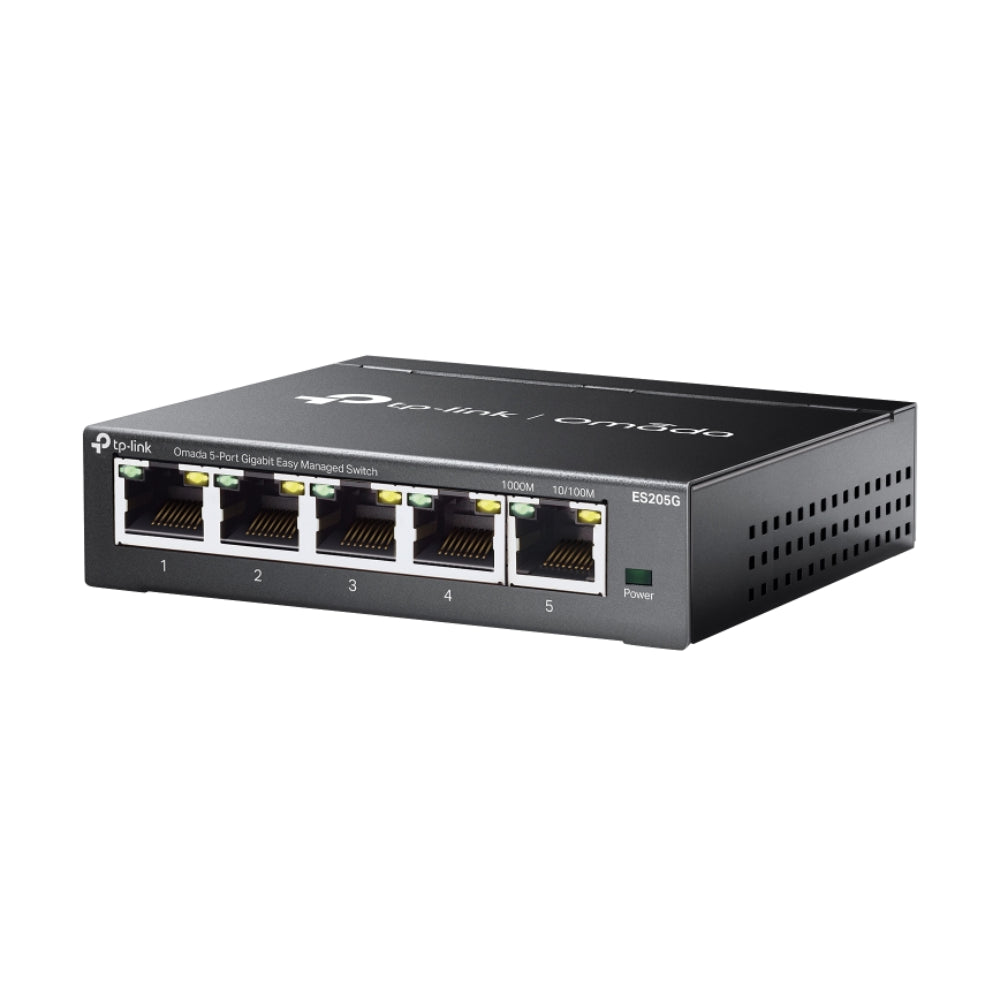

TP-Link Omada ES205G 5-Port Gigabit Desktop Switch
Simple, Reliable Gigabit Connectivity for Home and Business
The TP-Link Omada ES205G is a compact, fanless 5-port Gigabit Ethernet switch designed for plug-and-play deployment in homes, small offices, and SMB environments across Australia. With a 10 Gbps switching capacity and auto-negotiation on all ports, it delivers fast, stable wired connectivity without any configuration required.
Key Features
-
5 × Gigabit RJ45 Ports — Full-duplex 10/100/1000 Mbps auto-negotiation on every port
-
10 Gbps Switching Capacity — Non-blocking architecture for maximum throughput
-
Plug-and-Play — No software, no configuration, no management overhead
-
Fanless & Silent Operation — Passive cooling keeps the switch whisper-quiet, ideal for open-plan offices and home environments
-
Auto MDI/MDIX — Eliminates the need for crossover cables
-
IEEE 802.3x Flow Control — Reduces packet loss under heavy traffic loads
-
Compact Desktop Form Factor — Lightweight and space-saving; fits neatly on any desk or shelf
-
Energy-Efficient Design — Compliant with IEEE 802.3az (EEE) to reduce power consumption during low-traffic periods
Use Cases
- Expanding wired ports at a home office workstation or media centre
- Connecting IP cameras, NVRs, and access points in small surveillance deployments
- Adding wired connectivity to SMB meeting rooms or reception areas
- Extending a network switch stack in retail or hospitality environments
Technical Specifications
| Specification |
Detail |
| Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| Ports |
5 × 10/100/1000 Mbps RJ45 |
| Switching Capacity |
10 Gbps |
| Packet Forwarding Rate |
7.44 Mpps |
| MAC Address Table |
2K |
| Jumbo Frame |
16 KB |
| Power Supply |
External power adapter (5V DC) |
| Power Consumption (Max) |
2.9 W |
| Cooling |
Fanless |
| Dimensions (W × D × H) |
101 × 65 × 25 mm |
| Weight |
0.18 kg |
| Operating Temperature |
0–40°C |
| Certifications |
CE, FCC, RoHS |
Downloads
Frequently Asked Questions
Is the ES205G a managed or unmanaged switch?
The ES205G is an unmanaged switch. It requires no configuration — simply connect power and cables to get started.
Does the ES205G support PoE?
No, the ES205G does not support Power over Ethernet (PoE). If you need PoE to power IP cameras or access points, consider the TP-Link Omada PoE switch range.
Can I use the ES205G with the Omada SDN controller?
No. As an unmanaged switch, the ES205G does not integrate with the Omada Software Defined Networking (SDN) platform. It operates independently as a standalone device.
What cable types are compatible?
The ES205G supports Cat5e and above Ethernet cables for Gigabit speeds. Auto MDI/MDIX means both straight-through and crossover cables work without adapters.
Is the ES205G suitable for outdoor use?
No. The ES205G is designed for indoor desktop use only. For outdoor or harsh-environment deployments, please refer to our ruggedised switch range.
