Description

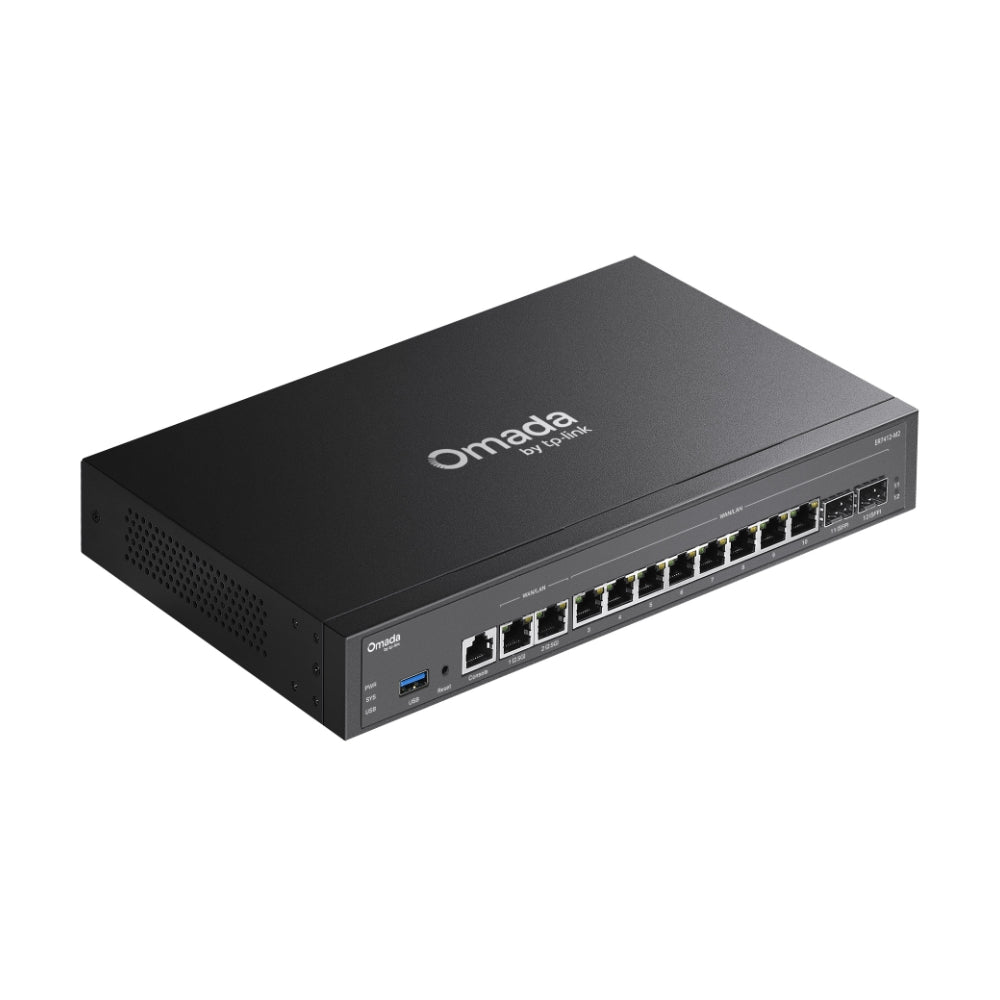

TP-Link Omada ER7412-M2 Multi-Gig 12-Port Multi-WAN VPN Router
The Omada ER7412-M2 is a high-performance multi-gig wired router built for enterprise, multi-site, and demanding SMB environments across Australia. With twelve ports including 8 × 2.5G RJ45 and 4 × 10G SFP+ interfaces, flexible multi-WAN load balancing and failover, and comprehensive VPN support, the ER7412-M2 delivers the routing power and redundancy that modern business networks require. Fully managed via the Omada SDN platform, it integrates seamlessly into centralised network deployments alongside Omada switches and access points.
Key Features
-

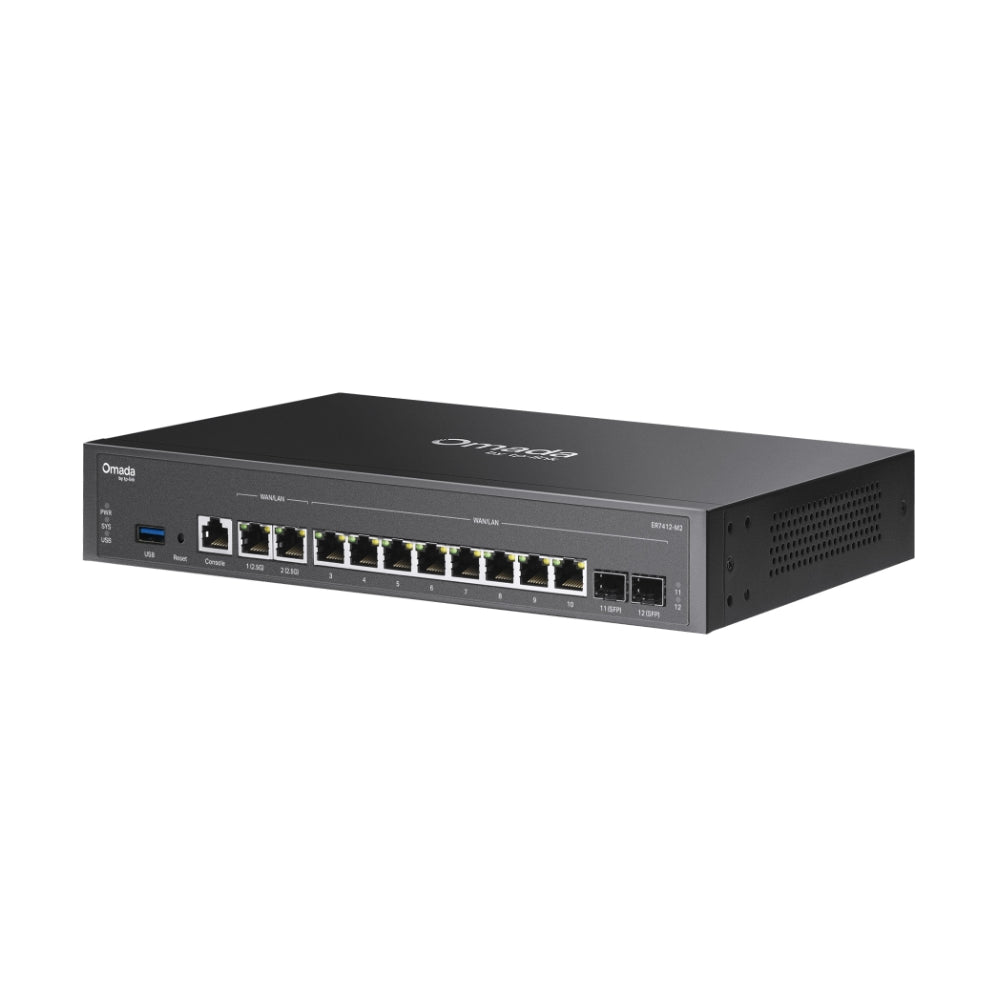

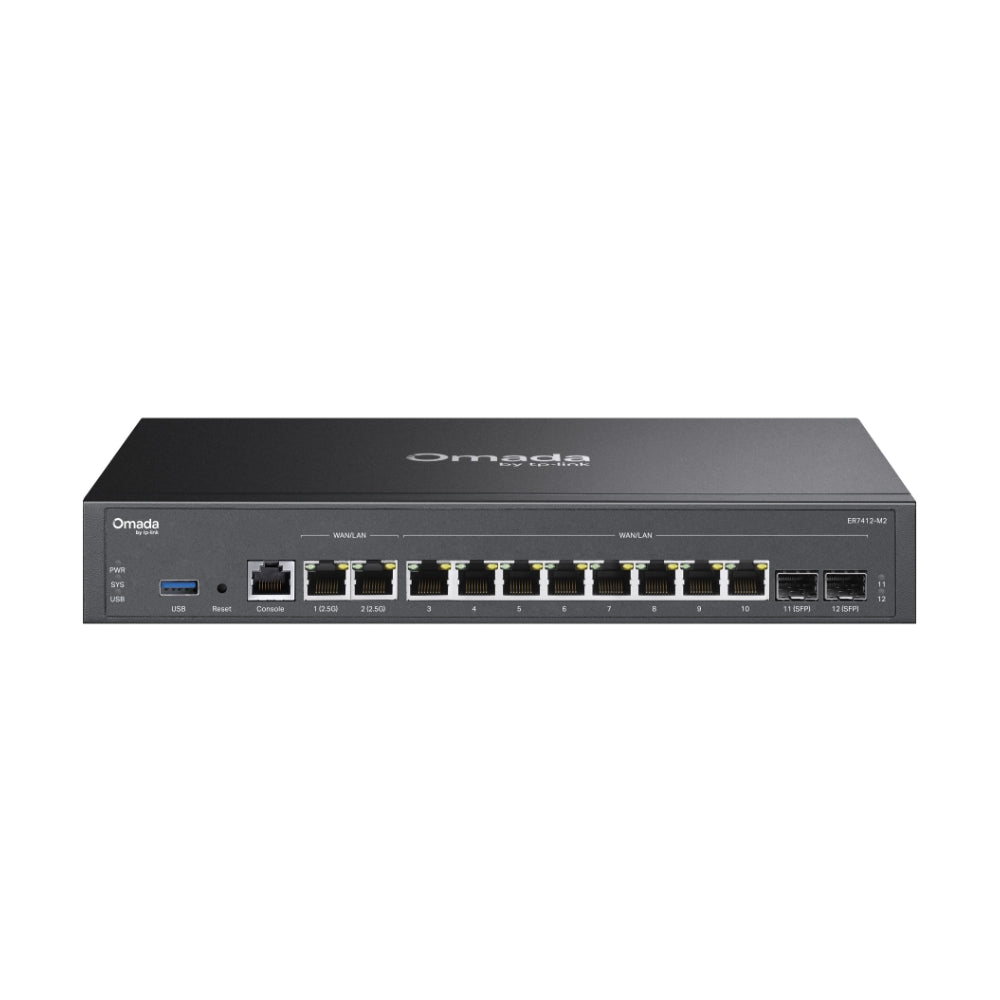

12 Ports with Multi-Gig Connectivity — 8 × 2.5G RJ45 and 4 × 10G SFP+ ports, all configurable as WAN or LAN for maximum deployment flexibility.
-
Multi-WAN Load Balancing & Failover — Aggregate multiple internet connections for increased bandwidth and automatic failover to maintain uptime if a link drops.
-
Up to 10Gbps NAT Throughput — Hardware-accelerated routing handles multi-gig internet connections without becoming a bottleneck.
-
Up to 3Gbps IPsec VPN Throughput — Purpose-built VPN acceleration for high-speed encrypted tunnels between sites.
-
Comprehensive VPN Support — IPsec, OpenVPN, L2TP, PPTP, and WireGuard for secure site-to-site and remote access VPN tunnels.
-
Advanced Firewall — SPI, DoS protection, ACL, and IP/MAC/URL filtering for robust perimeter security.
-
VLAN & QoS — Segment traffic across multiple VLANs and prioritise bandwidth-sensitive applications with granular QoS policies.
-
Dynamic Routing Protocols — Supports Static, RIP, OSPF, and BGP for complex multi-site and ISP peering topologies.
-
Omada SDN Compatible — Centrally managed via Omada Hardware Controller, Software Controller, or Omada Cloud.
-
1U Rack-Mountable — Clean rack form factor for data centre, server room, and comms cabinet installations.
Ideal Use Cases
- Enterprise head offices requiring multi-WAN redundancy and high-throughput multi-gig routing
- Multi-site businesses needing site-to-site IPsec or WireGuard VPN between branch locations
- Managed service providers (MSPs) deploying centralised Omada SDN networks for multiple clients
- Hospitality and retail venues with separate guest, staff, and POS VLANs requiring policy-based routing
- Organisations requiring secure remote access VPN for hybrid and remote workers
- Data centres and server rooms needing a rack-mounted multi-gig routing and firewall solution
Technical Specifications
| Specification |
Details |
| Total Ports |
12 |
| 2.5G RJ45 Ports |
8 × 2.5G RJ45 (WAN/LAN configurable) |
| SFP+ Ports |
4 × 10G SFP+ (WAN/LAN configurable) |
| Multi-WAN |
Yes — Load balancing & failover |
| NAT Throughput |
Up to 10Gbps |
| IPsec VPN Throughput |
Up to 3Gbps |
| VPN Protocols |
IPsec, OpenVPN, L2TP, PPTP, WireGuard |
| Max VPN Tunnels |
300 (IPsec) / 150 (OpenVPN) / 150 (L2TP) |
| Max Concurrent Sessions |
2,000,000 |
| Firewall |
SPI, DoS protection, ACL, IP/MAC/URL filtering |
| VLAN Support |
Yes (802.1Q) |
| QoS |
Yes (bandwidth control, application-based) |
| Routing Protocols |
Static, RIP, OSPF, BGP |
| Management |
Omada App, Software Controller, Hardware Controller (OC300), Omada Cloud |
| Form Factor |
1U Rack-Mountable |
| Power Supply |
Internal, 100–240V AC |
| Operating Temperature |
0°C to 40°C |
| Certifications |
CE, FCC, RoHS |
Recommended Accessories
-
TP-Link Omada OC300 Hardware Controller — On-premises centralised management for the full Omada SDN stack including the ER7412-M2.
-
TP-Link Omada TL-SX3016F 10G SFP+ Switch — High-density 10G core switching layer to pair with the ER7412-M2’s SFP+ ports.
-
TP-Link Omada SM6110-SR SFP+ Transceiver — Required for multimode fibre uplinks via the 10G SFP+ ports.
-
TP-Link Omada EAP683 UR Wi-Fi 6E Access Point — Deploy high-density Wi-Fi 6E managed within the same Omada SDN environment.
-
1U Rack Patch Panel & Cable Management — Keep the comms rack tidy with structured cabling alongside the ER7412-M2.
Frequently Asked Questions
What makes the ER7412-M2 different from other Omada routers?
The ER7412-M2 sits at the top of the Omada router range with 8 × 2.5G RJ45 ports, 4 × 10G SFP+ ports, up to 10Gbps NAT throughput, and 3Gbps IPsec VPN throughput. It is purpose-built for enterprise and high-demand SMB environments where standard Gigabit routing is a performance bottleneck.
Can the ER7412-M2 handle multiple internet connections?
Yes. The ER7412-M2 supports multi-WAN with both load balancing and failover. You can connect multiple ISP links — such as NBN fibre and a 4G/5G backup — and configure the router to distribute traffic across them or automatically switch to the backup if the primary connection drops.
Which VPN protocols does the ER7412-M2 support?
The ER7412-M2 supports IPsec, OpenVPN, L2TP, PPTP, and WireGuard. IPsec is recommended for site-to-site tunnels between business locations, while OpenVPN and WireGuard are well-suited for remote access VPN clients on laptops and mobile devices.
Does the ER7412-M2 support BGP and OSPF?
Yes. The ER7412-M2 supports static routing, RIP, OSPF, and BGP, making it suitable for complex multi-site topologies and ISP peering scenarios that require dynamic routing protocols.
Can the ER7412-M2 be managed via the cloud?
Yes. It integrates fully with the Omada SDN platform and can be managed remotely via Omada Cloud, the Omada Software Controller, or the Omada Hardware Controller (OC300). The Omada app provides on-the-go monitoring and management from iOS or Android.
Is the ER7412-M2 compatible with Australian NBN connections?
Yes. The ER7412-M2 connects to your NBN connection box or modem via its WAN ports and is compatible with all NBN connection types including FTTP, FTTN, FTTB, and HFC. Its multi-WAN capability also supports adding a 4G/5G router as a failover link for business continuity.
Does the ER7412-M2 require a separate power supply?
No. The ER7412-M2 has an internal PSU that accepts 100–240V AC, making it compatible with standard Australian power outlets without any additional adapters.
