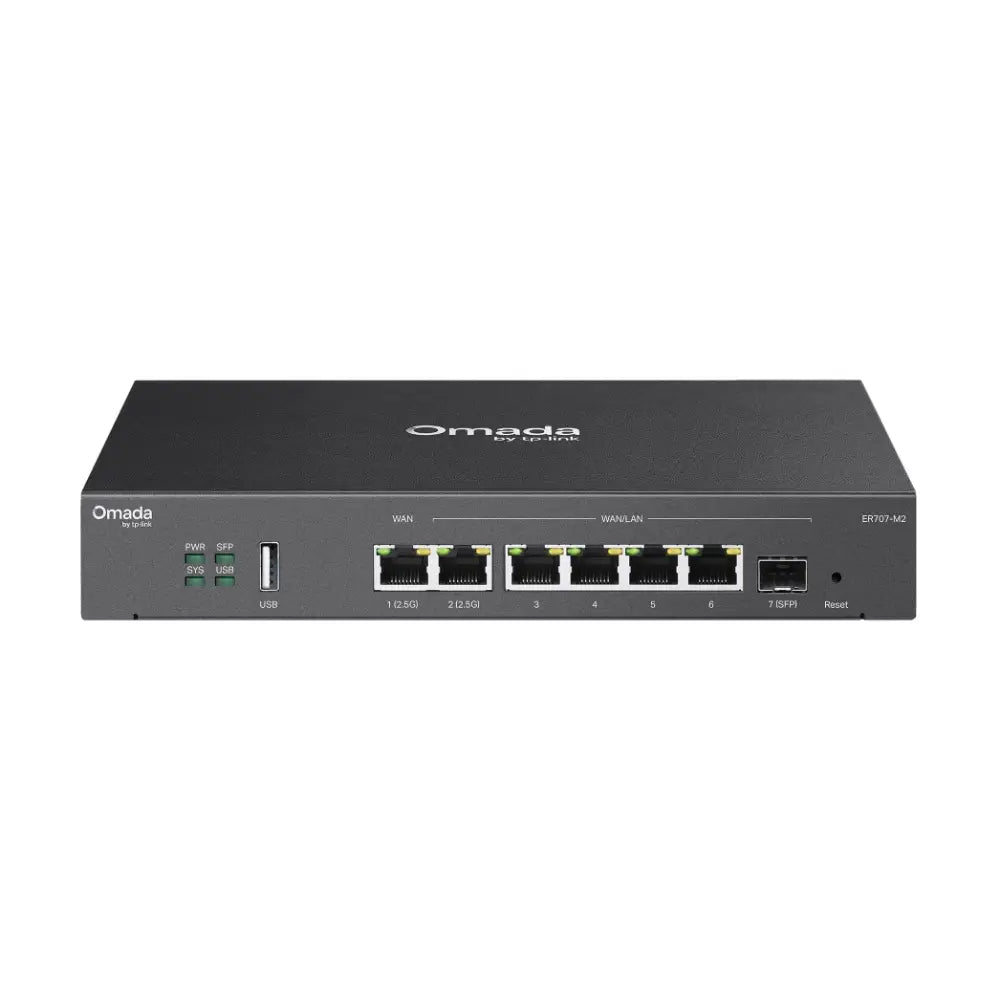

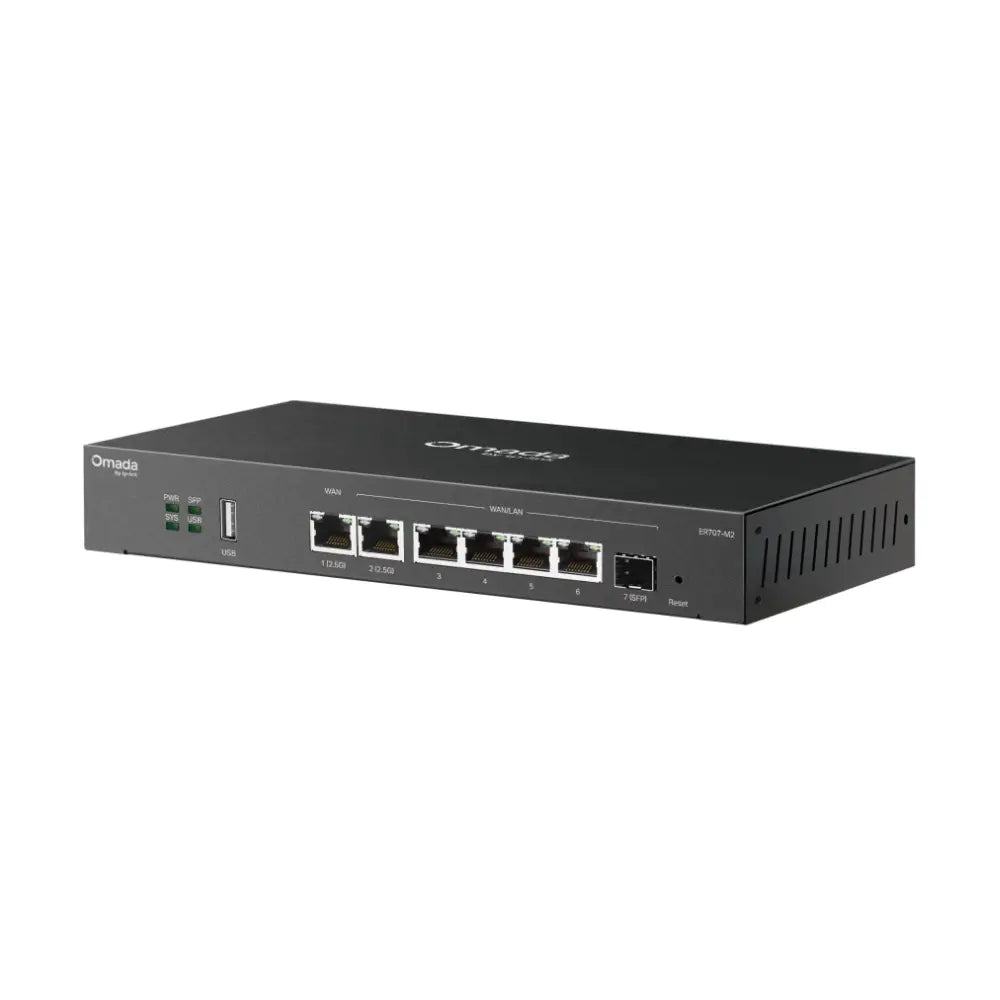

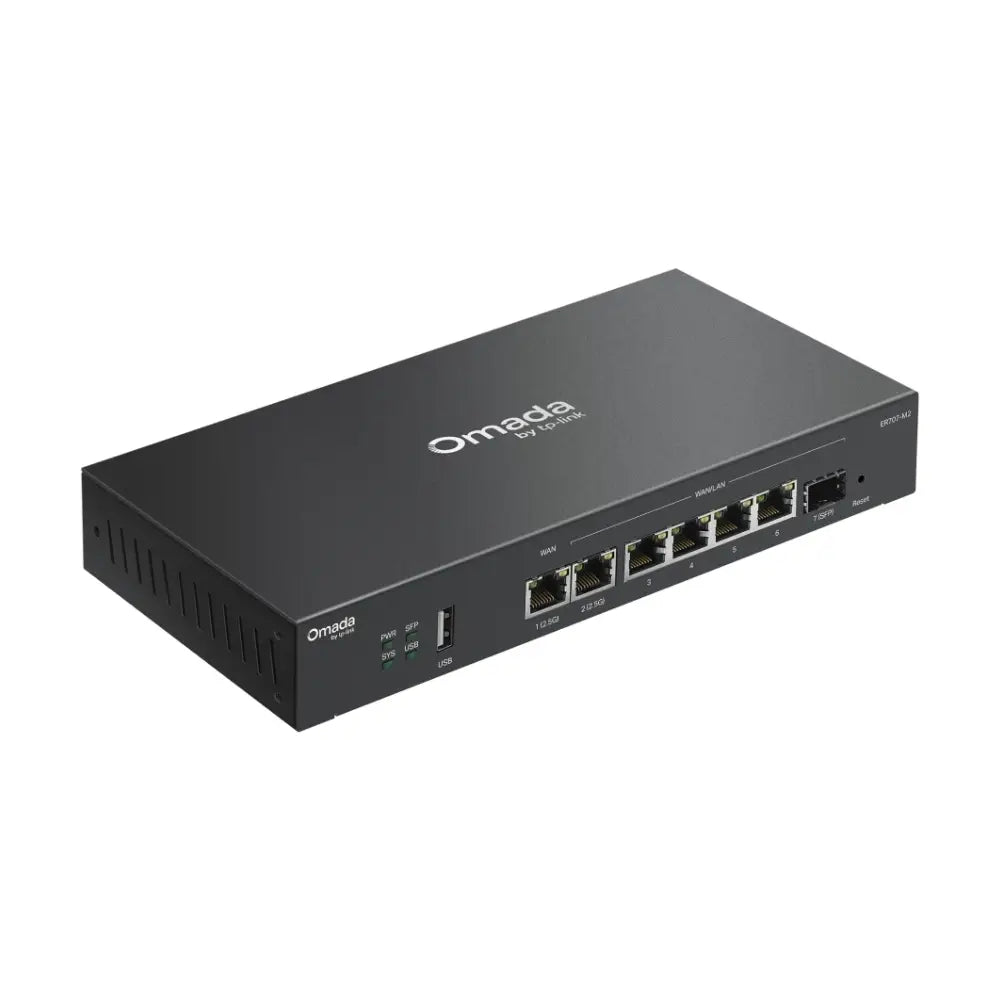

TP-Link Omada ER707-M2 Multi-WAN Wired VPN Router
Enterprise-Grade Routing for Growing Australian Businesses
The TP-Link Omada ER707-M2 is a high-performance multi-WAN wired VPN router built for small to medium-sized businesses that demand reliable, secure, and scalable network infrastructure. With dual 2.5G WAN/LAN ports, a dedicated SFP WAN slot, and deep integration with the Omada SDN platform, the ER707-M2 delivers the routing power and centralised management that IT professionals and network installers rely on.
Key Features
-
Dual 2.5G Ports — Two 2.5Gbps WAN/LAN ports provide high-throughput connectivity for bandwidth-intensive environments.
-
SFP WAN Port — Dedicated SFP slot supports fibre uplinks for future-proof connectivity.
-
Multi-WAN Load Balancing & Failover — Supports up to 4 WAN connections with intelligent load balancing and automatic failover to maintain uptime.
-
Robust VPN Support — Compatible with IPsec, OpenVPN, L2TP, and PPTP protocols for secure site-to-site and remote access VPN deployments.
-
Omada SDN Integration — Fully managed via the Omada Software Defined Networking platform — through hardware controllers, software controllers, or Omada Cloud.
-
Advanced Firewall & Security — Includes SPI firewall, DoS defence, IP/MAC/URL filtering, and access control lists (ACLs).
-
VLAN & QoS Support — Segment traffic with 802.1Q VLANs and prioritise bandwidth-sensitive applications with QoS policies.
-
High NAT Throughput — Delivers up to 2.5 Gbps NAT throughput for demanding network loads.
-
Centralised Cloud Management — Manage multiple sites and devices from a single dashboard via Omada Cloud or a local controller.
Use Cases
- Core routing for small to medium business (SMB) networks
- Multi-site VPN connectivity for branch offices and retail chains
- Secure remote access for staff working from home or off-site
- High-availability networks requiring WAN failover and load balancing
- Fibre-connected premises requiring SFP uplink support
- Managed service provider (MSP) deployments with centralised Omada SDN control
- Network segmentation for CCTV, IoT, and corporate traffic via VLANs
Technical Specifications
| Specification |
Detail |
| WAN Ports |
1× 2.5G RJ45 WAN, 1× SFP WAN, 2× Gigabit WAN/LAN (configurable) |
| LAN Ports |
1× 2.5G RJ45 LAN, 3× Gigabit RJ45 LAN |
| Total Ports |
2× 2.5G RJ45, 1× SFP, 4× Gigabit RJ45 |
| NAT Throughput |
Up to 2.5 Gbps |
| IPsec VPN Throughput |
Up to 800 Mbps |
| Max IPsec VPN Tunnels |
100 |
| VPN Protocols |
IPsec, OpenVPN, L2TP, PPTP, WireGuard® |
| Concurrent Sessions |
150,000 |
| New Sessions/Second |
10,000 |
| VLAN Support |
802.1Q, up to 32 VLANs |
| Routing Protocols |
Static Routing, Policy Routing, RIP v1/v2, OSPF |
| Management |
Omada App, Omada Cloud, Web UI, CLI (SSH/Telnet) |
| Omada SDN |
Supported (Hardware Controller, Software Controller, Cloud) |
| Power Supply |
External Power Adapter, 12V DC / 1.5A |
| Dimensions |
209 × 126 × 33.6 mm |
| Weight |
0.56 kg |
| Operating Temperature |
0°C – 40°C |
| Certifications |
CE, FCC, RoHS, RCM (Australia) |
| Mounting |
Desktop / Wall Mount |
Official Product Video
Watch the official Omada ER707-M2 overview and setup video:
View TP-Link Omada ER707-M2 Videos on YouTube
Downloads
Recommended Accessories & Products
-
TP-Link Omada OC200 — Hardware controller for managing Omada SDN networks on-premises
-
TP-Link Omada TL-SG2210P — 8-Port Gigabit Smart PoE Switch for powering access points and IP cameras
-
TP-Link Omada EAP670 — AX3600 Wi-Fi 6 Access Point for high-density wireless coverage
-
TP-Link Omada EAP225-Outdoor — Outdoor access point for extended wireless coverage in outdoor areas
-
SFP Fibre Module (TL-SM311LS) — Compatible SFP module for fibre uplink via the SFP WAN port
Frequently Asked Questions
What is the difference between the ER707-M2 and a standard router?
The ER707-M2 is a dedicated wired VPN router designed for business use. Unlike consumer routers, it offers multi-WAN load balancing, failover, advanced VPN protocols, VLAN segmentation, and full integration with the Omada SDN management platform — making it suitable for professional network deployments.
Does the ER707-M2 include Wi-Fi?
No. The ER707-M2 is a wired router only. For wireless coverage, pair it with compatible Omada access points such as the EAP670 or EAP225, managed centrally through the Omada SDN controller.
What VPN protocols does the ER707-M2 support?
The ER707-M2 supports IPsec, OpenVPN, L2TP, PPTP, and WireGuard®, covering both site-to-site and remote access VPN scenarios.
Do I need an Omada controller to use the ER707-M2?
No. The ER707-M2 can be configured and managed via its local web interface or CLI without a controller. However, for multi-device or multi-site deployments, using an Omada hardware controller (OC200/OC300), software controller, or Omada Cloud is strongly recommended for centralised management.
How many WAN connections can the ER707-M2 support?
The ER707-M2 supports up to 4 WAN connections simultaneously, with configurable load balancing and automatic failover to ensure continuous internet connectivity.
Is the ER707-M2 suitable for CCTV and IP camera networks?
Yes. The ER707-M2 is well-suited for CCTV deployments. Its VLAN support allows you to isolate camera traffic from corporate or guest networks, while its robust firewall and VPN capabilities enable secure remote access to surveillance systems.
What is the SFP port used for?
The SFP WAN port accepts compatible SFP modules (such as the TL-SM311LS) to connect the router to a fibre optic uplink — ideal for premises with fibre-to-the-premises (FTTP) or fibre-to-the-building (FTTB) connections.
