Description
TP-Link Omada EAP673 Wi-Fi 6 Ceiling Mount Access Point
Overview
The TP-Link Omada EAP673 is a high-performance Wi-Fi 6 (802.11ax) ceiling mount access point designed for demanding commercial and enterprise environments. Delivering combined wireless speeds of up to 6574 Mbps across tri-band (2.4 GHz + 5 GHz + 6 GHz), the EAP673 is built to handle high-density deployments with ease — making it an ideal choice for offices, schools, hotels, retail spaces, and large residential installations across Australia.
Key Features
-
Wi-Fi 6 (802.11ax) Tri-Band: 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) + 2402 Mbps (6 GHz) for a combined throughput of up to 6574 Mbps
-
6 GHz Band Support: Utilises the uncongested 6 GHz spectrum for ultra-low latency and faster speeds on compatible devices
-
OFDMA & MU-MIMO: Simultaneous data transmission to multiple clients, reducing latency and improving efficiency in high-density environments
-
BSS Colouring: Minimises co-channel interference for cleaner wireless performance in dense deployments
-
Seamless Roaming: Supports 802.11r/k/v fast roaming for uninterrupted connectivity as users move throughout a facility
-
2.5G PoE+ Uplink Port: Single 2.5 Gbps uplink with 802.3at PoE+ support — no separate power adapter required
-
Omada SDN Integration: Centralised management via Omada Software Defined Networking — cloud, hardware, or software controller compatible
-
Up to 1024 Clients: Engineered to support large numbers of concurrent wireless connections
-
Band Steering & Airtime Fairness: Intelligently directs clients to the optimal band and ensures equitable airtime distribution
-

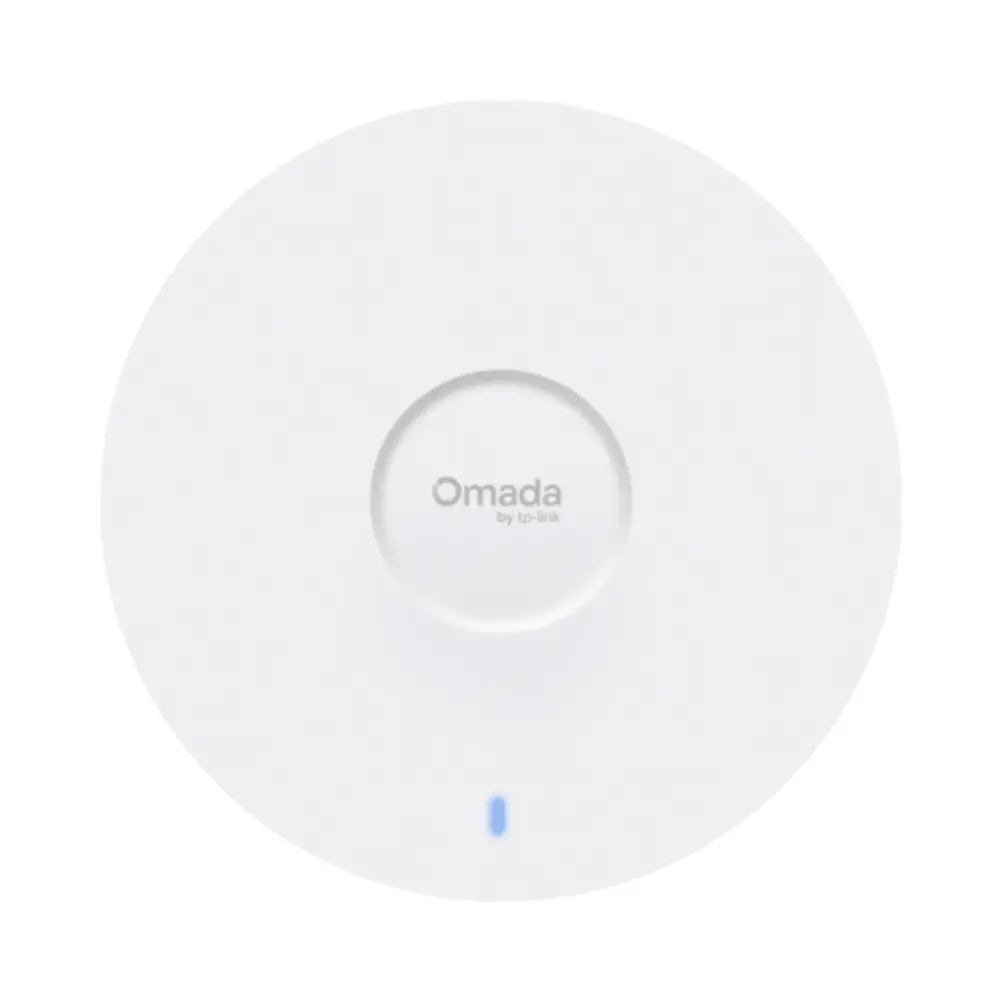

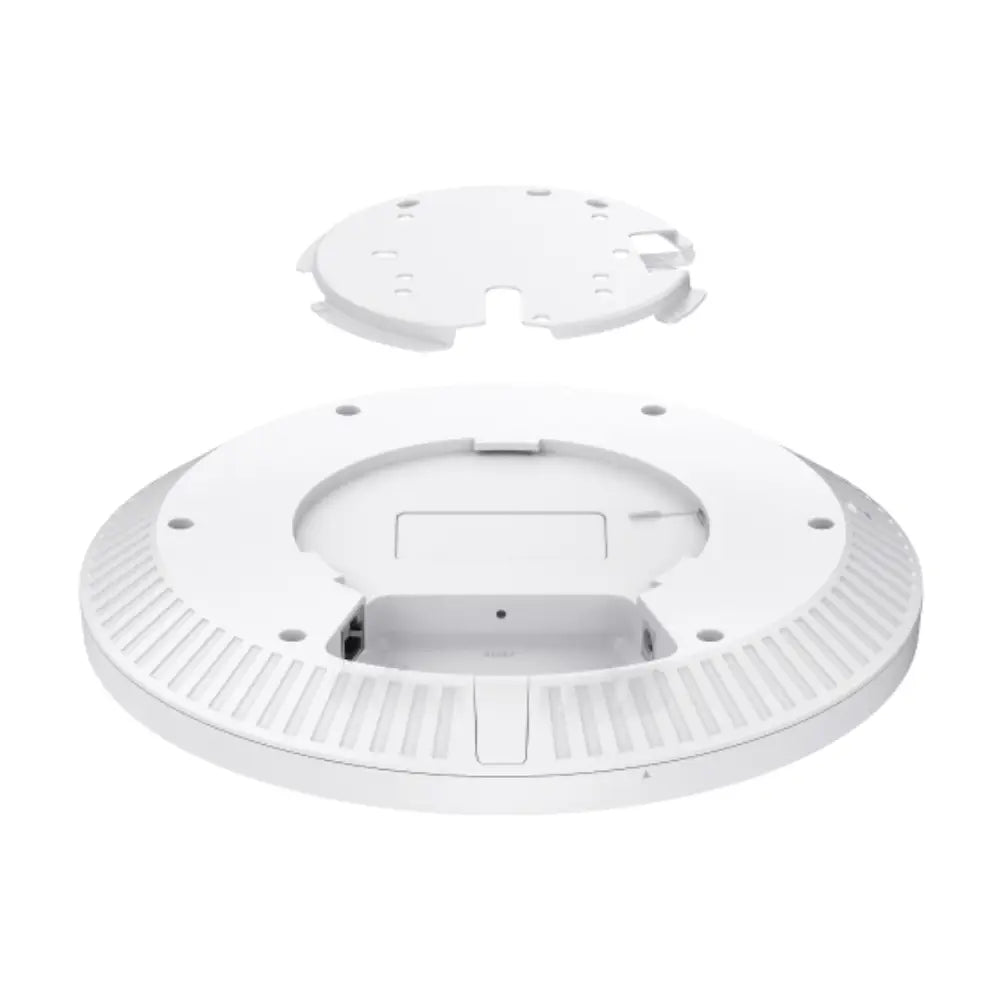

Ceiling Mount Design: Low-profile, discreet form factor with included mounting hardware for straightforward installation
Use Cases
-
Commercial Offices: Reliable, high-speed Wi-Fi for open-plan workspaces with dozens of concurrent users and devices
-
Education Facilities: Supports BYOD environments with high client density across classrooms and common areas
-
Hospitality & Hotels: Delivers consistent guest Wi-Fi across multiple floors and rooms with seamless roaming
-
Retail & Shopping Centres: Handles mixed traffic from POS systems, staff devices, and customer Wi-Fi simultaneously
-
Healthcare: Stable, low-latency connectivity for medical devices, staff tablets, and patient networks
-
Large Residential & MDU: Ideal for apartment buildings and large homes requiring whole-property coverage
Technical Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Frequency Bands |
2.4 GHz, 5 GHz, 6 GHz (Tri-Band) |
| Max Wireless Speed |
574 + 2402 + 2402 Mbps (6574 Mbps total) |
| Antennas |
Internal omnidirectional antennas |
| Uplink Port |
1× 2.5 Gbps RJ45 (802.3at PoE+) |
| Power Supply |
802.3at PoE+ (25.5 W) or passive PoE (48 V) |
| Max Clients |
Up to 1024 |
| MIMO |
4×4 MU-MIMO (5 GHz & 6 GHz), 2×2 MU-MIMO (2.4 GHz) |
| Mounting |
Ceiling mount (hardware included) |
| Dimensions |
220 × 220 × 48.6 mm |
| Operating Temperature |
0 °C to 40 °C |
| Management |
Omada App, Omada Cloud Controller, OC200/OC300, Software Controller |
| Certifications |
CE, FCC, RoHS |
| Warranty |
3 Years (TP-Link Australia) |
Official Product Video
Watch the official TP-Link Omada EAP673 overview and installation guide:
Recommended Accessories & Compatible Products
-
TP-Link Omada OC200 — Hardware Omada Controller for managing up to 100 devices
-
TP-Link Omada OC300 — Advanced hardware controller for larger deployments
-
TP-Link Omada TL-SG2210P — 8-Port Gigabit Smart PoE+ Switch for powering multiple EAPs
-
TP-Link Omada ER7206 — Multi-WAN Gigabit VPN Router for full Omada SDN stack
-
TP-Link Omada EAP670 — Wi-Fi 6 dual-band ceiling AP for cost-effective deployments
Downloads
Frequently Asked Questions
Does the EAP673 require a separate power adapter?
No. The EAP673 is powered via 802.3at PoE+ through its 2.5G uplink port. A compatible PoE+ switch or injector is all that's needed — no separate power adapter is required.
What controller is needed to manage the EAP673?
The EAP673 is compatible with the Omada Software Controller (free, PC/Linux/Docker), the OC200 or OC300 hardware controllers, and the Omada Cloud-Based Controller. It can also be managed in standalone mode via the Omada app for smaller deployments.
Is the 6 GHz band available in Australia?
Yes. The 6 GHz Wi-Fi band (Wi-Fi 6E) is approved for use in Australia by the ACMA. Ensure your client devices also support Wi-Fi 6E to take advantage of the 6 GHz band.
How many access points can I deploy in one Omada network?
The Omada SDN platform supports large-scale deployments. The OC200 manages up to 100 devices, the OC300 up to 500, and the Software Controller scales further depending on server resources.
Can the EAP673 support seamless roaming between multiple APs?
Yes. The EAP673 supports 802.11r (Fast BSS Transition), 802.11k (Neighbour Reports), and 802.11v (BSS Transition Management) for seamless, low-latency roaming across multi-AP deployments.
What is the maximum number of clients the EAP673 can support?
The EAP673 is rated for up to 1024 concurrent client connections, making it well-suited for high-density environments such as conference centres, schools, and large offices.
