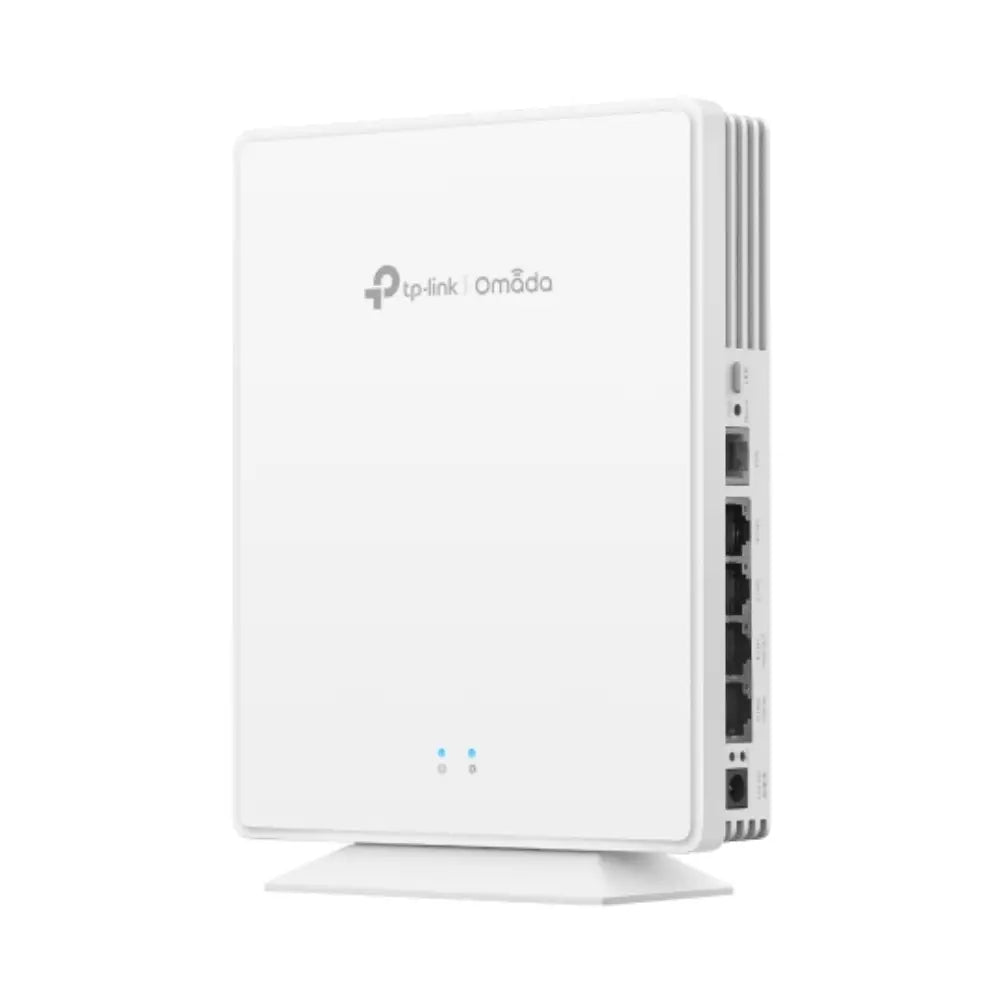

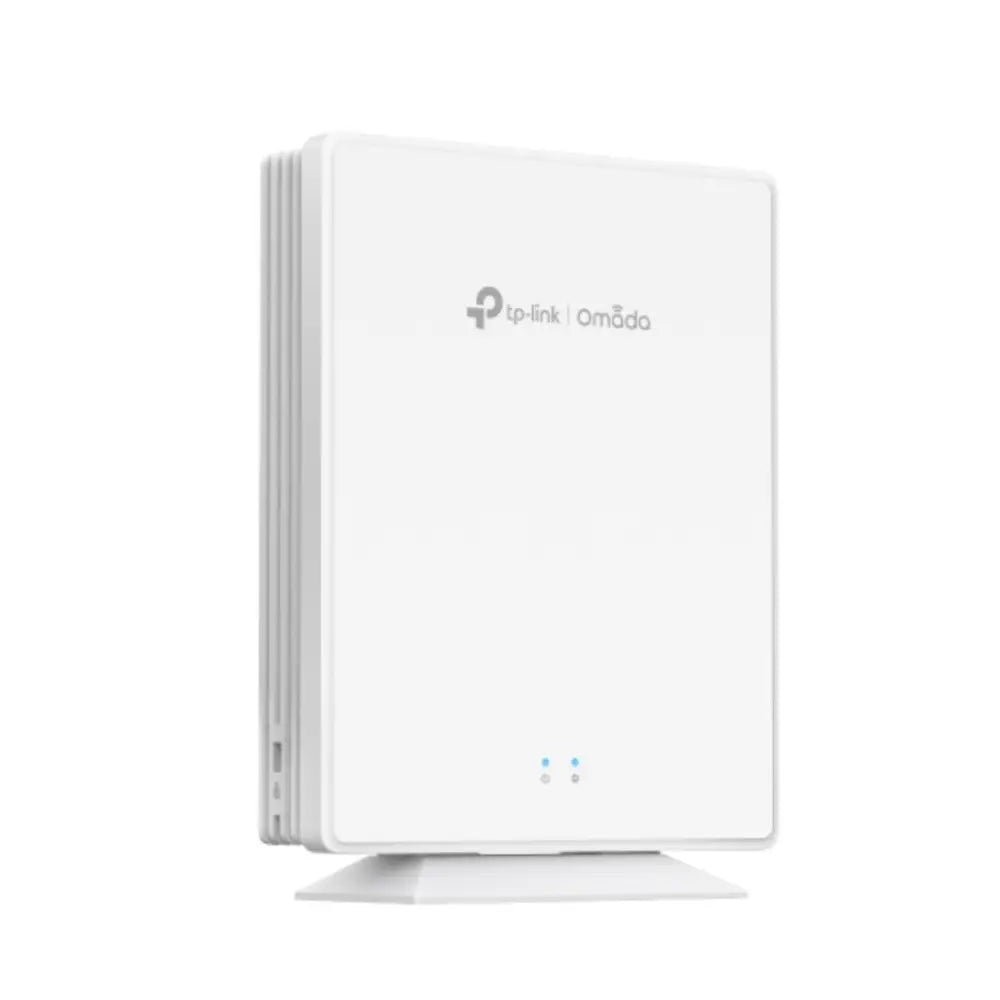

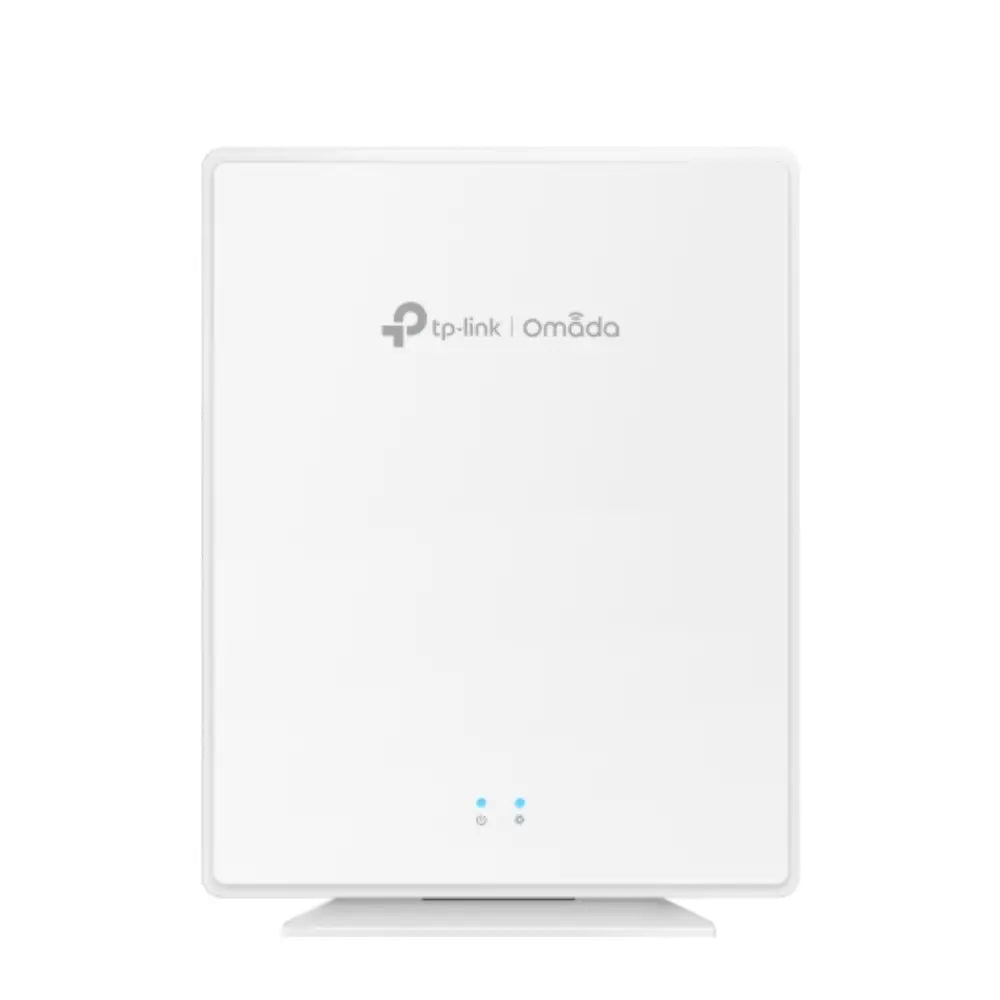

TP-Link Omada EAP650-Desktop AX3000 Wi-Fi 6 Desktop Access Point
Powerful Desktop Wi-Fi 6 for Business and Home
The TP-Link Omada EAP650-Desktop delivers AX3000 dual-band Wi-Fi 6 performance in a compact, desktop form factor — no ceiling mount required. With a 2.5G uplink port and seamless integration into the Omada SDN ecosystem, it's an ideal solution for small-to-medium businesses, retail environments, hospitality venues, and high-density home offices that demand reliable, fast wireless connectivity.
Key Features
-
Wi-Fi 6 (802.11ax): AX3000 dual-band — up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz for faster throughput and reduced congestion.
-
2.5G Uplink Port: Future-proof wired backhaul to eliminate bottlenecks on high-speed networks.
-
OFDMA & MU-MIMO: Serves multiple clients simultaneously with improved efficiency — critical in dense environments.
-
BSS Colouring: Reduces interference from neighbouring Wi-Fi 6 networks for cleaner airtime.
-
Omada SDN Integration: Centralised management via Omada Hardware Controller, Software Controller, or Omada Cloud — zero-touch provisioning supported.
-
Seamless Roaming: 802.11r/k/v fast roaming for uninterrupted connectivity as users move between access points.
-
WPA3 Security: Latest wireless encryption standard for enhanced network protection.
-
Desktop Form Factor: No ceiling or wall mounting required — simply place on a desk, shelf, or counter.
-
PoE+ Powered: Powered via PoE+ (802.3at) — no separate power adapter needed when connected to a compatible switch.
-
Up to 300 Clients: Supports up to 300 concurrent wireless clients per AP.
Use Cases
-
Small & Medium Business: Deploy in open-plan offices, meeting rooms, or reception areas without ceiling infrastructure.
-
Retail & Hospitality: Provide reliable guest Wi-Fi in cafés, restaurants, hotels, and boutique shops.
-
Healthcare & Education: Support high client density in waiting rooms, classrooms, and staff areas.
-
Home Office: Upgrade a dedicated workspace with Wi-Fi 6 performance without complex installation.
-
Omada Network Expansion: Add coverage to an existing Omada SDN deployment with minimal configuration.
Technical Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Speed |
AX3000 — 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) |
| Frequency Bands |
2.4 GHz & 5 GHz (Dual-Band) |
| Antennas |
4× internal omnidirectional antennas |
| Uplink Port |
1× 2.5G RJ45 (PoE+ 802.3at) |
| Max Clients |
300 |
| SSIDs |
Up to 16 (8 per band) |
| Security |
WPA3, WPA2, WPA, WEP; 802.1X |
| Roaming |
802.11r/k/v Fast Roaming |
| Management |
Omada App, Omada Software Controller, Hardware Controller, Cloud |
| Power Supply |
PoE+ (802.3at, 25.5W) or DC 12V/1.5A adapter |
| Dimensions |
160 × 160 × 45.1 mm |
| Weight |
430 g |
| Operating Temperature |
0–40°C |
| Certifications |
CE, FCC, RoHS |
Official Product Video
Watch the official TP-Link Omada EAP650-Desktop overview to see how it fits into a complete Omada SDN deployment:
View on YouTube — TP-Link Omada EAP650-Desktop
Recommended Accessories & Compatible Products
-
TP-Link Omada TL-SG2210P — 8-Port PoE+ Gigabit Smart Switch (powers the EAP via PoE+)
-
TP-Link Omada OC200 — Hardware Controller for managing multiple Omada APs
-
TP-Link Omada ER7206 — Multi-WAN VPN Router for complete Omada SDN setup
-
TP-Link Omada EAP670 — Ceiling-mount Wi-Fi 6 AP for mixed deployment environments
Downloads
Frequently Asked Questions
Does the EAP650-Desktop require a ceiling mount?
No. It's designed specifically for desktop placement — simply set it on a desk, shelf, or counter. No drilling or ceiling infrastructure is needed.
Can I manage the EAP650-Desktop without a hardware controller?
Yes. You can manage it via the free Omada Software Controller (installed on a PC or server), the Omada Cloud, or the Omada mobile app. A hardware controller such as the OC200 is optional but recommended for larger deployments.
Does it support PoE? What switch do I need?
Yes, it supports PoE+ (802.3at, up to 25.5W). You'll need a PoE+ capable switch or injector. Alternatively, it can be powered via the included DC 12V/1.5A adapter.
Is the EAP650-Desktop compatible with my existing Omada network?
Yes. It integrates seamlessly with any Omada SDN deployment running compatible firmware and controller versions. Check the TP-Link compatibility matrix for your specific controller version.
How many devices can connect at once?
The EAP650-Desktop supports up to 300 concurrent wireless clients, making it suitable for medium-density environments.
Does it support guest Wi-Fi?
Yes. You can configure up to 16 SSIDs (8 per band), including isolated guest networks with captive portal support via the Omada controller.
