Description

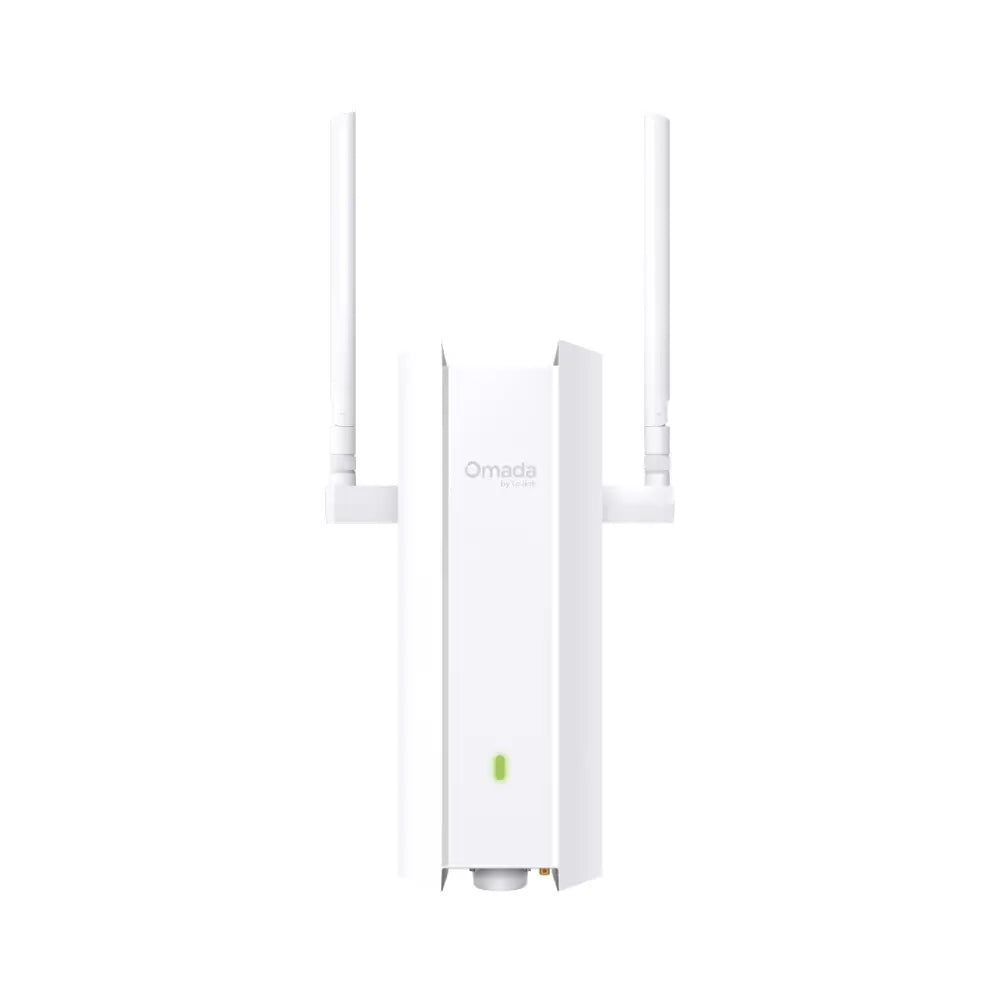

TP-Link Omada EAP625-Outdoor HD AX1800 Outdoor Wi-Fi 6 Access Point
High-Density Outdoor Wi-Fi 6 Built for Australian Conditions
The TP-Link Omada EAP625-Outdoor HD is a weatherproof Wi-Fi 6 access point engineered for demanding outdoor environments. Delivering AX1800 dual-band speeds with high-density client support, an IP67 weatherproof rating, and full Omada SDN integration, it’s the ideal solution for outdoor hospitality areas, sports facilities, car parks, campuses, and any commercial space where reliable outdoor wireless coverage is essential. Powered by a single PoE cable, it installs cleanly with no external power outlet required.
Key Features
-
Wi-Fi 6 (AX1800) Dual-Band — Combined speeds up to 1800Mbps: 574Mbps on 2.4GHz and 1201Mbps on 5GHz, with OFDMA and MU-MIMO for efficient multi-client outdoor performance.
-
IP67 Weatherproof Rating — Fully dust-tight and protected against temporary immersion in water, making it suitable for permanent outdoor installation in all Australian weather conditions including heavy rain and coastal environments.
-
High-Density Client Support — Designed for environments with many simultaneous wireless clients, such as outdoor dining areas, event spaces, and sports venues.
-
PoE Powered — Powered via a single Ethernet cable (IEEE 802.3at PoE+), eliminating the need for a separate power outlet at the outdoor installation point.
-
Omada SDN Integration — Centrally managed via Omada hardware controllers, software controllers, or Omada Cloud for seamless multi-AP and multi-site management.
-
Seamless Roaming (802.11r/k/v) — Supports fast BSS transition for smooth client roaming between indoor and outdoor access points.
-
WPA3 Security — Latest wireless security standard for enhanced protection of outdoor networks and connected devices.
-
Multiple SSID Support — Broadcast up to 16 SSIDs (8 per band) for separating guest, staff, and IoT traffic on a single AP.
-
Captive Portal — Built-in captive portal for guest Wi-Fi authentication at outdoor venues.
-

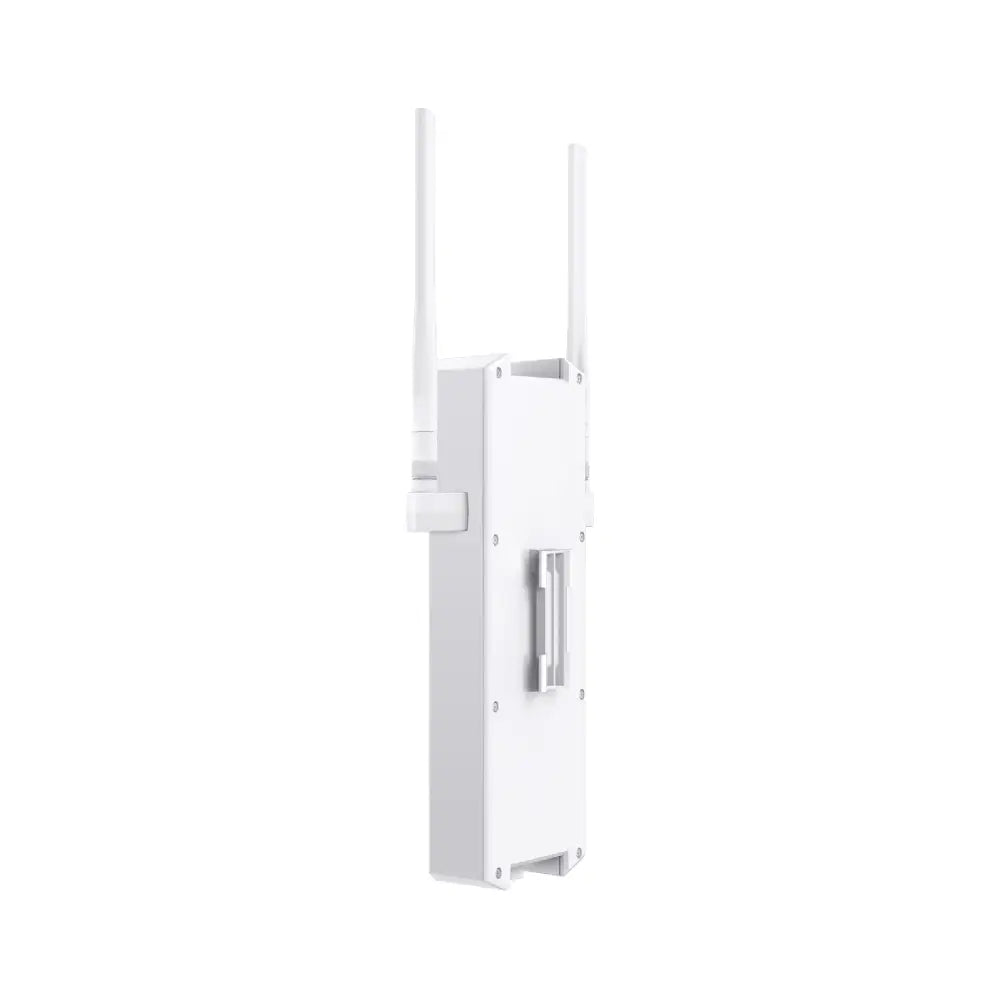

Pole & Wall Mountable — Mounting hardware included for flexible installation on poles, walls, and outdoor structures.
Use Cases
- Outdoor dining areas, beer gardens, and alfresco hospitality venues requiring reliable guest Wi-Fi
- Sports fields, stadiums, and recreation facilities with high client density
- School and university campuses extending Wi-Fi coverage to outdoor areas
- Car parks, loading docks, and warehouse exteriors requiring wireless connectivity
- Retail forecourts, petrol stations, and drive-through environments
- Coastal and marine environments where IP67 protection against salt air and moisture is essential
- MSP-managed multi-site outdoor Wi-Fi deployments via Omada Cloud
Technical Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Wi-Fi Speeds |
AX1800: 574Mbps (2.4GHz) + 1201Mbps (5GHz) |
| Frequency Bands |
Dual-Band (2.4GHz & 5GHz) |
| Antennas |
4× Internal Antennas (2× 2.4GHz, 2× 5GHz) |
| MU-MIMO |
2×2 (2.4GHz & 5GHz) |
| OFDMA |
Supported (UL & DL) |
| Ethernet Port |
1× Gigabit RJ45 (PoE In) |
| PoE Standard |
IEEE 802.3at (PoE+) |
| Max Power Consumption |
22W |
| SSIDs |
Up to 16 (8 per band) |
| Roaming |
802.11r (Fast BSS Transition), 802.11k, 802.11v |
| Security |
WPA / WPA2 / WPA3, 802.1X, Captive Portal, VLAN |
| Weatherproof Rating |
IP67 |
| Management |
Omada App, Omada Cloud, Web UI, Omada Controller |
| Omada SDN |
Supported (Hardware Controller, Software Controller, Cloud) |
| Mounting |
Pole Mount, Wall Mount (hardware included) |
| Operating Temperature |
-30°C – 70°C |
| Certifications |
CE, FCC, RoHS, RCM (Australia) |
Downloads
Recommended Accessories & Products
-
TP-Link Omada OC200 — Hardware controller for on-premises Omada SDN management of outdoor AP deployments
-
TP-Link Omada ER707-M2 — Multi-WAN VPN router for upstream routing in Omada SDN networks
-
TP-Link Omada SG6654XHP — 48-port 2.5G PoE+ managed switch to power and connect multiple outdoor APs
-
TP-Link Omada POE380S — 90W PoE++ injector for powering a single outdoor AP without a PoE switch
-
TP-Link Omada EAP613 — AX1800 Wi-Fi 6 indoor ceiling AP to pair with the EAP625-Outdoor HD for seamless indoor/outdoor roaming
-
Cat6 Outdoor-Rated Ethernet Cable — UV and weather-resistant cabling for outdoor PoE runs
Frequently Asked Questions
What is the difference between IP66 and IP67?
IP66 protects against powerful water jets from any direction. IP67 provides all the protection of IP66 plus protection against temporary immersion in water up to 1 metre for 30 minutes. The EAP625-Outdoor HD’s IP67 rating makes it suitable for even the most exposed outdoor installations, including those subject to pooling water or heavy rain.
Does the EAP625-Outdoor HD require a PoE+ switch?
Yes. The EAP625-Outdoor HD requires IEEE 802.3at PoE+ (up to 22W) and is not compatible with standard 802.3af PoE (15.4W). Ensure your PoE switch or injector supports 802.3at. The TP-Link Omada POE380S injector is a compatible option if a PoE switch is not available.
Do I need an Omada controller to use the EAP625-Outdoor HD?
No. The EAP625-Outdoor HD can be configured and managed as a standalone AP via its local web interface or the Omada app without a controller. For multi-AP deployments with roaming and centralised management, an Omada hardware controller (OC200/OC300), software controller, or Omada Cloud is strongly recommended.
What cable should I use for outdoor PoE runs?
For outdoor installations, use UV-resistant, outdoor-rated Cat6 or Cat6A Ethernet cable. Standard indoor Cat6 cable will degrade when exposed to sunlight and moisture over time. Ensure all outdoor cable runs are properly sealed and protected where they enter buildings or junction boxes.
Can the EAP625-Outdoor HD roam seamlessly with indoor Omada APs?
Yes. The EAP625-Outdoor HD supports 802.11r/k/v fast roaming and integrates with other Omada APs in the same Omada SDN network, enabling seamless client roaming between indoor and outdoor access points.
Is the EAP625-Outdoor HD suitable for coastal Australian environments?
Yes. The IP67 rating and -30°C to 70°C operating temperature range make it well-suited for coastal, tropical, and high-temperature Australian environments. For installations in direct salt spray zones, ensure all cable entry points are properly sealed.
