Description

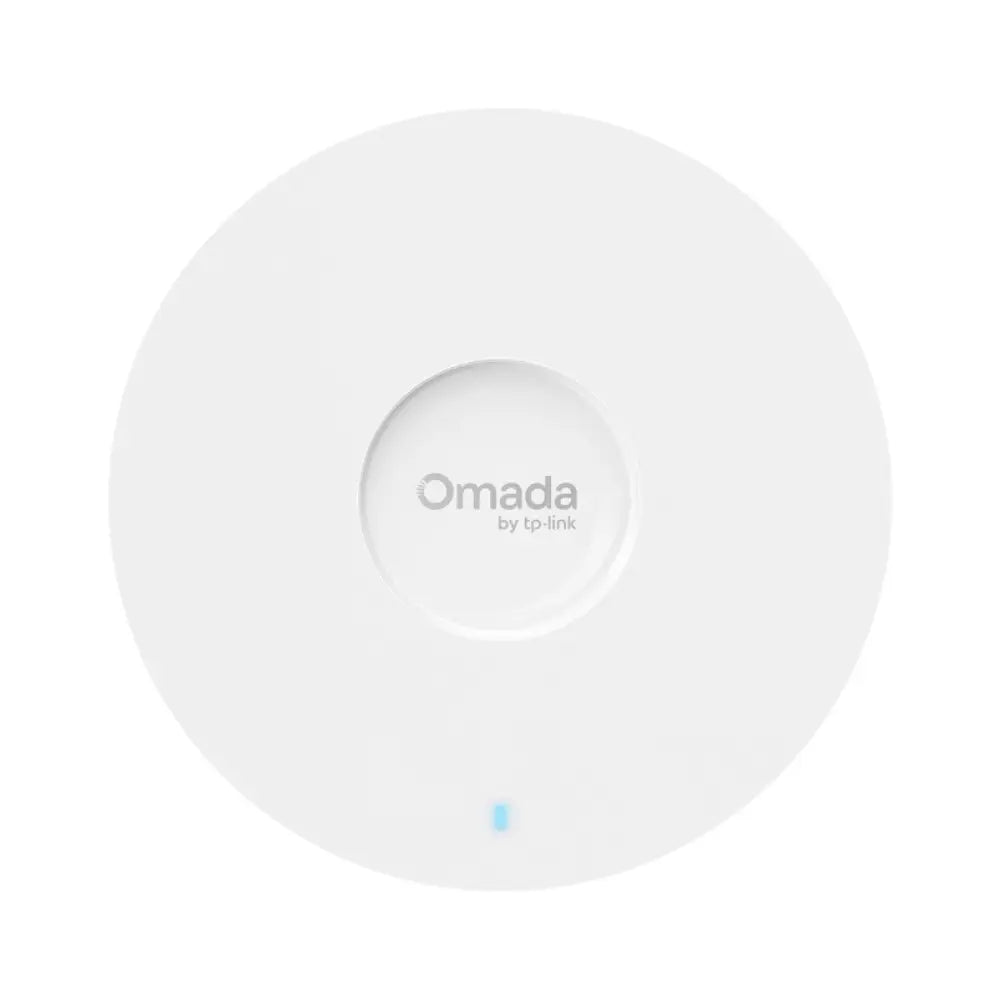

TP-Link Omada EAP613 AX1800 Ceiling Mount Wi-Fi 6 Access Point
Reliable, Scalable Wi-Fi 6 for Business Environments
The TP-Link Omada EAP613 is a ceiling-mount Wi-Fi 6 access point designed for small to medium business deployments where reliable, high-density wireless coverage is essential. Delivering AX1800 dual-band speeds, powered by a single PoE cable, and fully integrated with the Omada SDN platform, the EAP613 is a cost-effective entry point into enterprise-grade Wi-Fi 6 — without compromising on performance, security, or manageability.
Key Features
-
Wi-Fi 6 (AX1800) Dual-Band — Combined speeds up to 1800Mbps: 574Mbps on 2.4GHz and 1201Mbps on 5GHz, with improved efficiency for high-density client environments.
-
OFDMA & MU-MIMO — Serves multiple clients simultaneously with reduced latency, ideal for offices, classrooms, and retail environments with many connected devices.
-
PoE Powered — Powered via a single Ethernet cable (IEEE 802.3af/at), eliminating the need for a separate power outlet at the installation point.
-
Omada SDN Integration — Centrally managed via Omada hardware controllers, software controllers, or Omada Cloud for seamless multi-AP and multi-site management.
-
Seamless Roaming (802.11r/k/v) — Supports fast BSS transition and band steering for smooth client roaming across multiple access points.
-
WPA3 Security — Latest wireless security standard for enhanced protection of business networks and connected devices.
-
Multiple SSID Support — Broadcast up to 16 SSIDs (8 per band) for separating corporate, guest, IoT, and CCTV traffic on a single AP.
-
Band Steering — Automatically guides capable clients to the less congested 5GHz band for better performance.
-

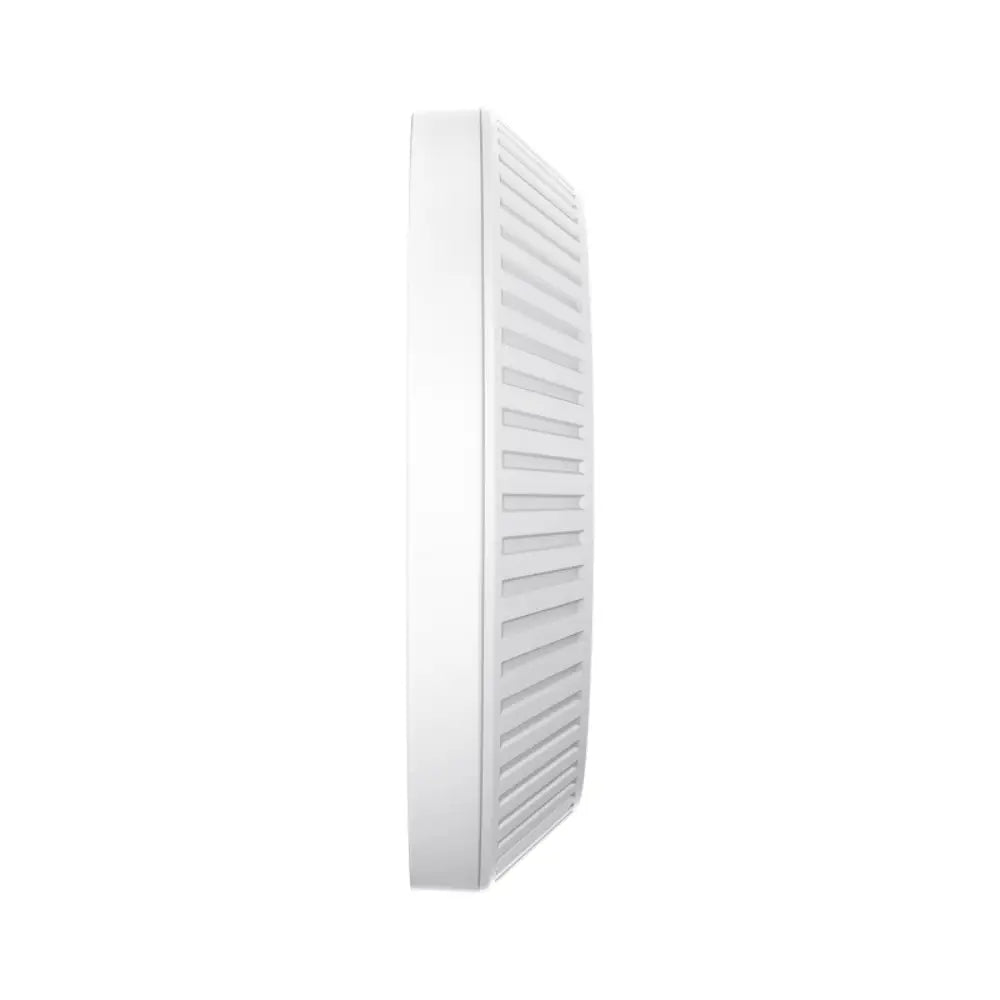

Low-Profile Ceiling Design — Discreet, professional appearance suitable for offices, hospitality venues, retail spaces, and educational facilities.
Use Cases
- Small to medium business office Wi-Fi deployments with centralised Omada SDN management
- Retail stores, cafes, and hospitality venues requiring guest Wi-Fi separation and reliable coverage
- Schools and training facilities with high client density per access point
- Healthcare environments requiring secure, segmented wireless networks
- Warehouses and light industrial spaces needing cost-effective ceiling-mount Wi-Fi coverage
- Multi-AP deployments managed by MSPs via Omada Cloud
Technical Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Wi-Fi Speeds |
AX1800: 574Mbps (2.4GHz) + 1201Mbps (5GHz) |
| Frequency Bands |
Dual-Band (2.4GHz & 5GHz) |
| Antennas |
4× Internal Antennas (2× 2.4GHz, 2× 5GHz) |
| MU-MIMO |
2×2 (2.4GHz & 5GHz) |
| OFDMA |
Supported (UL & DL) |
| Ethernet Port |
1× Gigabit RJ45 (PoE In) |
| PoE Standard |
IEEE 802.3af/at (PoE/PoE+) |
| Max Power Consumption |
13.5W |
| SSIDs |
Up to 16 (8 per band) |
| Roaming |
802.11r (Fast BSS Transition), 802.11k, 802.11v |
| Security |
WPA / WPA2 / WPA3, 802.1X, Captive Portal, VLAN |
| Management |
Omada App, Omada Cloud, Web UI, Omada Controller |
| Omada SDN |
Supported (Hardware Controller, Software Controller, Cloud) |

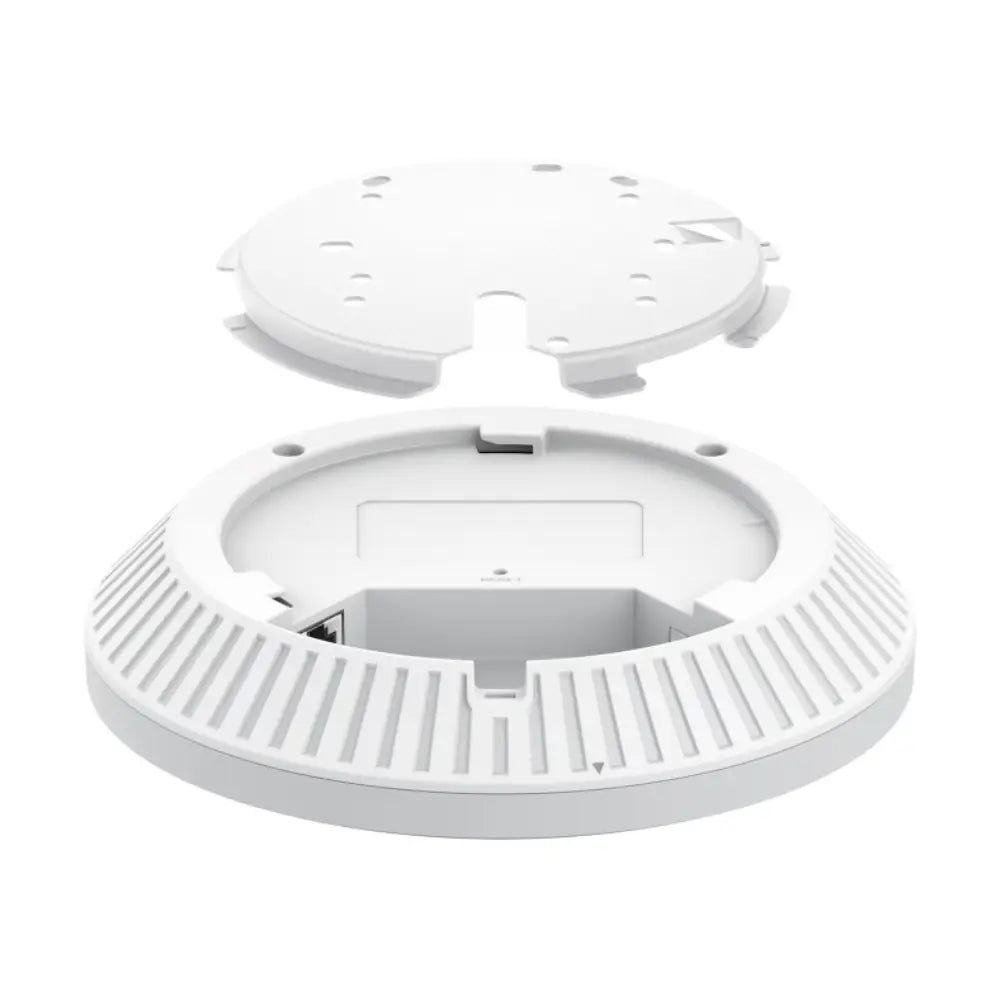

| Mounting |
Ceiling Mount (bracket included) |
| Dimensions |
Ø160 × 36.5 mm |
| Weight |
0.28 kg |
| Operating Temperature |
0°C – 40°C |
| Certifications |
CE, FCC, RoHS, RCM (Australia) |
Downloads
Recommended Accessories & Products
-
TP-Link Omada OC200 — Hardware controller for on-premises Omada SDN management of EAP613 deployments
-
TP-Link Omada ER707-M2 — Multi-WAN VPN router for upstream routing in Omada SDN networks
-
TP-Link Omada SG6654XHP — 48-port 2.5G PoE+ managed switch to power and connect multiple EAP613 units
-
TP-Link Omada EAP670 — AX3600 Wi-Fi 6 AP with 2.5G uplink for higher-density or higher-throughput zones
-
Cat6 Ethernet Patch Cable — For PoE runs from switch to ceiling-mounted AP
Frequently Asked Questions
Does the EAP613 require a PoE switch or injector?
Yes. The EAP613 is powered via PoE and does not include a power adapter. You will need a PoE switch (IEEE 802.3af or 802.3at) or a PoE injector to power the unit. At 13.5W maximum consumption, it is compatible with standard 802.3af PoE switches.
Do I need an Omada controller to use the EAP613?
No. The EAP613 can be configured and managed as a standalone AP via its local web interface or the Omada app without a controller. However, for multi-AP deployments, roaming, and centralised management, an Omada hardware controller (OC200/OC300), software controller, or Omada Cloud is strongly recommended.
How many clients can the EAP613 support?
The EAP613 supports up to 64 associated clients per radio (128 total across both bands) under typical conditions. For very high-density environments, consider the EAP670 with its higher spatial stream count and 2.5G uplink.
What is the difference between the EAP613 and the EAP670?
The EAP613 is an AX1800 (2×2) entry-level Wi-Fi 6 AP suited for standard SMB deployments. The EAP670 is an AX3600 (4×4 on 5GHz) higher-performance AP with a 2.5G uplink port, better suited for high-density or high-throughput environments such as large open-plan offices or conference venues.
Does the EAP613 support guest Wi-Fi?
Yes. The EAP613 supports multiple SSIDs (up to 16) and captive portal functionality, making it straightforward to set up a separate, isolated guest Wi-Fi network alongside your corporate network.
Is the EAP613 suitable for outdoor use?
No. The EAP613 is designed for indoor ceiling-mount installation only and does not carry an outdoor weatherproof rating. For outdoor deployments, consider the TP-Link Omada EAP225-Outdoor or EAP620 HD Outdoor.
