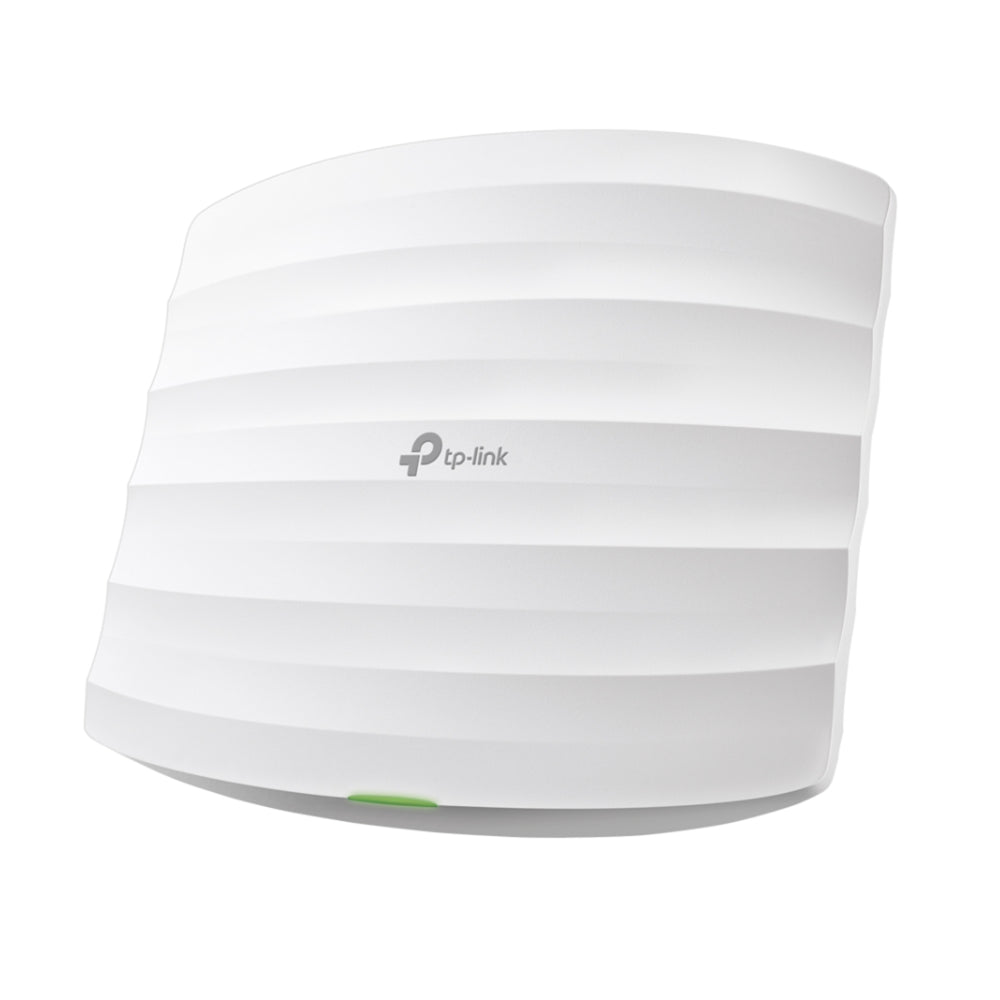

TP-Link Omada EAP223 AC1350 Ceiling Mount Wi-Fi Access Point
Overview
The TP-Link Omada EAP223 is a dual-band AC1350 ceiling-mount wireless access point built for reliable, high-density Wi-Fi in commercial and educational environments. With MU-MIMO technology, a sleek low-profile design, and full integration into the Omada Software Defined Networking (SDN) platform, the EAP223 delivers consistent coverage and centralised management across your entire site — all powered over a single Ethernet cable.
Key Features
-
AC1350 Dual-Band Wi-Fi: Up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz for a combined throughput of 1350 Mbps.
-
MU-MIMO (2×2): Serves multiple clients simultaneously on both bands, reducing wait times in busy environments.
-

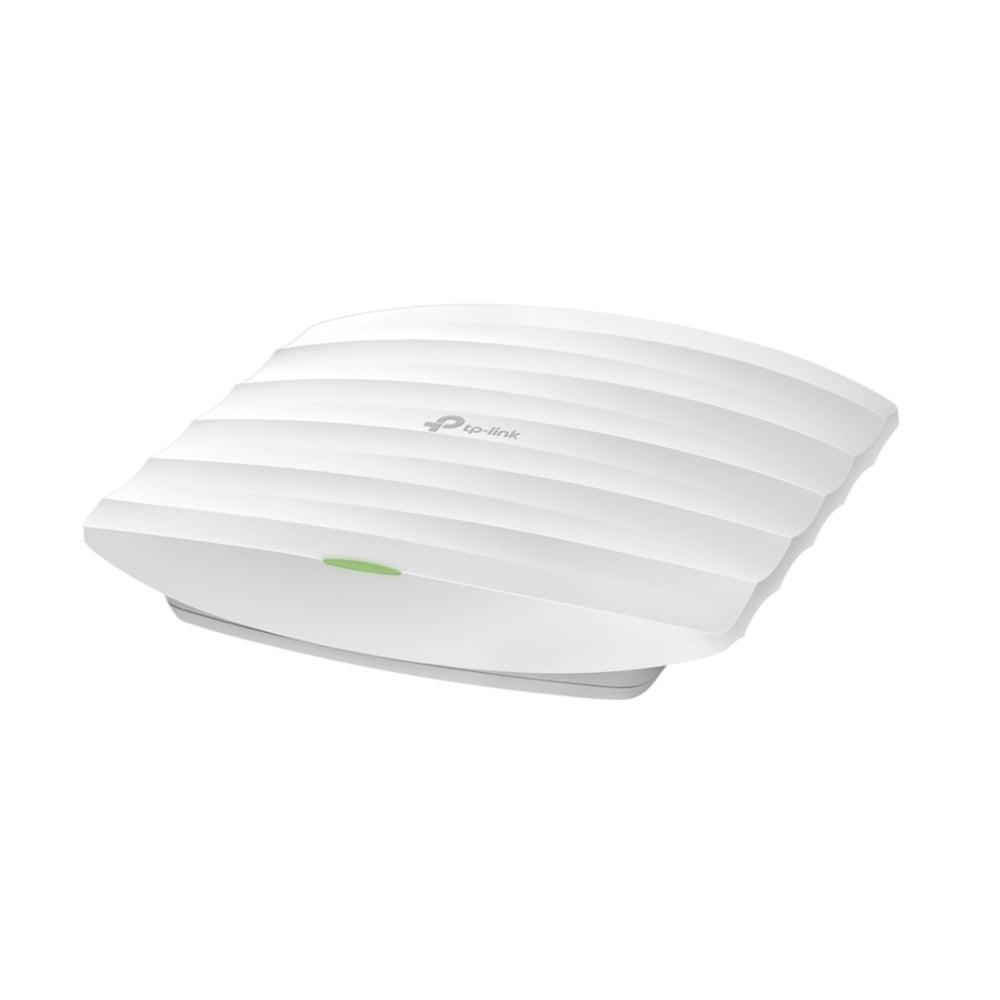

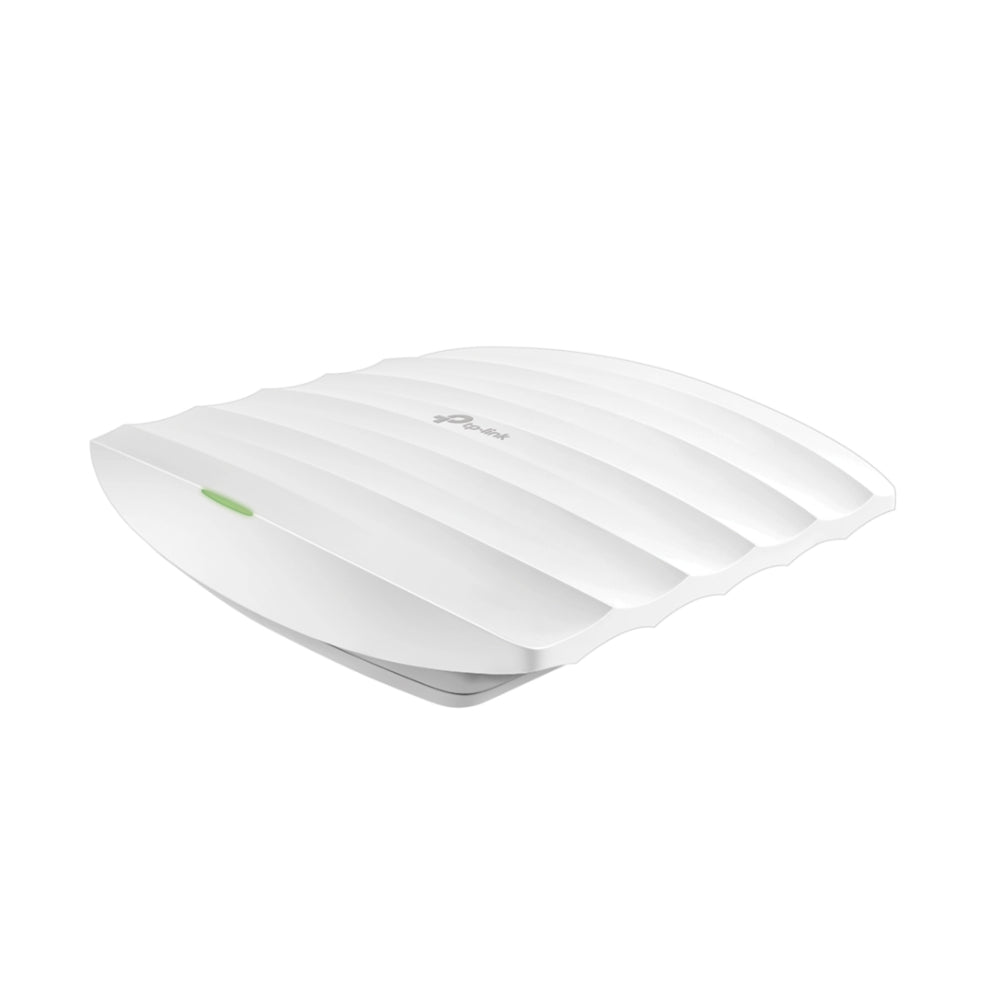

Ceiling-Mount Form Factor: Low-profile circular design blends into commercial ceilings; includes a mounting bracket for quick installation.
-
802.3af PoE Powered: Powered directly from your PoE switch — no separate power adaptor required.
-
Omada SDN Integration: Centralised management via Omada Controller (hardware, software, or cloud-based) with zero-touch provisioning, guest portal, VLAN, and band steering.
-
Seamless Roaming: Supports 802.11r/k/v fast roaming for uninterrupted connectivity as users move through the building.
-
Captive Portal & Guest Network: Built-in guest portal with customisable splash pages and isolated guest SSID support.
-
Up to 50+ Concurrent Clients: Handles high device density typical of offices, classrooms, and retail floors.
Ideal Use Cases
-
Small to Medium Offices: Reliable dual-band coverage for open-plan workspaces and meeting rooms without ceiling clutter.
-
Schools & Training Facilities: Consistent Wi-Fi for classrooms and common areas with high device density and roaming requirements.
-
Retail & Hospitality: Guest portal and isolated guest networks for customer Wi-Fi alongside secure staff networks.
-
Healthcare Clinics: Stable wireless for patient check-in systems, tablets, and staff devices across multiple rooms.
-
Warehouses & Light Industrial: Cost-effective ceiling-mount coverage for barcode scanners, mobile devices, and IoT endpoints.
Technical Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ac/n/g/b/a (Wi-Fi 5) |
| Frequency Bands |
2.4 GHz & 5 GHz (Dual-Band) |
| Max Wireless Speed |
AC1350 (400 Mbps @ 2.4 GHz + 867 Mbps @ 5 GHz) |
| Antennas |
3 × internal omni-directional antennas |
| MU-MIMO |
2×2 (2.4 GHz) / 2×2 (5 GHz) |

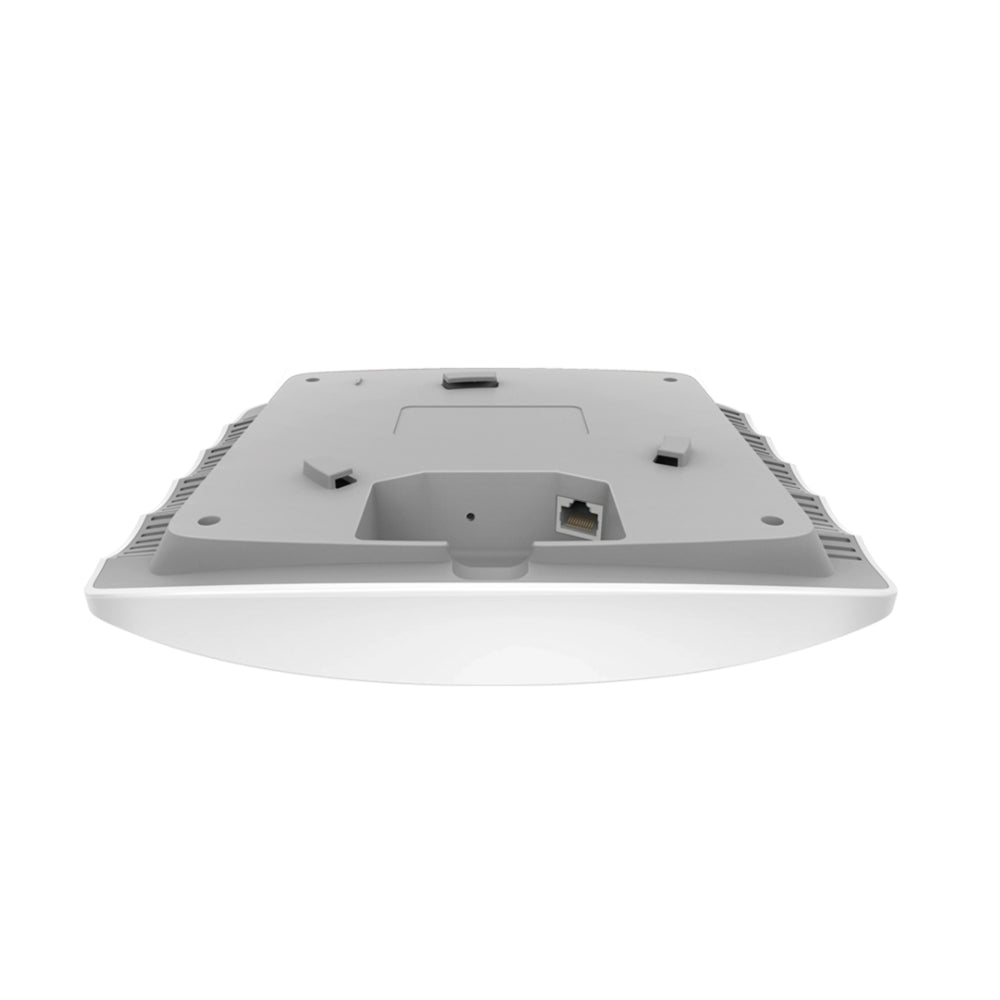

| Ethernet Port |
1 × Gigabit RJ45 (802.3af PoE in) |
| Power Input |
802.3af PoE or 12 V DC power adaptor (not included) |
| Max Power Consumption |
12.95 W |
| Max Concurrent Clients |
50+ |
| Mounting |
Ceiling mount (bracket included) |
| Dimensions |
226.0 × 226.0 × 44.5 mm |
| Management |
Omada App, Omada Software Controller, Omada Hardware Controller, Omada Cloud |
| Operating Temperature |
0 °C to 40 °C |
| Certifications |
CE, RoHS |
| Warranty |
3 Years |
Official Product Video
See how the Omada EAP223 fits into a complete Omada SDN deployment:
Search TP-Link Omada EAP223 on YouTube →
Recommended Accessories & Compatible Products
-
Omada PoE Switches (e.g. TL-SG2210P, TL-SG3428XPP) — power and manage multiple EAP223 units from a single switch.
-
Omada Hardware Controllers (e.g. OC200, OC300) — on-premises SDN management without a dedicated server.
-
Omada Router / Gateway (e.g. ER605, ER7206) — complete the Omada SDN stack with centralised routing, VPN, and firewall.
-
Cat6 Patch Cables & Ceiling Conduit Fittings — ensure a clean and compliant cable run to each access point.
Downloads
Frequently Asked Questions
Does the EAP223 require a PoE switch?
The EAP223 is powered via 802.3af PoE from your uplink switch, which is the most common deployment method. Alternatively, it can be powered using a 12 V DC power adaptor (sold separately). For multi-AP deployments, a TP-Link Omada PoE switch is recommended for guaranteed compatibility and centralised management.
Can I manage the EAP223 without an Omada Controller?
Yes — the EAP223 supports standalone mode via the Omada App for basic single-AP configuration. For multi-AP sites with roaming, guest portals, and VLAN management, an Omada Controller (hardware, software, or cloud-based) is strongly recommended.
How many access points can I manage with one Omada Controller?
The Omada OC200 hardware controller supports up to 100 devices, while the OC300 supports up to 500. The Omada Software Controller and Cloud-Based Controller scale further depending on your server resources and licence.
Is the EAP223 suitable for outdoor use?
No — the EAP223 is designed for indoor ceiling-mount installations only. For outdoor coverage, consider the Omada EAP225-Outdoor or EAP620 HD Outdoor access points.
How many devices can the EAP223 handle at once?
The EAP223 supports 50+ concurrent client connections, making it well-suited for small to medium offices, classrooms, and retail environments with moderate device density.
Does it support guest Wi-Fi?
Yes. The EAP223 supports multiple SSIDs including an isolated guest network, and when managed via an Omada Controller, you can configure a fully customisable captive portal splash page for guest access.
