Description

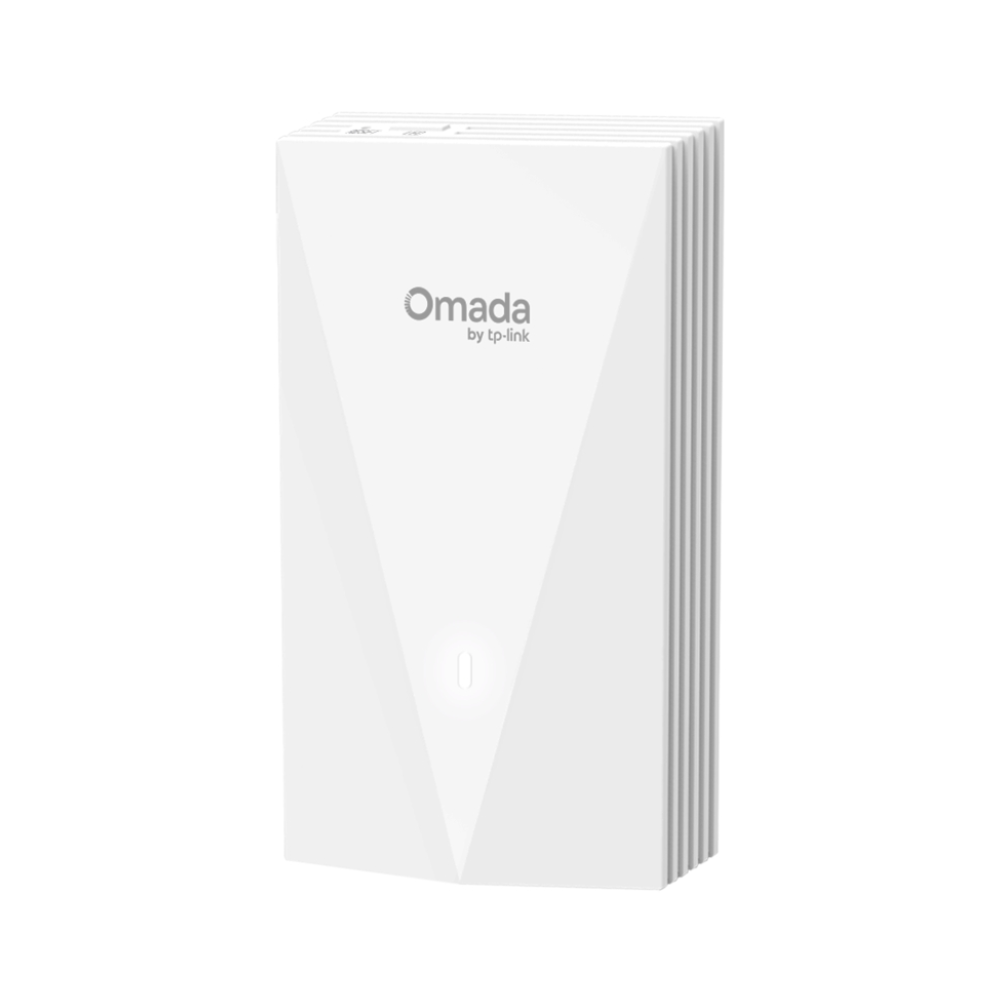

TP-Link EAP655-Wall AX3000 Wi-Fi 6 Wall Plate Access Point
The TP-Link EAP655-Wall is an AX3000 Wi-Fi 6 wall plate access point that replaces a standard wall socket to deliver in-room Wi-Fi 6 coverage and Gigabit wired connectivity from a single, clean installation point. With three downlink Gigabit ports (one with PoE pass-through), 802.3at PoE power input, and full Omada SDN integration, it’s the ideal solution for hotels, serviced apartments, offices, and hospitality venues across Australia where per-room Wi-Fi quality and wired device connectivity are critical.
Key Features
-
AX3000 Wi-Fi 6 (802.11ax) — Up to 574Mbps on 2.4GHz and 2402Mbps on 5GHz for combined wireless throughput of 2976Mbps — fast enough for 4K streaming, video calls, and multiple simultaneous devices per room.
-

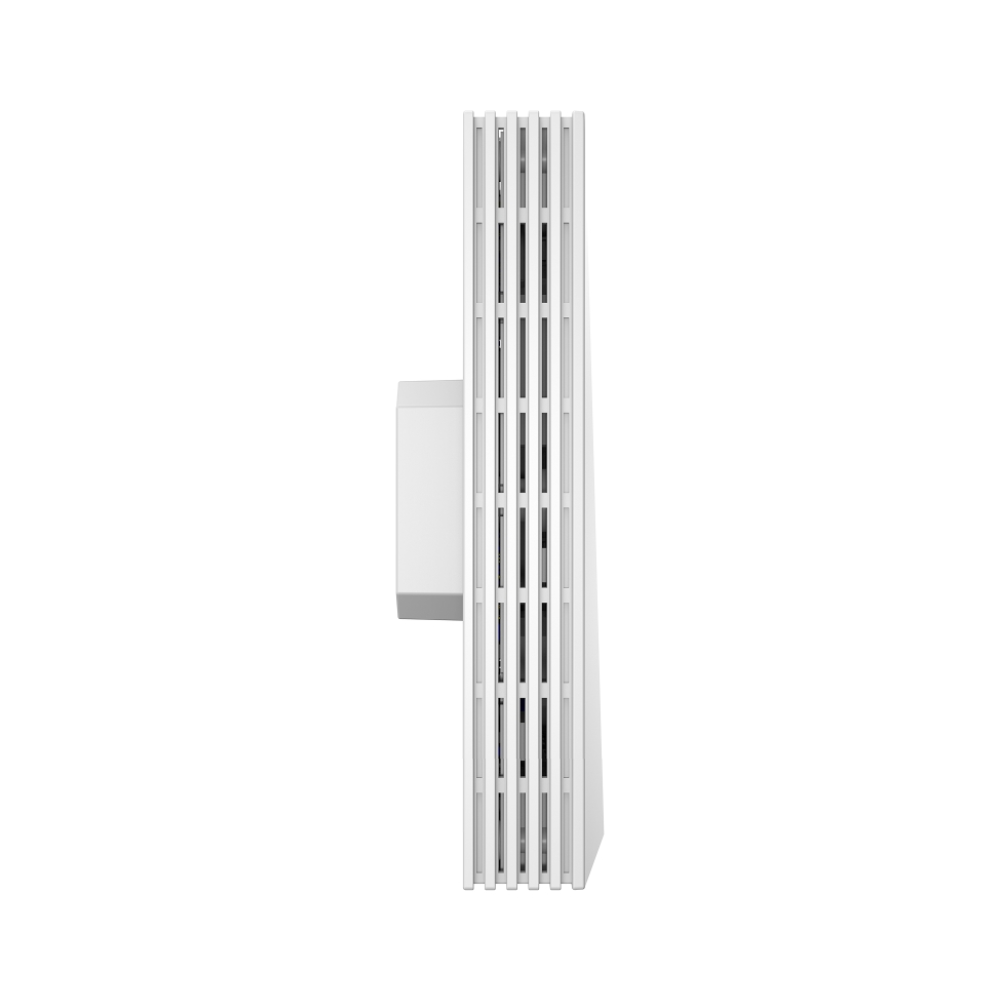

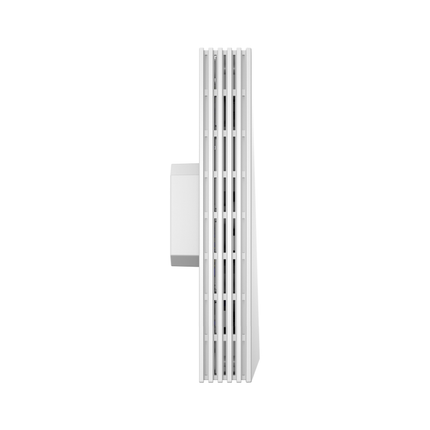

Wall Plate Form Factor — Fits standard 86mm, EU, and US junction boxes — replaces an existing wall socket for a clean, professional finish with no visible cabling.
-

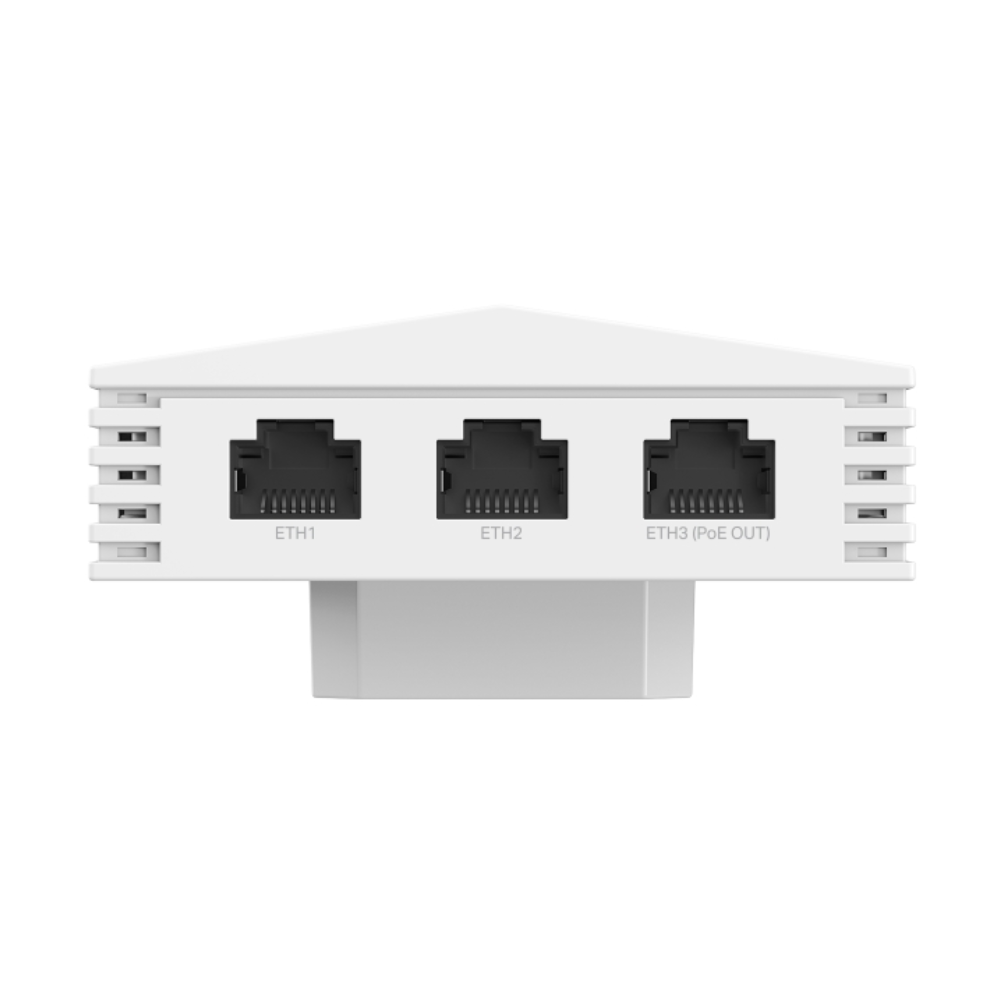

3 × Downlink Gigabit Ports — Connect wired devices such as smart TVs, VoIP phones, desktop PCs, and set-top boxes directly from the wall plate.
-
PoE Pass-Through — One downlink port supports PoE pass-through, allowing a connected PoE device (such as a VoIP phone or IP camera) to be powered without a separate power adapter.
-

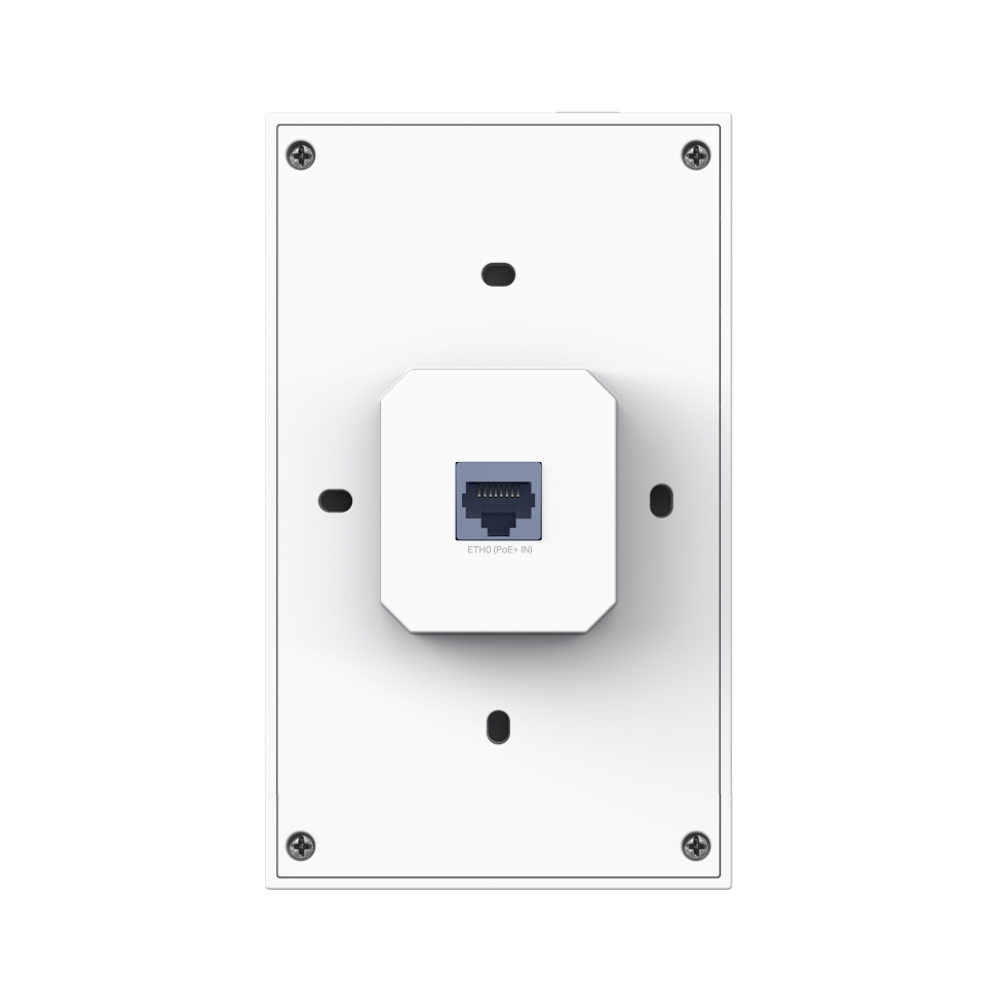

802.3at PoE Powered — Powered entirely via a single Ethernet cable from a PoE switch — no separate power outlet required at the wall plate location.
-
OFDMA & MU-MIMO — Delivers data to more devices simultaneously with reduced latency — essential for high-density per-room deployments.
-
Omada SDN Integration — Centrally manage all EAPs, switches, and routers across a site from a single Omada Controller interface — cloud or on-premises.
-
Secure Guest Network — Multiple authentication options including SMS, Facebook Wi-Fi, and voucher-based portal authentication for guest access management.
-
WPA3 Enterprise Security — Latest Wi-Fi security standard with enterprise-grade encryption and protection against brute-force attacks.
-
Seamless Roaming — Works with other Omada APs to support seamless client roaming across a property with a single SSID.
-
Omada App Management — Configure, monitor, and manage the network from the Omada app (iOS & Android) or web-based controller.
Use Cases
- Hotels and serviced apartments — per-room Wi-Fi 6 AP with wired TV and VoIP phone connectivity from a single wall plate
- Student accommodation and dormitories — in-room wireless and wired access with voucher-based guest portal authentication
- Corporate offices and meeting rooms — clean wall plate installation with Gigabit wired ports for docked laptops and conference equipment
- Hospitality venues and cafés — SMS or Facebook Wi-Fi guest portal for customer-facing Wi-Fi with branded login
- Healthcare facilities and aged care — per-room Wi-Fi coverage with PoE pass-through for bedside VoIP or nurse call devices
- Multi-dwelling units and strata buildings — per-apartment Wi-Fi 6 deployment managed centrally via Omada SDN
Technical Specifications
| Specification |
Detail |
| Model |
EAP655-Wall |
| Wi-Fi Standard |
Wi-Fi 6 (IEEE 802.11ax/ac/n/a on 5GHz; 802.11ax/n/b/g on 2.4GHz) |
| Combined Speed |
AX3000 — 2402Mbps (5GHz) + 574Mbps (2.4GHz) |
| Uplink Port |
1 × Gigabit RJ45 (PoE in, 802.3at) |
| Downlink Ports |
3 × Gigabit RJ45 (1 with PoE pass-through) |
| PoE Input |
802.3at (PoE+) |
| PoE Pass-Through |
Yes — 1 × downlink port |
| OFDMA |
Yes (Uplink & Downlink) |
| MU-MIMO |
Yes |
| Security |
WPA3 / WPA2 / WPA; guest portal (SMS, Facebook Wi-Fi, Voucher) |
| Management |
Omada SDN (cloud & on-premises); Omada App (iOS & Android) |
| Seamless Roaming |
Yes (with Omada controller) |
| Form Factor |
Wall plate — fits 86mm, EU & US standard junction boxes |
| Weight |
Approx. 500g |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link Omada OC200 Hardware Controller — On-premises Omada SDN controller for centralised management of multiple EAP655-Wall units across a site without cloud dependency.
-
TP-Link TL-SG105MPE 5-Port Gigabit PoE+ Smart Switch — Powers the EAP655-Wall via 802.3at PoE+ and provides additional Gigabit ports for the rest of the network.
-
TP-Link TL-POE260S 2.5G PoE+ Injector — Powers a single EAP655-Wall from a non-PoE switch or router using a single Ethernet cable.
-
Cat6 Ethernet Cable — Required for reliable Gigabit backhaul and PoE+ power delivery to the wall plate.
-
86mm Wall Plate Junction Box — Standard flush-mount back box required for clean in-wall installation of the EAP655-Wall.
Downloads
Frequently Asked Questions
Does the EAP655-Wall fit Australian standard wall boxes?
The EAP655-Wall is compatible with 86mm, EU, and US standard junction boxes. Australian standard wall boxes vary — confirm your existing back box dimensions before purchasing. An 86mm square back box is the most common compatible size. A licensed electrician should perform the installation if in-wall cabling is involved.
Does it require an Omada Controller to operate?
No. The EAP655-Wall can operate in standalone mode without an Omada Controller for basic Wi-Fi access point functionality. An Omada Controller (hardware OC200 or software-based) is required for centralised multi-AP management, seamless roaming, guest portal authentication, and advanced network features.
What is PoE pass-through and how does it work?
PoE pass-through allows one of the EAP655-Wall’s downlink Gigabit ports to supply PoE power to a connected device — such as a VoIP phone or IP camera — without a separate power adapter. The EAP655-Wall receives PoE power from the uplink switch and passes a portion of that power through to the connected device.
How many EAP655-Wall units can I manage from one controller?
The Omada SDN platform supports large-scale deployments with hundreds of access points managed from a single controller interface. The OC200 hardware controller supports up to 100 devices; the OC300 supports up to 500. Software-based controllers have higher limits depending on the host hardware.
Can I use the guest portal for a hotel or café?
Yes. The EAP655-Wall supports multiple guest portal authentication methods including SMS verification, Facebook Wi-Fi login, and voucher-based access — all configurable through the Omada Controller. This makes it well-suited for hospitality, retail, and accommodation venues requiring branded or controlled guest Wi-Fi access.
Is the EAP655-Wall backward compatible with Wi-Fi 5 devices?
Yes. Wi-Fi 6 is backward compatible with Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), and older standards. All existing devices will connect and benefit from the improved network efficiency of Wi-Fi 6, even if they don’t support the full AX3000 speeds.
