Description

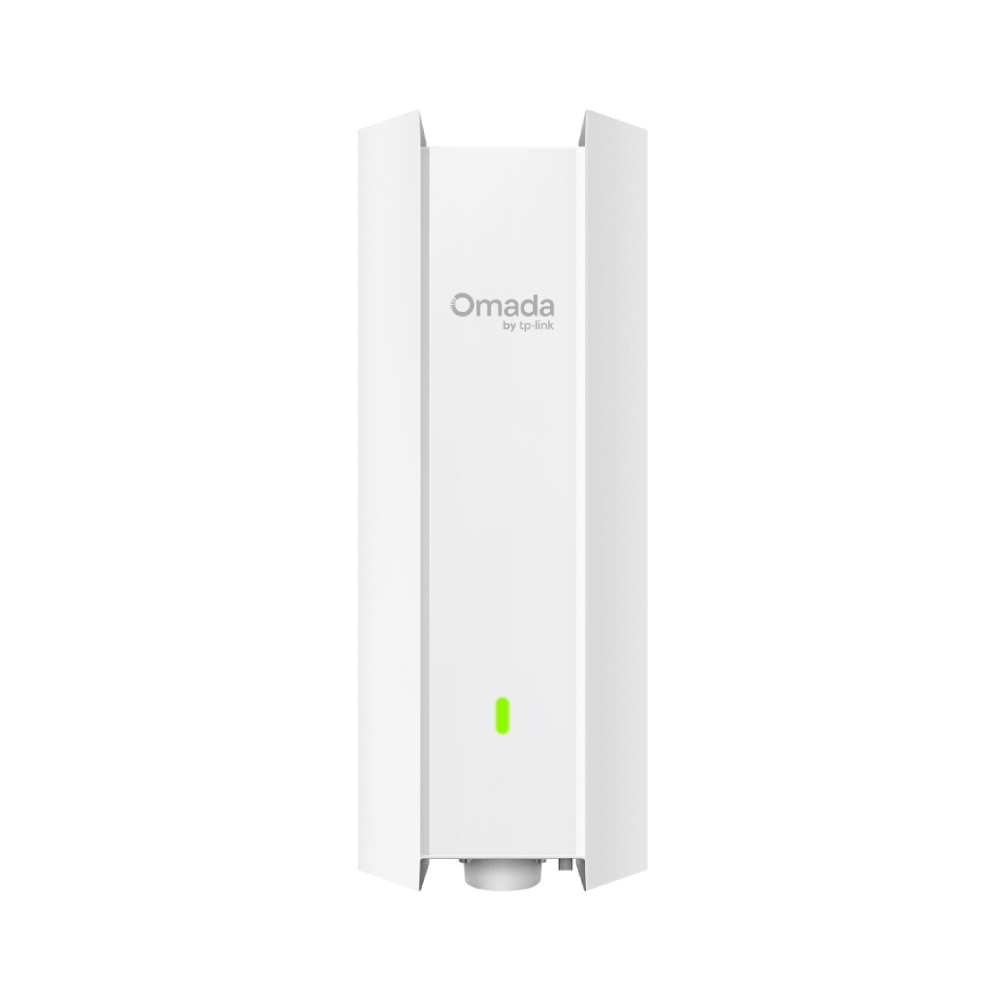

TP-Link EAP650-Outdoor AX3000 Wi-Fi 6 Outdoor Access Point
The TP-Link EAP650-Outdoor is a professional AX3000 dual-band Wi-Fi 6 outdoor access point designed for demanding outdoor wireless deployments across Australia — from hospitality venues, schools, and sports facilities to warehouses, caravan parks, and large residential properties. With Smart Antenna technology, a dedicated high-power amplifier, 160MHz channel support, IP67 weatherproof and dust-proof housing, and full Omada SDN integration, it delivers enterprise-grade outdoor Wi-Fi 6 coverage with the flexibility of PoE+, passive PoE, or Omada Mesh wireless backhaul — without the need for additional cabling in hard-to-wire areas.
Key Features
-
AX3000 Wi-Fi 6 (802.11ax) — Up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz for combined wireless throughput of 2976Mbps — more than twice the speed of Wi-Fi 5 for demanding outdoor environments.
-
160MHz Channel Support (HE160) — Doubles data throughput at peak transmission times on a single stream — maximising performance for high-density outdoor deployments.
-
Smart Antenna Technology — Horizontally and vertically polarised antennas with intelligent algorithms automatically select the optimal antenna configuration for the strongest outdoor signal at all times.
-
Dedicated High-Power Amplifier — Professional-grade amplifier extends wireless range significantly beyond standard indoor APs for large outdoor coverage areas.
-

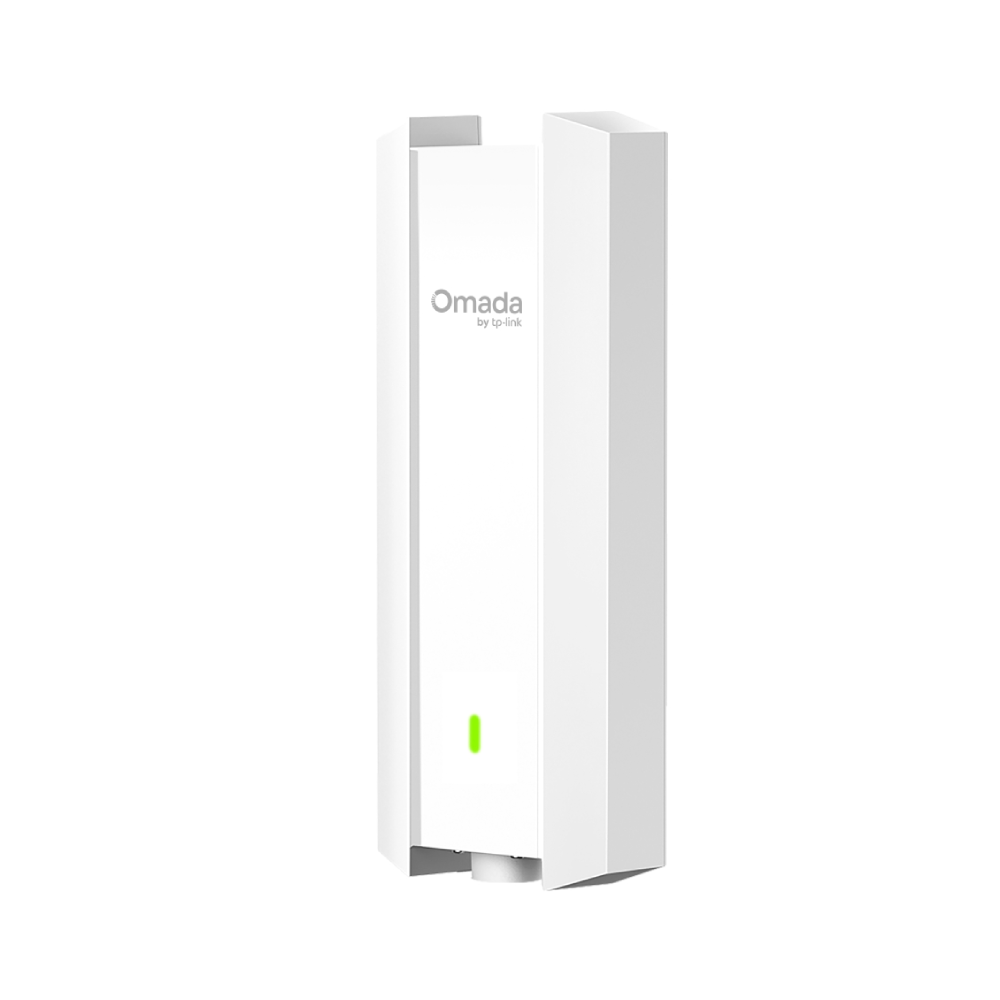

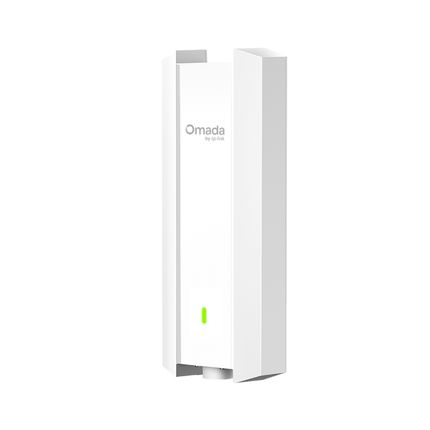

IP67 Weatherproof & Dustproof — Fully sealed against dust ingress and water immersion; resistant to shock, vibration, and moisture — suitable for all Australian outdoor environments including coastal, tropical, and high-UV conditions.
-
Omada Mesh Technology — Wirelessly extends Wi-Fi coverage to hard-to-wire outdoor areas without additional cabling — ideal for large properties, caravan parks, and outdoor venues.
-
Seamless Roaming — Clients automatically switch to the nearest AP with the strongest signal as they move through the property — uninterrupted streaming and connectivity throughout.
-
PoE+ & Passive PoE Support — Powered via 802.3at PoE+ from a compatible switch, or via the included passive PoE adapter for flexible installation without a PoE switch.
-
OFDMA & MU-MIMO — Delivers data to more devices simultaneously with reduced latency — essential for high-density outdoor environments with many concurrent users.
-
WPA3 Security — Latest Wi-Fi security standard with enterprise-grade encryption; supports Captive Portal (SMS, Facebook Wi-Fi, Voucher) and 802.1X authentication for guest and enterprise access control.
-
Omada SDN Integration — Centrally manage all EAPs, switches, and routers across a site from a single Omada Controller interface — cloud or on-premises.
-

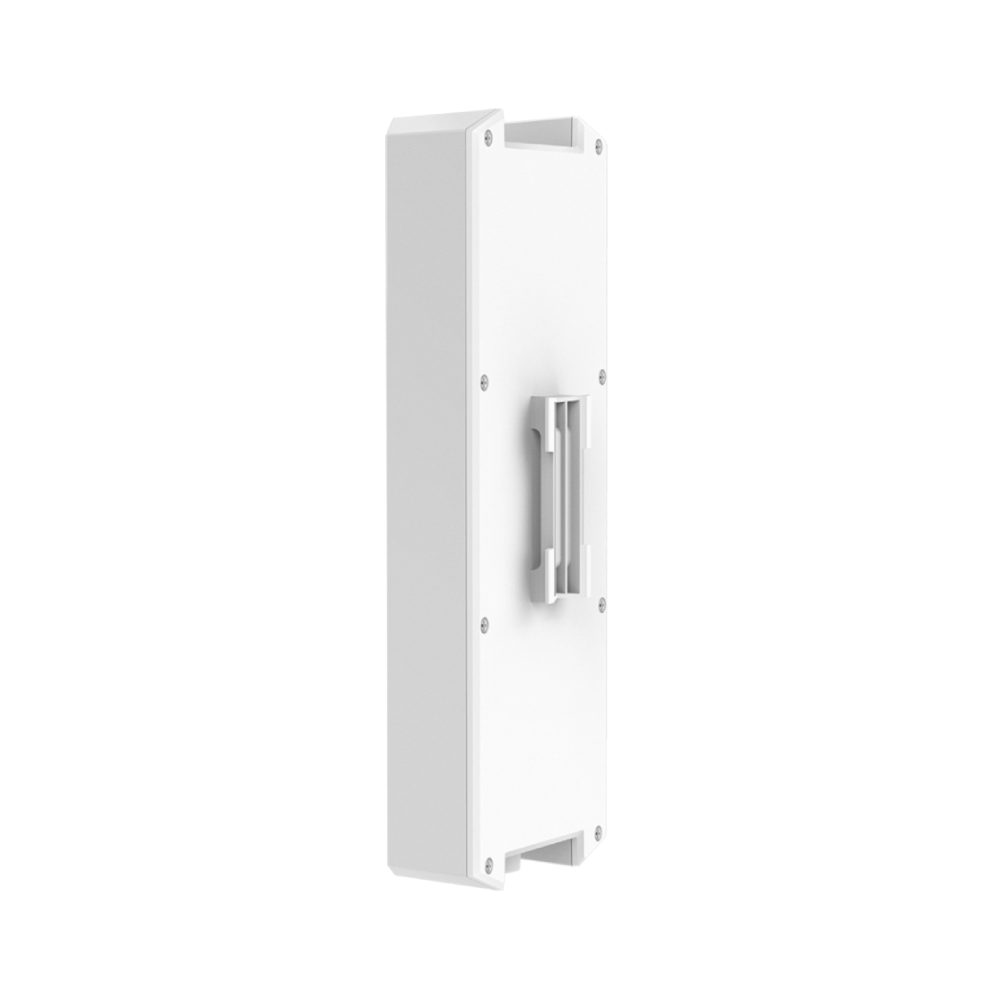

Versatile Mounting — Includes mounting kits for pole, wall, and ceiling installation indoors or outdoors.
Use Cases
- Hospitality venues — hotels, resorts, and restaurants with outdoor dining areas requiring reliable guest Wi-Fi 6 coverage
- Caravan parks and holiday parks — wide-area outdoor Wi-Fi 6 coverage across large sites using Omada Mesh without extensive cabling
- Schools and education facilities — outdoor Wi-Fi 6 for playgrounds, sports fields, and covered walkways
- Sports facilities and stadiums — high-density outdoor Wi-Fi 6 for spectators and staff with seamless roaming
- Warehouses and industrial sites — IP67-rated outdoor AP for harsh environments with dust, moisture, and vibration
- Large residential properties and rural homesteads — extending Wi-Fi 6 coverage to outdoor entertaining areas, sheds, and outbuildings
- Retail centres and shopping precincts — outdoor Wi-Fi 6 for alfresco areas and car parks with guest portal authentication
Technical Specifications
| Specification |
Detail |
| Model |
EAP650-Outdoor |
| Wi-Fi Standard |
Wi-Fi 6 (IEEE 802.11ax/ac/n/a on 5GHz; 802.11ax/n/b/g on 2.4GHz) |
| Combined Speed |
AX3000 — 2402Mbps (5GHz) + 574Mbps (2.4GHz) |
| Channel Bandwidth |
Up to 160MHz (HE160) |
| Antenna |
Smart Antenna (horizontal + vertical polarisation, auto-select) |
| OFDMA |
Yes (Uplink & Downlink) |
| MU-MIMO |
Yes |
| Power Input |
802.3at PoE+ or Passive PoE (adapter included) |
| Mesh |
Omada Mesh (wireless backhaul) |
| Seamless Roaming |
Yes (with Omada Controller) |
| Security |
WPA3 / WPA2; Captive Portal (SMS, Facebook Wi-Fi, Voucher); 802.1X |
| Management |
Omada SDN (cloud & on-premises); Omada App (iOS & Android); Web UI |
| Weather Rating |
IP67 (dust-proof & waterproof) |
| Mounting |
Pole, wall, or ceiling (mounting kit included) |
| Weight |
Approx. 1.42 kg |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link Omada OC200 Hardware Controller — On-premises Omada SDN controller for centralised management of multiple EAP650-Outdoor units across a site without cloud dependency.
-
TP-Link TL-SG105MPE 5-Port Gigabit PoE+ Smart Switch — Powers the EAP650-Outdoor via 802.3at PoE+ for small deployments of 1–4 outdoor APs.
-
TP-Link TL-SG3452XP 48-Port Gigabit PoE+ Managed Switch — For large-scale outdoor deployments powering multiple EAP650-Outdoor units from a single rackmount switch.
-
Cat6 Outdoor-Rated Ethernet Cable — UV-resistant, direct-burial or conduit-rated Cat6 cable for reliable outdoor PoE+ runs to the AP mounting point.
-
TP-Link Omada ER7212PC 3-in-1 VPN Router — Pair as the core router and Omada controller in a complete Omada SDN outdoor Wi-Fi deployment.
Frequently Asked Questions
Does the EAP650-Outdoor require an Omada Controller?
No. The EAP650-Outdoor can operate in standalone mode for basic Wi-Fi access point functionality without an Omada Controller. An Omada Controller (hardware OC200/OC300 or software-based) is required for centralised multi-AP management, seamless roaming, Omada Mesh, guest portal authentication, and advanced network features. For deployments with more than one AP, a controller is strongly recommended.
What is the difference between PoE+ and Passive PoE for this AP?
802.3at PoE+ is the IEEE standard active PoE — it negotiates power with the AP before supplying voltage and is compatible with any 802.3at-compliant PoE switch or injector. Passive PoE delivers a fixed voltage without negotiation and is only compatible with devices designed for it. The EAP650-Outdoor includes a passive PoE adapter for use where a PoE switch is not available. For professional installations, 802.3at PoE+ from a managed switch is recommended.
What does IP67 mean for outdoor installation in Australia?
IP67 means the enclosure is fully protected against dust ingress (IP6X) and can withstand temporary water immersion up to 1 metre for 30 minutes (IPX7). In practical terms, the EAP650-Outdoor is suitable for all Australian outdoor environments including heavy rain, coastal salt air, and high-humidity tropical conditions. It should be mounted to avoid direct sustained water jets from pressure washers or irrigation systems.
How does Omada Mesh work for outdoor deployments?
Omada Mesh allows EAP650-Outdoor units to wirelessly backhaul data between each other without a physical Ethernet cable between every AP. One AP connects to the network via Ethernet (the root AP), and additional APs connect wirelessly through the mesh. This is ideal for extending outdoor Wi-Fi coverage to areas where running Ethernet cable is impractical — such as across car parks, sports fields, or between buildings. A wired backhaul is always preferred for performance; mesh is best used where cabling is not feasible.
Can the EAP650-Outdoor be used indoors?
Yes. The EAP650-Outdoor is rated for both indoor and outdoor use. Its IP67 housing makes it suitable for harsh indoor environments such as warehouses, food processing facilities, and industrial spaces where dust, moisture, or washdown conditions are present. For standard indoor office or retail environments, a ceiling-mount indoor AP such as the EAP670 or EAP655-Wall may be more appropriate.
