Description

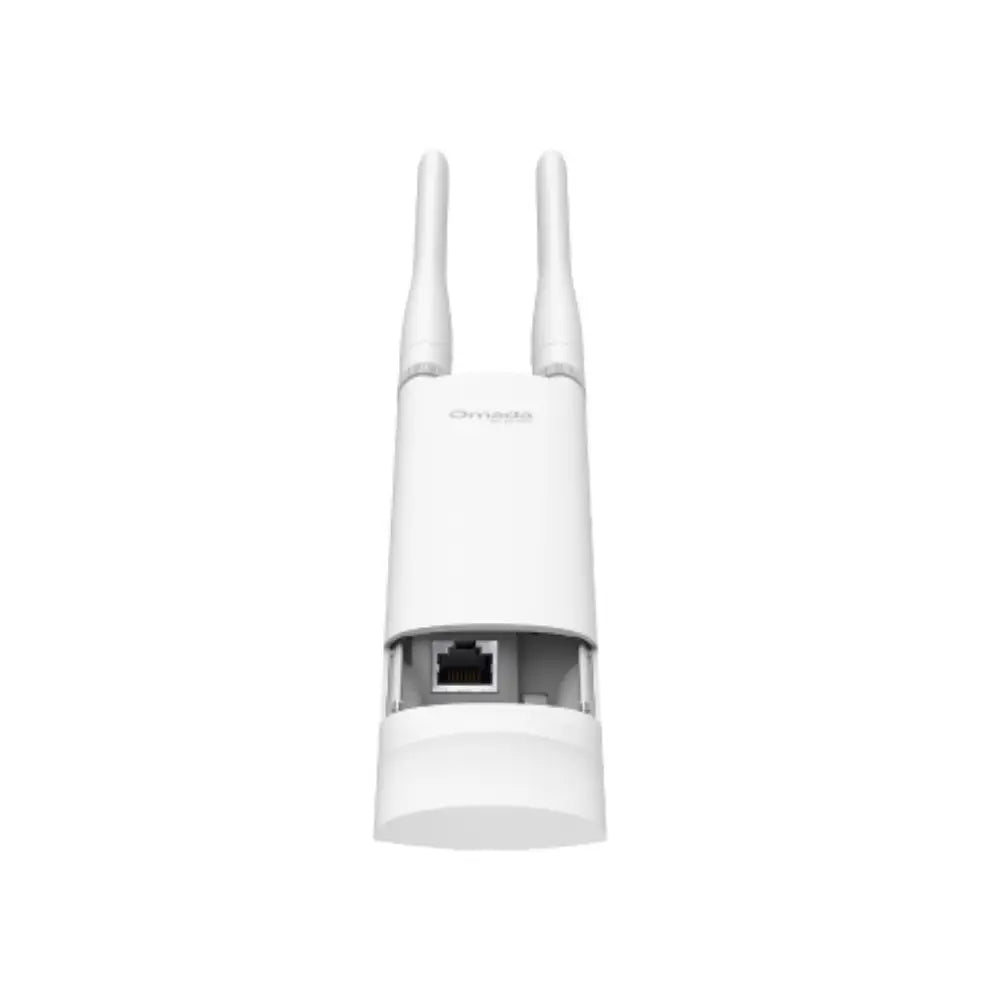

TP-Link EAP225-Outdoor Omada AC1200 Dual-Band Outdoor Access Point
The TP-Link EAP225-Outdoor is a weatherproof AC1200 dual-band access point built for outdoor and demanding indoor Wi-Fi deployments. With high-gain antennas, MU-MIMO technology, and a Gigabit PoE port, it delivers reliable long-range wireless coverage for car parks, building exteriors, warehouses, hospitality venues, and security installations. Managed via the Omada SDN platform — standalone, via software controller, or through the Omada cloud app.
Key Features
- AC1200 dual-band — up to 300Mbps on 2.4GHz and 867Mbps on 5GHz
- 2 × 2 MU-MIMO with Beamforming — simultaneous multi-device connections with focused signal
- High-gain antennas — 2.4GHz: 2 × 3dBi, 5GHz: 2 × 4dBi for extended outdoor range
- Weatherproof enclosure — rated for outdoor use in Australian conditions
- 1 x Gigabit RJ45 port — supports 802.3af PoE and 24V Passive PoE (adapter included)
- Omada SDN integration — centralised management via Omada controller, cloud, or standalone web GUI
- Up to 16 SSIDs (8 per band) with SSID-to-VLAN mapping
- Captive portal with multiple authentication methods including SMS and Facebook Wi-Fi
- Band Steering, Airtime Fairness, and Load Balancing for optimised multi-AP deployments
- Rogue AP Detection for wireless security monitoring
- Wireless MAC filtering, client isolation, and access control
- Pole and wall mounting kits included
- Hardware watchdog for reliable unattended operation
Use Cases
-
Outdoor Wi-Fi coverage — car parks, building facades, courtyards, and outdoor dining areas where weatherproof hardware is essential
-
Security and surveillance networks — provide wireless backhaul or client connectivity for outdoor IP cameras and access control devices
-
Hospitality and venues — captive portal and guest authentication for hotels, resorts, caravan parks, and sporting venues
-
Warehouses and industrial sites — long-range coverage in large open spaces where cable runs are impractical
-
Multi-AP Omada deployments — seamless roaming and centralised management across indoor EAPs and outdoor units on the same Omada network
Specifications
| Specification |
Detail |
| Model |
EAP225-Outdoor |
| Wi-Fi Standard |
IEEE 802.11a/b/g/n/ac (Wi-Fi 5) |
| Frequency Bands |
2.4GHz and 5GHz (dual-band) |
| Max. Speed |
300Mbps (2.4GHz) + 867Mbps (5GHz) = AC1200 |
| Antennas |
2.4GHz: 2 × 3dBi | 5GHz: 2 × 4dBi |
| MIMO |
2 × 2 MU-MIMO |
| Ethernet Port |
1 x Gigabit RJ45 (802.3af PoE / 24V Passive PoE) |
| Power Supply |
802.3af PoE or 24V Passive PoE (adapter included) |
| Power Consumption |
10.5W max. |
| SSIDs |
Up to 16 (8 per band) |
| Management |
Omada app, Omada controller (cloud/local), standalone web GUI |
| Wireless Security |
Captive portal, MAC filtering, client isolation, SSID-to-VLAN, Rogue AP Detection, 802.1X |
| Advanced Wi-Fi |
Band Steering, Airtime Fairness, Load Balancing, Beamforming, Rate Limit, Reboot Schedule |
| Mounting |
Pole and wall mount (kits included) |
| Dimensions (W × D × H) |
215 × 46 × 27mm |
| Weight |
0.6kg |
| Hardware Watchdog |
Yes |
| SKU / Barcode |
EAP225-Outdoor / 1210002618519 |
Frequently Asked Questions
Is the EAP225-Outdoor suitable for Australian outdoor conditions?
Yes. The EAP225-Outdoor features a weatherproof enclosure designed for outdoor deployment. It is rated for operating temperatures and humidity levels consistent with Australian outdoor environments. For installations in extreme heat or direct sun exposure, ensure adequate shading or ventilation around the unit.
What PoE standard does it use?
The EAP225-Outdoor supports both 802.3af PoE (from a compatible PoE switch) and 24V Passive PoE. A 24V Passive PoE adapter is included in the box, so you can power it without a PoE switch if needed.
Do I need an Omada controller to use this access point?
No. The EAP225-Outdoor can be configured and managed in standalone mode via its web interface without any controller. An Omada controller (hardware OC200/OC300, software, or cloud) is required only if you want centralised multi-AP management, roaming, and cloud access.
Can it be used indoors as well as outdoors?
Yes. The EAP225-Outdoor is suitable for both indoor and outdoor deployment. Its weatherproof enclosure and high-gain antennas also make it a strong choice for large indoor spaces such as warehouses, factories, and sports halls where standard indoor APs may not provide adequate range.
How does it integrate with other Omada devices?
When managed by an Omada controller, the EAP225-Outdoor integrates seamlessly with other Omada EAPs, switches, and routers. This enables features such as seamless roaming, centralised SSID management, Band Steering, and unified network monitoring across your entire site.
Does it ship Australia-wide?
Yes. CCTV Guru ships the EAP225-Outdoor Australia-wide from local stock.
