Description

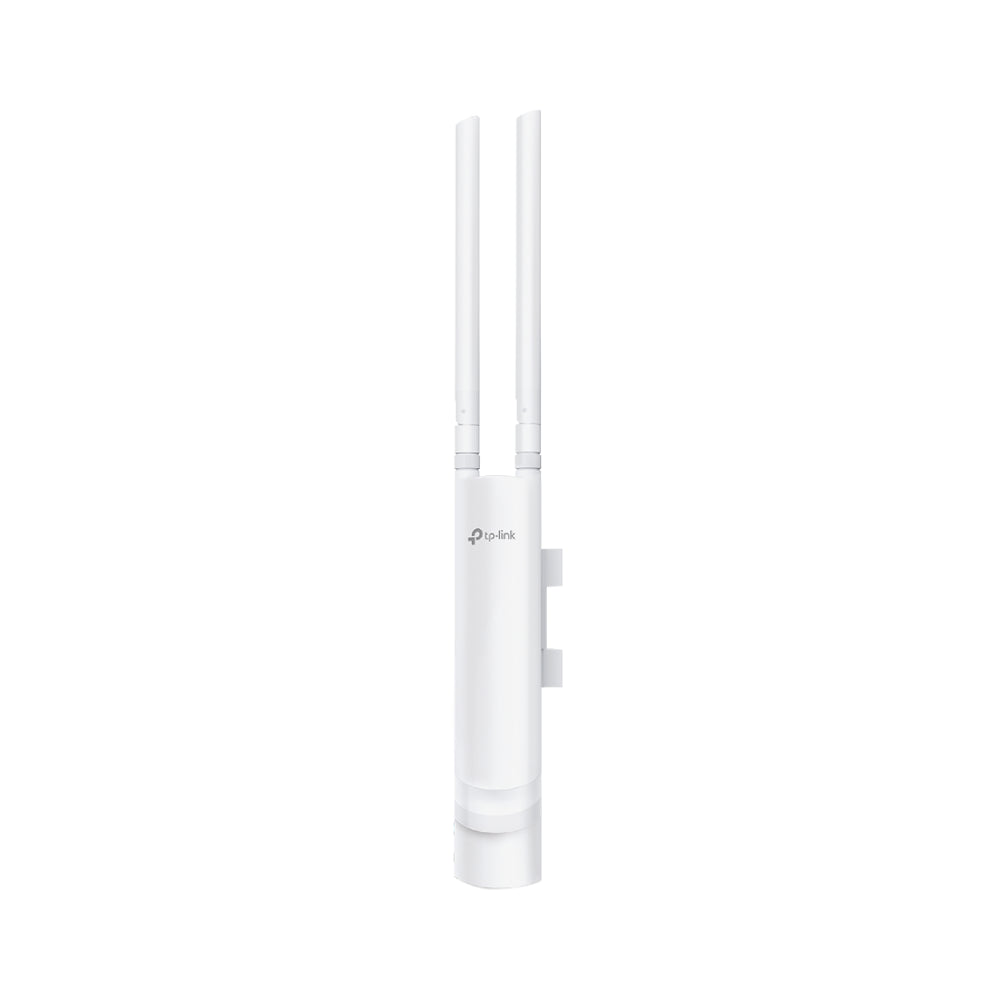

TP-Link EAP110-Outdoor – 300Mbps Wireless N Outdoor Access Point
The TP-Link EAP110-Outdoor is a weatherproof 2.4GHz wireless access point designed for outdoor Wi-Fi deployments where durability and ease of installation matter. With two 5dBi external omni-directional antennas, passive PoE support, and pole or wall mounting hardware included, it’s a practical choice for extending Wi-Fi coverage to outdoor areas including car parks, courtyards, building exteriors, and remote outbuildings. Managed via the free Omada Controller software, it scales from a single AP to hundreds of access points under centralised control.
Key Features
-
300Mbps 2.4GHz Wi-Fi: IEEE 802.11b/g/n with 2×2 MIMO for reliable outdoor wireless coverage.
-
2 × 5dBi External Omni Antennas: High-gain waterproof omni-directional antennas provide wide-area 360° coverage for outdoor environments.
-
Weatherproof Enclosure: Durable outdoor-rated housing designed to withstand rain, dust, and temperature extremes in Australian conditions.
-
Passive PoE Powered: 24VDC passive PoE via the included PoE adapter — single cable for both data and power, simplifying outdoor installation.
-

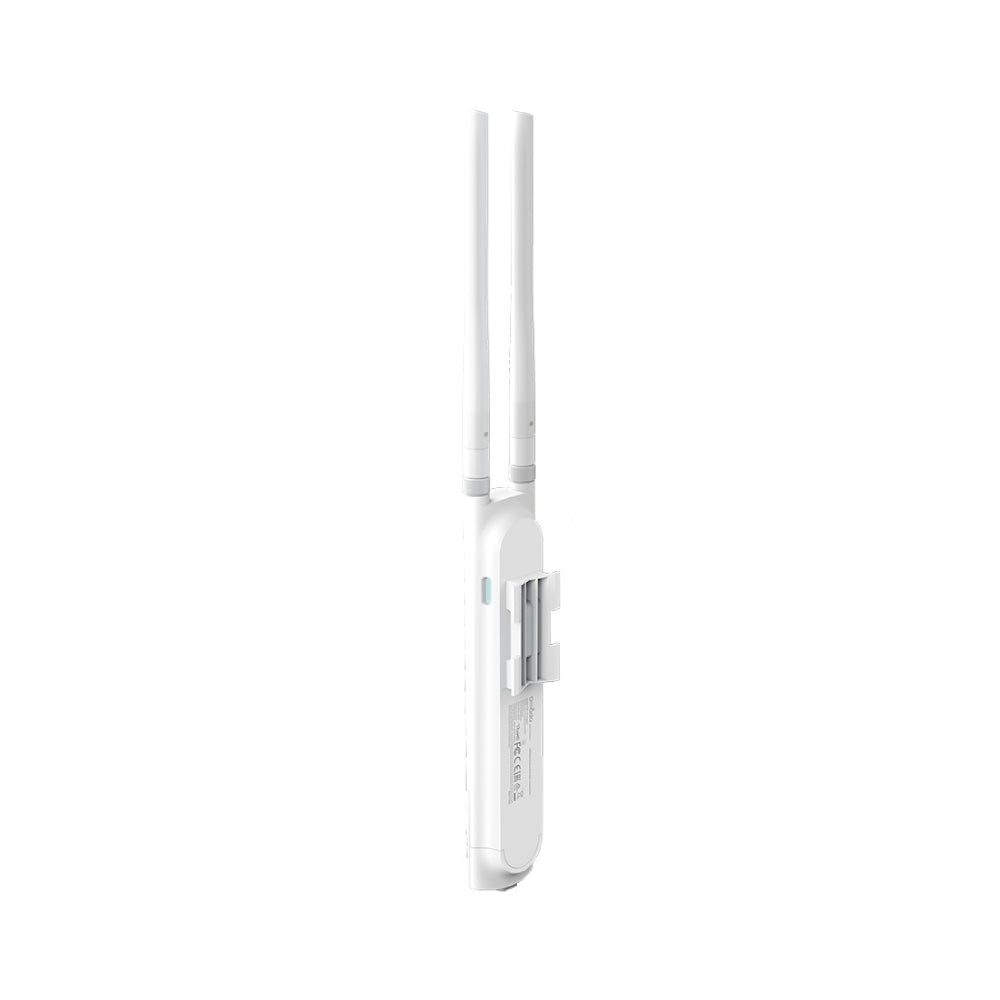

Pole & Wall Mounting: Mounting kits for both pole and wall installation included in the box for flexible deployment.
-
Up to 8 SSIDs: Broadcast multiple wireless networks simultaneously for staff, guest, and IoT device separation.
-
SSID-to-VLAN Mapping: Map each SSID to a separate VLAN for network segmentation and security.
-
Captive Portal: Built-in guest authentication for public or visitor Wi-Fi without additional hardware.
-
Omada Controller Compatible: Managed via free Omada Controller software (cloud or on-premises) for centralised multi-AP management, monitoring, and configuration.
-
Watchdog: Automatic self-recovery if the AP becomes unresponsive, reducing the need for manual reboots in remote installations.
-
Rogue AP Detection: Identifies unauthorised access points on the network for improved wireless security.
-
802.1X Support: Enterprise-grade authentication for corporate wireless deployments.
Ideal Use Cases
- Extending Wi-Fi coverage to outdoor areas including car parks, courtyards, alfresco dining areas, and building exteriors.
- Providing guest Wi-Fi at hospitality venues, caravan parks, and outdoor event spaces via captive portal.
- Connecting outbuildings, sheds, or remote areas on a property to the main network wirelessly.
- Multi-AP outdoor deployments managed centrally via Omada Controller for schools, councils, and commercial properties.
- Supplementing indoor Wi-Fi networks with outdoor coverage for seamless roaming.
Technical Specifications
| Specification |
Detail |
| Model |
EAP110-Outdoor |
| Wi-Fi Standard |
IEEE 802.11b/g/n (2.4GHz) |
| Wireless Speed |
Up to 300Mbps (11n) / 54Mbps (11g) / 11Mbps (11b) |
| Antenna |
2 × 5dBi External Omni Waterproof |
| Transmit Power |
<20dBm (CE) / <27dBm (FCC) |
| Ethernet Port |

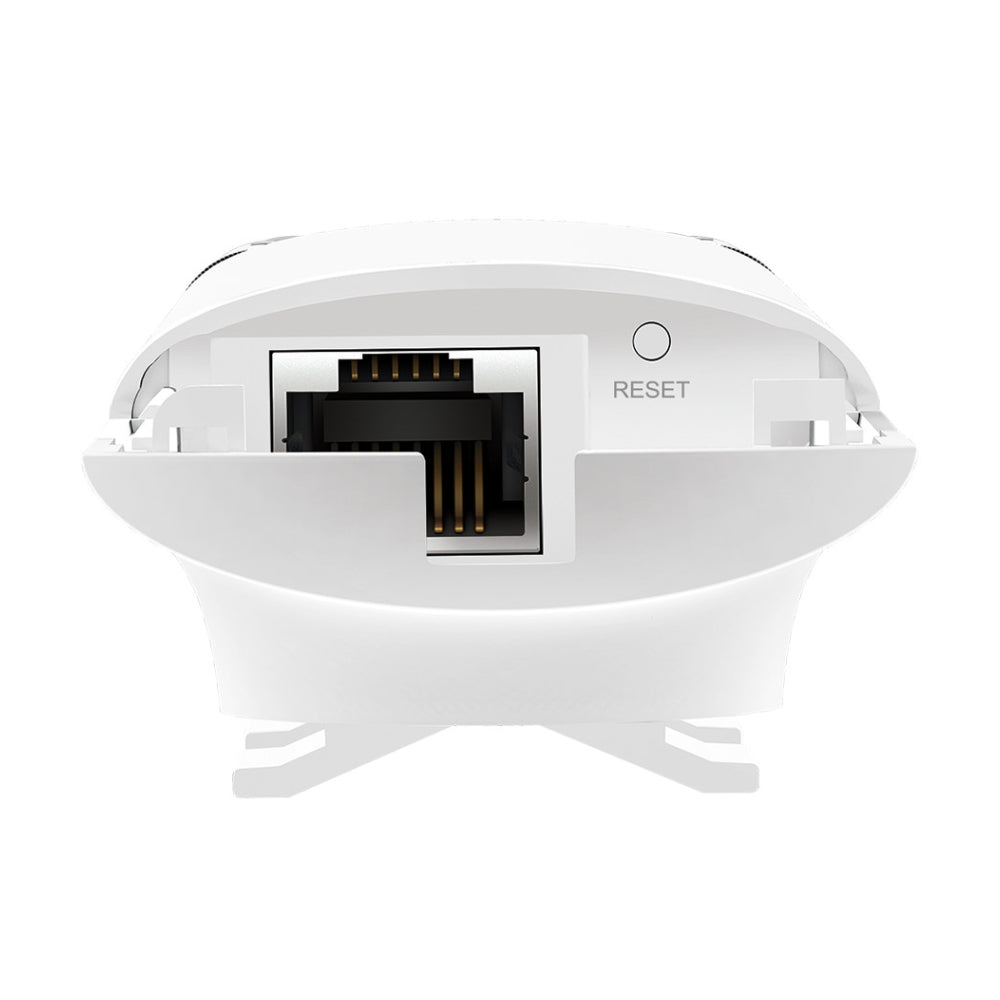

1 × 10/100Mbps RJ45 (Passive PoE in) |
| Power Supply |
24VDC / 0.6A Passive PoE (adapter included) |
| Power Consumption |
6.3W |
| SSIDs |
Up to 8 |
| VLAN |
SSID-to-VLAN mapping |
| QoS |
WMM, rate limiting, load balancing |
| Security |
WPA/WPA2-Enterprise, WPA-PSK/WPA2-PSK, 64/128/152-bit WEP, 802.1X, MAC filtering, client isolation, rogue AP detection |
| Captive Portal |
Yes |
| Management |
Omada Controller (cloud/on-premises), standalone web UI |
| Watchdog |
Yes (automatic self-recovery) |
| Mounting |
Pole / Wall (kits included) |
| Dimensions |
209 × 95 × 42.6 mm |
| Weight |
0.56kg |
| SKU |
EAP110-Outdoor |
| Barcode (EAN) |
6935364097752 |
What’s in the Box
- 1 × EAP110-Outdoor Access Point
- 1 × Passive PoE Adapter (24VDC)
- 1 × Power Adapter
- Pole & Wall Mounting Kits
- Quick Installation Guide
Frequently Asked Questions
Does the EAP110-Outdoor use standard 802.3af/at PoE?
No. The EAP110-Outdoor uses 24VDC passive PoE, not the 802.3af/at standard. The required passive PoE adapter is included in the box. Do not connect it directly to an 802.3af/at PoE switch port without a compatible passive PoE injector.
Is it compatible with the Omada Controller?
Yes. The EAP110-Outdoor is compatible with TP-Link’s free Omada Controller software, enabling centralised management of multiple EAP access points from a single interface — including configuration, monitoring, and firmware updates.
Can I run multiple SSIDs for guest and staff networks?
Yes. The EAP110-Outdoor supports up to 8 SSIDs simultaneously, each mappable to a separate VLAN for traffic isolation between staff, guest, and IoT networks.
Is it suitable for Australian outdoor conditions?
Yes. The weatherproof enclosure is designed for outdoor use in rain and varying temperatures. For installations in areas prone to lightning, ensure appropriate surge protection and earthing is in place.
What mounting options are available?
The EAP110-Outdoor supports both pole and wall mounting. Mounting hardware for both options is included in the box, allowing flexible placement on building exteriors, fence posts, or light poles.
Does it support seamless roaming between multiple APs?
When managed via Omada Controller, multiple EAP access points can be configured to support seamless roaming, allowing clients to move between APs without dropping their connection.
