Description

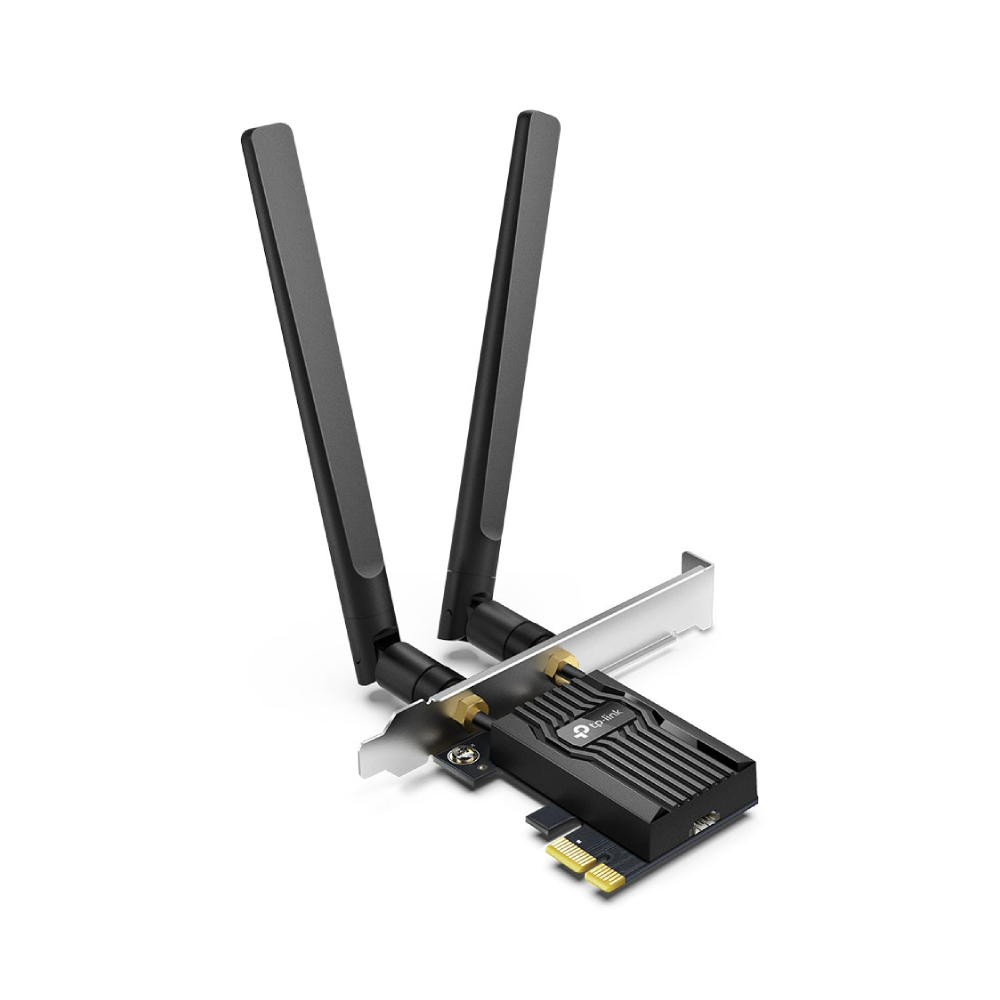

TP-Link Archer TX55E AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
The TP-Link Archer TX55E is an AX3000 dual-band Wi-Fi 6 PCIe adapter that upgrades any desktop PC to the latest wireless standard — delivering combined speeds up to 2976Mbps, 75% lower latency via OFDMA, and Bluetooth 5.2 connectivity, all from a single PCIe card. Powered by an Intel Wi-Fi 6 chipset and built with a gold-plated heatsink design, it’s engineered for gamers, streamers, and power users who demand fast, stable wireless performance from their desktop.
Key Features
-
AX3000 Wi-Fi 6 Speed — Up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz for combined wireless throughput that breaks the Gigabit barrier.
-
Intel Wi-Fi 6 Chipset — Industry-leading chipset delivers faster, more reliable Wi-Fi and fully unlocks the performance of your Wi-Fi 6 router.
-
160MHz Channel Width & 1024-QAM — Maximises throughput on compatible Wi-Fi 6 routers for peak real-world speeds.
-
75% Lower Latency with OFDMA — Reduces lag for ultra-responsive online gaming, VR, and real-time video calls.
-
MU-MIMO — Allows simultaneous data streams to multiple devices, reducing congestion on busy networks.
-
Bluetooth 5.2 — 2× faster and 4× broader coverage than Bluetooth 4.2 for seamless connection to controllers, headsets, keyboards, and other peripherals.
-

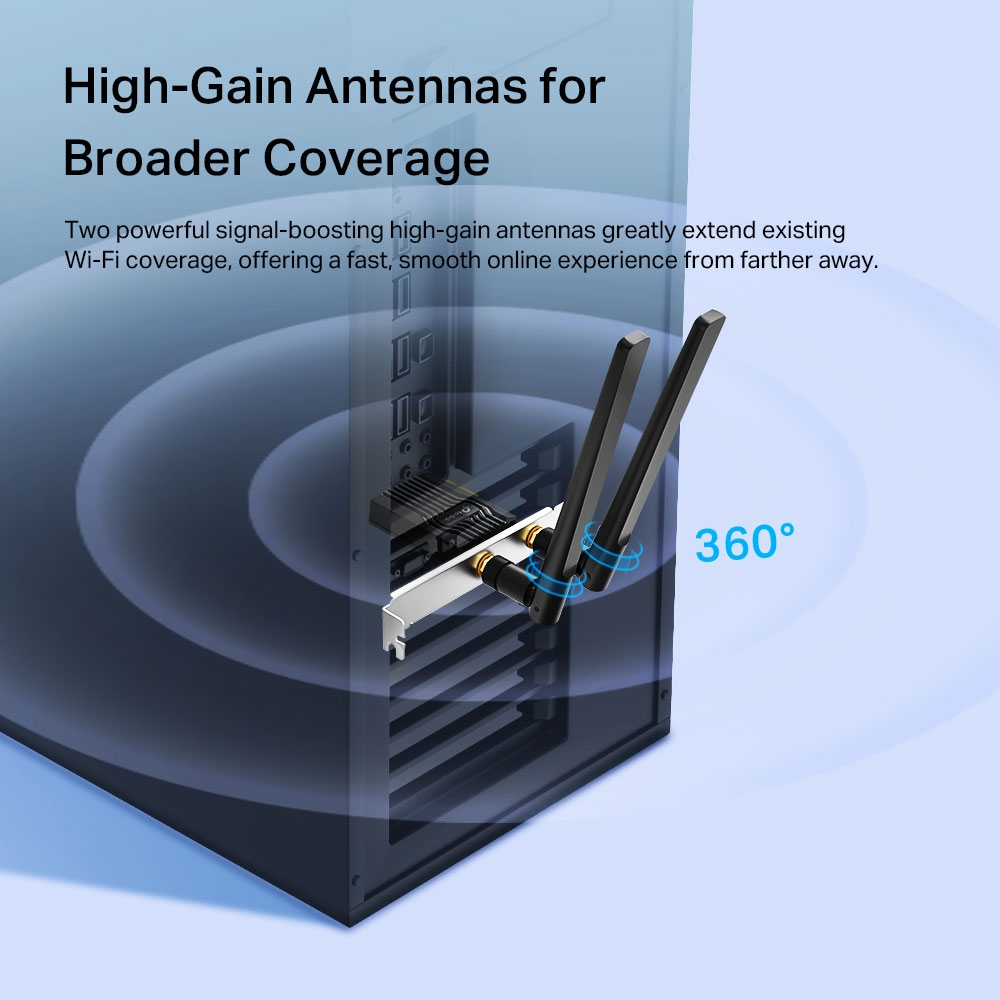

Two High-Gain External Antennas — Extend Wi-Fi range and improve signal stability, particularly in larger homes or through walls.
-
WPA3 Security — Latest Wi-Fi security standard provides stronger, individualised encryption to protect your connection.
-
Gold-Plated Contacts & Heatsink — Resists oxidation and maintains stable performance even under sustained load in warm environments.
-
Backward Compatible — Supports 802.11ac/a/b/g/n for use with older Wi-Fi 5 and Wi-Fi 4 routers.
Use Cases
- Desktop gaming PCs requiring low-latency Wi-Fi 6 without running an Ethernet cable
- Home office desktops needing fast, reliable wireless for video conferencing and large file transfers
- Media and streaming PCs used for 4K content, live streaming, or cloud gaming
- Desktop PCs in rooms where Ethernet cabling is impractical or not available
- Upgrading an older desktop from Wi-Fi 5 (AC) to Wi-Fi 6 (AX) to match a new router
Technical Specifications
| Specification |
Detail |
| Model |
Archer TX55E |
| Interface |
PCIe (desktop PC) |
| Wi-Fi Standard |
Wi-Fi 6 (IEEE 802.11ax/ac/a/b/g/n) |
| Combined Speed |
AX3000 — 2402Mbps (5GHz) + 574Mbps (2.4GHz) |
| Chipset |
Intel Wi-Fi 6 |
| Channel Width |
20/40/80/160MHz |
| Modulation |
1024-QAM |
| OFDMA |
Yes (Uplink & Downlink) — 75% lower latency |
| MU-MIMO |
Yes |
| Bluetooth |
Bluetooth 5.2 |
| Antennas |
2 × External High-Gain |
| Security |
WPA3 / WPA2 / WPA / WEP |
| Build |
Gold-plated contacts; heatsink for thermal stability |
| OS Compatibility |
Windows 11 / 10 (64-bit) |
| Weight |
Approx. 220g |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link Archer AX73 Wi-Fi 6 Router — Pair with the TX55E to build a complete AX Wi-Fi 6 home network and unlock the full 160MHz channel width performance.
-
TP-Link TL-WA3001 AX3000 Wi-Fi 6 Access Point — Extend Wi-Fi 6 coverage to additional areas of your home or office to keep the TX55E connected at full speed.
-
PCIe Riser Extension Cable — Useful for repositioning the card in compact PC cases where antenna placement is restricted.
Downloads
Frequently Asked Questions
Does the Archer TX55E work with Wi-Fi 5 (AC) routers?
Yes. The TX55E is backward compatible with 802.11ac (Wi-Fi 5), 802.11n (Wi-Fi 4), and older standards. You’ll still benefit from the improved hardware quality and Bluetooth 5.2, though the full AX3000 Wi-Fi 6 speeds require a Wi-Fi 6 router.
Is a PCIe slot required to install this adapter?
Yes. The TX55E uses a PCIe interface and requires an available PCIe slot in your desktop PC motherboard. It is not compatible with laptops or all-in-one PCs.
Does it support 160MHz channel width?
Yes. The TX55E supports 160MHz channel width on the 5GHz band, which is required to achieve the maximum 2402Mbps speed. Your Wi-Fi 6 router must also support 160MHz for this to apply.
What operating systems are supported?
The Archer TX55E supports Windows 11 and Windows 10 (64-bit). macOS and Linux are not officially supported.
Does the Bluetooth 5.2 require a separate antenna?
No. The TX55E’s two external antennas handle both Wi-Fi and Bluetooth signals. No additional antenna or hardware is required for Bluetooth functionality.
Will this reduce latency for online gaming?
Yes. The TX55E’s OFDMA technology reduces network latency by up to 75% compared to Wi-Fi 5, making it noticeably more responsive for competitive online gaming, VR, and real-time applications — provided your router also supports Wi-Fi 6 OFDMA.
