Description
TP-Link Archer TX20U Nano AX1800 Nano USB Wi-Fi 6 Adapter
Wi-Fi 6 in the Smallest Possible Package
The TP-Link Archer TX20U Nano delivers AX1800 Wi-Fi 6 performance in an ultra-compact nano form factor that sits nearly flush with your USB port. It’s the ideal upgrade for desktop PCs and laptops that need Wi-Fi 6 capability without the bulk of an external antenna adapter — whether you’re working from home, streaming, or simply want to get more from your Wi-Fi 6 router or mesh system. Plug it in, install the driver, and connect.
Key Features
-
Wi-Fi 6 (AX1800) Dual-Band — Combined speeds up to 1800Mbps: 574Mbps on 2.4GHz and 1201Mbps on 5GHz for faster, more efficient wireless connectivity.
-

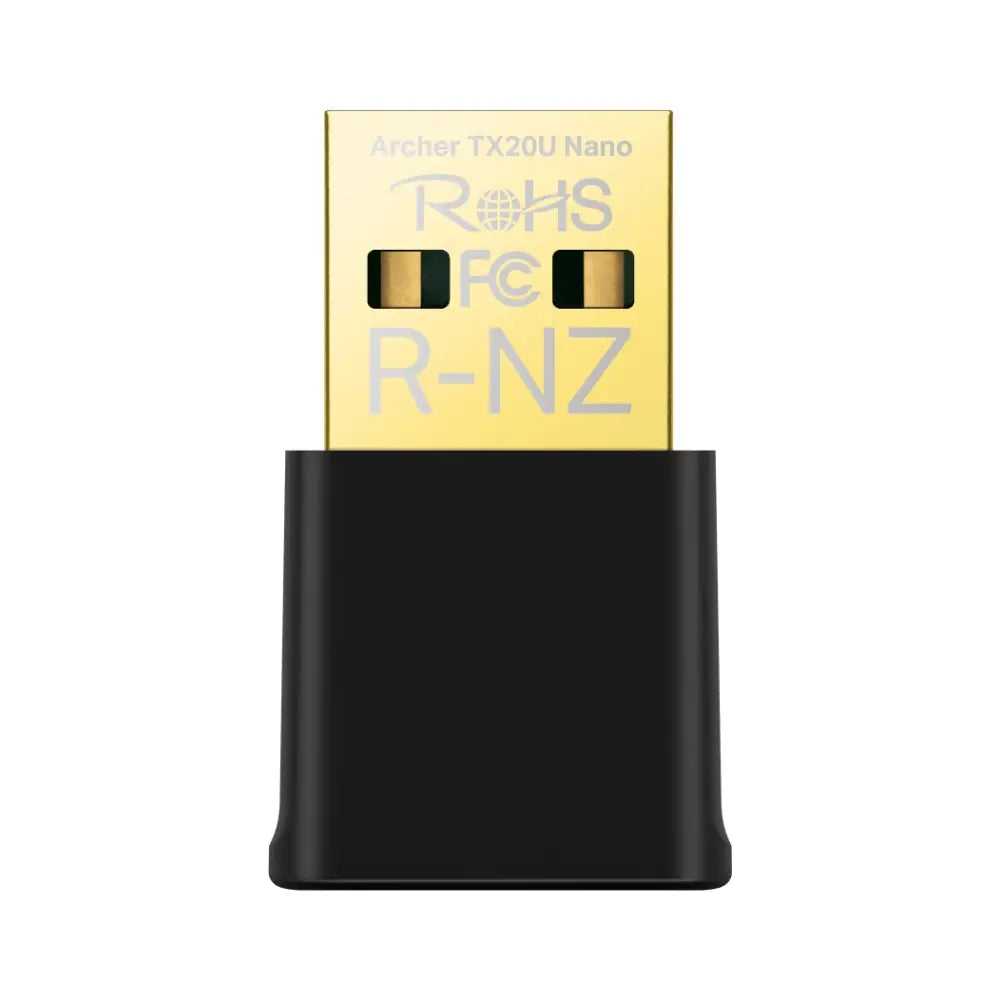

Nano Form Factor — Ultra-compact design sits nearly flush with your USB port, making it ideal for permanent use on laptops or in tight desktop setups where a protruding adapter would be at risk.
-
OFDMA & MU-MIMO — Wi-Fi 6 efficiency features reduce latency and improve performance in busy Wi-Fi environments with many connected devices.
-
USB 3.0 Interface — High-speed USB 3.0 connection ensures the adapter is not a bottleneck for your wireless speeds.
-
WPA3 Security — Supports the latest WPA3 wireless security standard for enhanced network protection.
-
Backward Compatible — Connects to 802.11a/b/g/n/ac networks, so it works with older routers while being ready for Wi-Fi 6.
-
Plug-and-Play Setup — Driver installation via the TP-Link AU website; straightforward setup with no complex configuration required.
Use Cases
- Upgrading a desktop PC or laptop to Wi-Fi 6 without opening the case or using a PCIe slot
- Permanent laptop use where a nano adapter stays plugged in without risk of damage or obstruction
- Replacing a faulty or slow built-in Wi-Fi card on a laptop
- Connecting to a Wi-Fi 6 router or mesh system for improved throughput and lower latency
- Travel use — compact enough to leave plugged in and forget about
- Students or renters needing a portable Wi-Fi 6 upgrade that moves with them
Technical Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Wi-Fi Speeds |
AX1800: 574Mbps (2.4GHz) + 1201Mbps (5GHz) |
| Frequency Bands |
Dual-Band (2.4GHz & 5GHz) |
| Interface |
USB 3.0 |
| Form Factor |
Nano (nearly flush with USB port) |
| Antenna |
Internal Antenna |
| MU-MIMO |
Supported |
| OFDMA |
Supported (UL & DL) |
| Security |
WPA / WPA2 / WPA3, WEP |
| OS Compatibility |
Windows 11 / 10 / 8.1 / 7 |
| Certifications |
CE, FCC, RoHS, RCM (Australia) |
| Package Contents |

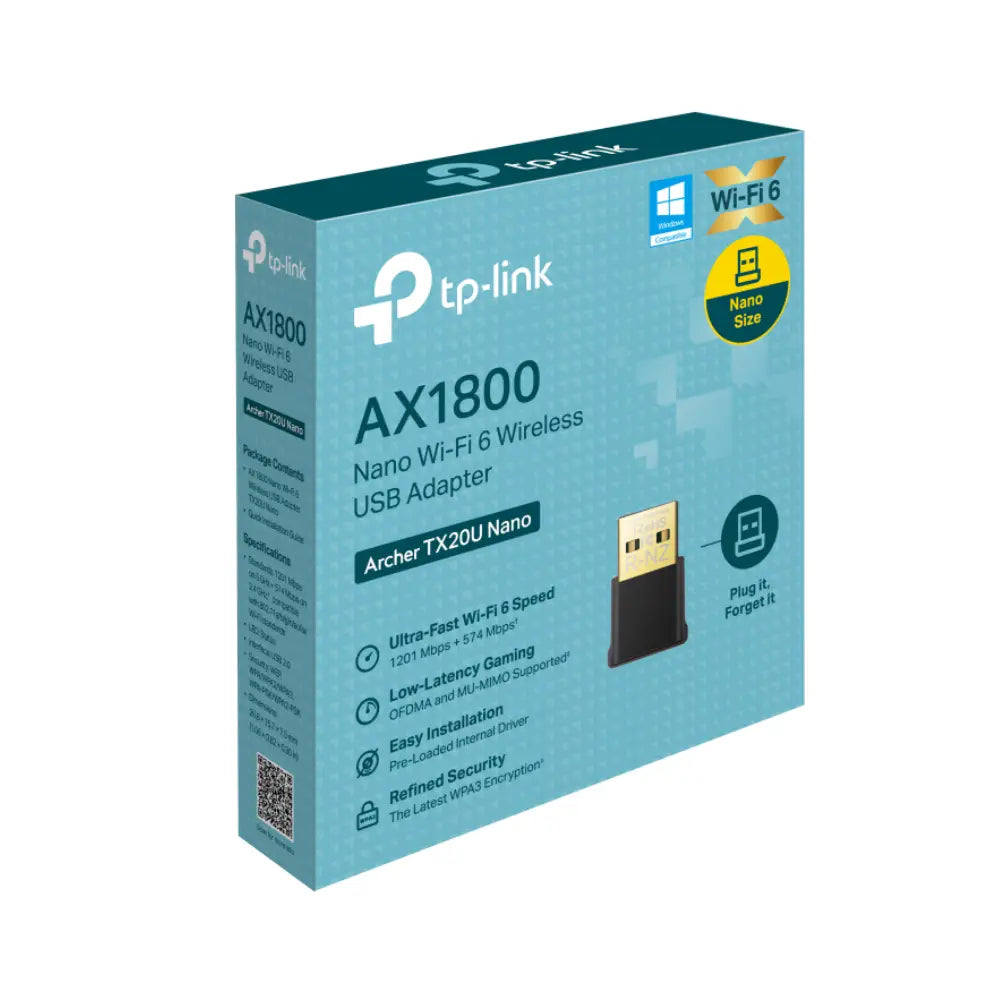

Archer TX20U Nano Adapter, Quick Installation Guide |
Downloads
Recommended Accessories & Products
-
TP-Link Archer TX20U — AX1800 Wi-Fi 6 USB adapter with external foldable antenna for better range when signal strength is a priority
-
TP-Link Archer T2UB Nano — AC600 nano USB adapter with Bluetooth 4.2 for travel or minimal setups requiring Bluetooth
-
TP-Link Archer TXE72E — AXE5400 Wi-Fi 6E PCIe adapter for desktop PCs requiring maximum wireless performance and 6GHz access
-
TP-Link Deco X55 — AX3000 Wi-Fi 6 mesh system to pair with for a complete Wi-Fi 6 home network
Frequently Asked Questions
What is the difference between the TX20U Nano and the TX20U?
Both adapters deliver AX1800 Wi-Fi 6 speeds via USB 3.0. The TX20U Nano has an internal antenna and a nano form factor that sits nearly flush with your USB port — ideal for permanent laptop use or tight spaces. The TX20U has an external foldable antenna that provides better signal reception, making it better suited for desktop PCs or environments with weaker Wi-Fi signal.
Does the TX20U Nano work on macOS?
The Archer TX20U Nano officially supports Windows 7 through Windows 11. macOS is not officially supported. Mac users should look for an adapter with confirmed macOS driver support.
Do I need a Wi-Fi 6 router to use the TX20U Nano?
No. The TX20U Nano is backward compatible with 802.11a/b/g/n/ac routers. However, to take full advantage of Wi-Fi 6 features such as OFDMA and improved throughput, you will need a Wi-Fi 6 router or access point.
Does the TX20U Nano include Bluetooth?
No. The Archer TX20U Nano is a Wi-Fi-only adapter. If you also need Bluetooth, consider the Archer T2UB Nano, which includes Bluetooth 4.2 in a similarly compact form factor.
Do I need to install drivers?
Yes. Drivers are required and can be downloaded from the TP-Link AU website. Installation is straightforward and typically takes only a few minutes.
Is the TX20U Nano safe to leave permanently plugged into a laptop?
Yes. The nano form factor is specifically designed for permanent use — it sits nearly flush with the USB port, reducing the risk of damage from accidental knocks compared to full-size adapters with protruding antennas.
