Description

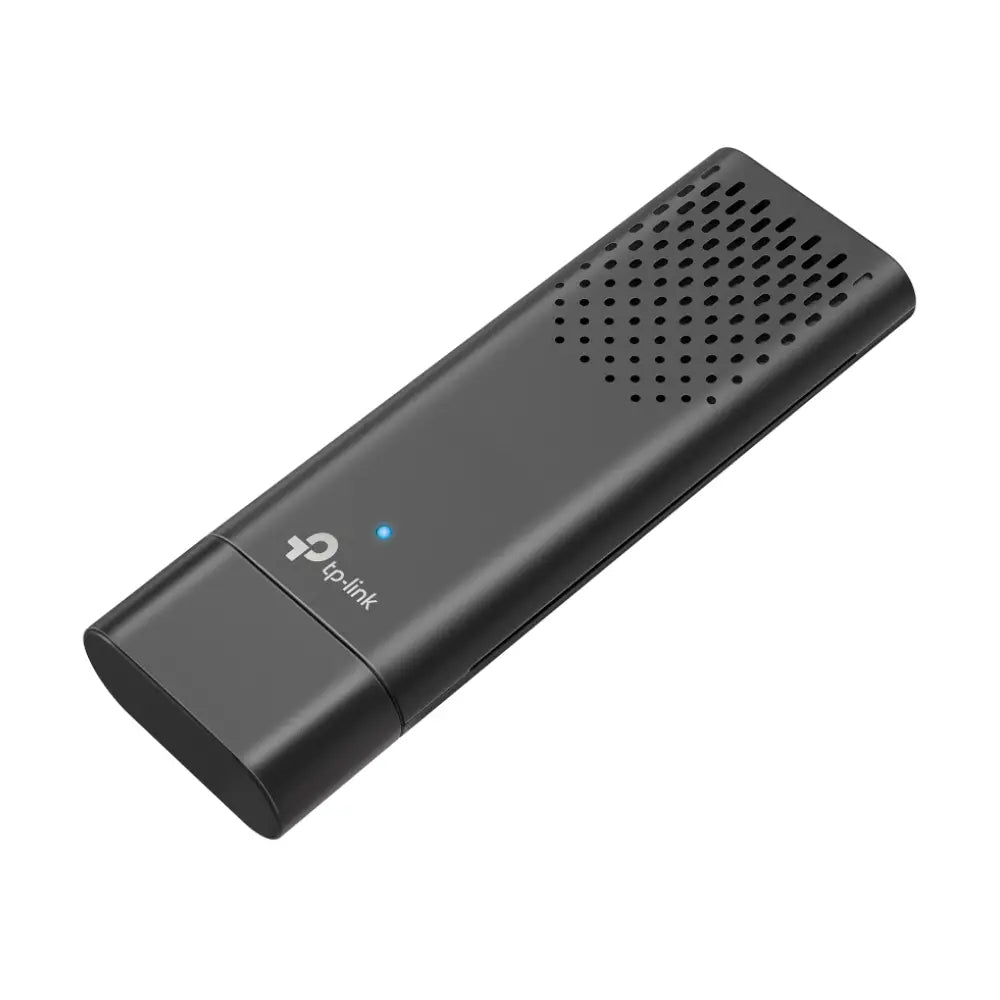

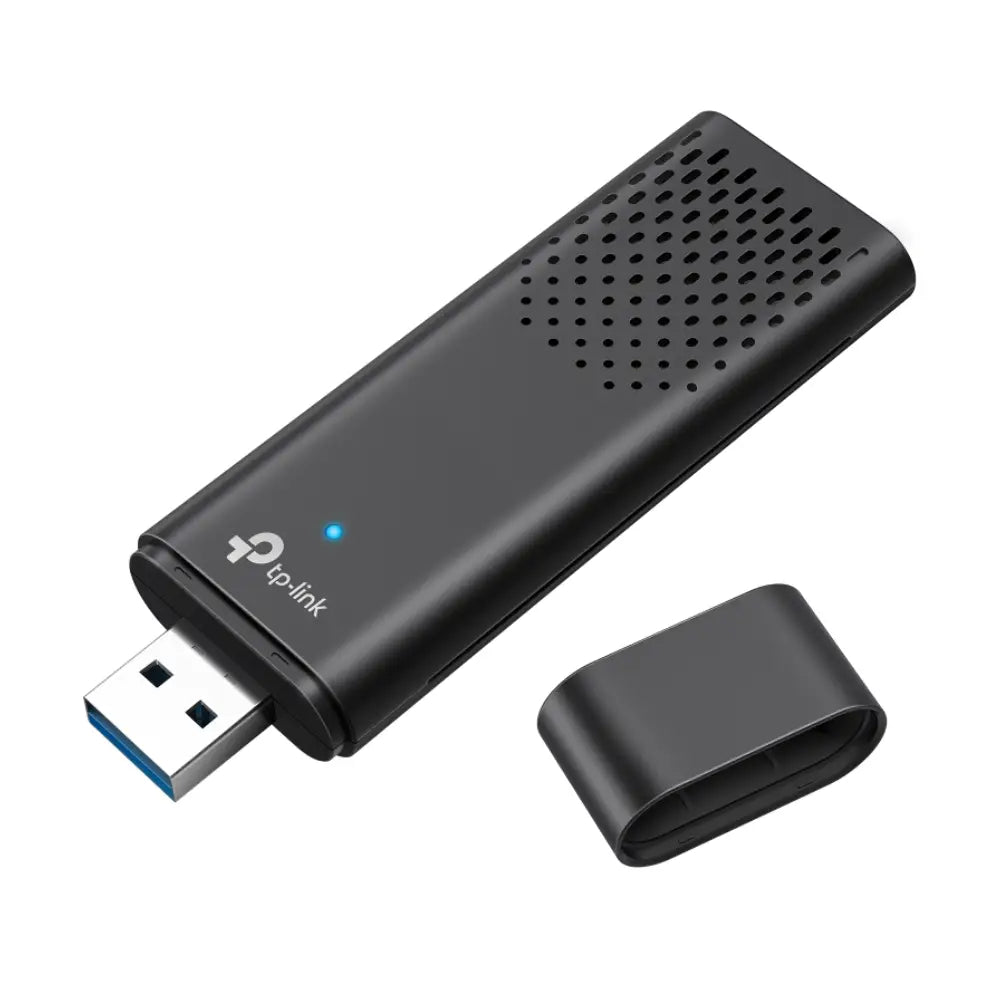

TP-Link Archer TX20U AX1800 Dual-Band USB Wi-Fi 6 Adapter
Bring Wi-Fi 6 to Your Desktop or Laptop via USB
The TP-Link Archer TX20U is a compact USB Wi-Fi 6 adapter that upgrades any desktop PC or laptop to the latest 802.11ax standard — no PCIe slot required. With AX1800 dual-band speeds, OFDMA, and MU-MIMO support, it delivers faster throughput and lower latency compared to older Wi-Fi 5 adapters, making it a straightforward and affordable way to get more from your Wi-Fi 6 router or mesh system.
Key Features
-
Wi-Fi 6 (AX1800) Dual-Band — Combined speeds up to 1800Mbps: 574Mbps on 2.4GHz and 1201Mbps on 5GHz.
-
OFDMA & MU-MIMO — More efficient use of available bandwidth, reducing latency and improving performance in busy Wi-Fi environments.
-
USB 3.0 Interface — High-speed USB 3.0 connection ensures the adapter is not a bottleneck for your wireless speeds.
-
Foldable External Antenna — Adjustable external antenna allows you to optimise signal reception based on your environment.
-
WPA3 Security — Supports the latest WPA3 wireless security standard for enhanced network protection.
-
Backward Compatible — Connects to 802.11a/b/g/n/ac networks, so it works with older routers while being ready for Wi-Fi 6.
-
Compact & Portable — Small form factor makes it easy to carry and use across multiple devices.
Use Cases
- Upgrading a desktop PC or laptop to Wi-Fi 6 without opening the case or using a PCIe slot
- Replacing a faulty or slow built-in Wi-Fi card on a laptop
- Connecting to a Wi-Fi 6 router or mesh system for improved throughput and lower latency
- Home office use requiring reliable wireless connectivity for video conferencing and cloud applications
- Students or renters needing a portable Wi-Fi upgrade that moves with them
Technical Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Wi-Fi Speeds |
AX1800: 574Mbps (2.4GHz) + 1201Mbps (5GHz) |
| Frequency Bands |
Dual-Band (2.4GHz & 5GHz) |
| Interface |
USB 3.0 |
| Antenna |
1× External Foldable Antenna |
| MU-MIMO |
Supported |
| OFDMA |
Supported (UL & DL) |
| Security |
WPA / WPA2 / WPA3, WEP |
| OS Compatibility |
Windows 11 / 10 / 8.1 / 7 |
| Dimensions |
80.7 × 26.8 × 12.8 mm |
| Weight |
18 g |
| Certifications |
CE, FCC, RoHS, RCM (Australia) |
| Package Contents |
Archer TX20U Adapter, USB 3.0 Extension Cable, Quick Installation Guide |
Downloads
Recommended Accessories & Products
-
TP-Link Archer TXE72E — AXE5400 Wi-Fi 6E PCIe adapter for desktop PCs requiring maximum wireless performance and 6GHz access
-
TP-Link Archer T2UB Nano — Ultra-compact AC600 USB adapter with Bluetooth 4.2 for travel or minimal setups
-
TP-Link Deco X55 — AX3000 Wi-Fi 6 mesh system to pair with for a complete Wi-Fi 6 home network
-
TP-Link Deco X80-5G — AX6000 5G mesh system for homes without fixed-line broadband
Frequently Asked Questions
Do I need a Wi-Fi 6 router to use the Archer TX20U?
No. The Archer TX20U is backward compatible with 802.11a/b/g/n/ac routers. However, to take full advantage of Wi-Fi 6 features such as OFDMA and improved throughput, you will need a Wi-Fi 6 router or access point.
Does the Archer TX20U work on macOS?
The Archer TX20U officially supports Windows 7 through Windows 11. macOS is not officially supported. Mac users should look for an adapter with confirmed macOS driver support.
Is a USB extension cable included?
Yes. A USB 3.0 extension cable is included in the box, allowing you to position the adapter away from your PC for better signal reception if needed.
What is the difference between the TX20U and the T2UB Nano?
The Archer TX20U supports Wi-Fi 6 (AX1800) with a faster 5GHz speed of 1201Mbps and includes an external antenna for better range. The T2UB Nano is an AC600 Wi-Fi 5 adapter with a nano form factor and integrated Bluetooth 4.2, better suited for travel or minimal setups where size is the priority.
Does the TX20U include Bluetooth?
No. The Archer TX20U is a Wi-Fi-only adapter. If you also need Bluetooth, consider the Archer T2UB Nano (Bluetooth 4.2) or the Archer TXE72E PCIe adapter (Bluetooth 5.2).
Do I need to install drivers?
Yes. Drivers are required and can be downloaded from the TP-Link AU website. Installation is straightforward and typically takes only a few minutes.
