Description

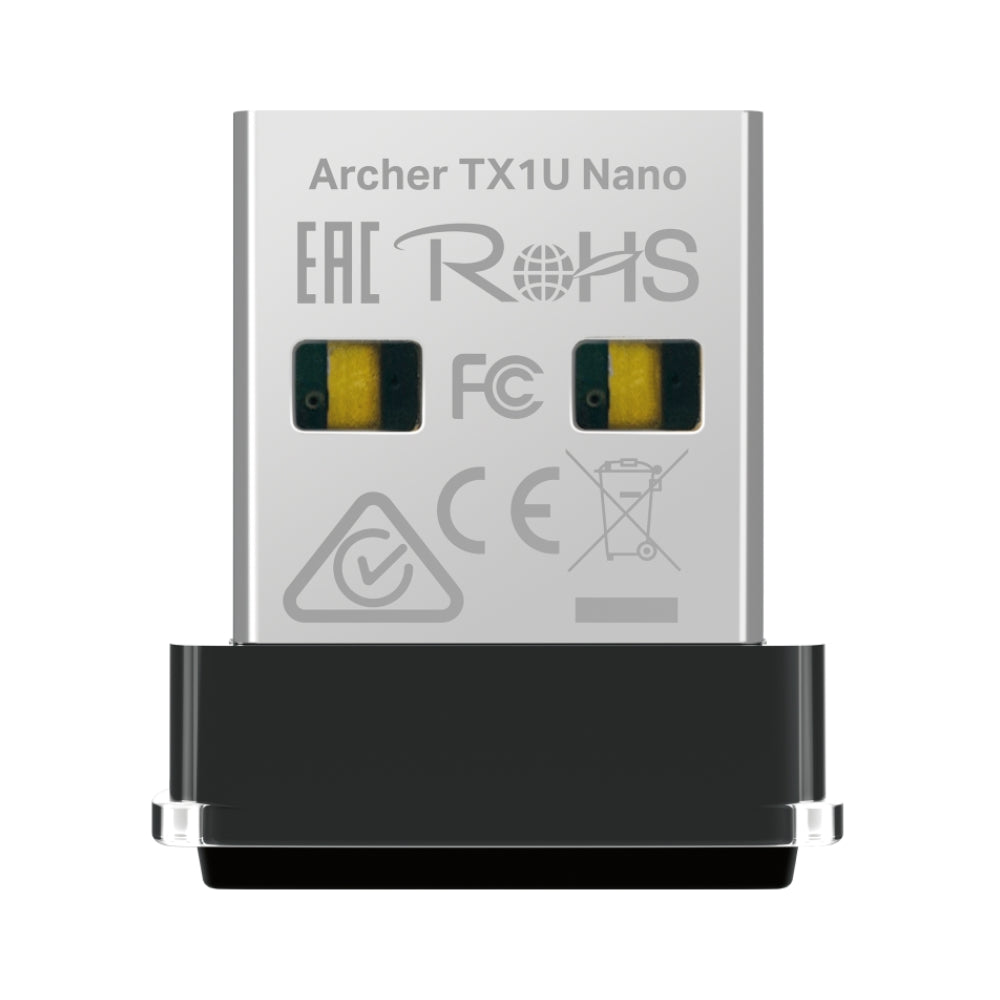

TP-Link Archer TX1U Nano AX650 Wi-Fi 6 Nano USB Adapter
The Smallest Way to Upgrade to Wi-Fi 6
The TP-Link Archer TX1U Nano is an ultra-compact AX650 Wi-Fi 6 USB adapter that adds Wi-Fi 6 connectivity to any desktop or laptop via a standard USB-A port. Its nano form factor sits nearly flush with the port, making it ideal for permanent installation on desktop PCs or discreet use on laptops where a protruding adapter would be at risk of damage.
Description
Wi-Fi 6 (802.11ax) delivers improved throughput, lower latency, and better performance in congested wireless environments compared to Wi-Fi 5. The Archer TX1U Nano brings these benefits to any USB-equipped device without requiring a PCIe slot or opening the case.
Operating on both 2.4 GHz and 5 GHz bands with combined speeds of up to 650 Mbps, the TX1U Nano is well suited to everyday tasks including web browsing, video streaming, video conferencing, and cloud access. OFDMA support improves efficiency in multi-device households and offices, reducing congestion when many devices are connected to the same Wi-Fi 6 router.
The adapter is backward compatible with Wi-Fi 5, 4, and earlier routers and access points. Driver installation is required on Windows; the adapter is not officially supported on macOS.
Key Features
-
Wi-Fi 6 (802.11ax) — Latest wireless standard for improved speed and efficiency
-
AX650 Dual-Band — 2.4 GHz 200 Mbps + 5 GHz 433 Mbps combined speeds
-
Nano Form Factor — Ultra-compact design sits nearly flush with the USB port
-
USB-A Interface — Compatible with any standard USB-A 2.0 or 3.0 port
-
OFDMA — Improved efficiency in multi-device Wi-Fi 6 environments
-
WPA3 Security — Latest wireless encryption standard
-
Backward Compatible — Works with Wi-Fi 4 and Wi-Fi 5 routers and access points
-
Low-Profile Design — Minimal protrusion reduces risk of accidental damage
Use Cases
- Upgrading a desktop PC to Wi-Fi 6 without opening the case or using a PCIe slot
- Adding Wi-Fi 6 to an older laptop for improved performance on a Wi-Fi 6 network
- Permanent low-profile installation on desktop PCs where a standard adapter would protrude
- Travel use where a compact adapter is needed without the risk of breakage
- Home offices upgrading to Wi-Fi 6 for improved video conferencing and cloud performance
Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Wi-Fi Speed |
AX650: 2.4 GHz 200 Mbps + 5 GHz 433 Mbps |
| Bands |
Dual-Band (2.4 GHz / 5 GHz) |
| Interface |
USB-A (USB 2.0 / 3.0 compatible) |
| OFDMA |
Yes |
| Security |
WPA3, WPA2 |
| OS Compatibility |
Windows 11/10/8.1/8/7 |
| Form Factor |
Nano (low-profile, near-flush with USB port) |
| Dimensions |
18.0 × 15.0 × 6.9 mm |
| Operating Temperature |
0°C – 40°C |
| Certifications |
RCM (Australia/NZ) |
| Package Contents |
1× Archer TX1U Nano adapter, quick installation guide |
Recommended Accessories
-
TP-Link Archer TX10E (PCIe) — Internal PCIe Wi-Fi 6 adapter with Bluetooth 5.2 for desktops where a permanent internal solution is preferred
-
TP-Link Archer TXE70U — Tri-band Wi-Fi 6E USB adapter with 6 GHz support for higher performance requirements
-
USB-A Extension Cable — Reposition the nano adapter for improved signal if the USB port is located behind the PC case
Downloads
Frequently Asked Questions
- Do I need a Wi-Fi 6 router to benefit from the Archer TX1U Nano?
- A Wi-Fi 6 router is required to access Wi-Fi 6 features such as OFDMA and improved multi-device efficiency. The adapter is backward compatible with Wi-Fi 5 and Wi-Fi 4 routers, but Wi-Fi 6 performance improvements are only available when connected to a Wi-Fi 6 access point.
- Is the Archer TX1U Nano compatible with macOS?
- The Archer TX1U Nano officially supports Windows 7 through Windows 11 only. macOS compatibility is not guaranteed and is not supported by TP-Link. For macOS users, a USB-C adapter or a router with native macOS driver support may be a better option.

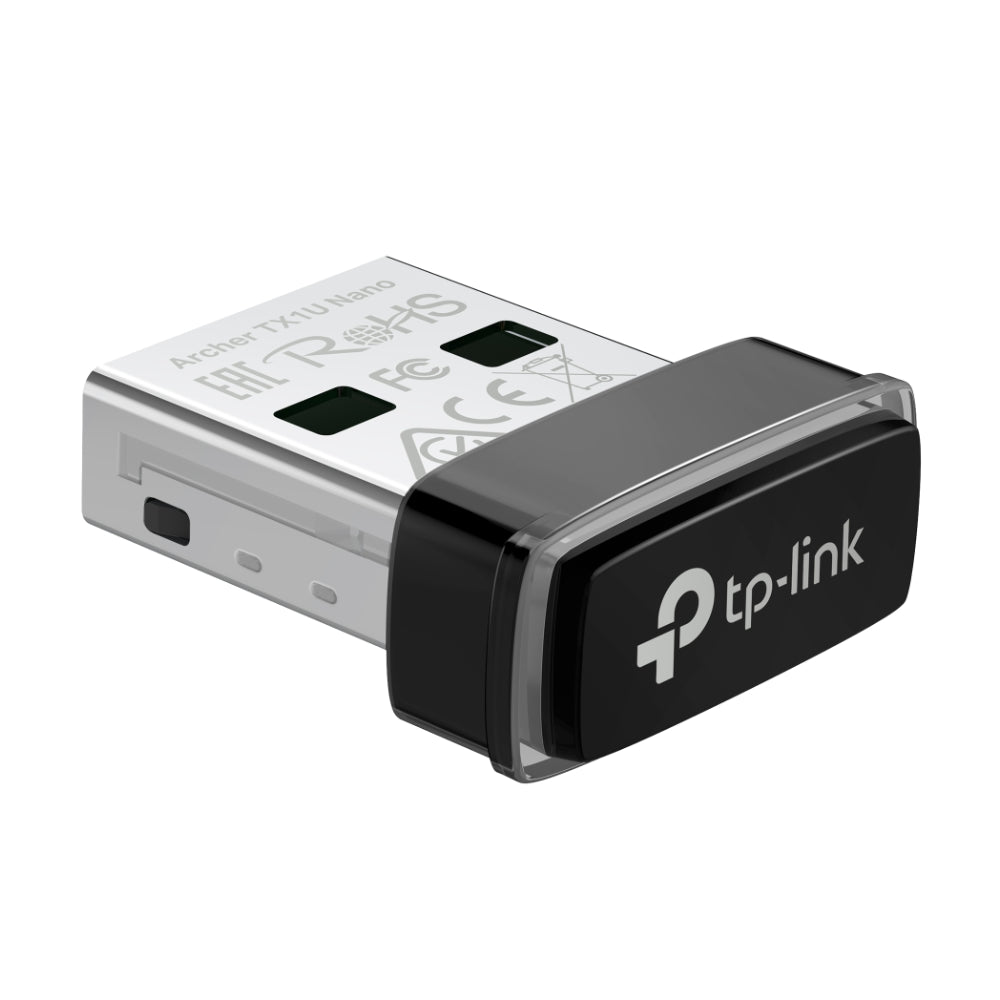

- How does the nano form factor compare to a standard USB adapter?
- The TX1U Nano measures just 18 × 15 × 6.9 mm and protrudes only a few millimetres from the USB port when inserted. This makes it significantly less likely to be knocked or broken compared to a full-size USB adapter, and it is suitable for permanent installation on desktop PCs or use in tight spaces such as laptop bags and car USB ports.
- Will the TX1U Nano work in a USB 2.0 port?
- Yes. The Archer TX1U Nano is compatible with both USB 2.0 and USB 3.0 ports. The AX650 combined speed of 650 Mbps is within the USB 2.0 bandwidth ceiling of 480 Mbps on the 5 GHz band, so a USB 3.0 port is recommended for maximum 5 GHz throughput.
- Does the TX1U Nano support MU-MIMO?
- The Archer TX1U Nano supports OFDMA for improved efficiency in multi-device environments. Check the latest TP-Link AU spec page to confirm MU-MIMO support status for this model, as this varies between AX650-class adapters.
